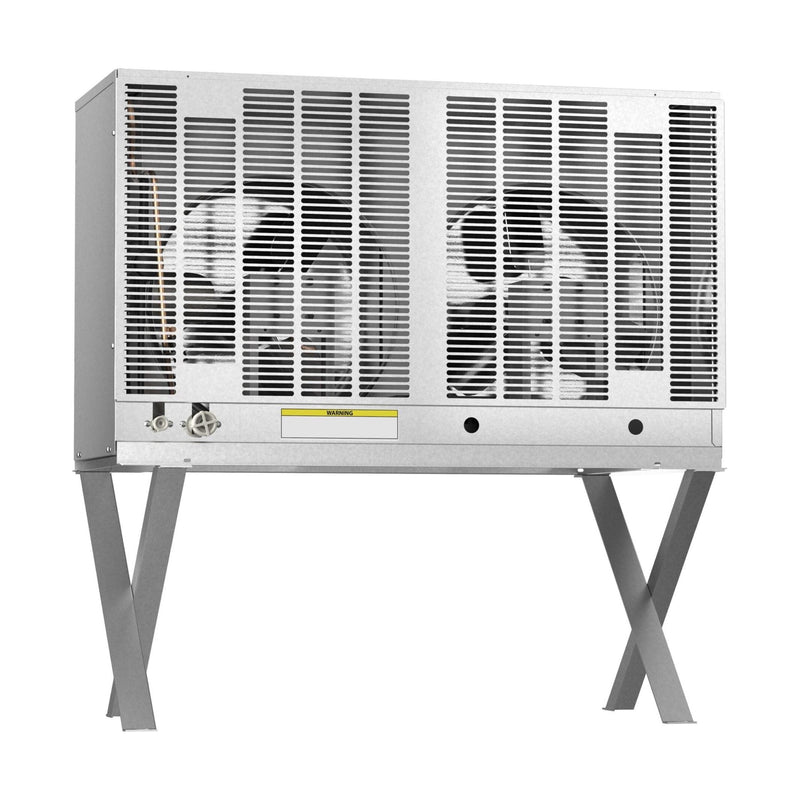

Hoshizaki URC-14FZ Remote Condenser – Mid-Capacity, Outdoor Rated Cooling for KM Series Ice Makers
by Hoshizaki
$1,460.00
Overview
The Hoshizaki URC-14FZ is a mid-capacity remote condenser designed to pair with KM Series ice makers, including KM-901MRJZ(3), KM-1100MRJZ, KM-1301SRJZ(3), KM-1340MRJZ(3), and F-1501MRJZ(-C). Built for outdoor installation, this unit helps reduce indoor heat and noise while delivering reliable and efficient cooling performance.
Key Features
- Compatible with select KM and F Series ice makers
- Remote air-cooled design reduces indoor heat and noise
- Weather-resistant stainless steel cabinet for outdoor use
- Quiet operation with improved energy efficiency
- Supports installations up to 55 ft. from ice maker
- Uses R-404A refrigerant
- UL Listed and ENERGY STAR® Partner
Construction & Durability
- Cabinet Material: Stainless steel, weather-resistant
- Dimensions: 35 11/16" W x 14 1/16" D x 36 1/2" H (including legs)
- Shipping Weight: 100 lbs.
- Design Pressure: HI-467 PSI / LO-230 PSI
- Refrigerant Charge: 15 lb. 14 oz. of R-404A
Mobility & Installation
- Electrical Requirements: 115V/60Hz/1Ph
- Voltage Range: 104–127V
- Ambient Temp Range: –20°F to 122°F
- Line Set Compatibility: HS-5604 (25'), HS-5605 (35'), HS-5606 (55') – brazing required
- Max Line Set Length: 55 ft. (longer installations require factory consultation)
- Vertical Distance Limits: Up to 33 ft. above or 10 ft. below ice maker
- Clearance Requirements: 24" front and rear for airflow and service access
- Installation Notes: Must be hard-wired; power cord not included
Certifications & Warranty
- Certifications: UL Listed, ENERGY STAR® Partner, Made in Georgia, USA
-
Warranty Coverage:
- 3 Years Parts & Labor on entire unit
- 5 Years Parts on air-cooled condenser coil
- Valid in: United States, Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Line Sets (Brazed):
- HS-5604 (25 ft.)
- HS-5605 (35 ft.)
- HS-5606 (55 ft.)
- Tubing Kits: Refer to specifications table for correct kit based on ice maker model
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration and ice-making solutions. The URC-14FZ remote condenser exemplifies Hoshizaki’s commitment to innovation, energy efficiency, and durability. With a robust warranty, ENERGY STAR® certification, and quiet operation, Hoshizaki products deliver performance that goes Beyond Strong.
Documentation
Spec Sheet
Parts Manual
Product Brochure
