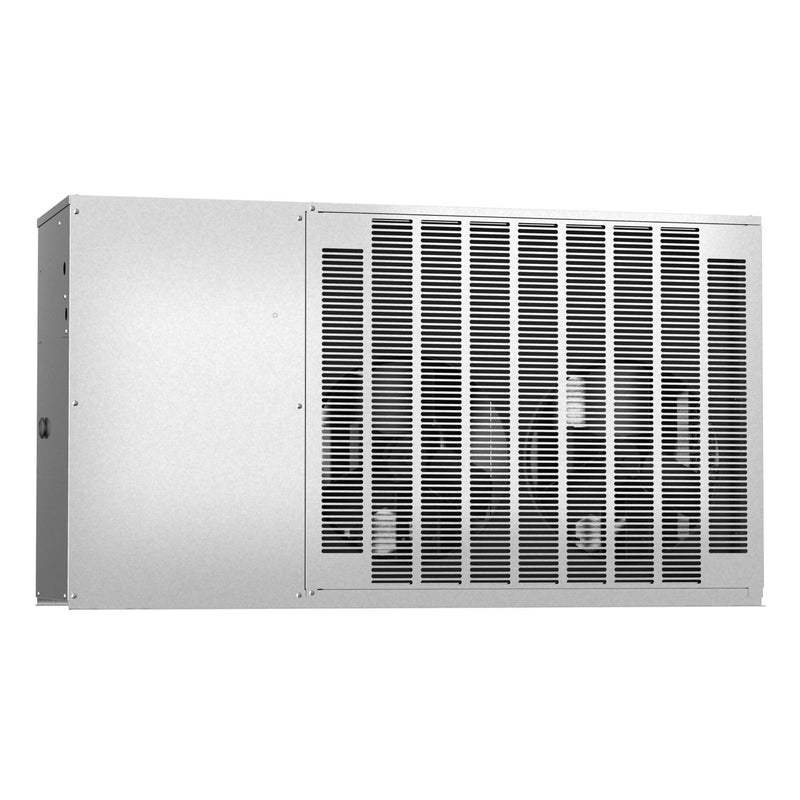

Hoshizaki SRK-12J3 Remote Condenser – 3-Phase, Outdoor Rated, for KMS-1122MLJ Ice Maker
Overview
The Hoshizaki SRK-12J3 is a high-performance remote condenser designed to pair with the KMS-1122MLJ modular crescent cuber. Engineered for quiet operation and energy efficiency, this outdoor-rated unit helps reduce heat and noise in indoor environments while supporting high-volume ice production. Ideal for commercial kitchens, healthcare, and hospitality settings, the SRK-12J3 ensures reliable performance and long-term durability.
Key Features
- Compatible with KMS-1122MLJ Serenity Series ice maker
- Remote air-cooled design for reduced indoor heat and noise
- Weather-resistant cabinet for outdoor installation
- Quiet operation with improved energy efficiency
- Supports installations up to 55 ft. from ice maker
- Uses environmentally friendly R-404A refrigerant
- Not recommended for side-by-side applications
Construction & Durability
- Exterior: Stainless steel weather-resistant housing
- Dimensions: 52.375" W x 19.5" D x 43" H (including legs)
- Weight: 275 lbs. shipping
- Design Pressure: HI-467 PSI / LO-230 PSI
- Refrigerant Charge: 15 lb. 14 oz. of R-404A
Mobility & Installation
- Electrical: 208–230V/60Hz/3Ph
- Voltage Range: 187–253V
- Ambient Temp Range: –20°F to 122°F
- Line Set Compatibility: HS-0250 (25'), HS-0251 (35'), HS-0252 (55') – brazing required
- Max Line Set Length: 55 ft. (longer installations require factory consultation)
- Vertical Distance Limits: Up to 33 ft. above or 10 ft. below ice maker
- Clearance Requirements: 24" front and rear for airflow and service access
- Installation: Must be hard-wired; power cord not included
Certifications & Warranty
- Certifications: UL Listed, ENERGY STAR® Partner, Made in Georgia, USA
-
Warranty Coverage:
- 3 Years Parts & Labor on entire unit
- 5 Years Parts on air-cooled condenser coil
- 5 Years Parts on SRK compressor
- Valid in: United States, Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Line Sets (Brazed):
- HS-0250 (25 ft.)
- HS-0251 (35 ft.)
- HS-0252 (55 ft.)
- Tubing Kits: Refer to specifications table for correct kit based on ice maker model
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration and ice-making solutions. The SRK-12J3 remote condenser is part of Hoshizaki’s commitment to innovation, energy efficiency, and durability. With a robust warranty, ENERGY STAR® certification, and quiet operation, Hoshizaki products deliver performance that goes Beyond Strong.
