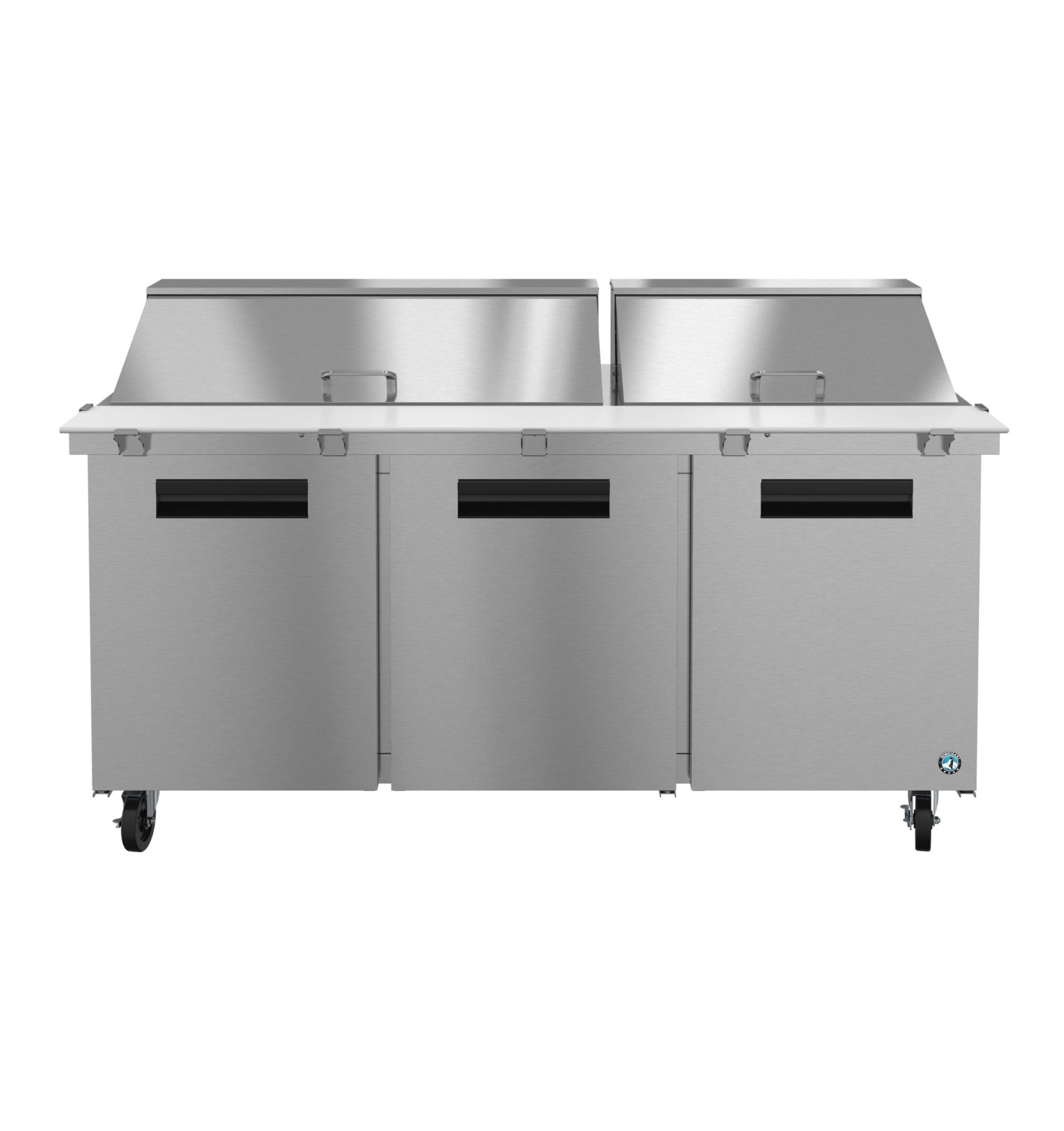

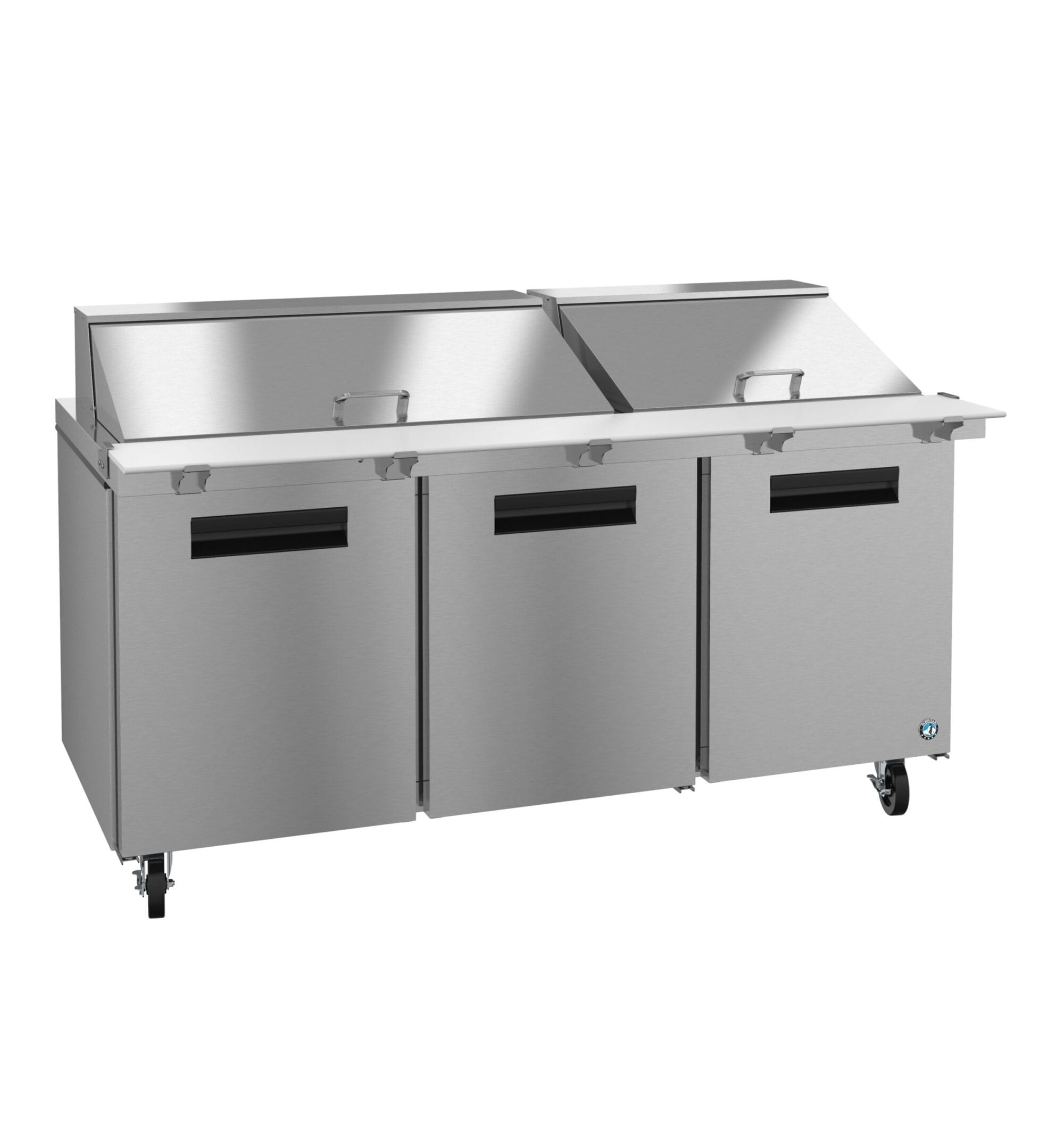

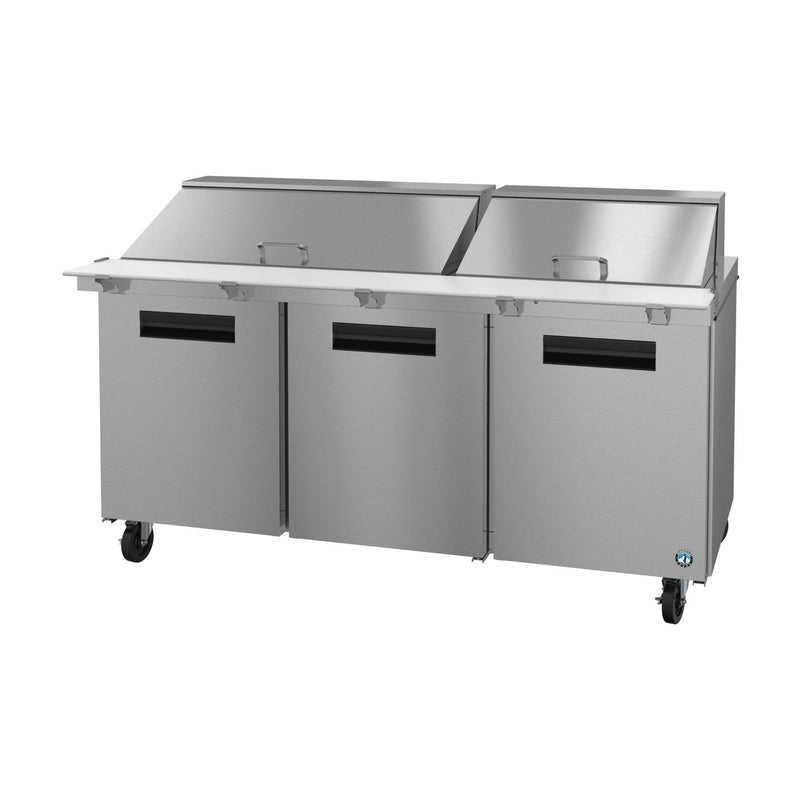

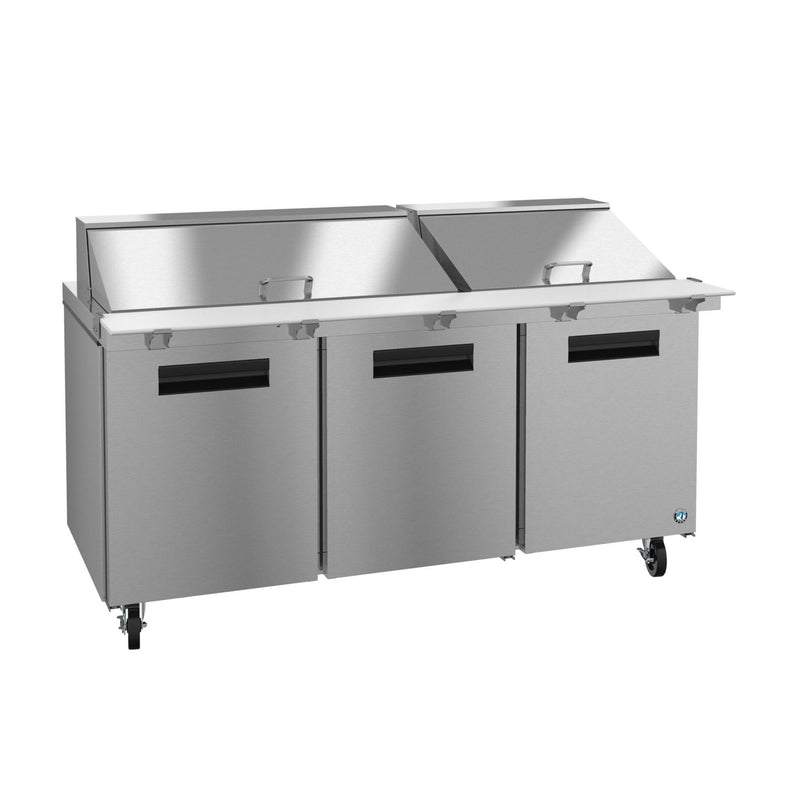

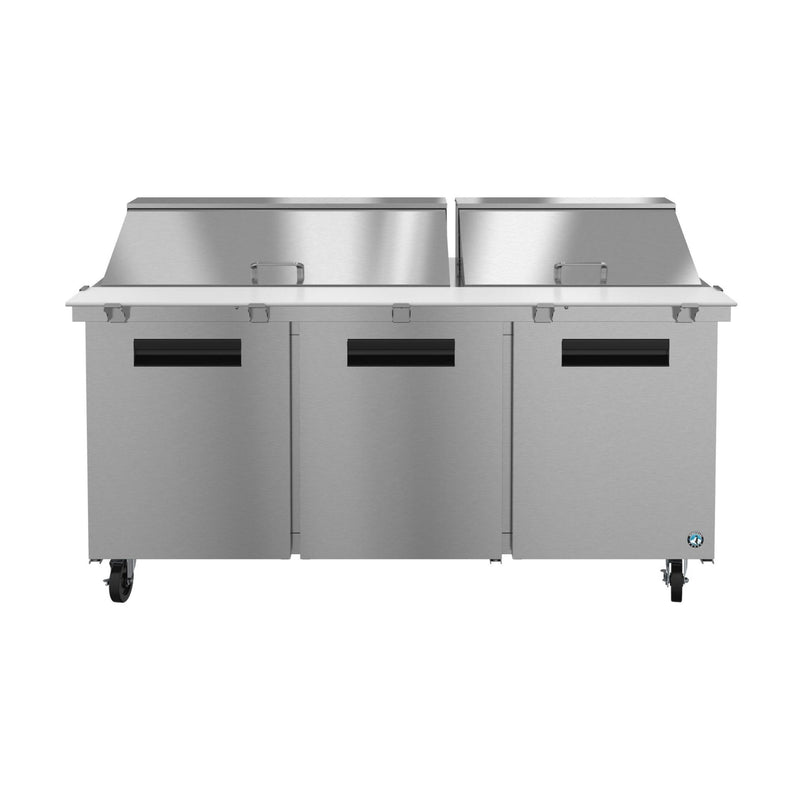

Hoshizaki SR72B-30M Mega Top Prep Refrigerator – 72" Three-Section, 30 Pan Capacity
Overview
The Hoshizaki SR72B-30M is a high-capacity, energy-efficient mega top prep refrigerator designed for commercial kitchens that demand performance and reliability. With space for 30 pans and a full-length cutting board, this unit is ideal for sandwich, salad, and pizza prep stations. Engineered to maintain NSF-7 temperatures in ambient conditions up to 100°F, it ensures consistent cooling and food safety.
Key Features
- Mega Top Configuration: Includes 30 NSF-approved 1/6-size pans (4" deep) and stainless steel adapter bars. Supports 6" deep pans for increased volume.
- Cutting Board: 72" x 10" x ½" thick white polyethylene cutting board included.
- Air Distribution System: Innovative airflow design ensures even cooling across all pans.
- Doors: Three spring-assisted, self-closing doors with stay-open feature past 90°.
- Field-Reversible Doors: Easily adaptable to your kitchen layout.
- Temperature Control: Adjustable dial with default setting at 34°F (1°C).
- Energy Efficient: Uses R290 refrigerant and consumes only 4.77 kWh/day.
Construction & Durability
- Exterior: Stainless steel front, sides, and top.
- Interior: Stainless steel sides, back, and floor with ABS ceiling.
- Insulation: 2" CFC-free foamed-in-place polyurethane.
- Shelving: Three heavy-duty epoxy-coated shelves (one per section), adjustable in ½" increments.
- Doors: High-grade stainless steel exterior with ABS interior liner and magnetic gaskets.
- Casters: 6" polyolefin stem casters standard (two with brakes).
Mobility & Installation
- Dimensions: 72" W x 34" D x 44.25" H (with casters)
- Electrical: 115V/60Hz/1-phase, 15.0 amps, NEMA 5-15P plug
- Cord Length: 10 ft.
- Ambient Range: Operates efficiently from 45°F to 100°F
- Shipping Weight: Approx. 449 lbs.
- Crated Dimensions: 73.75" x 36" x 46.5"
Certifications & Warranty
- Certifications: NSF/ANSI Standard 7, UL Listed
-
Warranty:
- 7-Year Parts & Labor
- 7-Year Compressor Warranty
- Refrigerant: R290 Hydrocarbon (2.6 oz)
- Energy Consumption: 4.77 kWh/day @ NSF
Optional Accessories
- Stainless steel back
- Stainless steel lift-off covers
- Overshelves
- Additional epoxy or stainless steel shelves
- Composite cutting board (HS-5267)
- Drawer divider bars
- Rail adapter bars
- 2.25" or 4" casters
- Foot pedals (left: HS-5555, right: HS-5556)
Why Choose Hoshizaki?
Hoshizaki is a globally trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The SR72B-30M is built to perform in high-volume environments, offering flexible storage, ergonomic design, and advanced cooling technology. With a robust warranty and NSF-certified performance, it’s a reliable solution for any foodservice operation.
