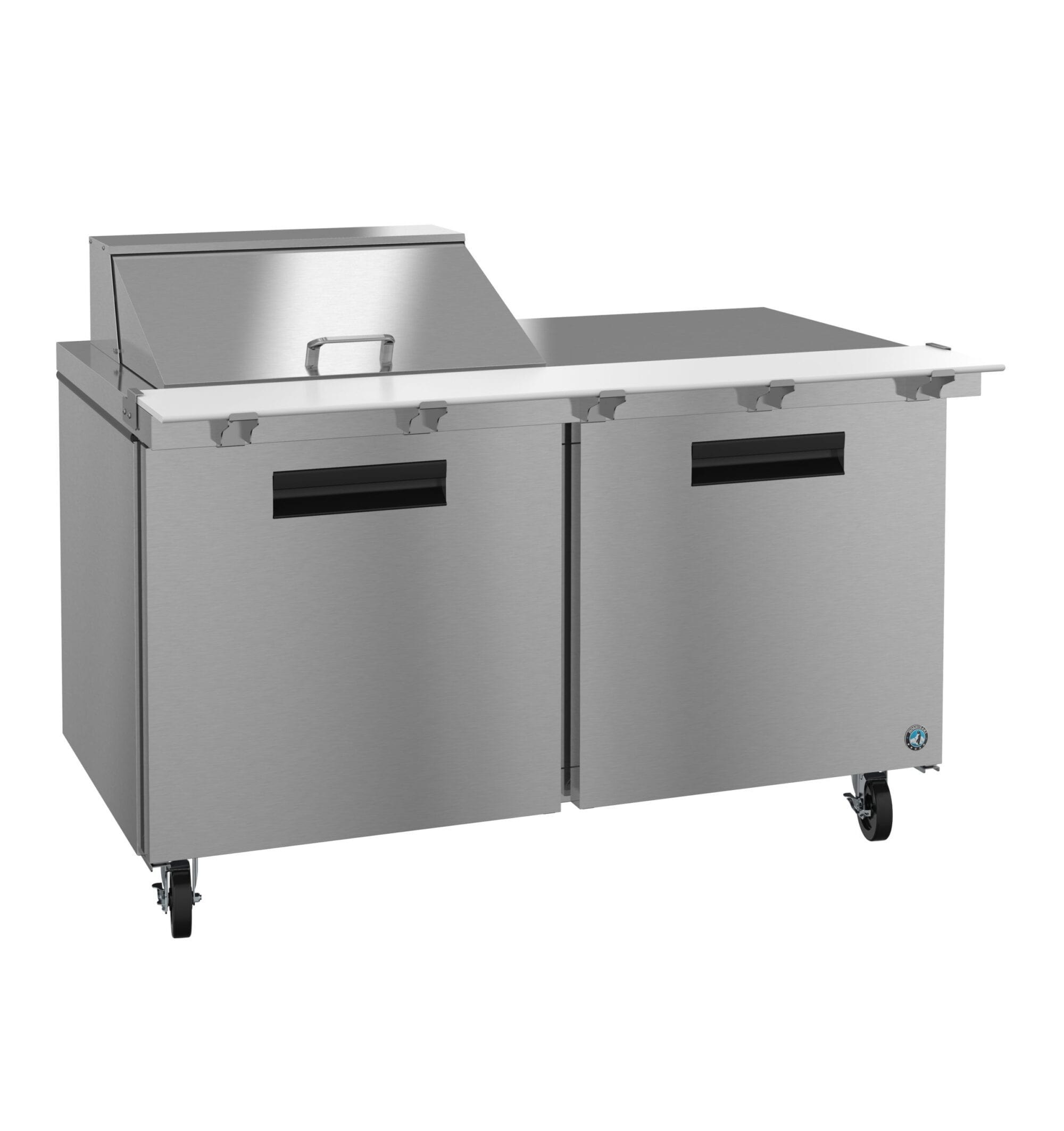

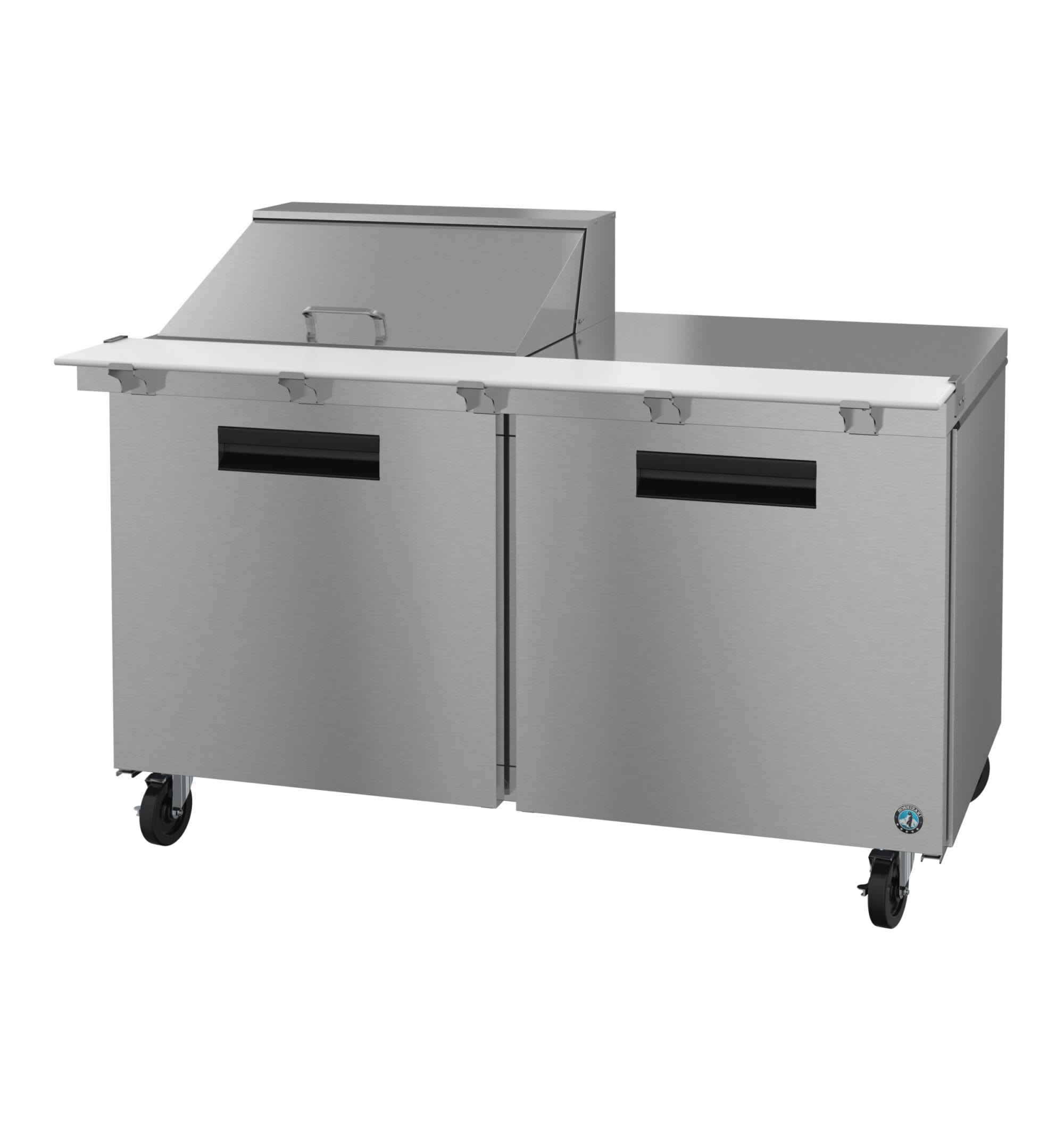

Hoshizaki SR60B-12M Mega Top Prep Refrigerator – 60" Two-Section with Door
Overview
The Hoshizaki SR60B-12M is a high-capacity, energy-efficient mega top prep refrigerator designed for demanding commercial kitchens. With a 60" width and space for up to 12 1/6-size pans, this unit is ideal for sandwich, salad, and pizza prep stations. Its front-breathing design allows for flexible installation, even in tight spaces.
Key Features
- Mega Top Configuration: Includes 12 NSF-approved 1/6-size pans (4" deep) with stainless steel adapter bars; supports 6" deep pans for increased volume.
- Cutting Board: 60" x 10" x ½" thick white polyethylene cutting board included.
- Air Distribution System: Innovative system ensures even cooling across all pans.
- Self-Closing Doors: Spring-assisted with stay-open feature past 90°.
- Field-Reversible Doors: Easily switch door swing direction to fit your kitchen layout.
- Temperature Control: Adjustable dial with default setting at 34°F (1°C).
- Energy Efficient: Uses environmentally friendly R290 refrigerant and consumes only 4.05 kWh/day.
Construction & Durability
- Exterior: Stainless steel front, sides, and top.
- Interior: Stainless steel sides, back, and floor with ABS ceiling.
- Insulation: 2" CFC-free foamed-in-place polyurethane.
- Doors: Stepped design protects gasket; magnetic gasket is removable for cleaning.
- Shelving: Two epoxy-coated adjustable shelves (one per section).
- Casters: 6" polyolefin stem casters standard (two with brakes).
Mobility & Installation
- Dimensions: 60" W x 34" D x 44.25" H (with casters)
- Electrical: 115V/60Hz/1-phase, 15.0 amps, NEMA 5-15P plug
- Cord Length: 10 ft.
- Ambient Range: Operates efficiently from 45°F to 100°F
- Shipping Weight: 346 lbs.
- Crated Dimensions: 61.75" x 36" x 46.5"
Certifications & Warranty
- Certifications: NSF/ANSI Standard 7, UL Listed
-
Warranty:
- 7-Year Parts & Labor
- 7-Year Compressor Warranty
- Refrigerant: R290 Hydrocarbon (2.5 oz)
- Energy Consumption: 4.05 kWh/day @ NSF
Optional Accessories
- Stainless steel back
- Stainless steel lift-up covers
- Additional epoxy or stainless steel shelves
- Composite cutting board (HS-5267)
- Foot pedals (HS-5555 left hinge, HS-5556 right hinge)
- Rail adapter bars
- 2.25" or 4" casters
- Overshelves
- Drawer divider bars
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The SR60B-12M is engineered to maintain NSF-7 temperatures even in 100°F ambient conditions, making it a reliable choice for high-volume foodservice operations. With its durable construction, ergonomic design, and advanced cooling system, this prep table delivers performance you can count on.
