verview

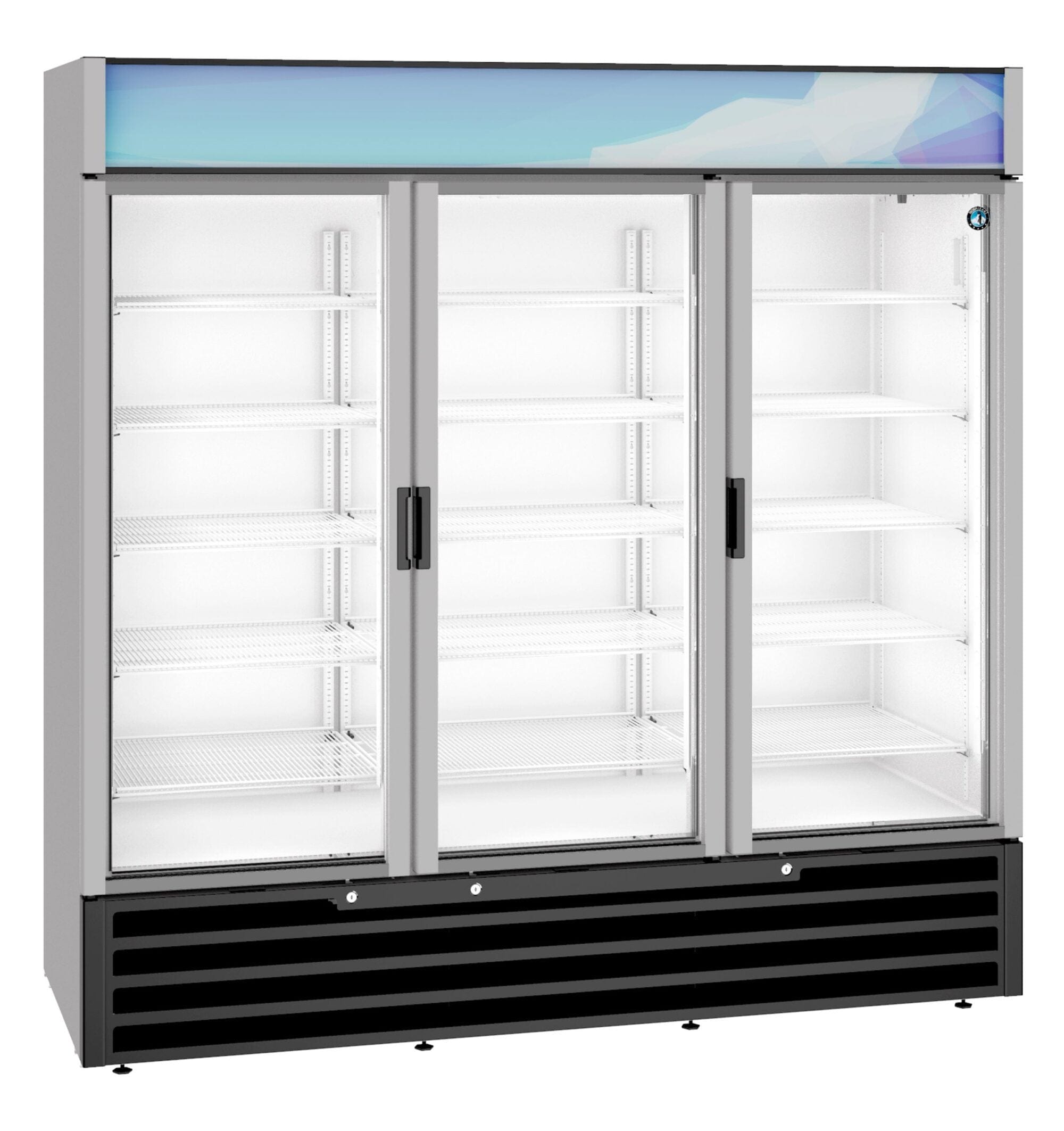

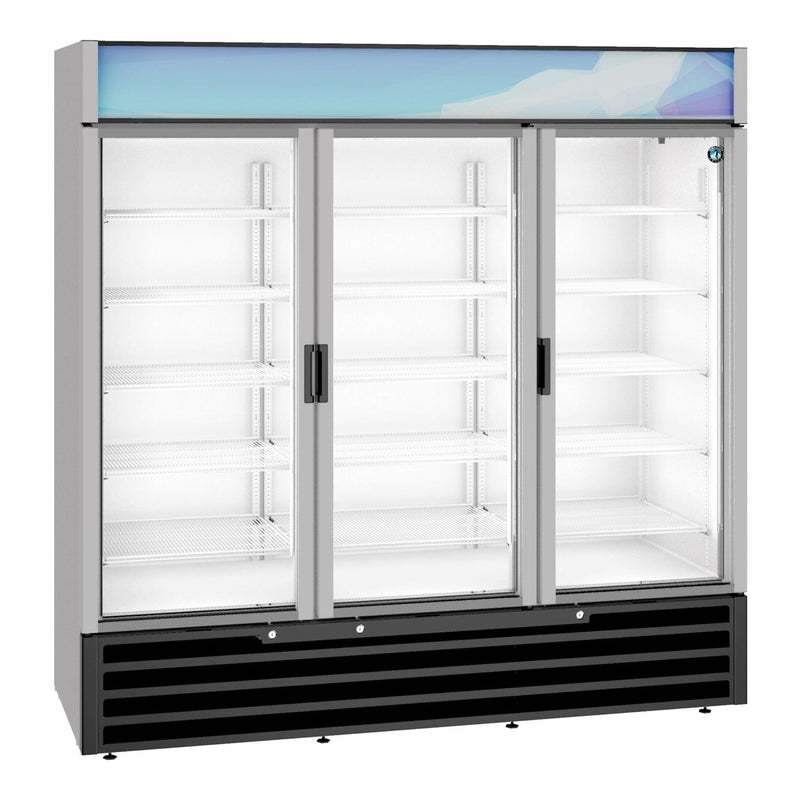

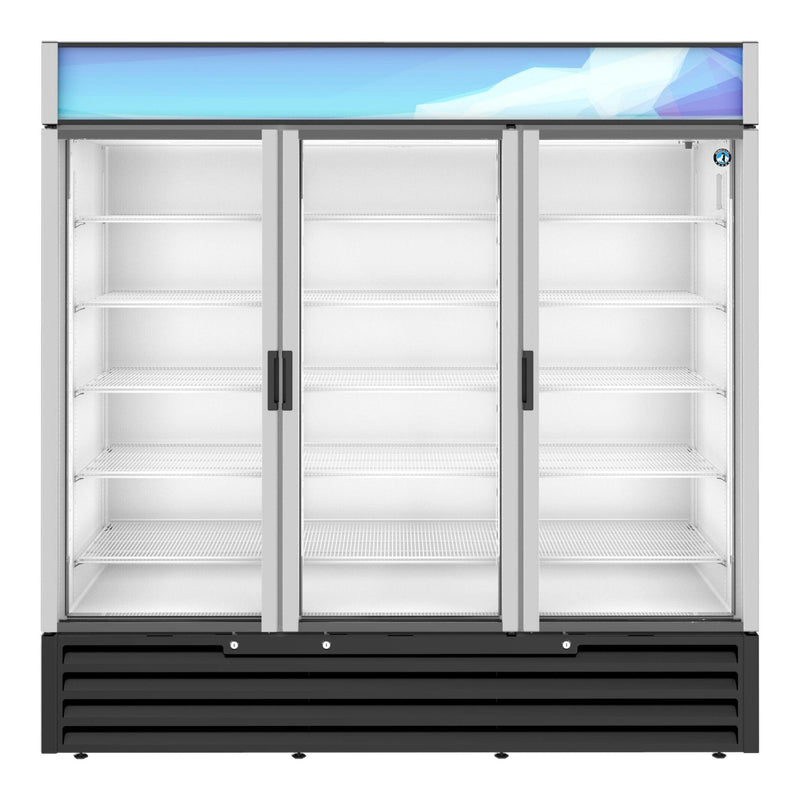

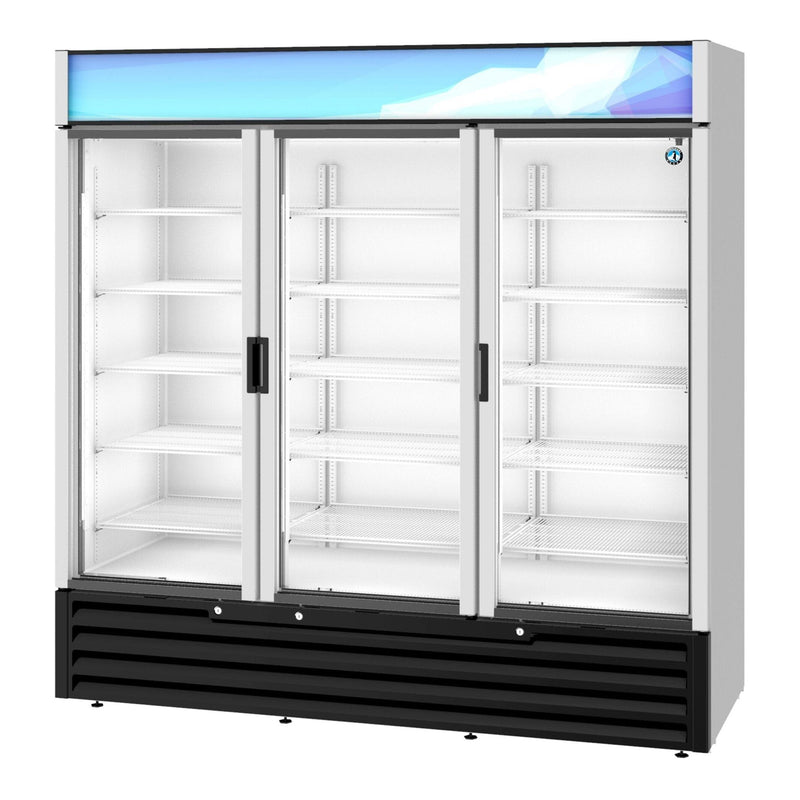

The Hoshizaki RM-65-HC is a premium three-section glass door merchandiser designed for high-volume beverage and product display. With energy-efficient LED lighting, robust construction, and advanced temperature control, this unit is ideal for supermarkets, convenience stores, and foodservice operations requiring maximum visibility and reliable performance.
Key Features
- 56.04 cu. ft. interior capacity
- Three swing doors with Low-E double-pane glass and locks
- LED-illuminated exterior canopy and vertical interior lighting
- Forced-air evaporator for rapid temperature pull-down
- Electronic control with Bluetooth Smart® capability
- Adjustable temperature range: 28°F to 40°F
- Time-initiated automatic defrost
- NSF/ANSI Standard 7 certified for packaged/bottled product display
Construction & Durability
-
Exterior Finish: Silver, black, or white painted aluminum
-
Interior: NSF-approved white steel with stainless steel floor
-
Dimensions: 78" W x 29.75" D x 78" H
-
Shipping Weight: 800 lbs.
-
Shelving: 5 white epoxy-coated shelves per section (15 total) with product stops
-
Shelf Dimensions:
- Center: 27.3" W x 21.7" D
- Left & Right: 22.4" W x 21.7" D
-
Insulation: CFC-free polyurethane with cyclopentane blowing agent
-
Leveling Legs: 2" adjustable
Mobility & Installation
-
Electrical Requirements: 115V/60Hz/1Ph
-
Plug Type: NEMA 5-15P (8 ft. cord included)
-
Amperage: 8.2 Amps
-
Energy Consumption: 5.67 kWh/day (ASHRAE)
-
Compressor: Dual 1/3 HP (Left & Right), 1217 BTU/hr each
-
Refrigerant: R290 (natural, 4.10 oz. per side)
-
Ambient Temp Range: 60°F to 86°F
-
Installation Notes:
- Indoor use only
- Requires 8" clearance behind unit for airflow
- Must be leveled for proper drainage and door operation
Certifications & Warranty
-
Certifications: UL Listed, NSF/ANSI 7, ENERGY STAR® Partner
-
Warranty Coverage:
- 3 Years Parts & Labor on entire unit
- 5 Years Parts on compressor
-
Valid in: United States, Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Organizer Shelf
- Price Tag Holder
- Epoxy Shelf
-
4" Casters: HS-5288 (requires 2 sets)
-
Custom Graphics: Header signage area available (see spec sheet for dimensions)
Why Choose Hoshizaki?
Hoshizaki is a trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The RM-65-HC merchandiser offers unmatched capacity, sleek design, and dependable performance. With ENERGY STAR® certification and a robust warranty, this unit delivers value that goes Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
