Overview

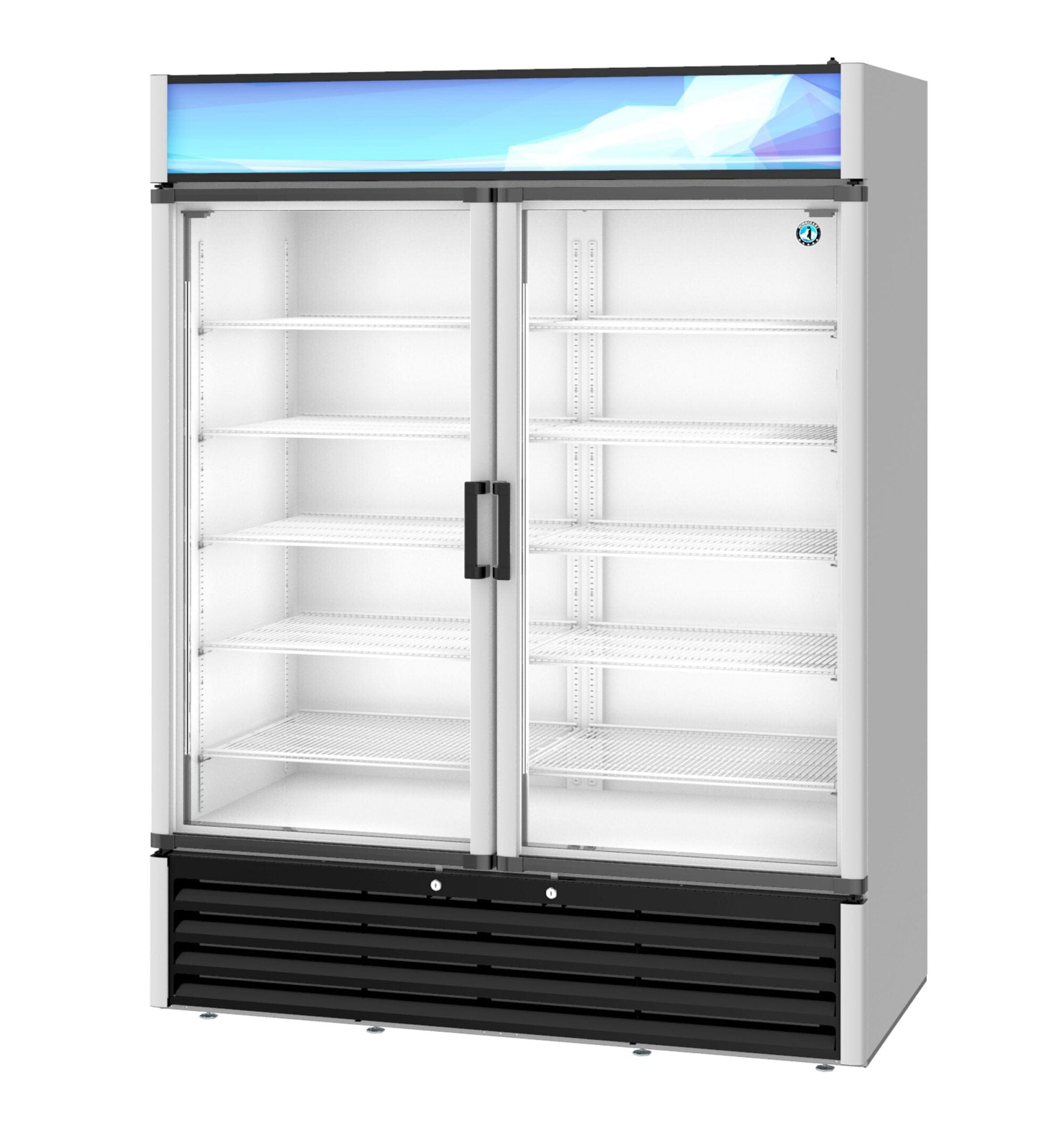

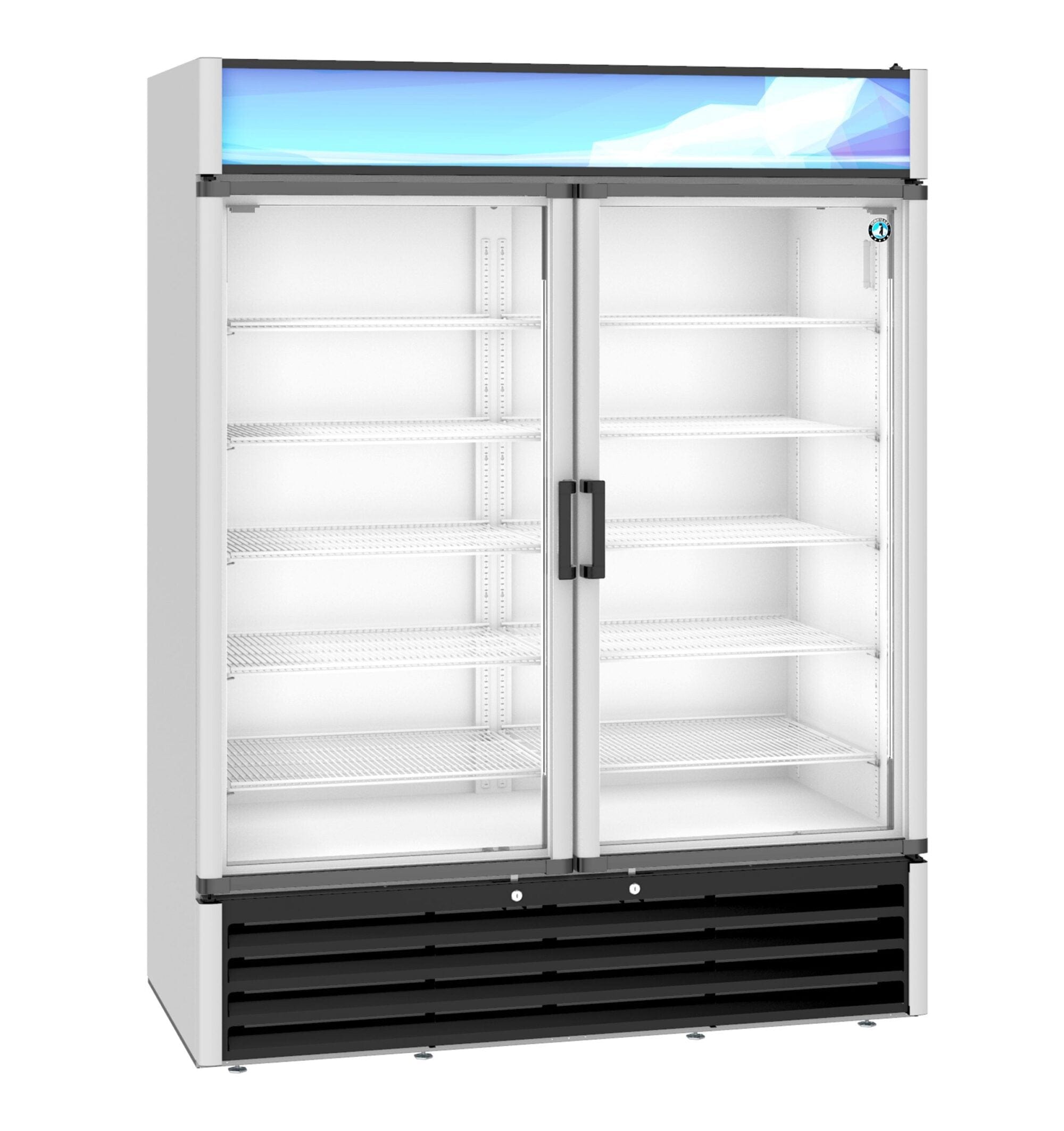

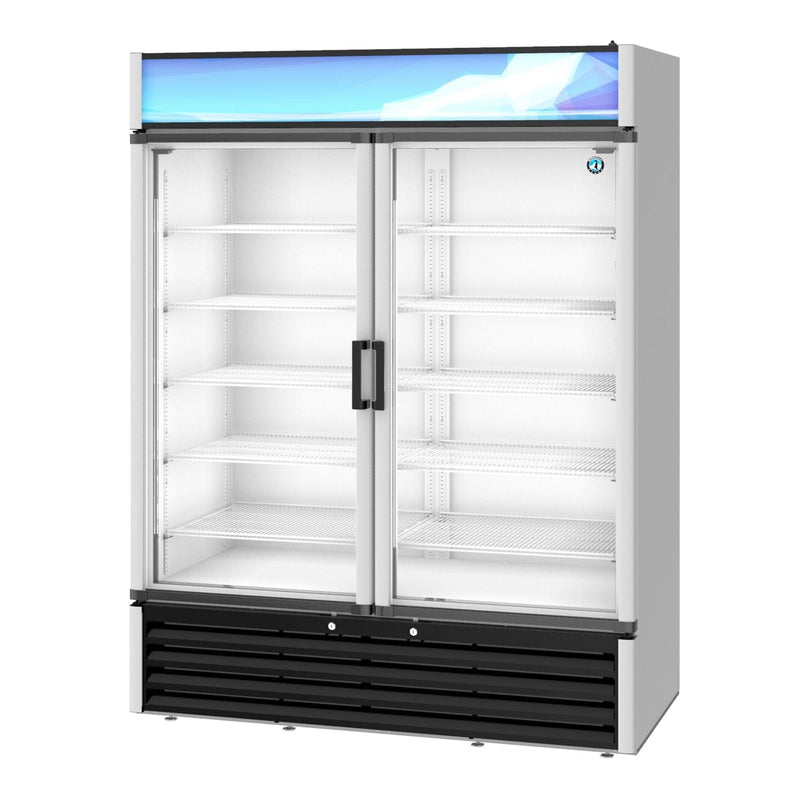

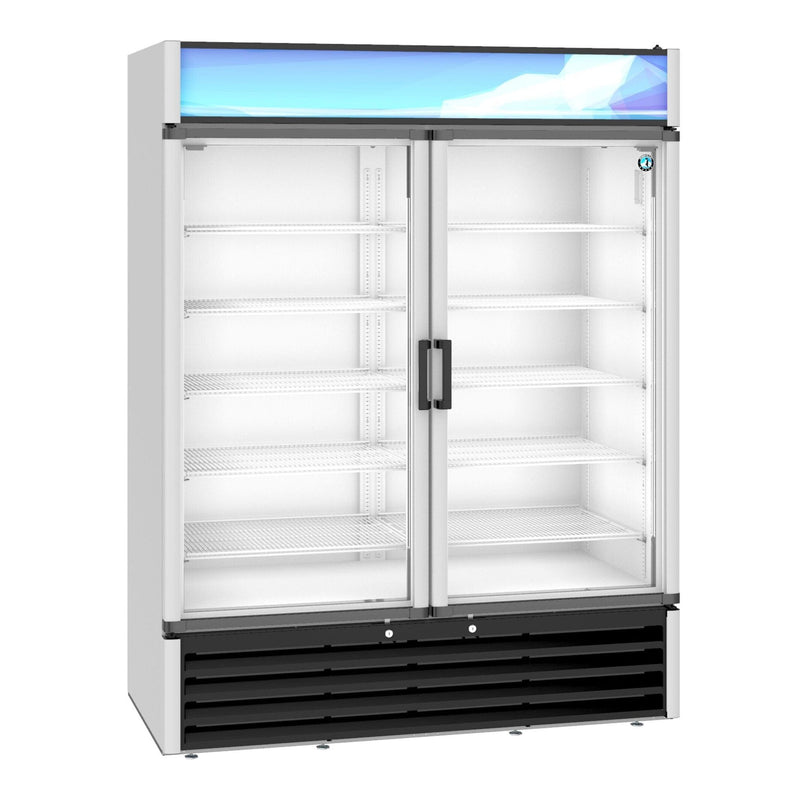

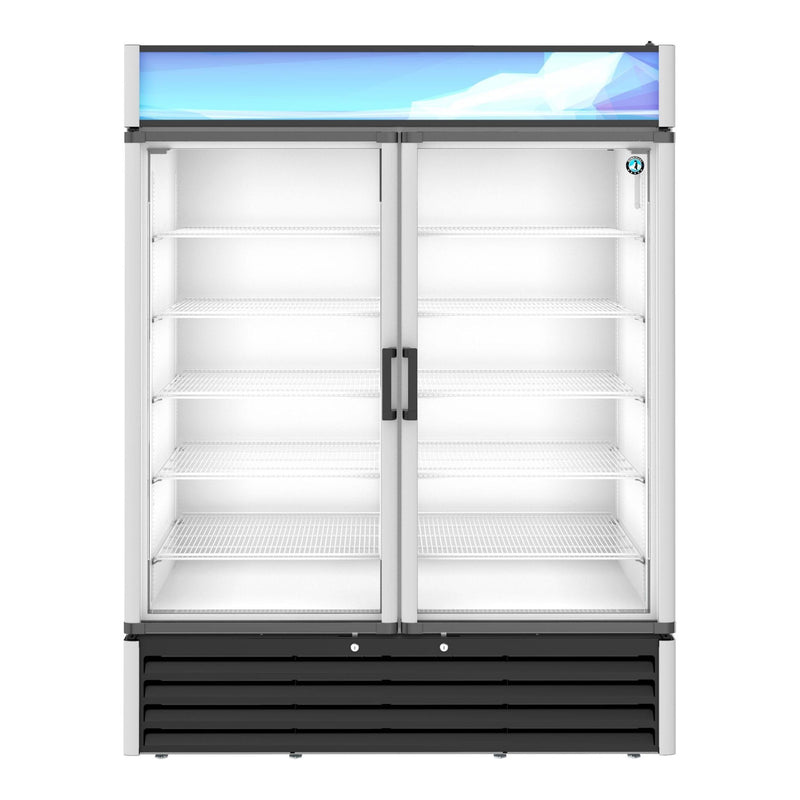

The Hoshizaki RM-49-HC is a two-section glass door merchandiser designed for high-volume beverage and product display. With energy-efficient LED lighting, robust construction, and advanced temperature control, this unit is ideal for convenience stores, supermarkets, and foodservice operations requiring reliable performance and maximum visibility.
Key Features
- 42.61 cu. ft. interior capacity
- Two swing doors with Low-E double-pane glass and locks
- LED-illuminated exterior canopy and vertical interior lighting
- Forced-air evaporator for rapid temperature pull-down
- Electronic control with adjustable temperature range: 28°F to 40°F
- Time-initiated automatic defrost
- NSF/ANSI Standard 7 certified for packaged/bottled product display
- Energy-saving hot gas loop reduces condensation in humid environments
Construction & Durability
-
Exterior Finish: Silver, black, or white painted aluminum
-
Interior: NSF-approved white steel with stainless steel floor
-
Dimensions: 60" W x 29.75" D x 78" H
-
Shipping Weight: 610 lbs.
-
Shelving: 5 white epoxy-coated shelves per section (10 total) with product stops
-
Shelf Dimensions: 27" W x 21.75" D
-
Insulation: CFC-free polyurethane with cyclopentane blowing agent
-
Leveling Legs: 2" adjustable
Mobility & Installation
-
Electrical Requirements: 115V/60Hz/1Ph
-
Plug Type: NEMA 5-15P (8 ft. cord included)
-
Amperage: 7.6 Amps
-
Energy Consumption: 4.37 kWh/day (ASHRAE)
-
Compressor: 1/2 HP, 1670 BTU/hr
-
Refrigerant: R290 (natural, 4.9 oz. charge)
-
Ambient Temp Range: 60°F to 86°F
-
Installation Notes:
- Indoor use only
- Requires 8" clearance behind unit for airflow
- Must be leveled for proper drainage and door operation
Certifications & Warranty
-
Certifications: UL Listed, NSF/ANSI 7, ENERGY STAR® Partner
-
Warranty Coverage:
- 3 Years Parts & Labor on entire unit
- 5 Years Parts on compressor
-
Valid in: United States, Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Organizer Shelf: HS-5295
-
Price Tag Holder: HS-5296
-
Epoxy Shelf: HS-5319
-
4" Casters: HS-5288 (requires 2 sets)
-
Custom Graphics: Header signage area available (see spec sheet for dimensions)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The RM-49-HC merchandiser offers exceptional capacity, sleek design, and dependable performance. With ENERGY STAR® certification and a robust warranty, this unit delivers value that goes Beyond Strong.
