Product Details
Overview

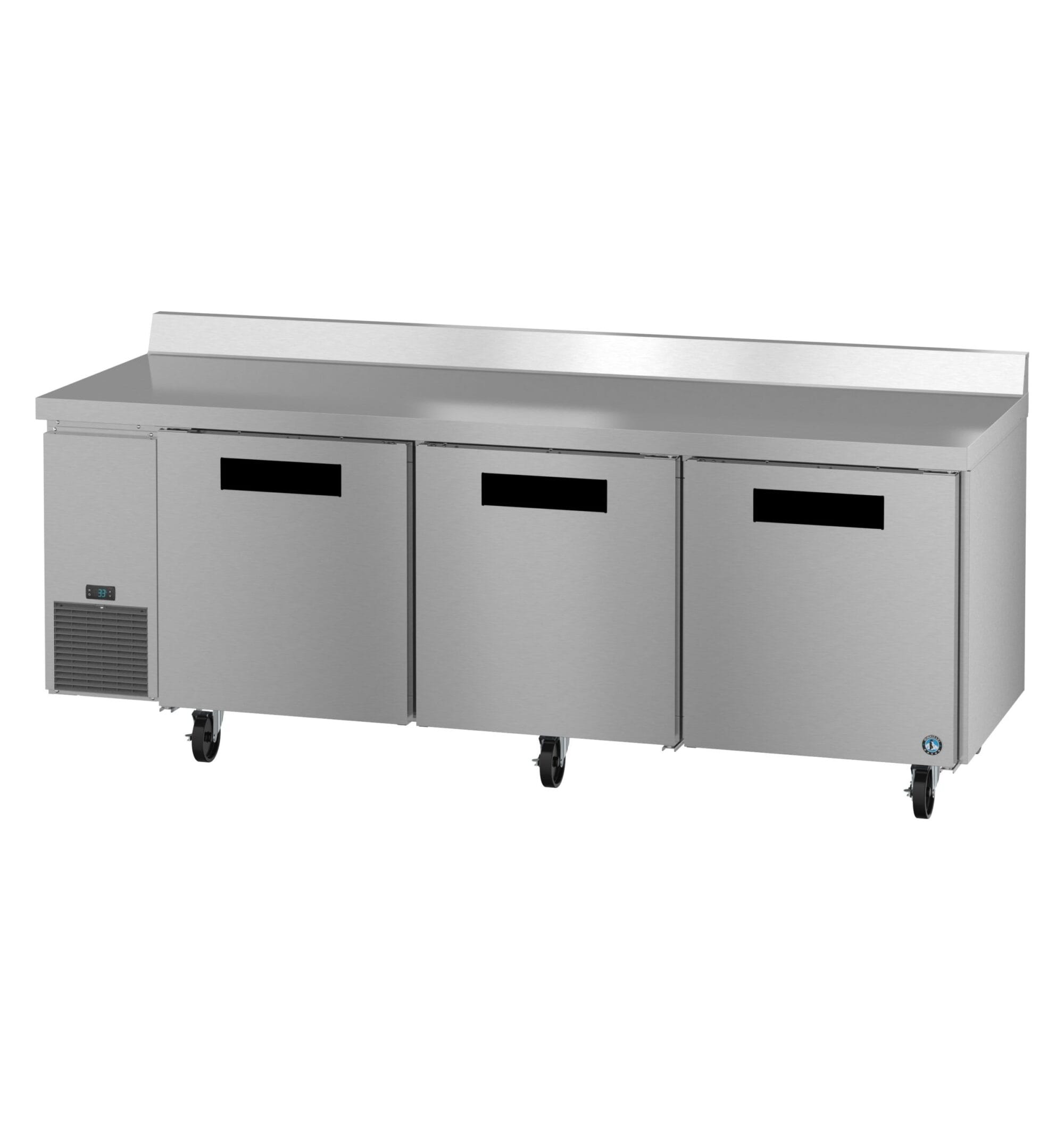

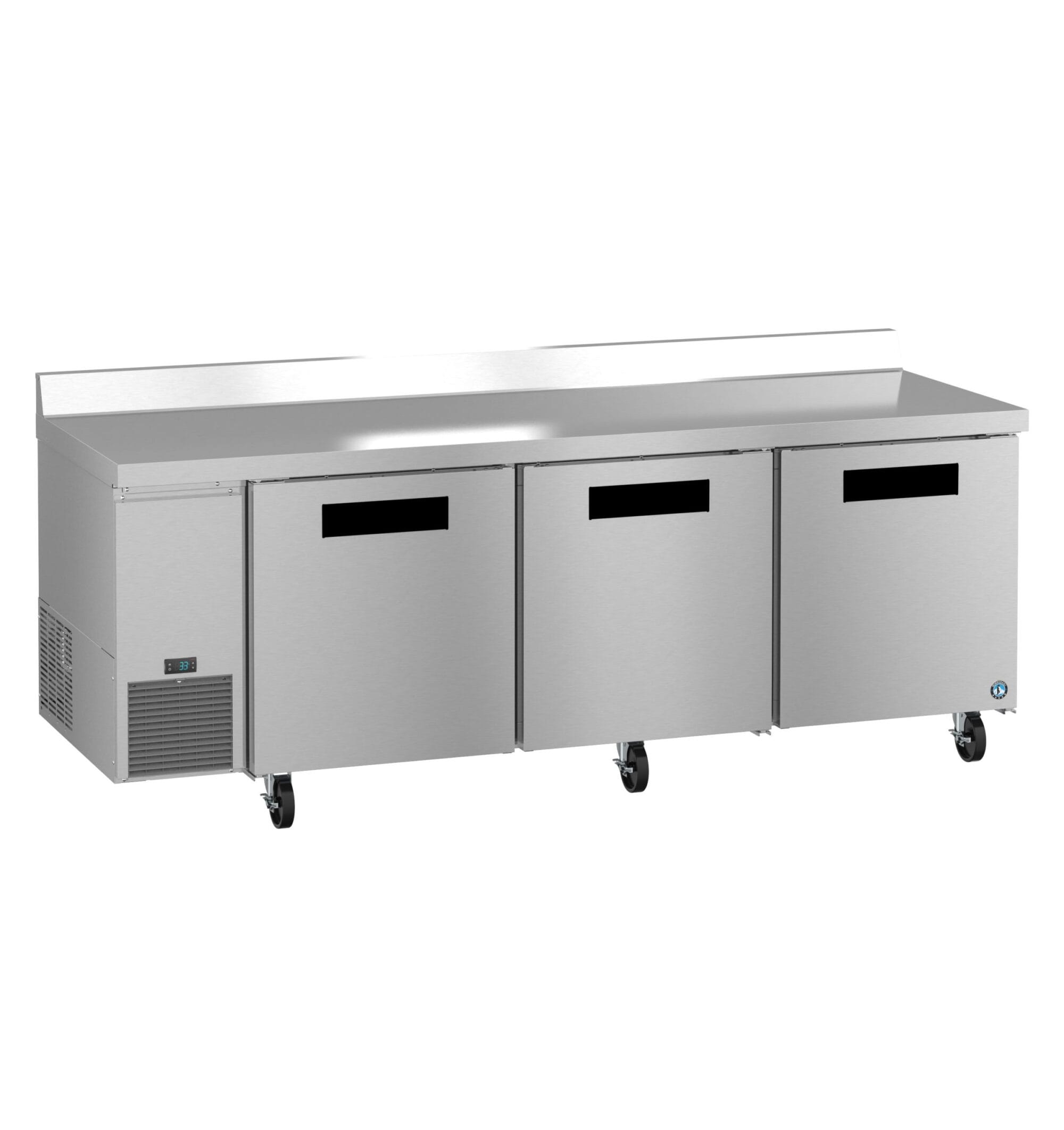

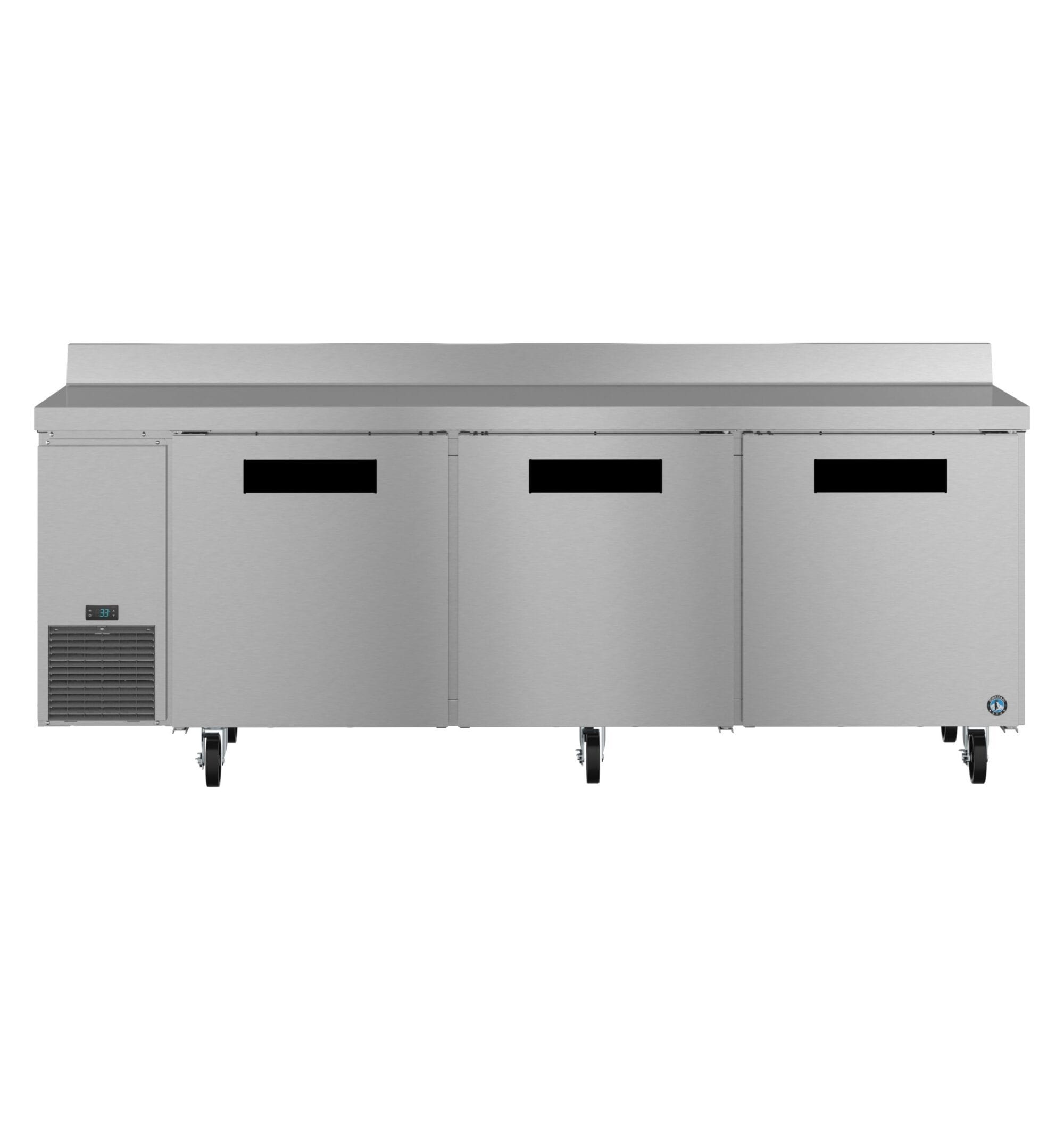

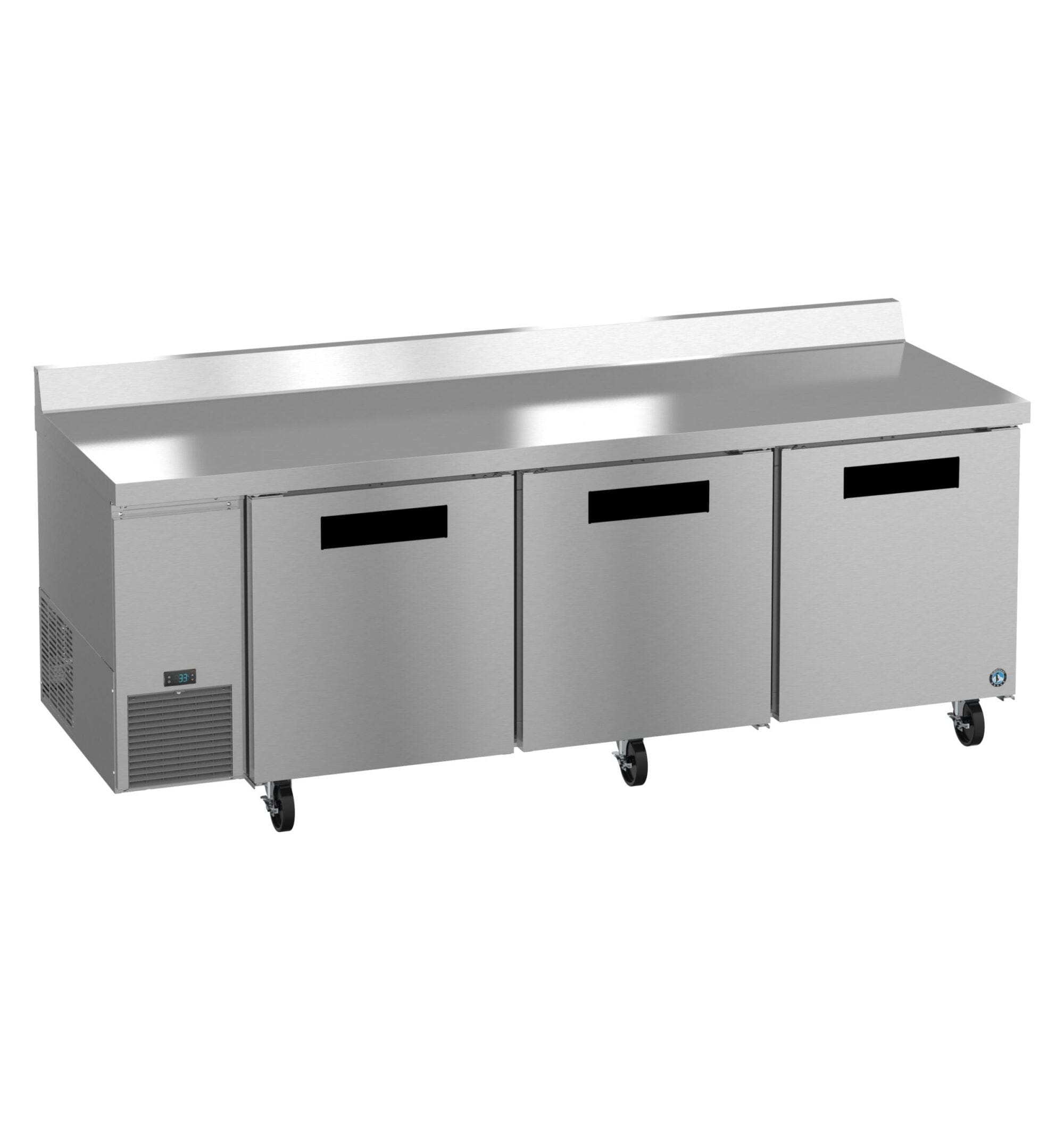

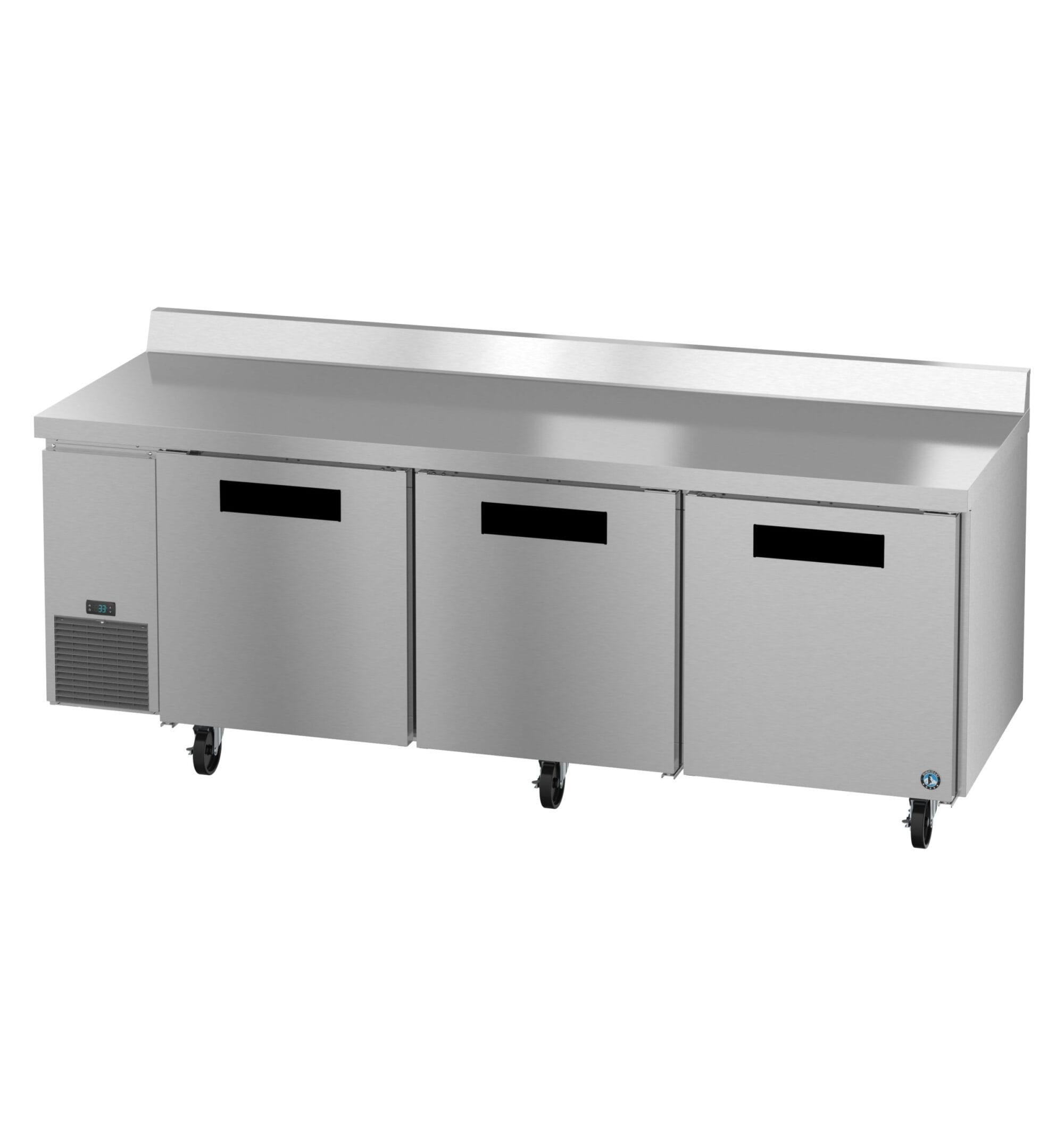

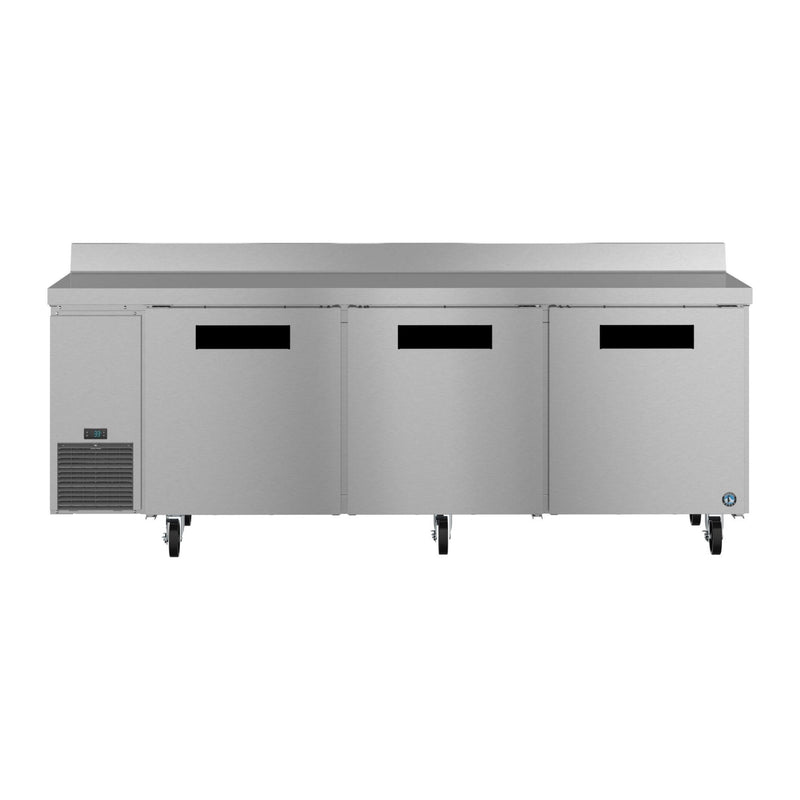

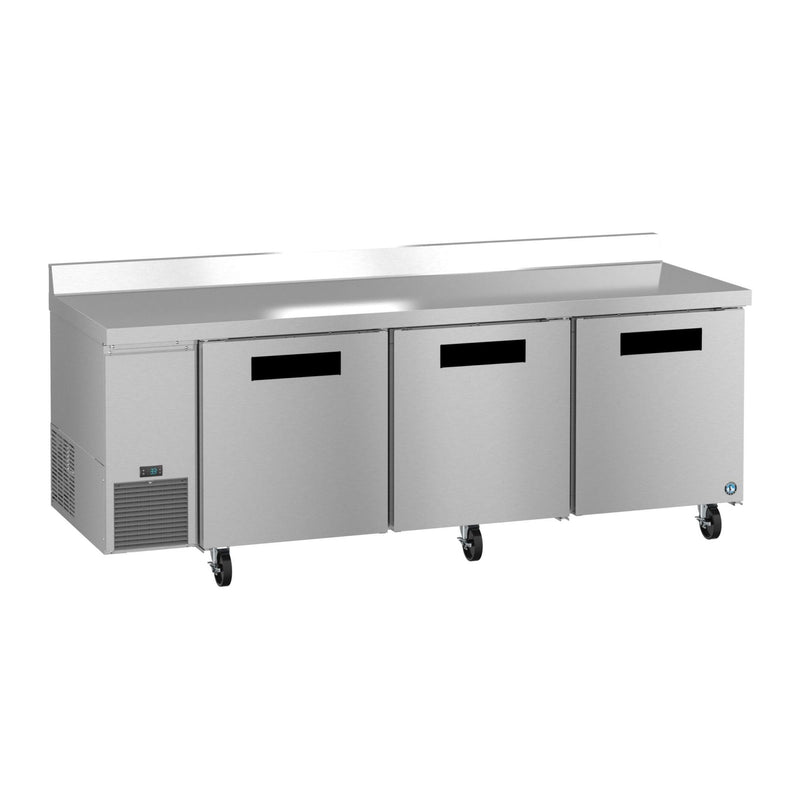

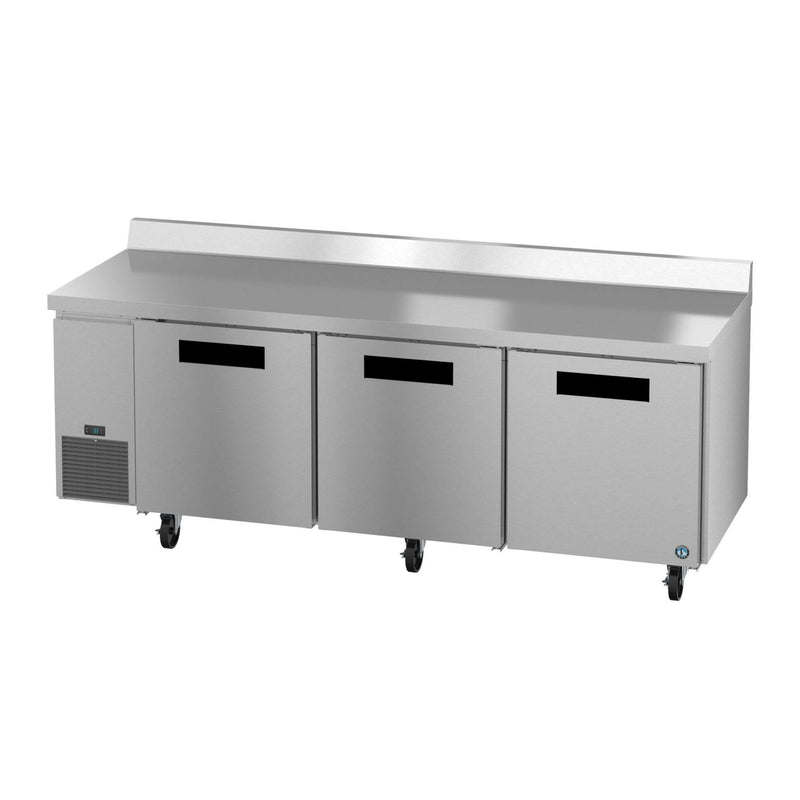

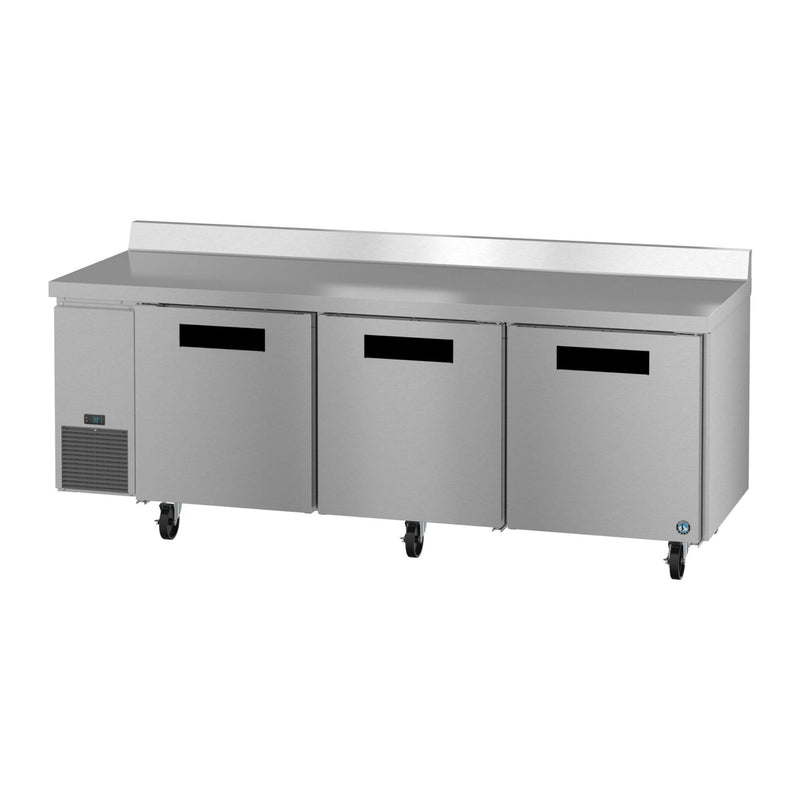

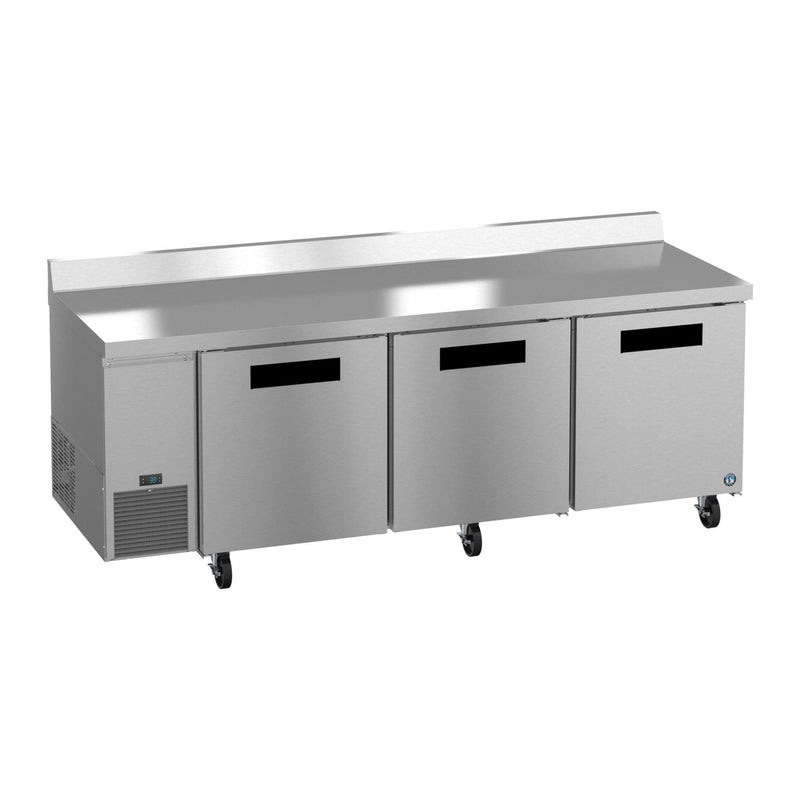

The Hoshizaki WLR93B is a high-capacity, side-mount worktop refrigerator designed for demanding commercial kitchens. With a spacious 93-inch stainless steel surface and three field-reversible doors, this unit combines energy efficiency, rugged durability, and user-friendly features. It’s engineered to maintain NSF-7 temperatures even in ambient conditions up to 100°F.
Key Features
- Dimensions: 93” W x 33.25” D x 40.25” H (with 6” casters)
- Work Surface Height: 36”
- Interior Capacity: 30.17 cu. ft.
- Door Configuration: 3 spring-assisted, self-closing doors with stay-open feature
- Temperature Range: 28°F to 45°F (Factory setpoint: 36°F)
- Digital Display: Easy-to-read temperature control with alarm indicators
- Refrigerant: R290 Hydrocarbon (environmentally friendly)
- Energy Use: 1.87 kWh/day
- Compressor: 1/3 HP, 2431 BTU/hr
- Electrical: 115V / 60Hz / 1 Phase, NEMA 5-15P plug with 10 ft. cord
Construction & Durability
- Exterior: Stainless steel front, sides, and top
- Interior: Stainless steel sides, back, and floor with ABS top
- Insulation: 2” CFC-free polyurethane foam
- Shelving: 6 epoxy-coated shelves (2 per section), adjustable in ½” increments
- Shelf Capacity: Each shelf holds up to 120 lbs. and fits full-size sheet pans
- Handles: Flush-mount extruded aluminum
- Gaskets: Snap-in magnetic door gaskets for easy cleaning
- Evaporator Coil: E-coated for extended life
- Condensate Removal: Hot gas system
- Air Filter: Removable for easy maintenance
- Door Design: Exclusive “stepped” design protects gaskets during use
Mobility & Installation
- Casters: 6” stem casters (three with brakes)
- Front Breathing Design: Allows for installation with minimal rear clearance
- Ambient Operating Range: 45°F to 100°F
- Installation Notes: Must be installed on a level surface with proper electrical grounding
Certifications & Warranty
- NSF-7 Certified
- ENERGY STAR® Qualified
- UL Listed
-
Warranty Coverage:
- 5 Years Labor
- 6 Years Parts
- 7 Years Compressor
Optional Accessories
- 2” or 4” casters
- Foot pedal kits (left/right hinge)
- Single or double overshelves
- Additional epoxy or stainless steel shelves
Why Choose Hoshizaki?
Hoshizaki is known for its commitment to quality, innovation, and sustainability. The WLR93B is part of the Steelheart Series, built to perform in high-heat environments and designed for long-term reliability. With ENERGY STAR® efficiency and NSF compliance, this unit supports both operational performance and food safety standards.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Warranty Statement
Product Brochure
