Overview

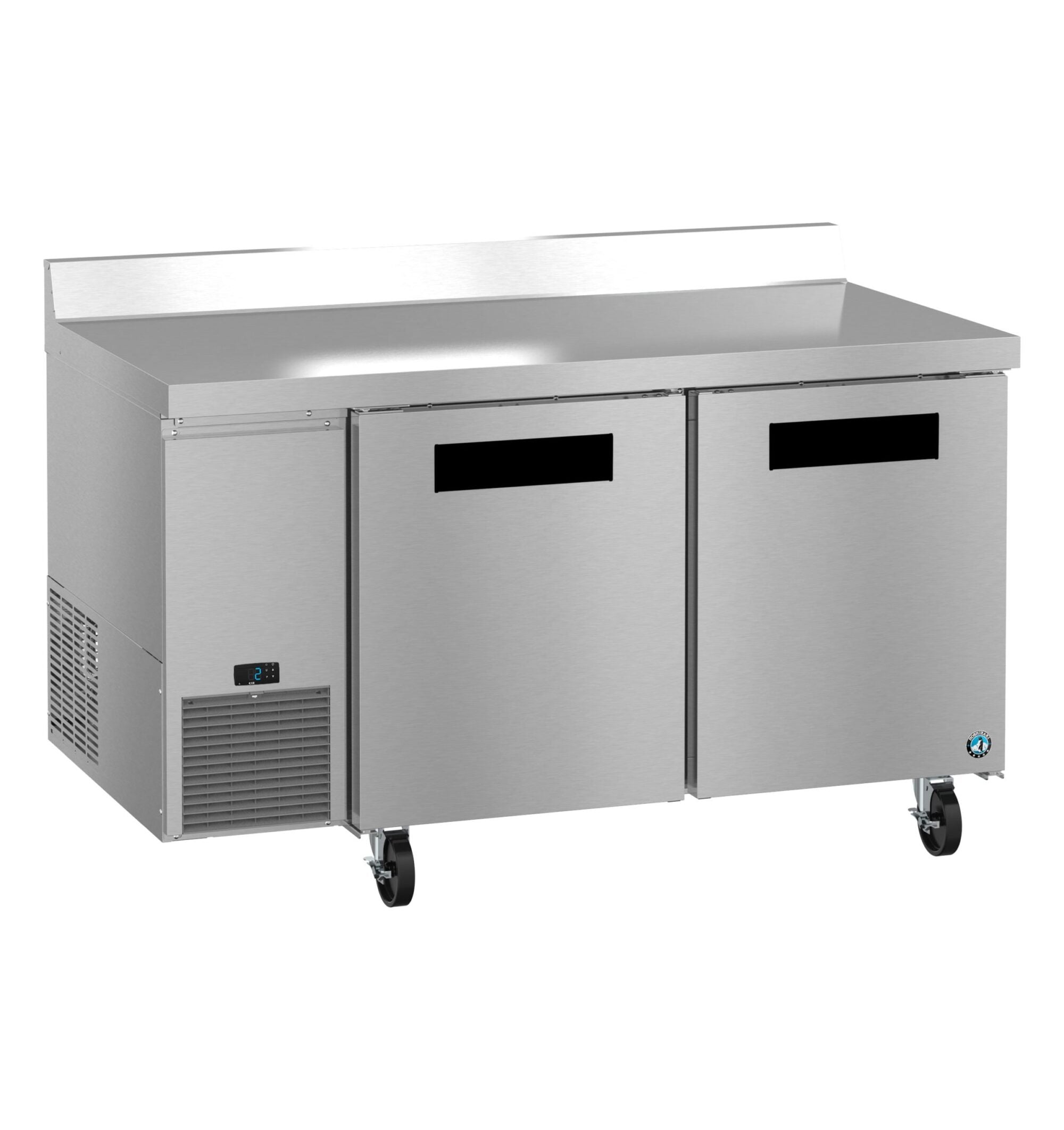

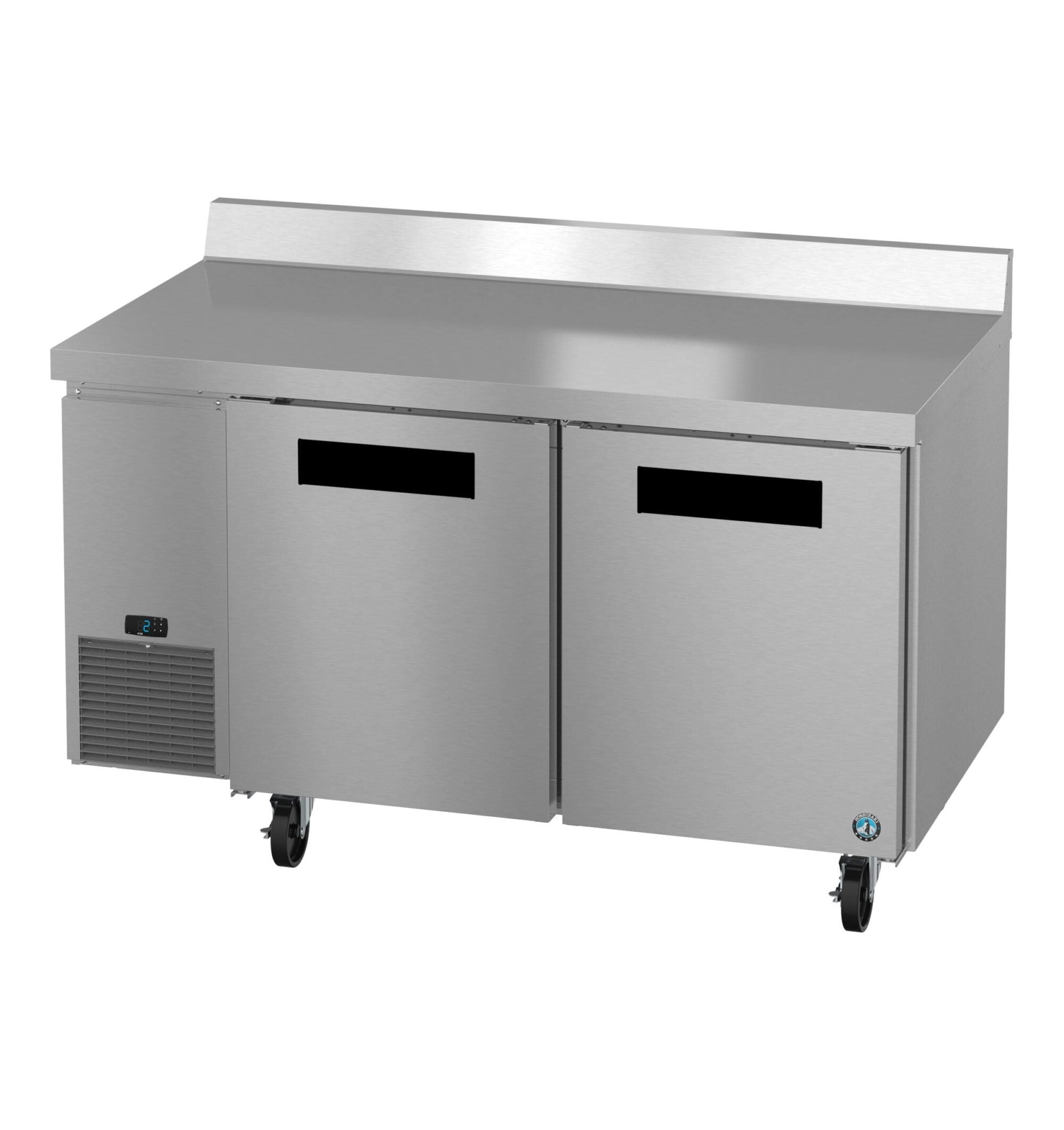

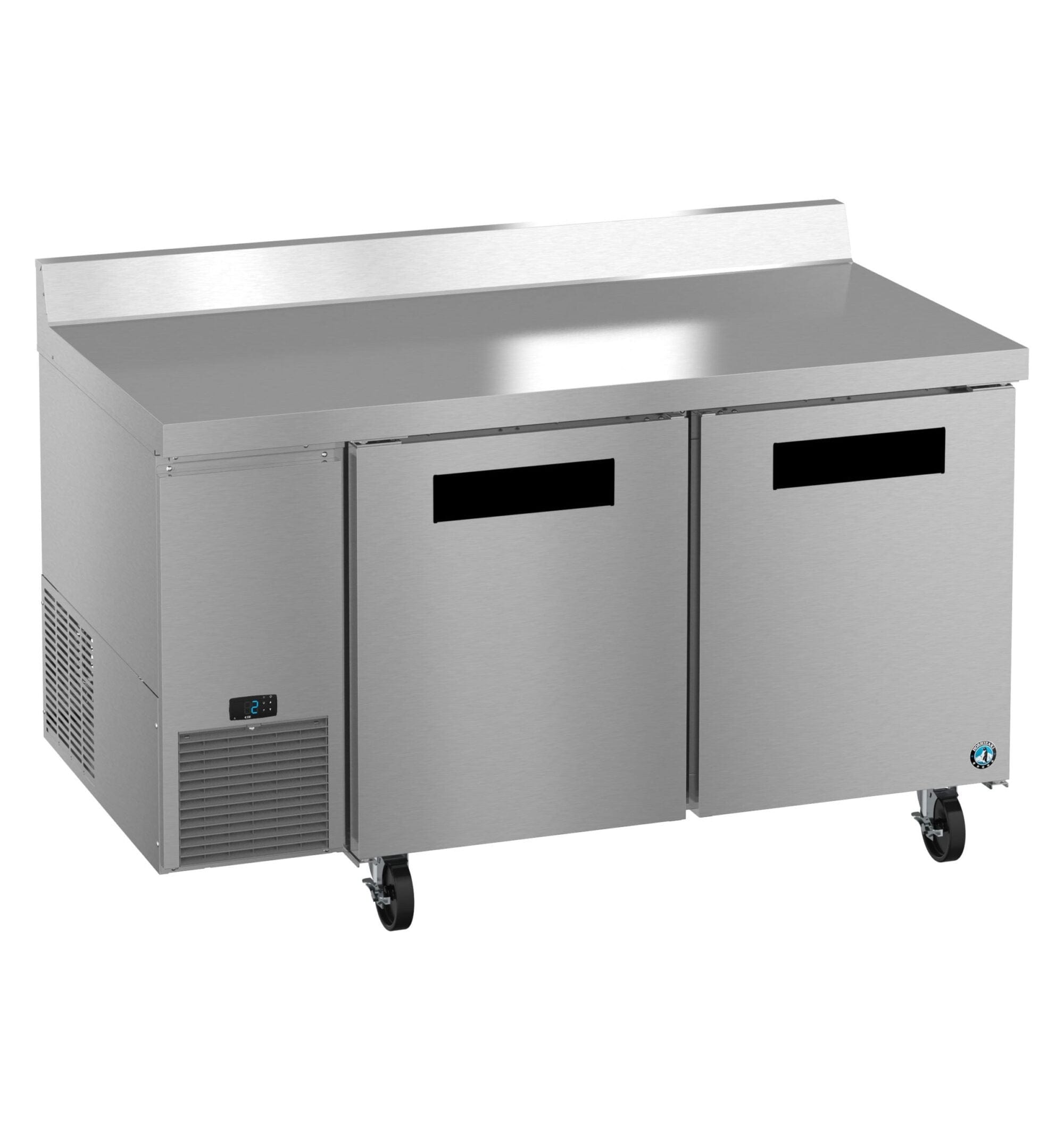

The Hoshizaki WLF60B is a premium two-section worktop freezer designed for commercial kitchens that require durability, efficiency, and convenience. With a 60-inch stainless steel work surface and advanced refrigeration technology, this unit provides reliable frozen storage while doubling as a functional prep area.
Key Features
-
Compact & Efficient: 60" wide worktop with two-door freezer storage.
-
Front Breathing Design: Allows installation with minimal clearance.
-
Exclusive Stepped Door Design: Protects door gaskets during use.
-
Spring-Assisted Self-Closing Doors: Includes stay-open feature for easy loading.
-
Digital Temperature Display: Ensures precise monitoring.
-
Eco-Friendly Refrigerant: Uses R290 hydrocarbon refrigerant for sustainability.
-
Removable Magnetic Gaskets: Easy to clean and replace.
-
Hot Gas Condensate Removal: Reduces maintenance needs.
-
Removable Air Filter: Simplifies cleaning and improves performance.
-
Four Heavy-Duty Shelves: Each shelf supports up to 120 lbs. and accommodates full-size sheet pans.
Construction & Durability
-
Exterior: Stainless steel front, sides, and top for superior corrosion resistance.
-
Interior: Stainless steel back, sides, top, and floor for easy cleaning.
-
Insulation: 2" CFC-free, foamed-in-place polyurethane for maximum efficiency.
-
Doors: High-grade stainless steel exterior with ABS liner, field reversible, and equipped with flush-mount aluminum handles.
-
Shelving: Four epoxy-coated shelves adjustable in ½" increments.
Mobility & Installation
- Ships with 6" polyolefin casters (two with brakes).
- Optional 2" or 4" casters available.
- Easy setup with front-breathing design requiring only 1" rear clearance.
- 10 ft. cord and NEMA 5-15P plug for quick connection.
Certifications & Warranty
-
Certifications: NSF-7 compliant for food safety.
-
Warranty:
- 7 years labor
- 7 years parts
- 7 years compressor
(Valid in U.S., Canada, Puerto Rico, and U.S. Territories.)
Optional Accessories
- 2" Casters (HS-5037)
- 4" Casters (HS-5035)
- Foot Pedal Kits (HS-5555 Left Hinge / HS-5556 Right Hinge)
- Pan Slide Rack (HS-5514)
- Single Overshelf (HS-5639)
- Double Overshelf (HS-5640)
- Additional Epoxy Shelves (HS-5579)
- Additional Stainless Shelves (HS-5580)
Why Choose Hoshizaki?
Hoshizaki is a trusted leader in commercial refrigeration, delivering innovative, energy-efficient, and durable solutions for professional kitchens. The WLF60B combines superior engineering with user-friendly features, ensuring long-lasting performance and peace of mind.
Technical Specifications
| Specification |
Details |
| Model |
WLF60B |
| Dimensions (W x D x H) |
60" x 33.25" x 40.25" (with 6" casters) |
| Work Height |
36" |
| Interior Capacity |
17.22 cu. ft. |
| Door Opening |
19.5" x 23" |
| Depth with Doors Open |
54.75" |
| Crated Weight |
344 lbs. |
| Electrical |
115V/60Hz/1Ph, 15 Amps, NEMA 5-15P |
| Refrigerant |
R290 (2.8 oz.) |
| Temperature Range |
-10°F to 10°F (Factory set at 2°F) |
| Energy Consumption |
4.50 kWh/day |
