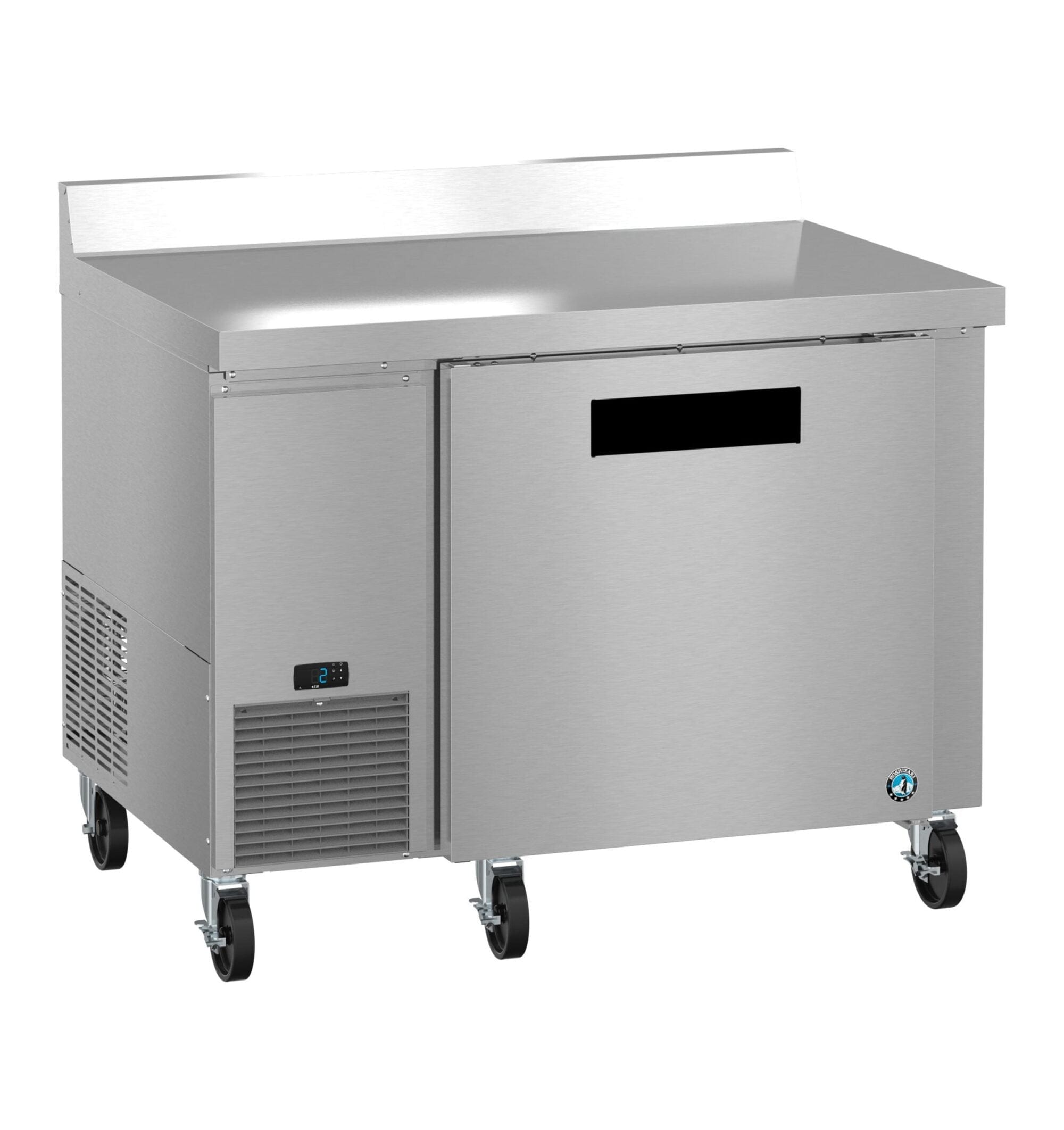

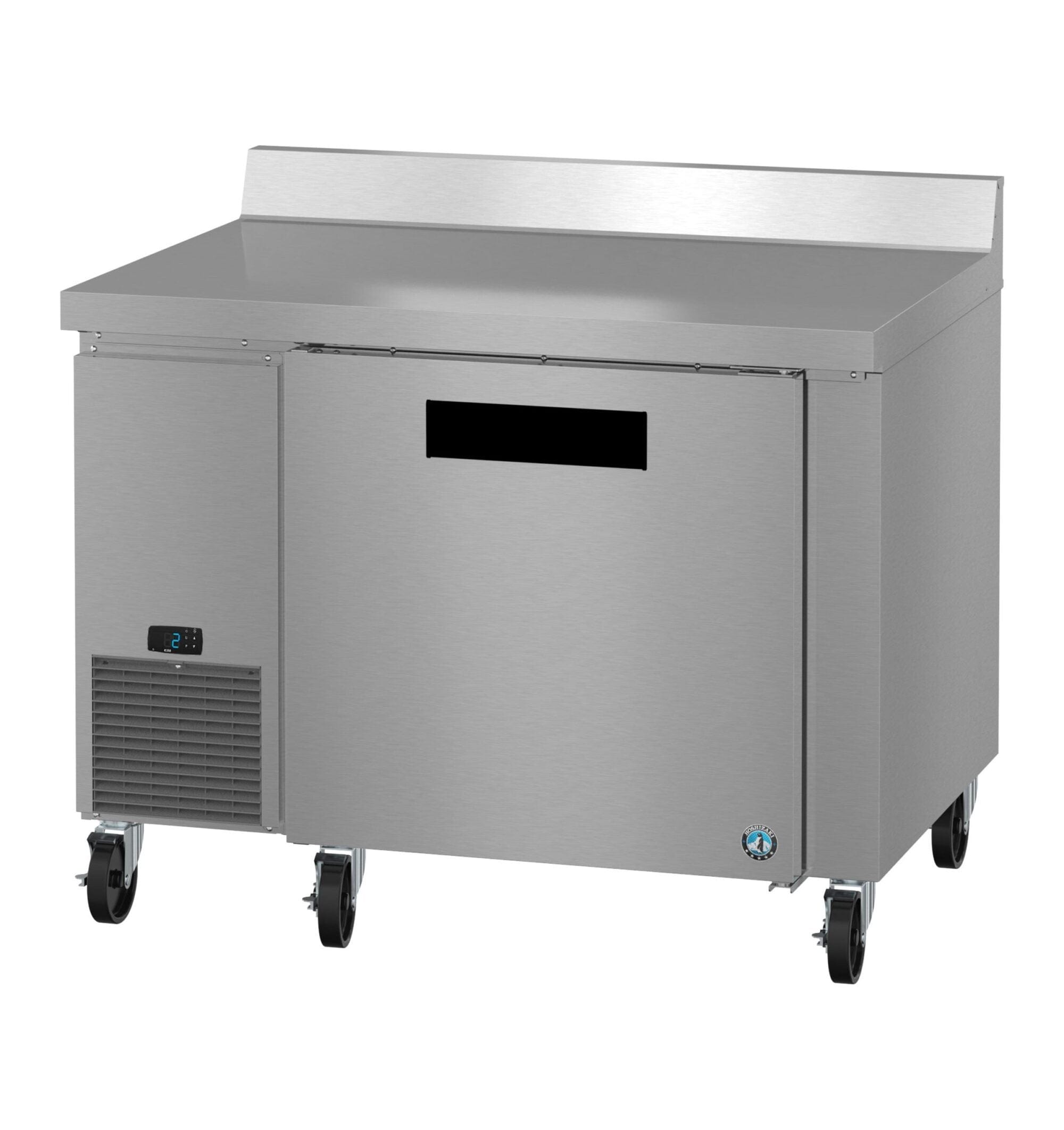

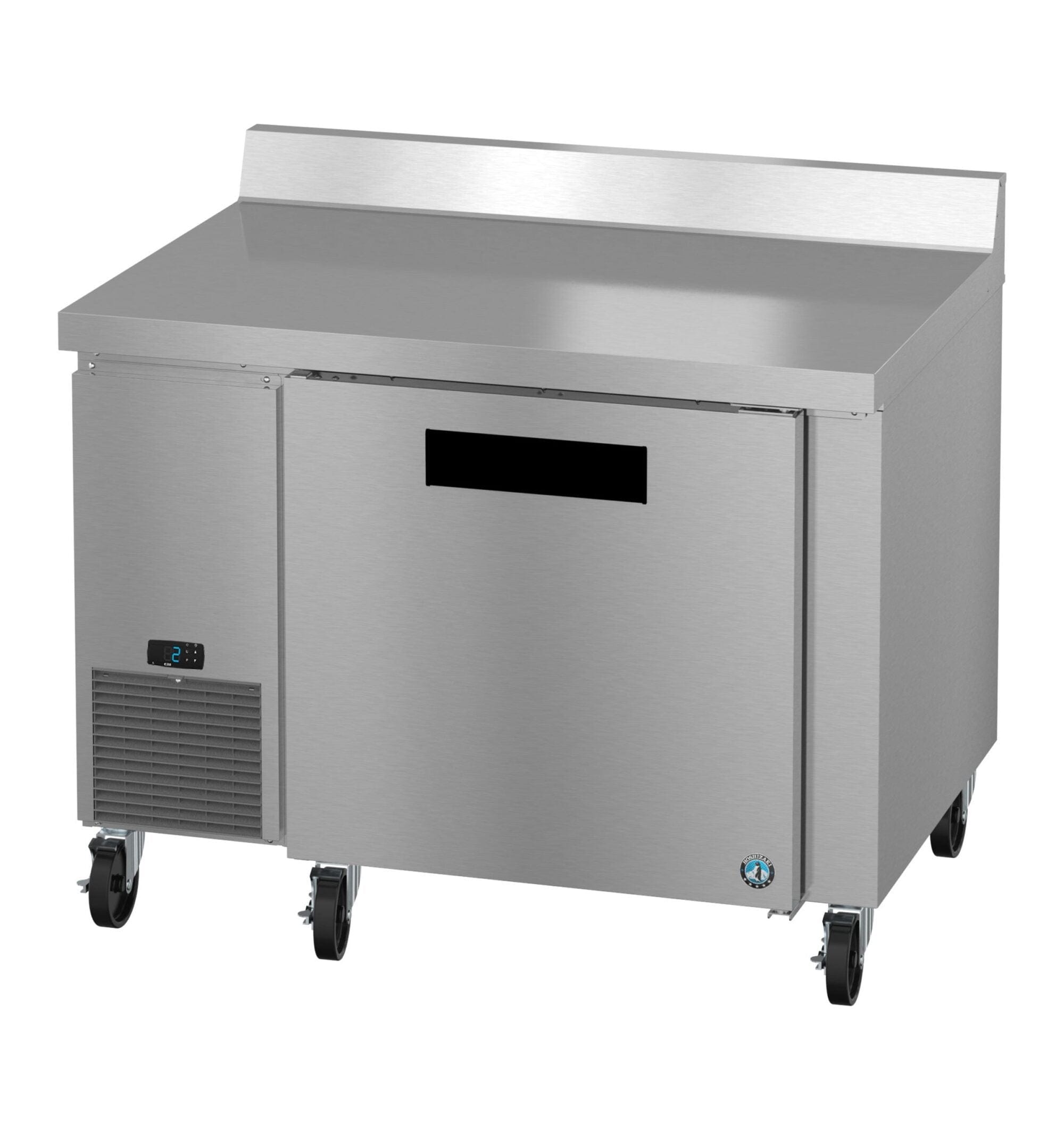

Hoshizaki WLF46B – 46" Worktop Side-Mount Freezer with One Door

Overview

The Hoshizaki WLF46B is a high-performance, space-saving worktop freezer designed for commercial kitchens that demand durability, efficiency, and convenience. With a 46-inch stainless steel work surface and advanced refrigeration technology, this unit provides reliable frozen storage while doubling as a functional prep area.

Key Features

• Compact & Efficient: 46" wide worktop with single-door freezer storage.
• Front Breathing Design: Allows installation with minimal clearance.
• Exclusive Stepped Door Design: Protects door gaskets during use.
• Spring-Assisted Self-Closing Door: Includes stay-open feature for easy loading.
• Digital Temperature Display: Ensures precise monitoring.
• Eco-Friendly Refrigerant: Uses R290 hydrocarbon refrigerant for sustainability.
• Removable Magnetic Gaskets: Easy to clean and replace.
• Hot Gas Condensate Removal: Reduces maintenance needs.
• Removable Air Filter: Simplifies cleaning and improves performance.
• Two Heavy-Duty Shelves: Each shelf supports up to 120 lbs. and accommodates full-size sheet pans.

Construction & Durability

• Exterior: Stainless steel front, sides, and top for superior corrosion resistance.
• Interior: Stainless steel back, sides, top, and floor for easy cleaning.
• Insulation: 2" CFC-free, foamed-in-place polyurethane for maximum efficiency.
• Door: High-grade stainless steel exterior with ABS liner, field reversible, and equipped with flush-mount aluminum handle.
• Shelving: Two epoxy-coated shelves adjustable in ½" increments.

Mobility & Installation

• Ships with 6" polyolefin casters (three with brakes).
• Optional 2" or 4" casters available.
• Easy setup with front-breathing design requiring only 1" rear clearance.
• 10 ft. cord and NEMA 5-15P plug for quick connection.

Certifications & Warranty

• Certifications: NSF-7 compliant for food safety.
• Warranty:
  • 7 years labor
  • 7 years parts
  • 7 years compressor
    (Valid in U.S., Canada, Puerto Rico, and U.S. Territories.)

Optional Accessories

• 2" Casters (HS-5037)
• 4" Casters (HS-5035)
• Foot Pedal Kits (HS-5555 Left Hinge / HS-5556 Right Hinge)
• Pan Slide Rack (HS-5514)
• Single Overshelf (HS-5229)
• Double Overshelf (HS-5228)
• Additional Epoxy Shelves (HS-5152)
• Additional Stainless Shelves (HS-5154)

Why Choose Hoshizaki?

Hoshizaki is a trusted leader in commercial refrigeration, delivering innovative, energy-efficient, and durable solutions for professional kitchens. The WLF46B combines superior engineering with user-friendly features, ensuring long-lasting performance and peace of mind.

Technical Specifications

Specification	Details
Model	WLF46B
Dimensions (W x D x H)	46" x 33.25" x 40.25" (with 6" casters)
Work Height	36"
Interior Capacity	11.78 cu. ft.
Door Opening	25.5" x 23"
Depth with Door Open	60.5"
Crated Weight	278 lbs.
Electrical	115V/60Hz/1Ph, 15 Amps, NEMA 5-15P
Refrigerant	R290 (2.6 oz.)
Temperature Range	-10°F to 10°F (Factory set at 2°F)
Energy Consumption	3.36 kWh/day
