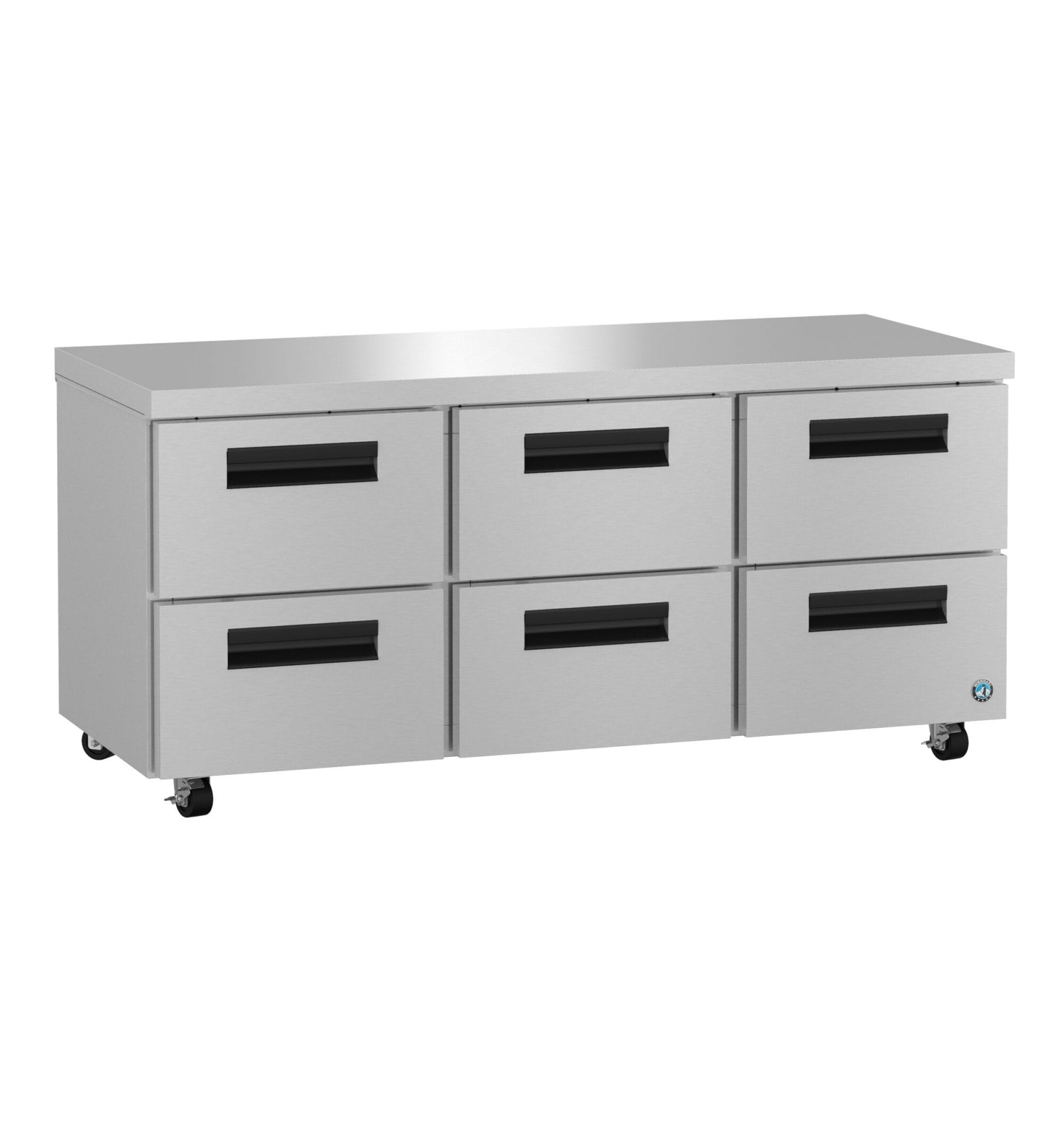

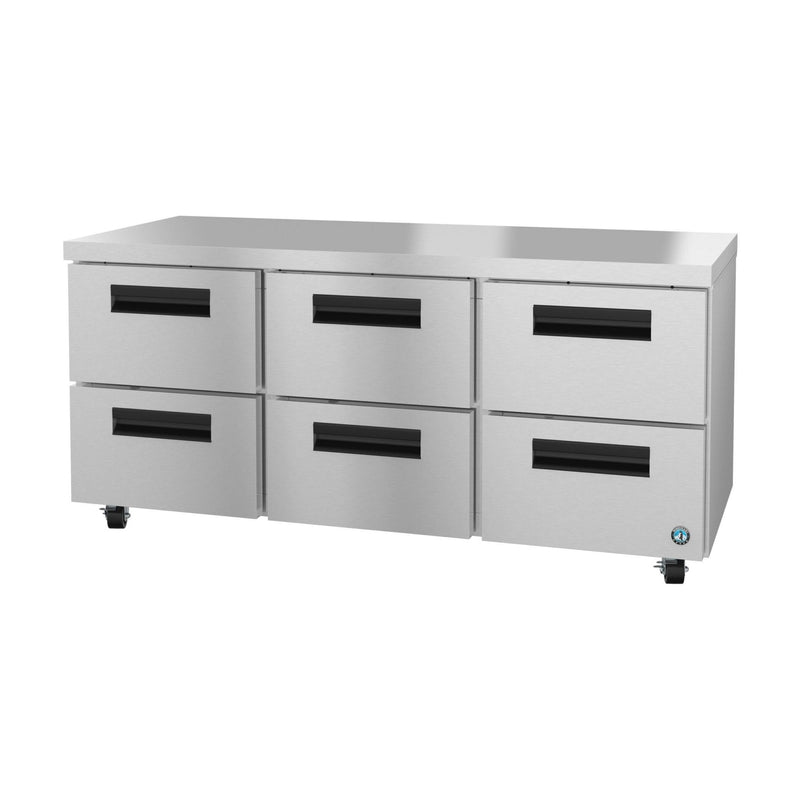

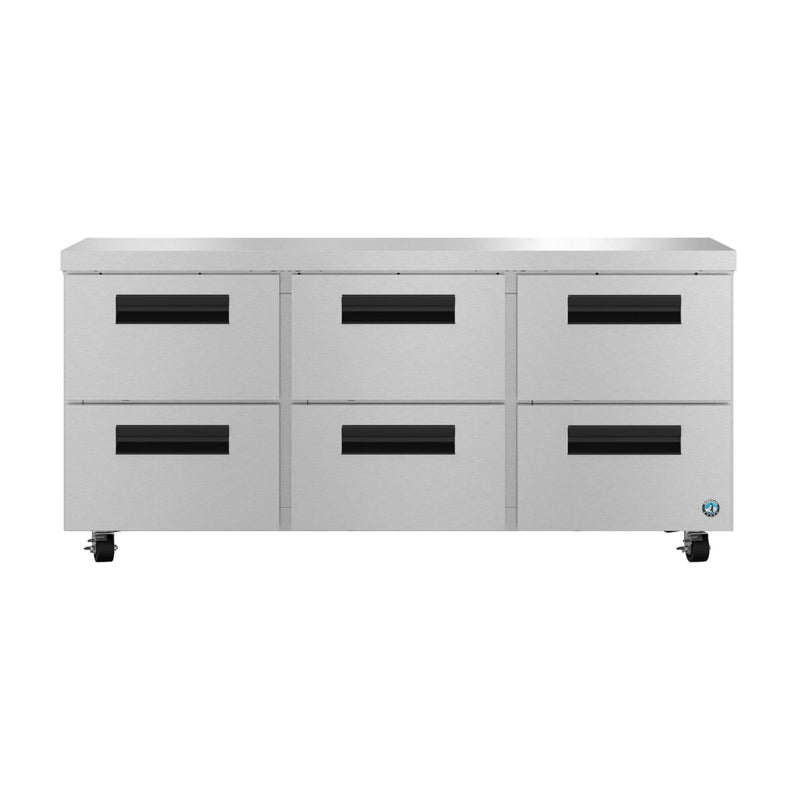

Hoshizaki UR72B-D6 Undercounter Refrigerator – 72” Three-Section with Six Drawers
Overview
The Hoshizaki UR72B-D6 is a high-performance, ENERGY STAR® qualified undercounter refrigerator designed for demanding commercial kitchens. Featuring six heavy-duty drawers, stainless steel construction, and advanced refrigeration technology, this unit offers exceptional storage flexibility and durability in a compact footprint.
Key Features
- NSF-7 Certified: Maintains safe temperatures in ambient conditions up to 100°F.
- ENERGY STAR® Rated: Efficient operation with only 1.12 kWh/day energy consumption.
- Six Stainless Steel Drawers: Each drawer supports up to 250 lbs. dynamic load.
-
Drawer Pan Capacity:
- Top drawers: (1) ½ size + (1) 1/3 size pan (6” deep), plus (1) ¼ size + (1) 1/6 size pan (4” deep)
- Alternate top drawer layout: (1) full size pan (longways) + (3) 1/9 size pans
- Bottom drawers: (1) ½ size + (1) 1/3 size pan (6” deep)
- Magnetic Drawer Gaskets: Snap-in design for easy cleaning and replacement.
- Flush-Mount Handles: Extruded aluminum for durability and ease of use.
- Hot Gas Condensate Removal: Maintenance-free and efficient.
- E-coated Evaporator Coil: Corrosion-resistant for extended life.
- Front Breathing Airflow Design: Ideal for tight installations.
Construction & Durability
- Exterior: Stainless steel top, front, and sides; coated steel back and bottom.
- Interior: Stainless steel back, sides, and floor.
- Insulation: 2” CFC-free foamed-in-place polyurethane.
- Drawer Slides: 14-gauge stainless steel with acetal rollers, life-tested to 300,000 cycles.
- Casters: 4” polyolefin stem casters (two with brakes) standard.
Mobility & Installation
- Dimensions: 72” W x 30” D x 33.75” H (with 4” casters)
- Interior Capacity: 18.0 ft³ (AHAM)
- Depth with Drawers Open: 52”
- Crated Weight: 443 lbs.
- Crated Dimensions: 73.75” L x 32” W x 36.5” H
-
Electrical Specs:
- Voltage: 115V / 60Hz / 1Ph
- Plug: NEMA 5-15P
- Amperage: 3.0A
- Compressor: 1/5 HP, 1354 BTU/hr
- Refrigerant: R290 (2.6 oz)
Certifications & Warranty
- Certifications: NSF-7, UL, ENERGY STAR®, ETL Sanitation
- Warranty: 7-Year warranty on compressor, parts, and labor (U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- 2.25” or 6” Casters
- Overshelves
- Drawer Divider Bars
- GFCI-compatible breaker (required if GFCI is needed)
Why Choose Hoshizaki?
Hoshizaki is a globally trusted leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The UR72B-D6 is part of the Steelheart® Series, engineered for superior performance and durability. With its energy efficiency, robust construction, and thoughtful design, it’s the ideal solution for professionals who demand excellence.
