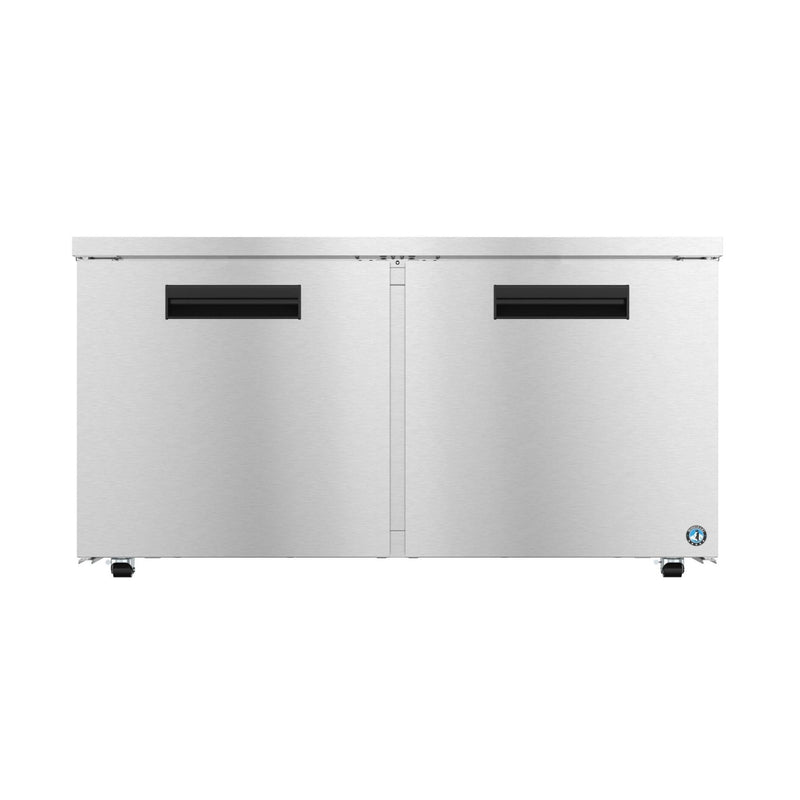

Hoshizaki UR60B-LP Undercounter 60” Low Profile Refrigerator – Two Doors

Overview

The Hoshizaki UR60B-LP is a premium low-profile undercounter refrigerator designed to fit seamlessly beneath ADA-compliant work surfaces. Engineered for high-performance in demanding commercial environments, this unit combines sleek stainless steel construction with advanced refrigeration technology to ensure consistent cooling and long-term reliability.

Key Features

• Low-profile design fits under 34” ADA-compliant counters
• Two spring-assisted self-closing doors with stay-open feature
• Field reversible doors for flexible installation
• Digital temperature control with adjustable setpoints (32°F to 52°F)
• Innovative air distribution system for even cooling
• Magnetic door gaskets are easily removable for cleaning
• E-coated evaporator coil for extended life
• Hot gas condensate removal system
• Environmentally friendly R290 refrigerant
• Energy efficient: 0.94 kWh/day
• Standard 2.25” casters (two with brakes)
• 10 ft. cord and plug included

Construction & Durability

• Exterior: Stainless steel front, sides, and top
• Interior: Stainless steel back, sides, and floor with ABS top
• Insulation: 2” CFC-free, foamed-in-place polyurethane
• Shelving:
  • Two heavy-duty epoxy-coated shelves (one per section)
  • Adjustable in ½” increments on anodized aluminum pilasters
• Doors:
  • High-grade stainless steel exterior with ABS liner
  • Exclusive “stepped” design protects door gaskets
  • Extruded aluminum flush mount handles

Mobility & Installation

• Dimensions: 60"W x 30"D x 31.9"H (with 2.25” casters)
• Electrical: 115V/60Hz/1Ph, 15.0 Amps, NEMA 5-15P plug
• Voltage Range: 104–126V
• Recommended Setpoint: 34°F
• Crated Weight: 290 lbs.
• Crated Dimensions: 62.5"W x 34"D x 35.5"H

Certifications & Warranty

• NSF-7 certified
• UL listed
• Made in Georgia, USA
• Warranty:
  • 7 years labor
  • 7 years parts
  • 7 years compressor
    (Valid in the U.S., Canada, Puerto Rico, and U.S. Territories)

Optional Accessories

• 4” Casters (HS-5035)
• 6” Casters (HS-5036)
• Foot Pedal Kits: Left (HS-5555), Right (HS-5556)
• Door Locks (UR60B-LP)
• Overshelves: Single (HS-5174), Double (HS-5165)
• Additional Shelves: Epoxy (HS-5108), Stainless Steel (HS-5118)
• Stainless Steel Back Panel (factory request)

Why Choose Hoshizaki?

Hoshizaki is a globally trusted brand in commercial refrigeration, known for engineering excellence, energy efficiency, and durability. The UR60B-LP is part of the Steelheart® Series, built to perform in high-demand environments. With a commitment to sustainability and innovation, Hoshizaki products are Beyond Strong—delivering peace of mind and performance that lasts.
