Overview

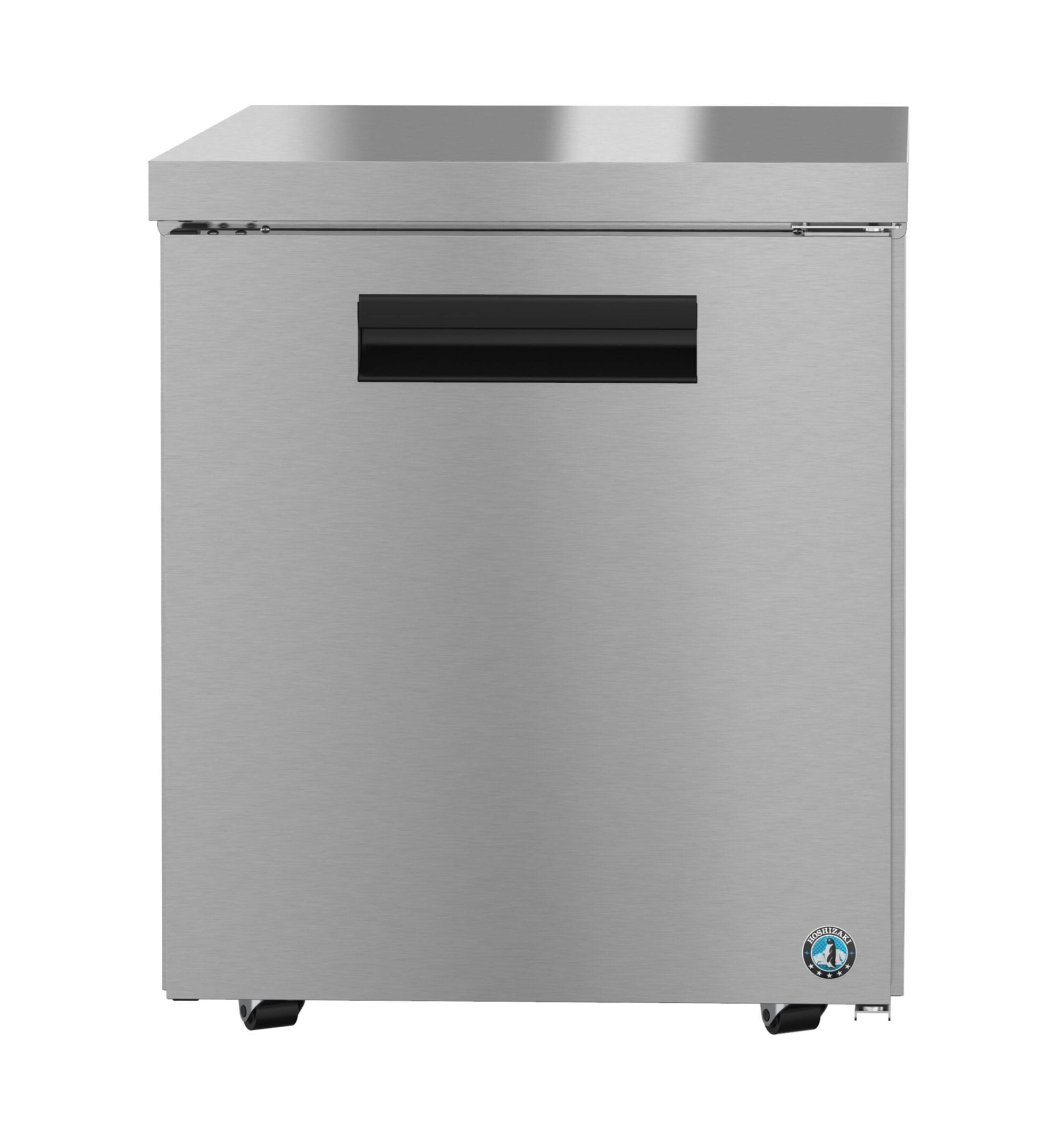

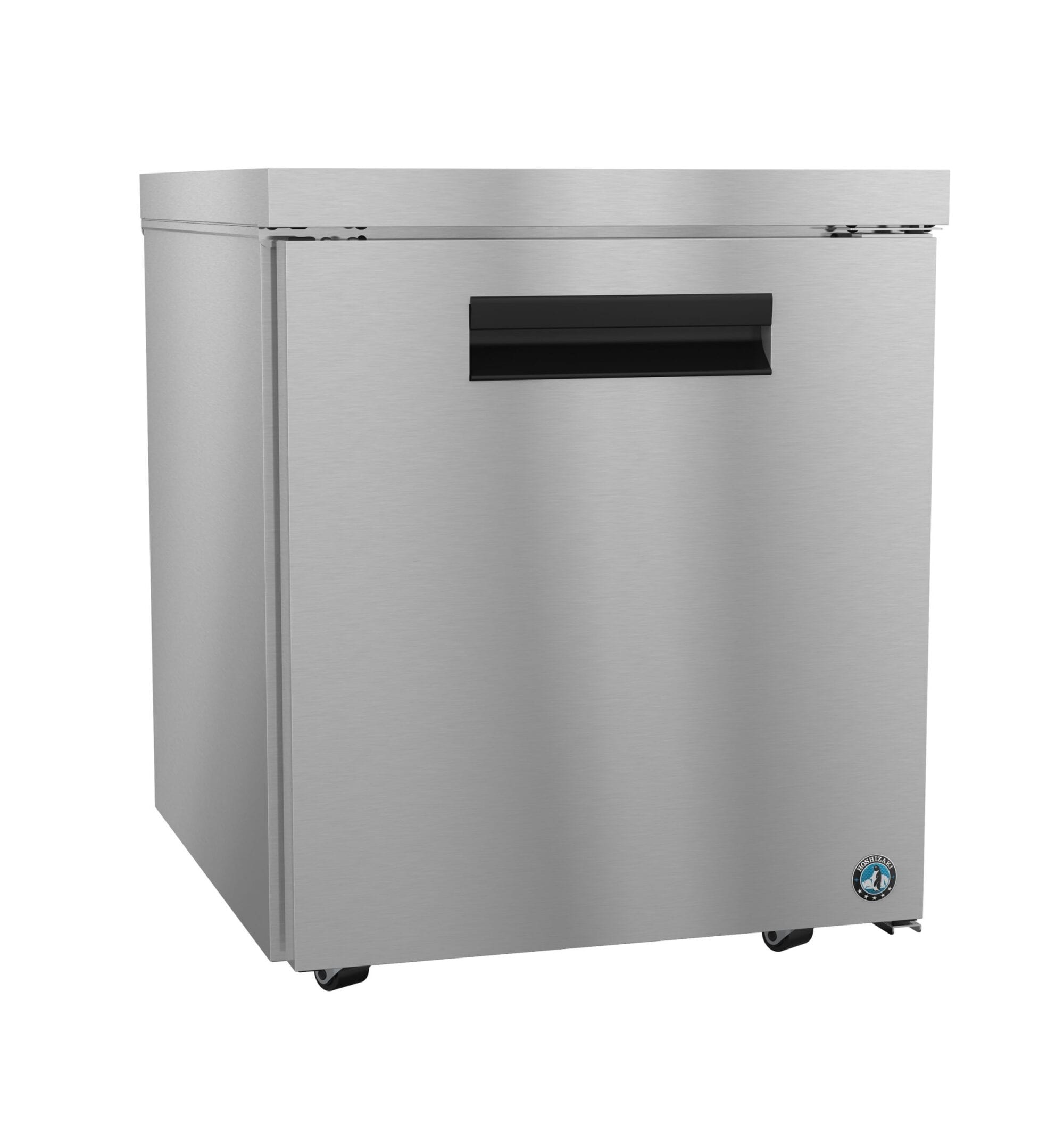

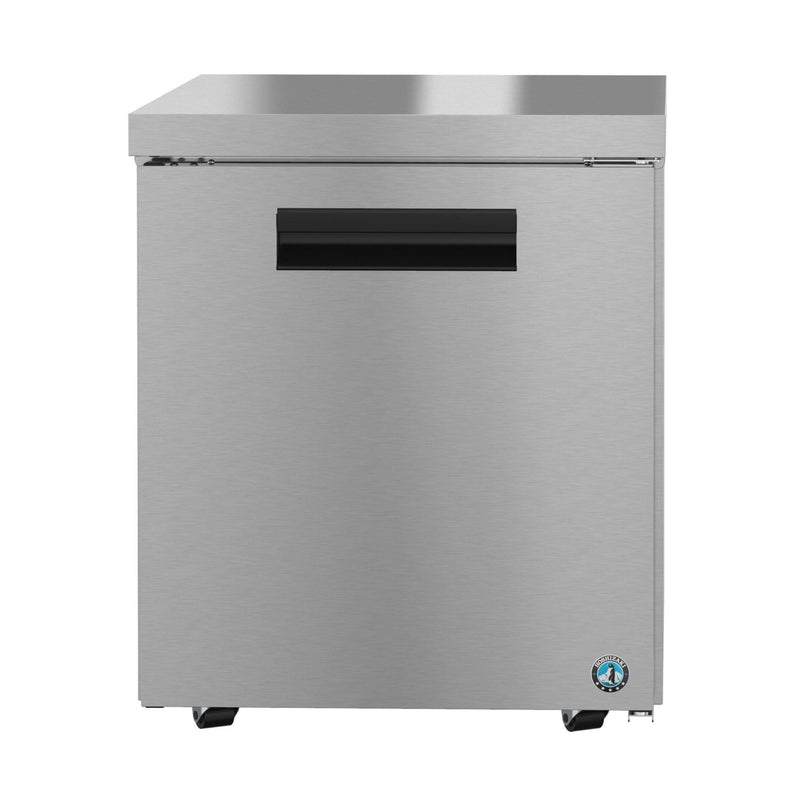

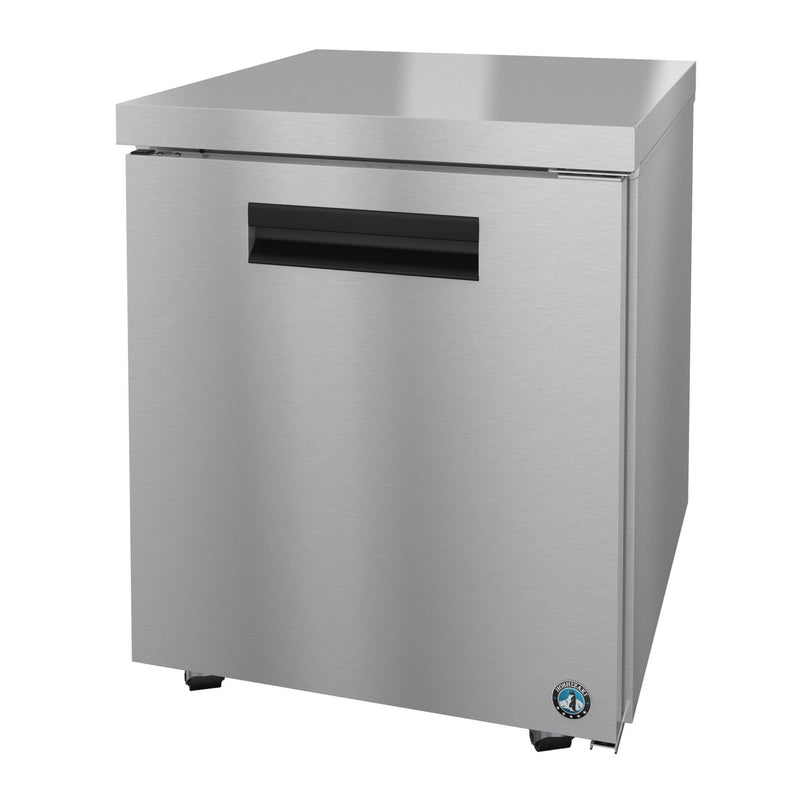

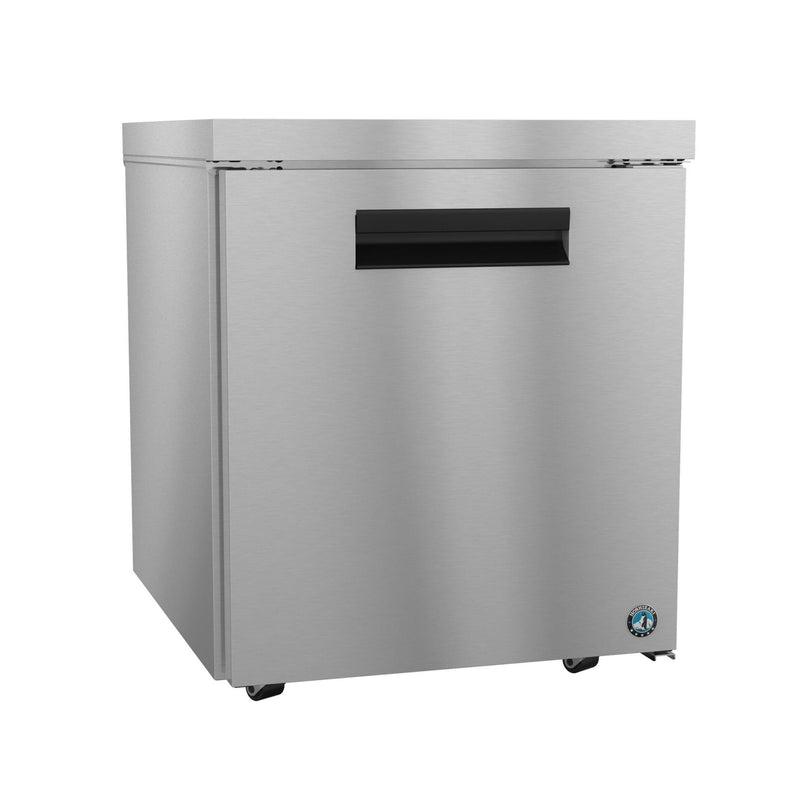

The Hoshizaki UR27B-LP is a compact, energy-efficient undercounter refrigerator designed to fit seamlessly beneath ADA-compliant 34" countertops. Ideal for commercial kitchens, bars, and prep stations, this low-profile unit delivers powerful refrigeration performance in a space-saving footprint.
Key Features
-
Interior Capacity: 6.21 cu. ft.
-
Exterior Dimensions: 27" W x 30" D x 31.9" H (with 2.25" casters)
-
Door: 1 solid stainless steel door with spring-assisted self-closing and stay-open feature
-
Shelving: 1 adjustable epoxy-coated shelf (22" W x 16" D)
-
Temperature Range: 32°F to 52°F
-
Control: Mechanical dial with 9 settings (factory default: 5 = ~34°F)
-
Refrigeration: Front-breathing, self-contained system with off-cycle defrost
Construction & Durability
-
Exterior: Stainless steel front, sides, and top
-
Interior: Stainless steel sides, back, and floor with ABS ceiling
-
Insulation: 2" CFC-free foamed-in-place polyurethane
-
Door Design: Stepped edge protects gasket; field reversible
-
Handle: Flush-mount extruded aluminum
-
Evaporator: E-coated for corrosion resistance
-
Casters: 2.25" polyolefin stem casters (2 with brakes)
Mobility & Installation
-
Electrical: 115V/60Hz/1Ph, 5-15P NEMA plug, 10 ft. cord
-
Amperage: 2.7 Amps
-
Clearance: Requires 1.5" overhead and rear clearance
-
Shipping Weight: 173 lbs.
-
Crated Dimensions: 34" L x 31.5" W x 35.5" H
Certifications & Warranty
-
Certifications: NSF-7 certified for 100°F ambient; UL listed
-
Refrigerant: R290 hydrocarbon (1.9 oz.)
-
Energy Consumption: 0.65 kWh/day
-
Heat Rejection: 193 BTU/hr
-
Compressor: 1/6 HP, 988 BTU/hr
-
Warranty: 7-year warranty on parts, labor, and compressor (U.S., Canada, Puerto Rico, U.S. Territories)
Optional Accessories
- 4" Casters (HS-5035)
- 6" Casters (HS-5036)
- Foot Pedal Kits (HS-5555 for left hinge, HS-5556 for right hinge)
- Door Locks (UR27B-LP01)
- Single Overshelf (HS-5172)
- Double Overshelf (HS-5163)
- Lower Epoxy Shelf (HS-5161)
- Lower Stainless Shelf (HS-5169)
- Stainless Steel Back Panel (factory-installed)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its innovation, reliability, and commitment to sustainability. The UR27B-LP is engineered to meet the demands of modern kitchens with a compact footprint, ADA-compliant height, and energy-efficient performance. Backed by a 7-year warranty, it’s a smart investment for any foodservice operation.
