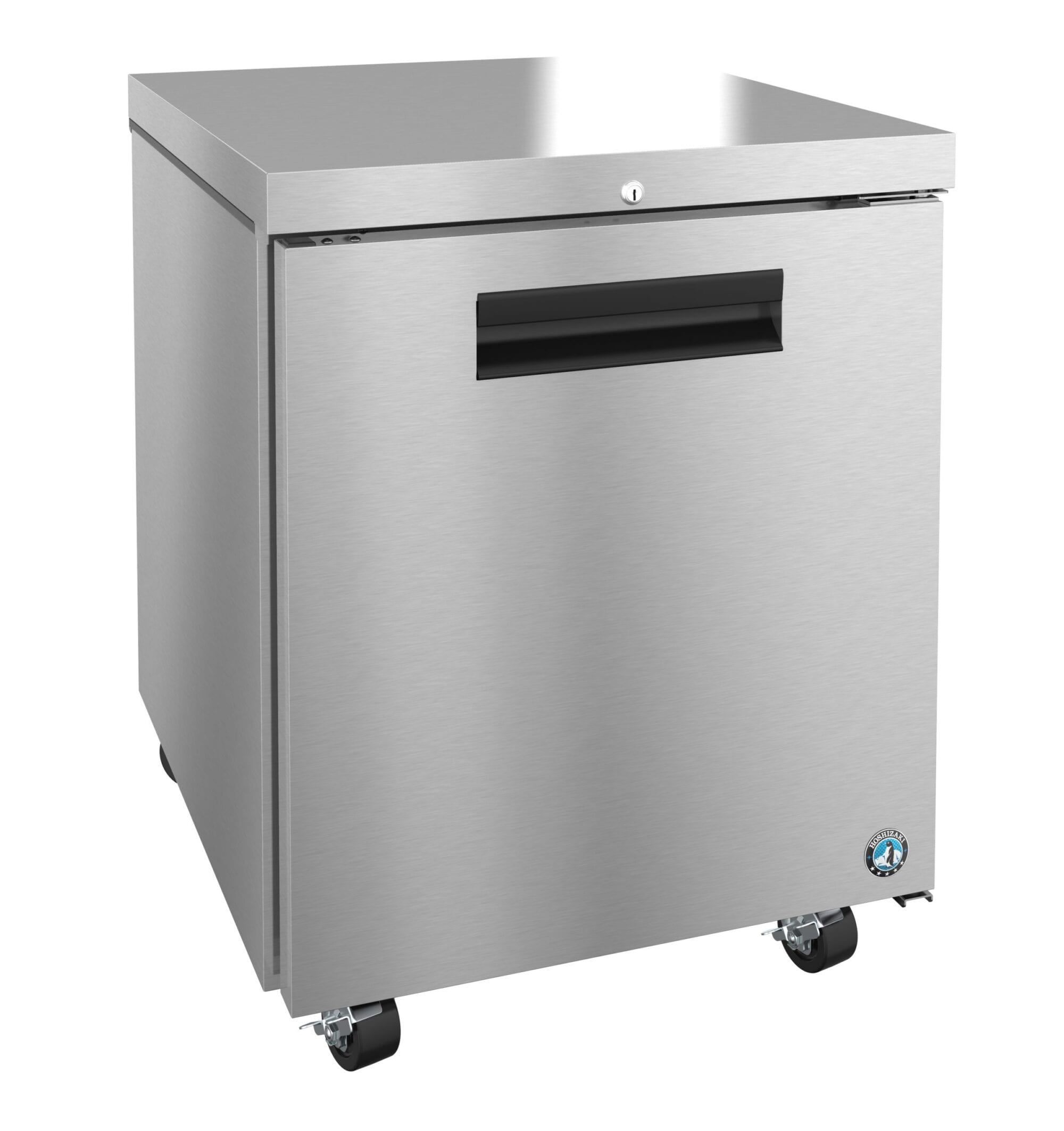

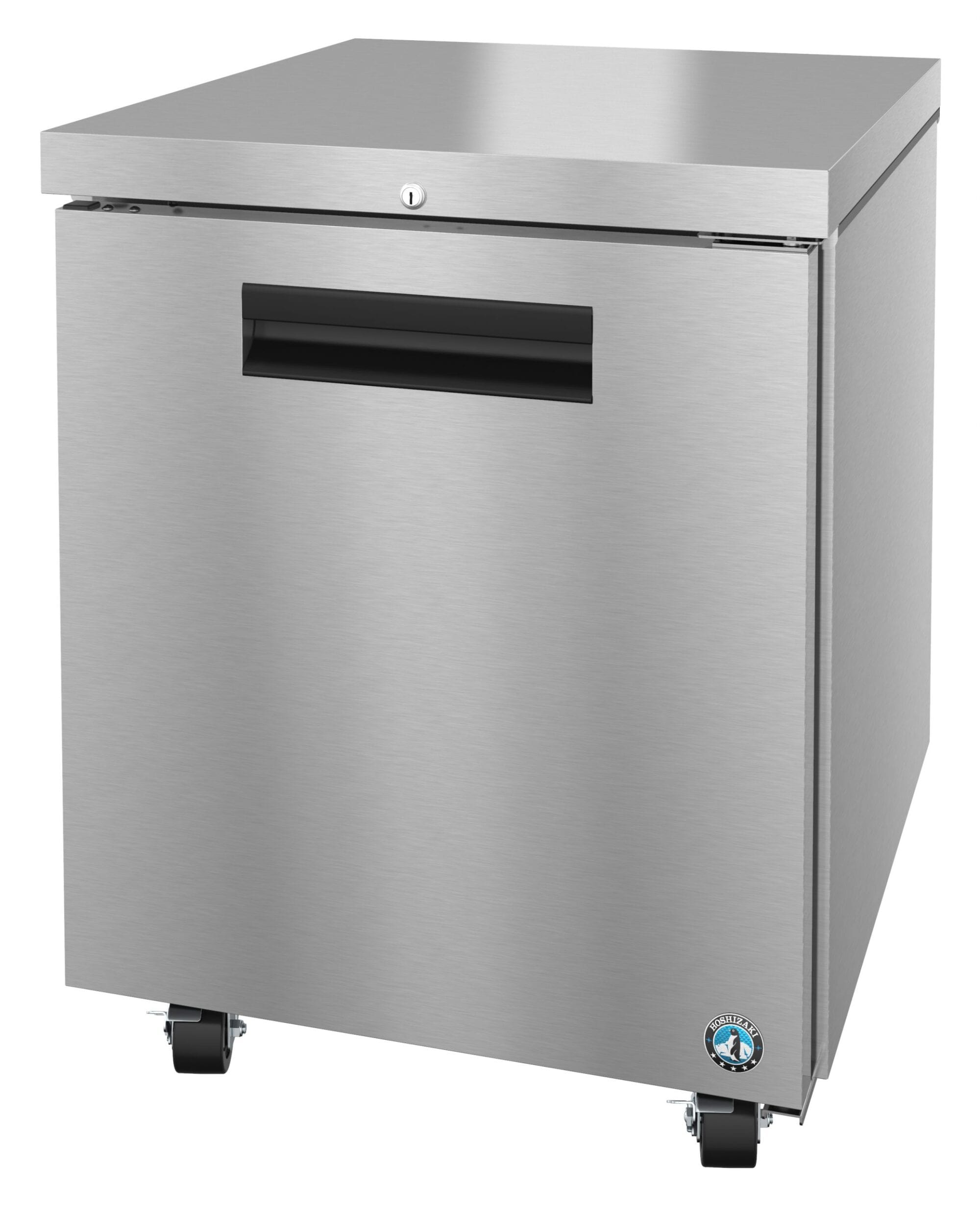

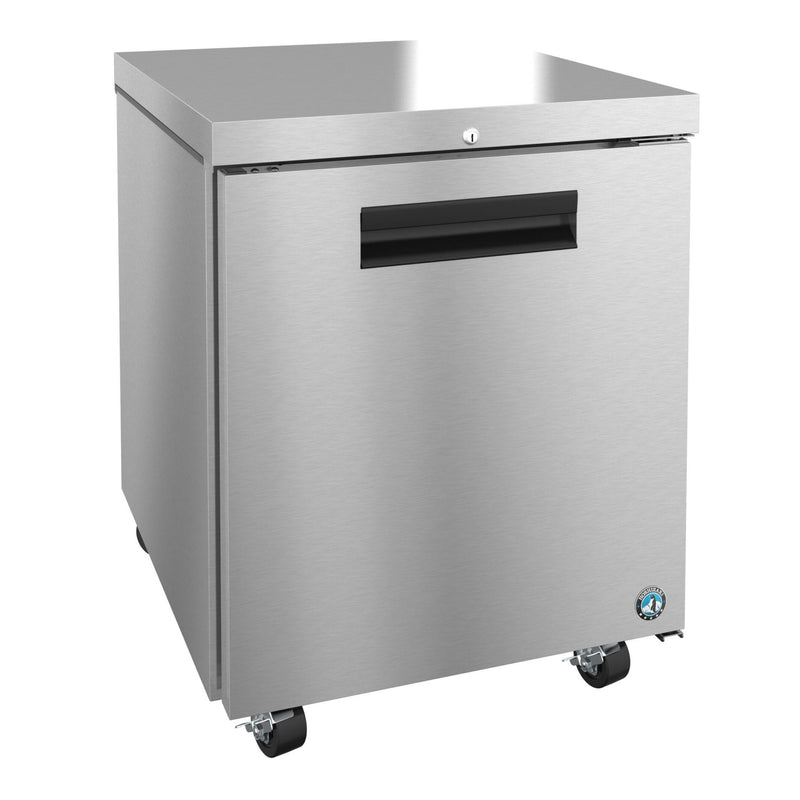

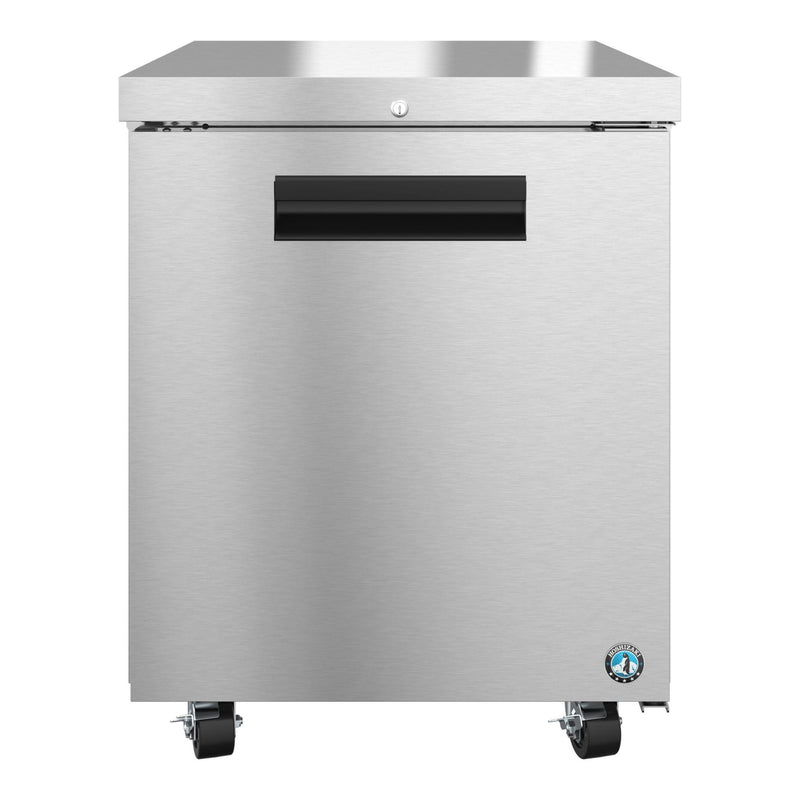

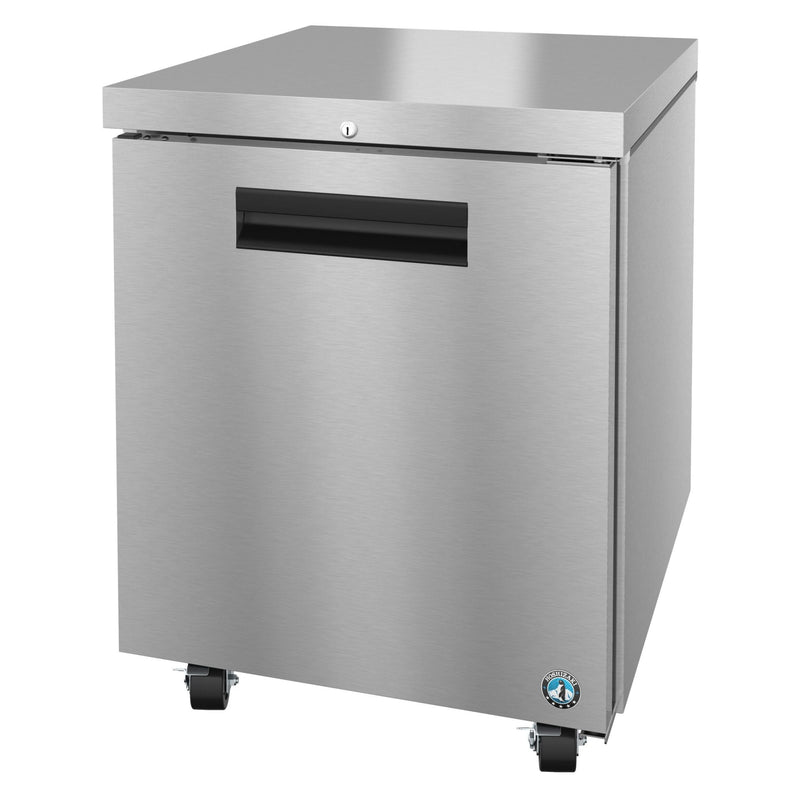

Hoshizaki UR27B-01 Undercounter Refrigerator – 27” One-Door Stainless Steel
Overview
The Hoshizaki UR27B-01 is a compact, high-performance undercounter refrigerator designed for commercial kitchens, healthcare facilities, and foodservice environments. With a sleek stainless steel exterior and interior, this unit offers reliable refrigeration in a space-saving footprint. Engineered to maintain NSF-7 temperatures even in 100°F ambient conditions, it’s ideal for demanding operations.
Key Features
- NSF-7 Compliant: Maintains safe food temperatures in up to 100°F ambient.
- Energy Efficient: Uses eco-friendly R290 refrigerant.
- Field Reversible Door: Flexible installation options.
- Durable Design: Stainless steel exterior and interior with ABS top.
- Easy Access: Spring-assisted self-closing door with stay-open feature.
- User-Friendly: Magnetic door gasket, adjustable shelving, and flush mount handle.
Construction & Durability
- Exterior: Stainless steel front, sides, and top; coated steel back and bottom.
- Interior: Stainless steel sides, back, and floor; ABS top.
- Insulation: 2” CFC-free foamed-in-place polyurethane.
- Door: Stepped design protects gasket; ABS liner interior.
- Shelf: One heavy-duty epoxy-coated shelf adjustable in ½” increments.
- Casters: 4” polyolefin stem casters (two with brakes); ADA-compliant 2.25” casters optional.
Mobility & Installation
- Dimensions: 27” W x 30” D x 33.75” H (with 4” casters)
- Door Opening: 22.75” W x 23” H
- Depth with Door Open: 55.5”
- Electrical: 115V / 60Hz / 1Ph, 5-15P NEMA plug
-
Installation Notes:
- Requires 1.5" overhead clearance for ventilation
- Factory-installed rear bumpers ensure proper rear clearance
- GFCI breaker must be used if GFCI protection is required
Certifications & Warranty
- Certifications: NSF-7, UL, ENERGY STAR®
- Warranty: 7-Year warranty covering labor, parts, and compressor (valid in U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- Casters: 2.25” (ADA compliant), 6” (HS-5036)
- Foot Pedal Kits: Left (HS-5378) or Right (HS-5379) hinge
- Shelving: Additional epoxy (HS-5161) or stainless steel (HS-5169)
- Overshelves: Single or double
- Cylinder Locks: Factory installed (-01 option)
- Stacking Kit: HS-5112
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The UR27B-01 exemplifies this with its robust construction, energy efficiency, and thoughtful design tailored for high-demand environments. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers reliability and performance you can trust.
