Overview

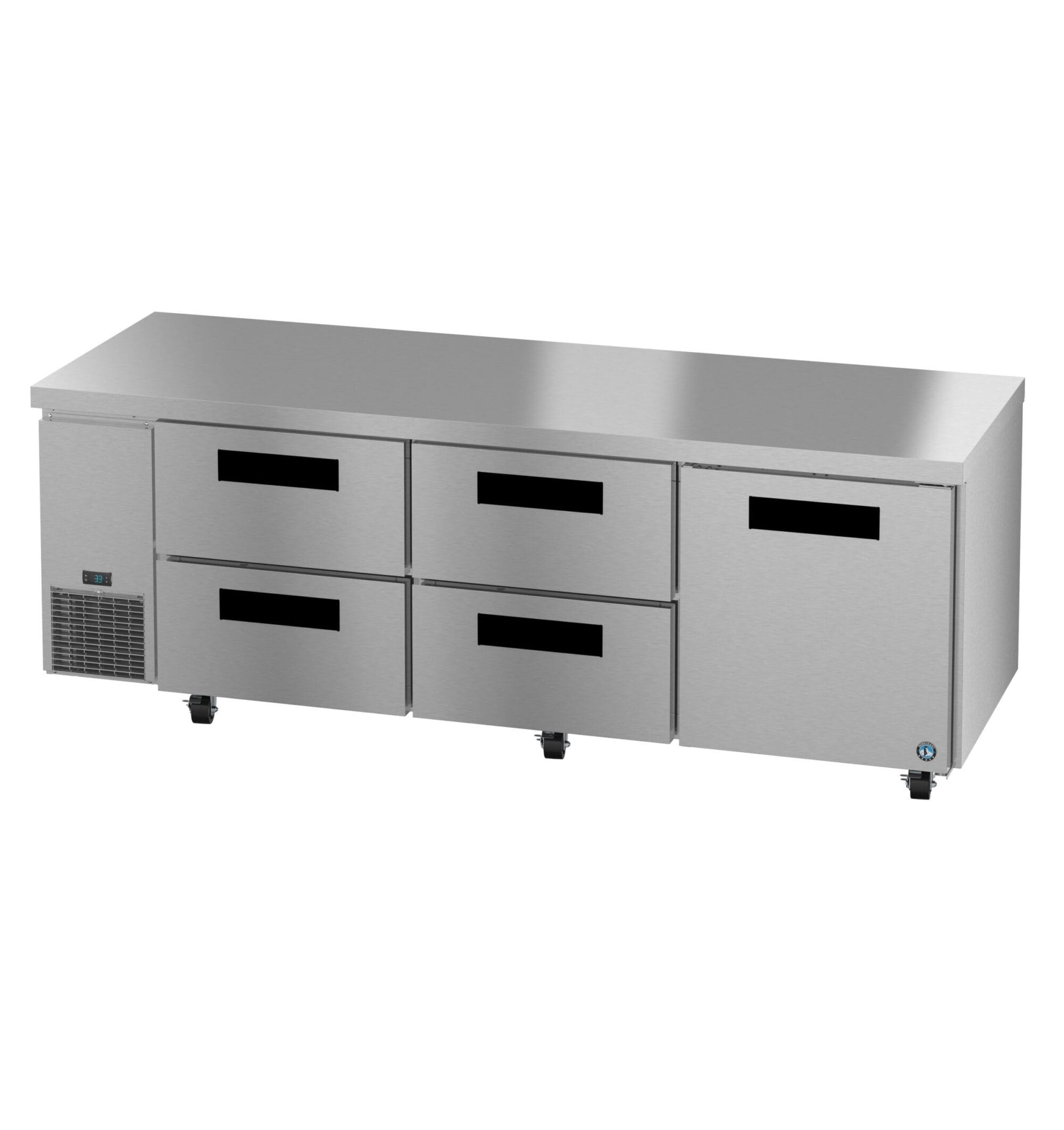

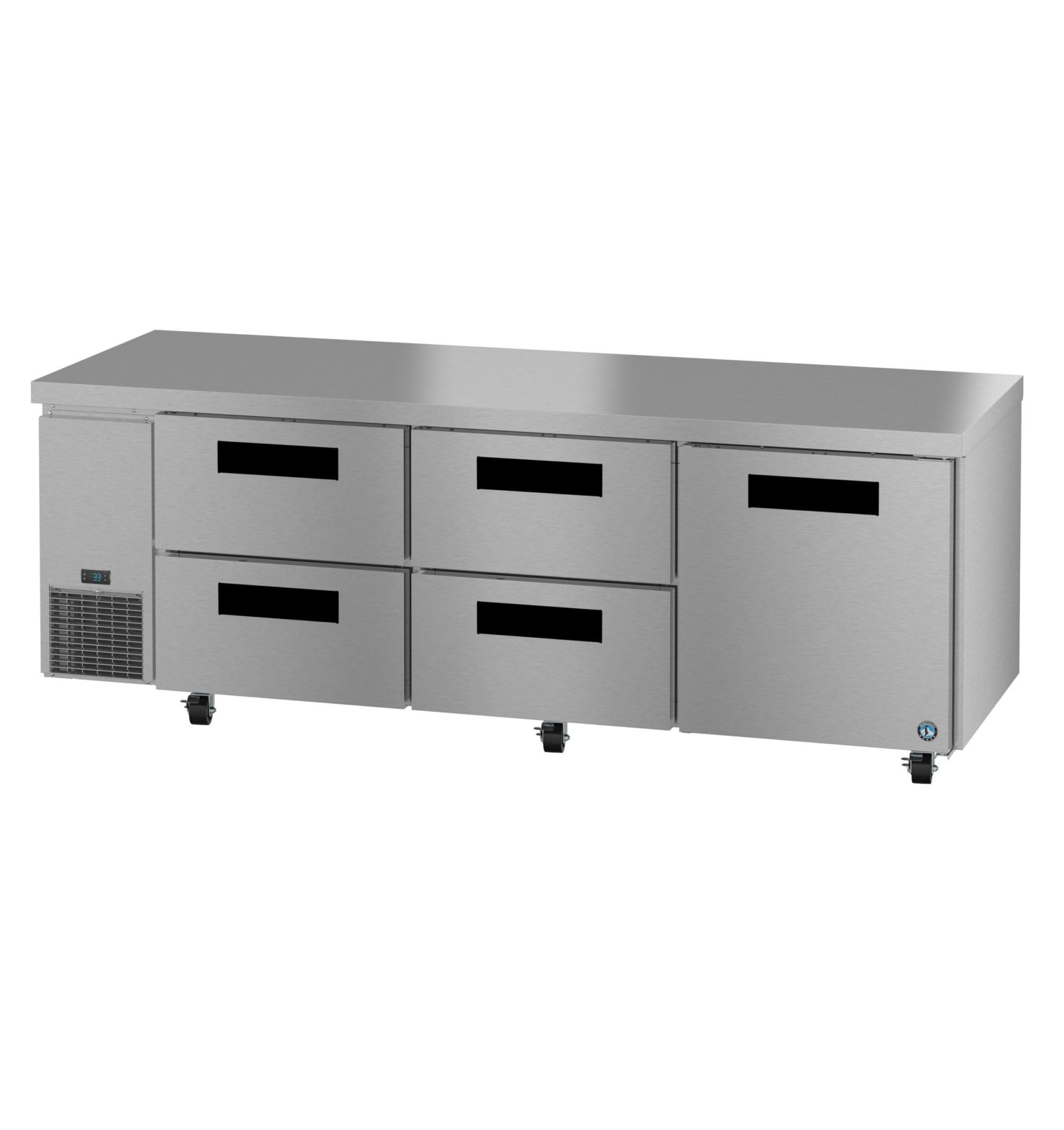

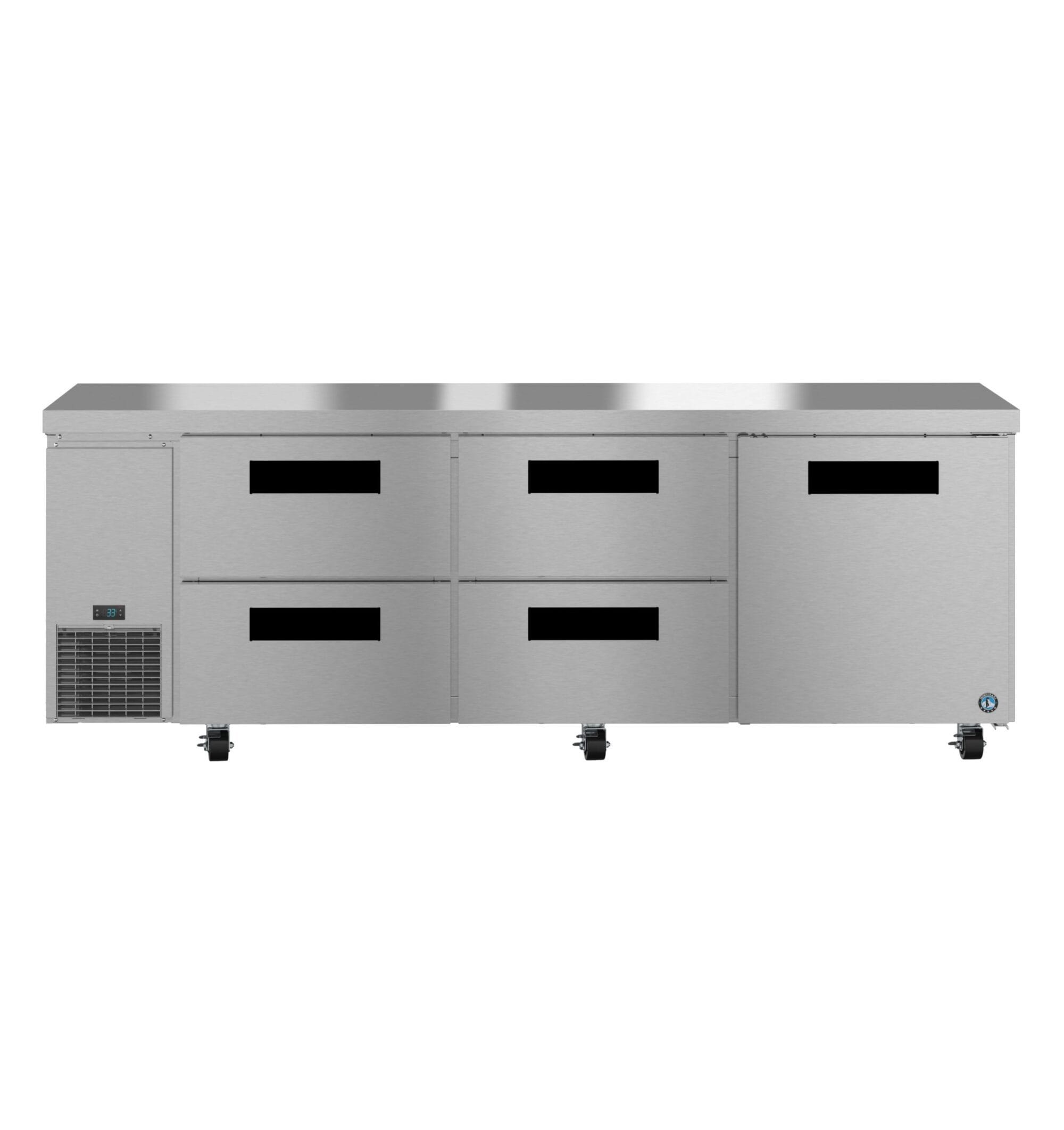

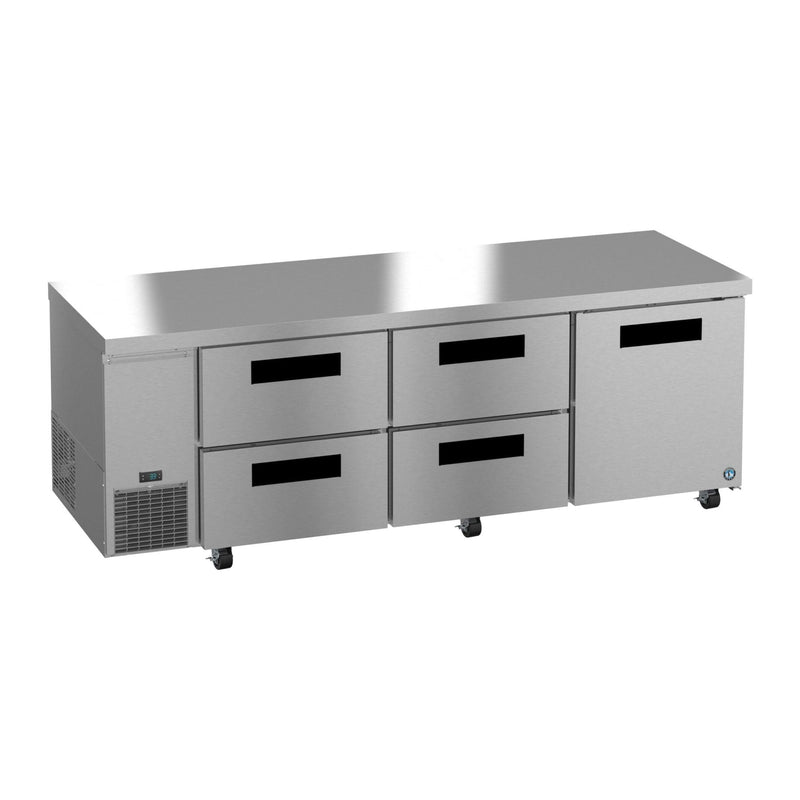

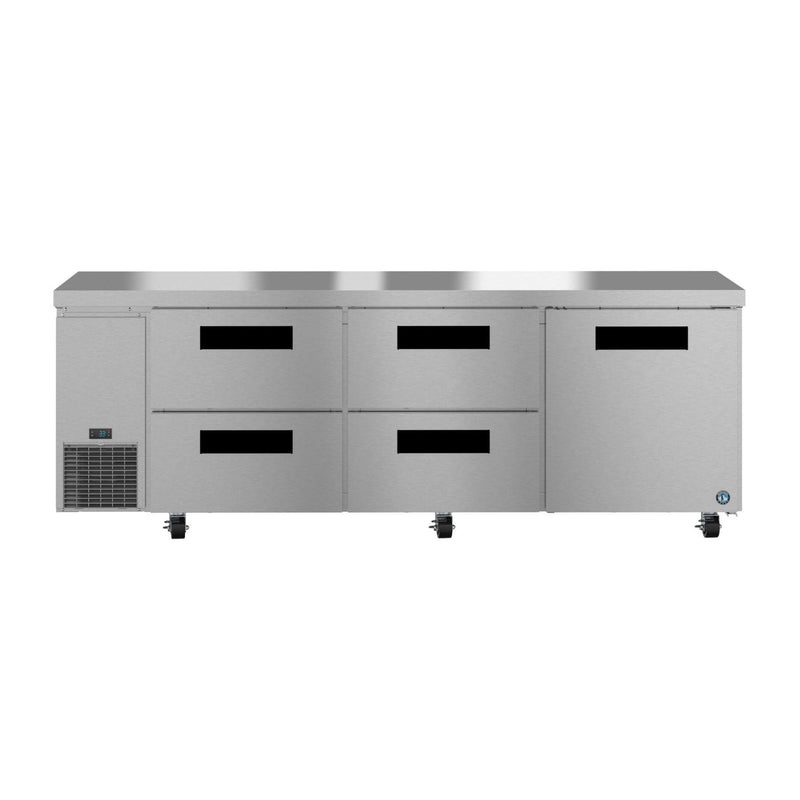

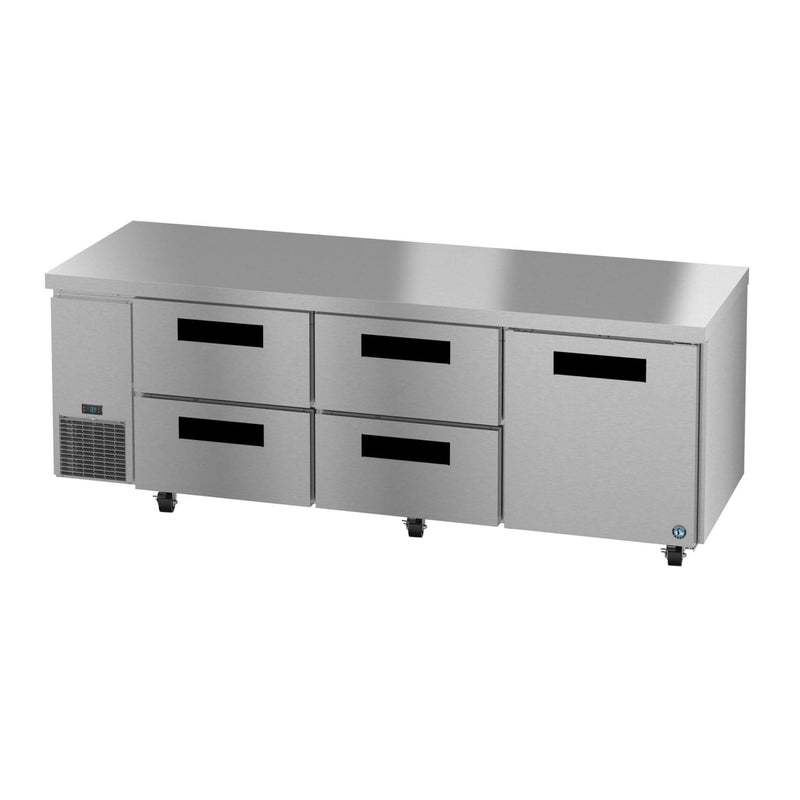

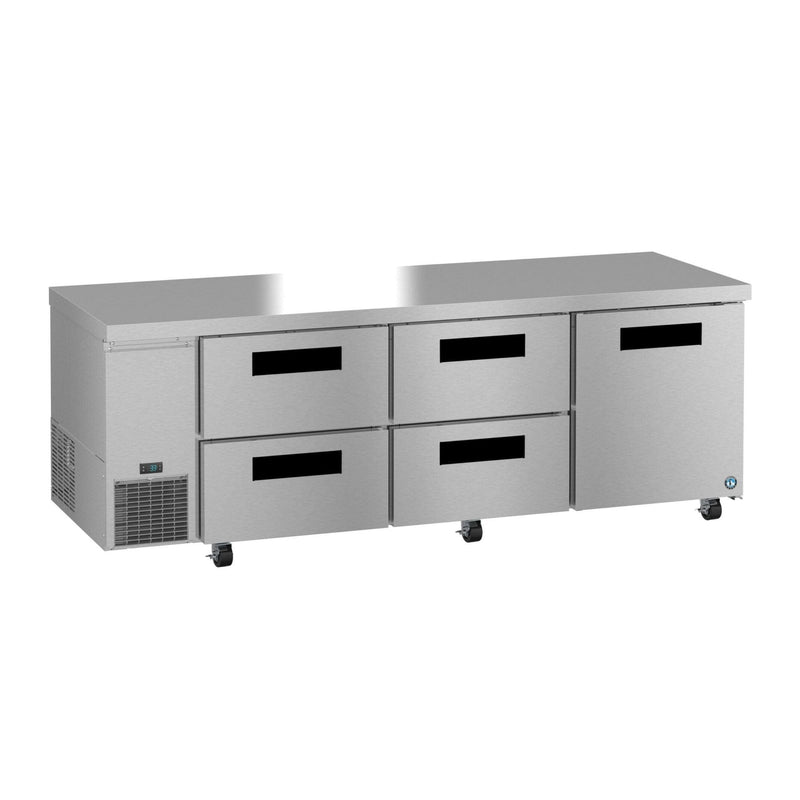

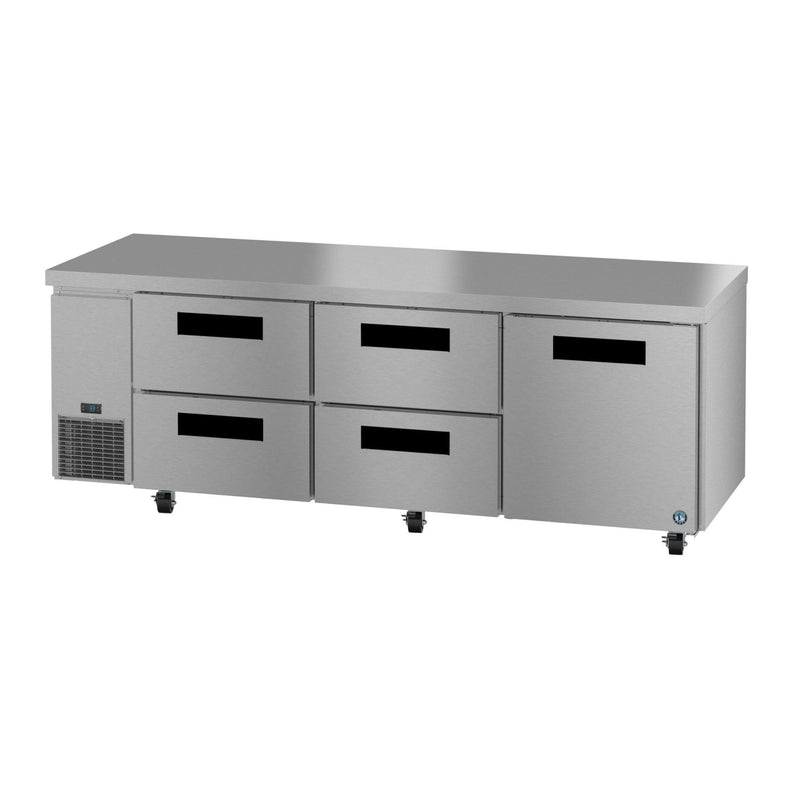

The Hoshizaki ULR93B-D4 is a high-performance, side-mount undercounter refrigerator designed for demanding commercial kitchens. With a spacious 93" width and a versatile configuration of one door and four drawers, this unit offers exceptional storage, energy efficiency, and durability. Engineered to maintain NSF-7 temperatures even in 100°F ambient conditions, it’s the ideal solution for foodservice professionals who demand reliability and flexibility.
Key Features
-
Digital Temperature Display with adjustable setpoints (28°F to 45°F)
-
Front Breathing Design allows for minimal rear clearance
-
Field Reversible Door with stay-open feature past 90°
-
Removable Magnetic Gaskets for easy cleaning
-
Hot Gas Condensate Removal and mullion heaters reduce condensation
-
E-coated Evaporator Coil for extended life
-
Removable Air Filter for simplified maintenance
-
NSF-7 Certified for food safety compliance
Construction & Durability
-
Exterior: Stainless steel front, sides, and top
-
Interior: Stainless steel sides, back, and floor with ABS top
-
Insulation: 2" CFC-free, foamed-in-place polyurethane
-
Drawers: Heavy-duty 14-gauge stainless steel frames and slides with acetal rollers (250 lb. load capacity)
-
Shelves: Two epoxy-coated shelves per section, adjustable in ½" increments, each holds up to 120 lbs.
-
Handles: Flush-mount extruded aluminum for doors and drawers
Mobility & Installation
-
Casters: Standard 4" polyolefin stem casters (two with brakes)
-
Electrical: 115V/60Hz/1Ph with NEMA 5-15P plug
-
Cord Length: 10 ft.
-
Installation: Door/drawer configuration customizable per section; must be specified at order
Certifications & Warranty
-
Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 5 Years Labor
- 6 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Casters: 2" (HS-5037) or 4" (HS-5036)
-
Foot Pedal Kits: Left (HS-5555) or Right (HS-5556)
-
Overshelves: Single (HS-5229) or Double (HS-5228)
-
Additional Shelves: Epoxy (HS-5151) or Stainless Steel (HS-5153)
-
Drawer Accessories: Divider Bars (Vertical HS-4007, Horizontal HS-5691), Drawer Liner (HS-5740)
Why Choose Hoshizaki?
Hoshizaki is a trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The ULR93B-D4 exemplifies this with its robust construction, energy-efficient design, and thoughtful features that enhance kitchen workflow. Whether you're outfitting a restaurant, hotel, or institutional kitchen, Hoshizaki delivers performance that goes Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Warranty Statement
Product Brochure
