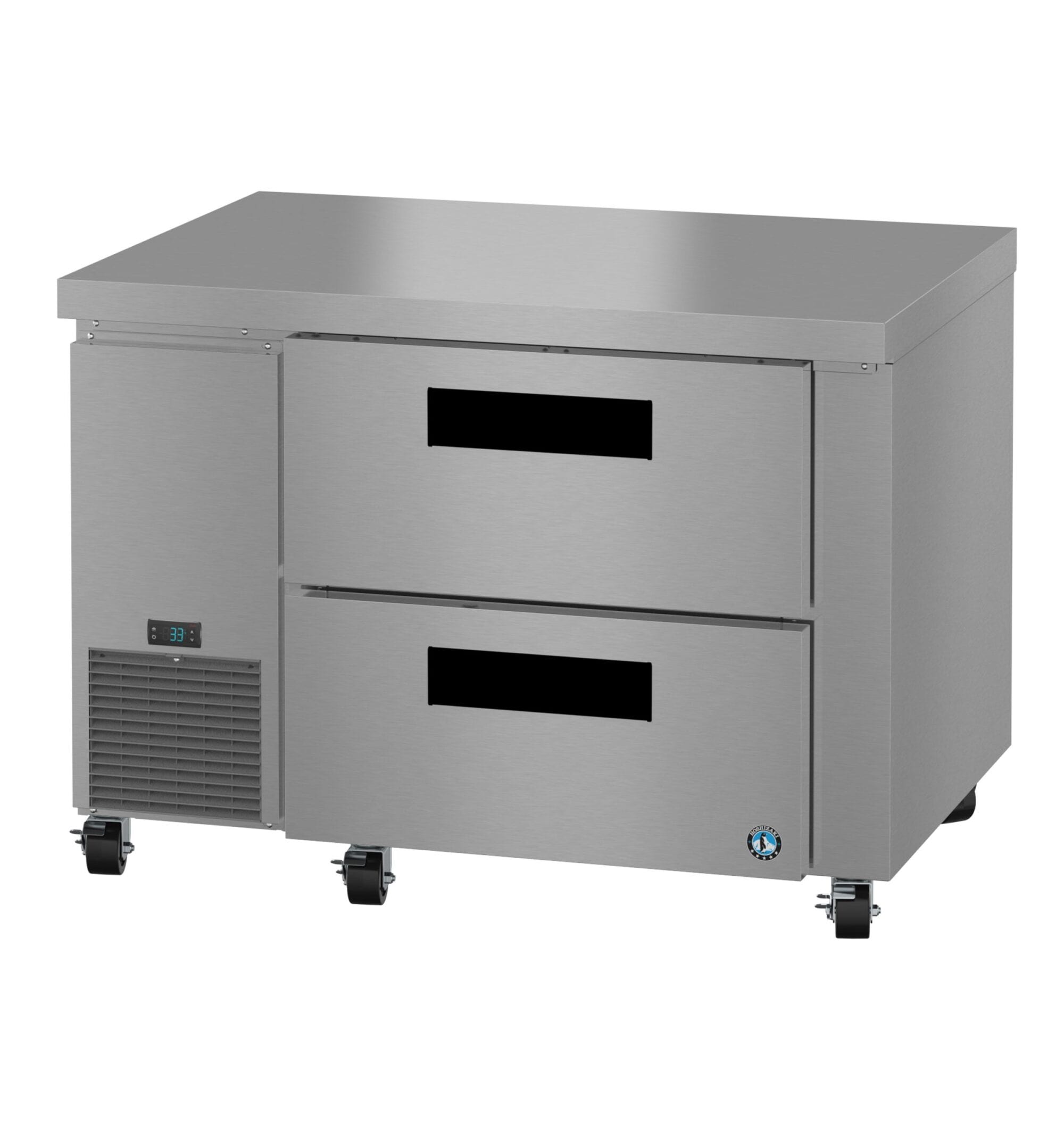

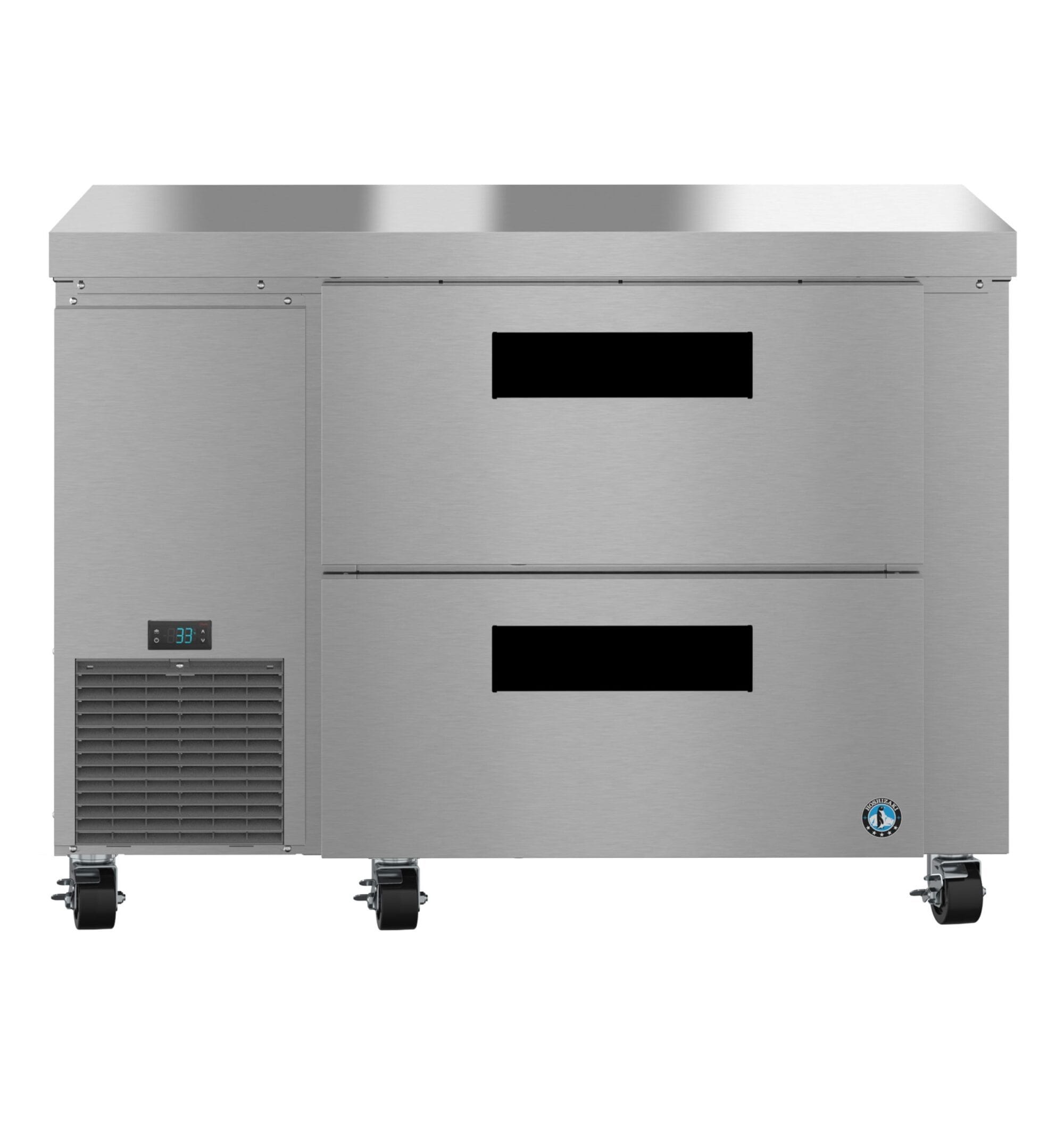

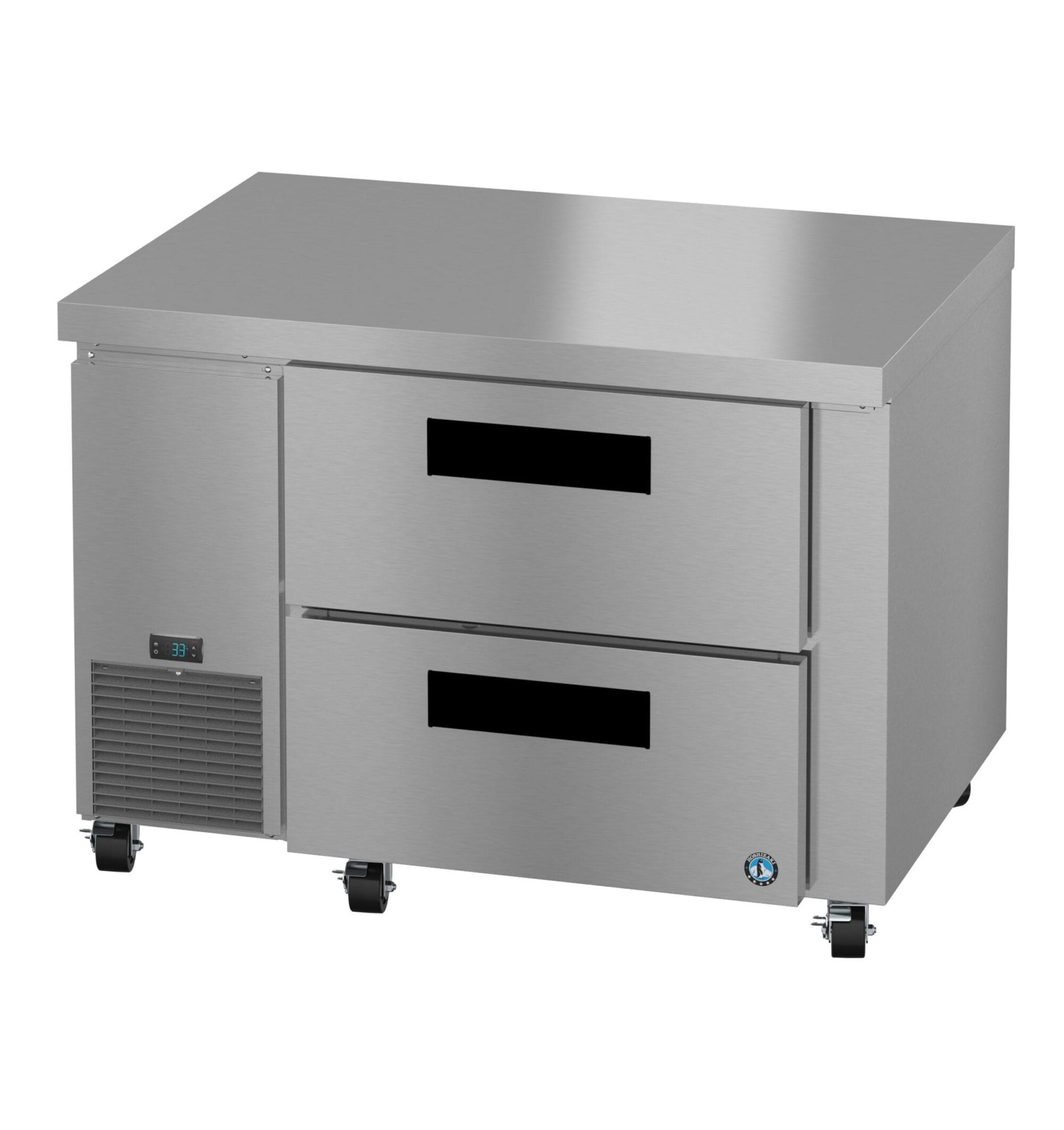

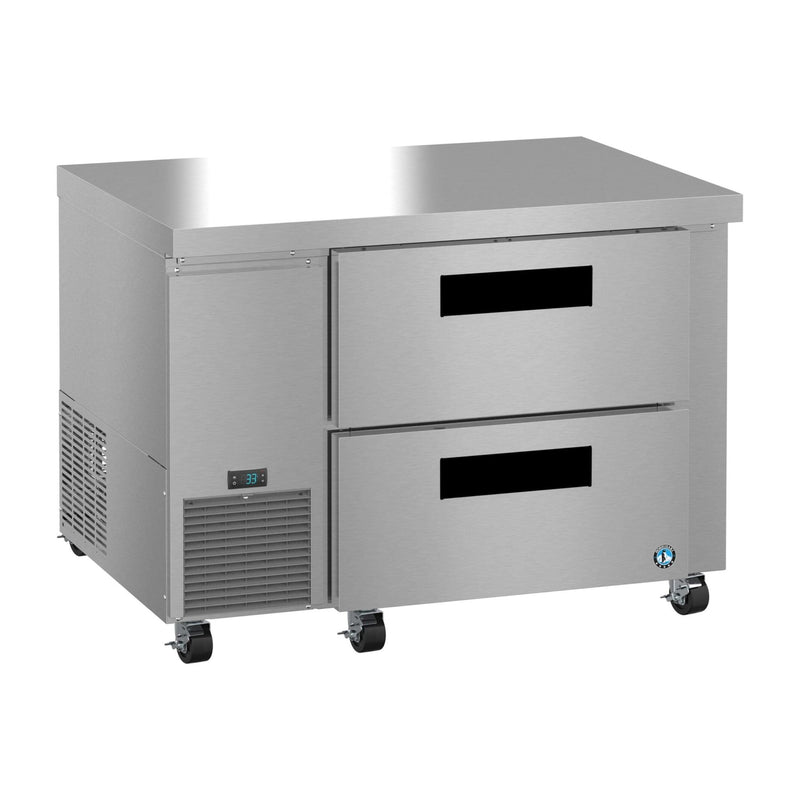

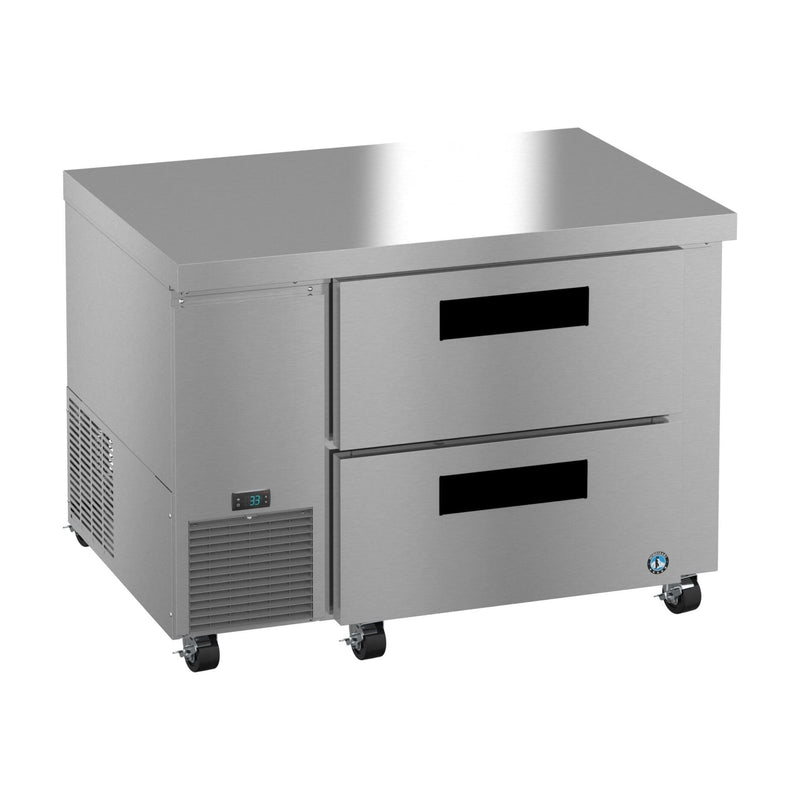

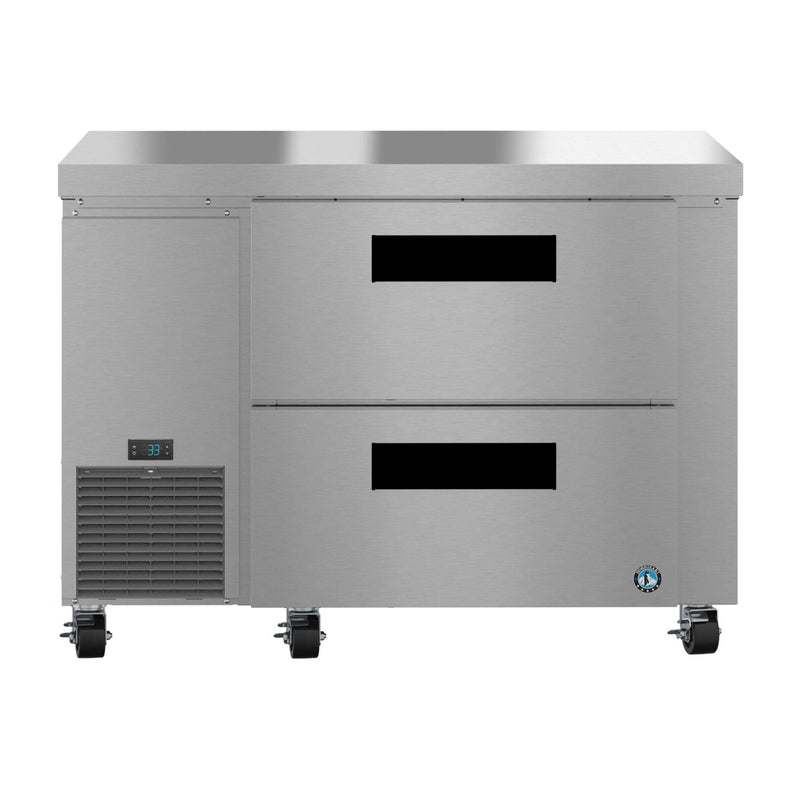

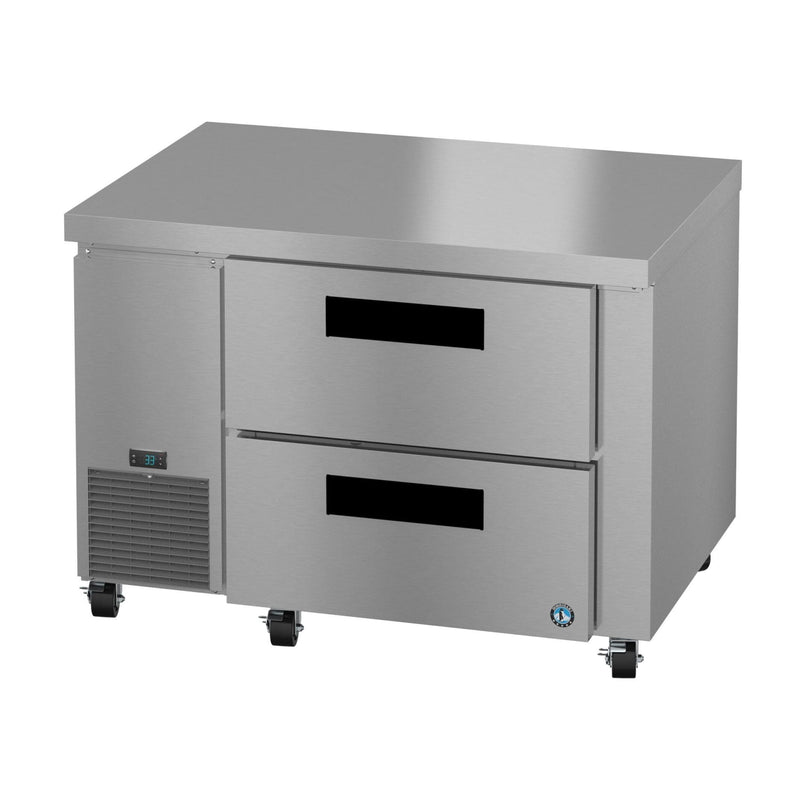

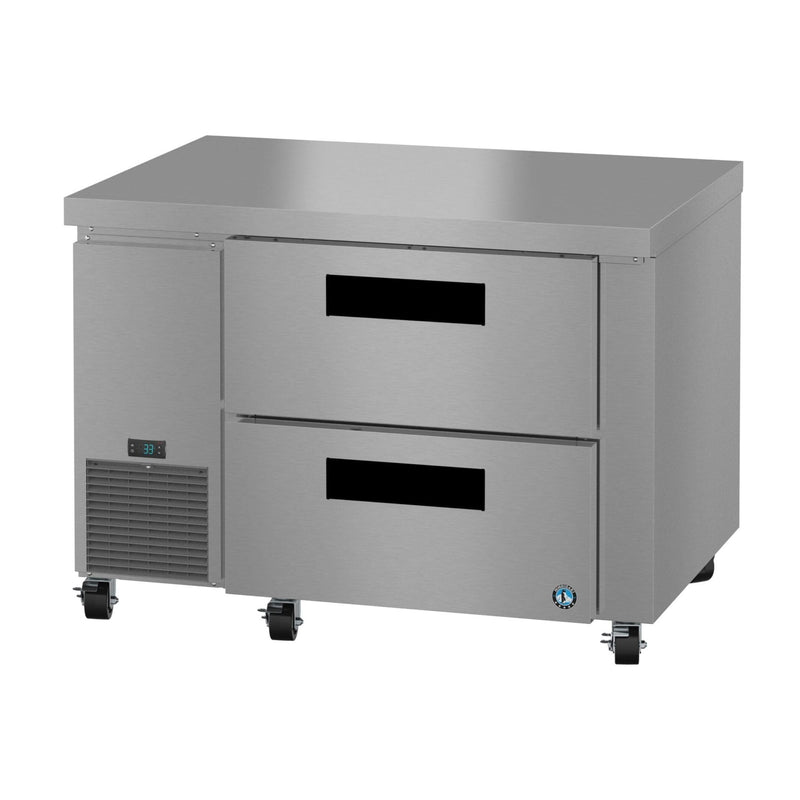

Hoshizaki ULR46B-D2 Undercounter 46” Side Mount Refrigerator – Two Drawers
Overview
The Hoshizaki ULR46B-D2 is a compact, high-performance undercounter refrigerator designed for commercial kitchens that demand durability, efficiency, and space-saving functionality. With two heavy-duty drawers and a sleek stainless steel design, this unit is ideal for storing ingredients in busy prep areas.
Key Features
- Two full-extension drawers with 250 lb. load capacity each
- Digital temperature display with adjustable setpoints (28°F to 45°F)
- NSF-7 certified for safe food storage in ambient temperatures up to 100°F
- Front-breathing air flow design for minimal rear clearance
- Removable air filter for easy maintenance
- Hot gas condensate removal system
- E-coated evaporator coil for extended life
- Environmentally friendly R290 refrigerant
- Energy efficient: 0.92 kWh/day
- Standard 4” casters (three with brakes)
- 10 ft. cord and plug for quick installation
Construction & Durability
- Exterior: Stainless steel front, sides, and top
- Interior: Stainless steel back, sides, floor, and top
- Insulation: 2” CFC-free, foamed-in-place polyurethane
-
Drawers:
- Constructed of 14-gauge stainless steel
- Acetal rollers with stainless steel ball bearings
- Life-tested for 300,000 cycles fully loaded
- Each drawer accommodates (2) 12" x 20" x 6" pans (pans not included)
- Magnetic snap-in gaskets are easily removable
- Extruded aluminum flush mount handles
Mobility & Installation
- Dimensions: 46"W x 33.25"D x 33.875"H (with 4" casters)
- Electrical: 115V/60Hz/1Ph, 15.0 Amps, NEMA 5-15P plug
- Voltage Range: 104–126V
- Recommended Setpoint: 36°F
- Crated Weight: 313 lbs.
- Crated Dimensions: 48.75"W x 34.75"D x 36"H
Certifications & Warranty
- NSF-7 certified
- UL listed
- Made in Georgia, USA
-
Warranty:
- 5 years labor
- 6 years parts
- 7 years compressor
(Valid in the U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- 2” Casters (HS-5037)
- 6” Casters (HS-5036)
- Overshelves: Single (HS-5229), Double (HS-5228)
- Drawer Divider Bars: Vertical (HS-4007), Horizontal (HS-5691)
- Drawer Liner (HS-5740)
Why Choose Hoshizaki?
Hoshizaki is a trusted name in commercial refrigeration, known for engineering excellence, energy efficiency, and long-lasting durability. The ULR46B-D2 is part of the Steelheart® Series, built to perform in high-demand environments. With a commitment to sustainability and innovation, Hoshizaki products are Beyond Strong—delivering peace of mind and performance that lasts.
