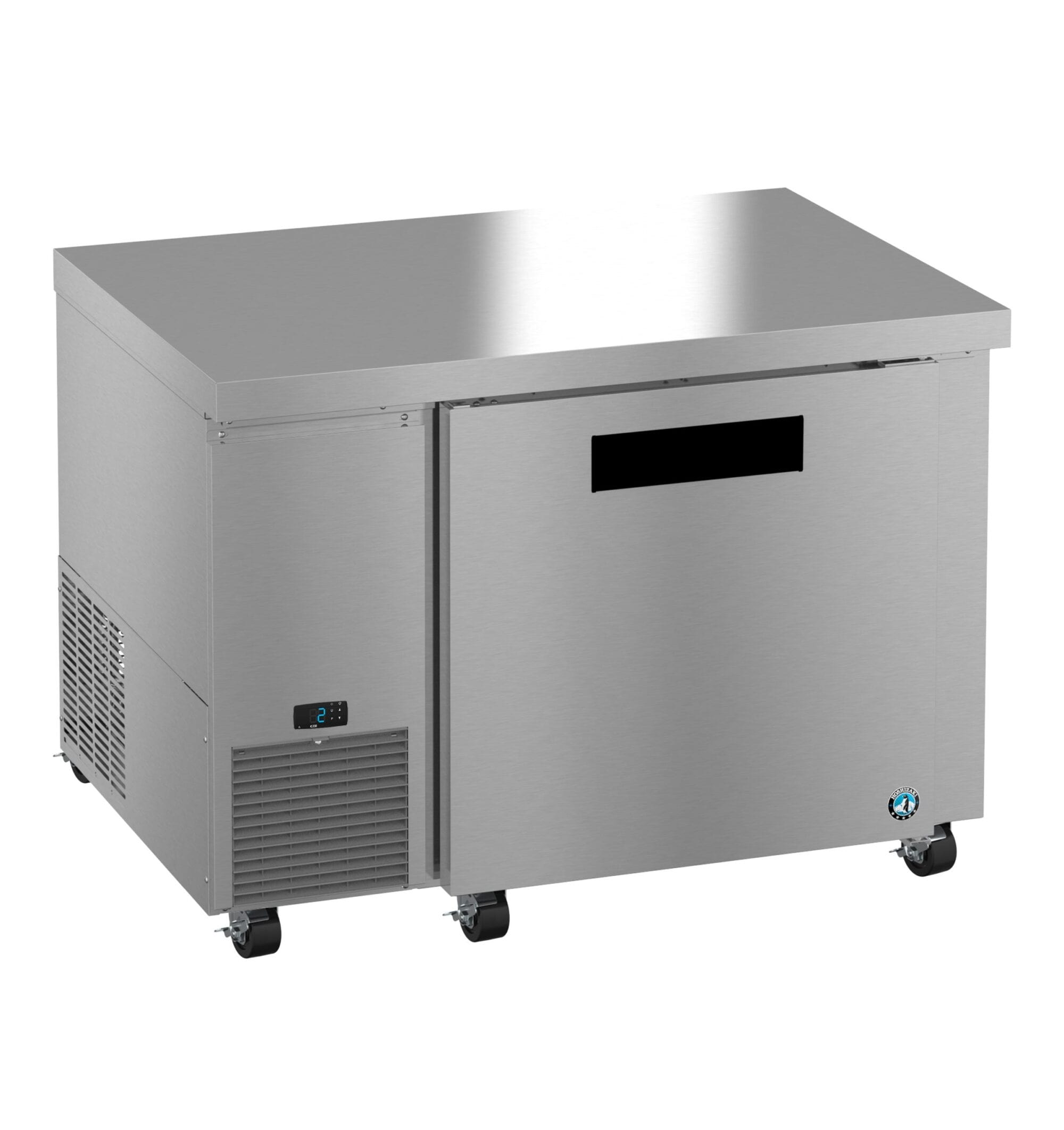

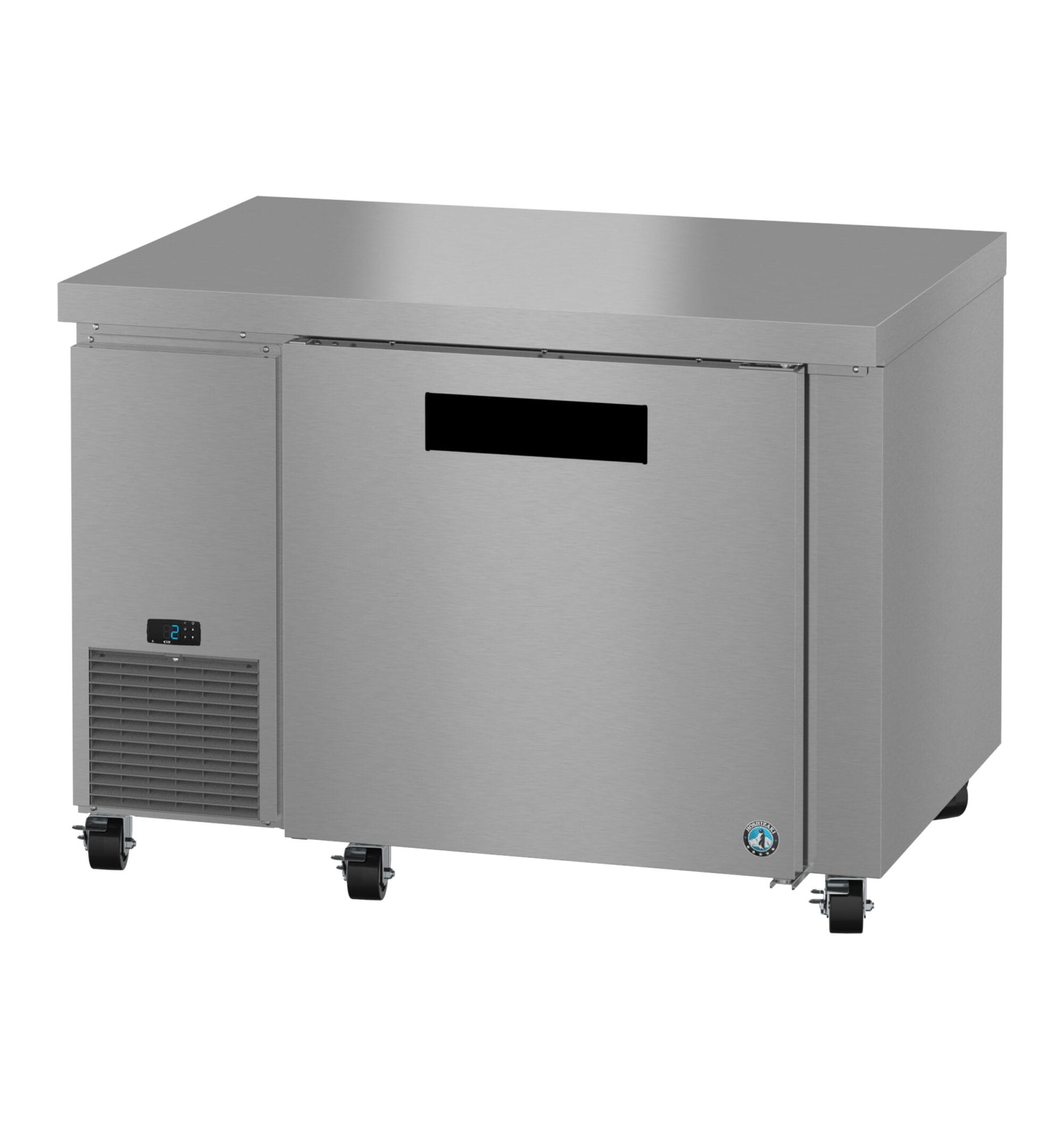

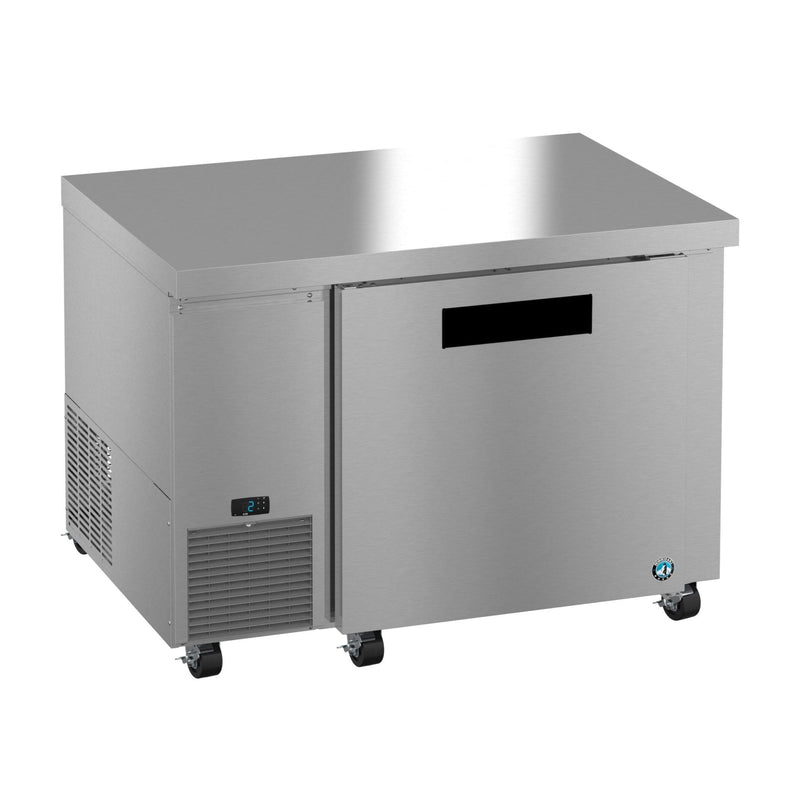

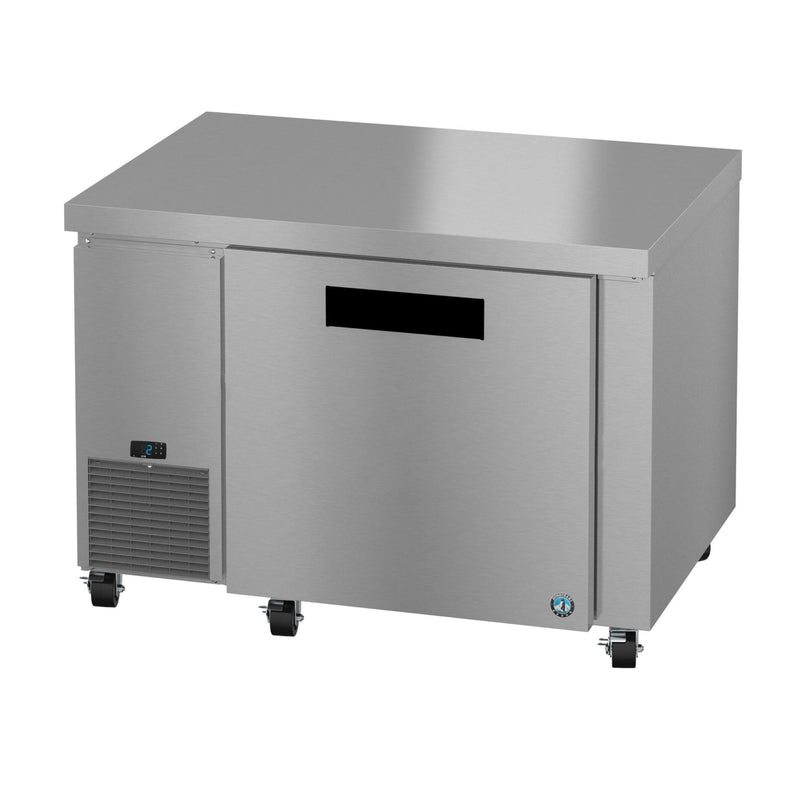

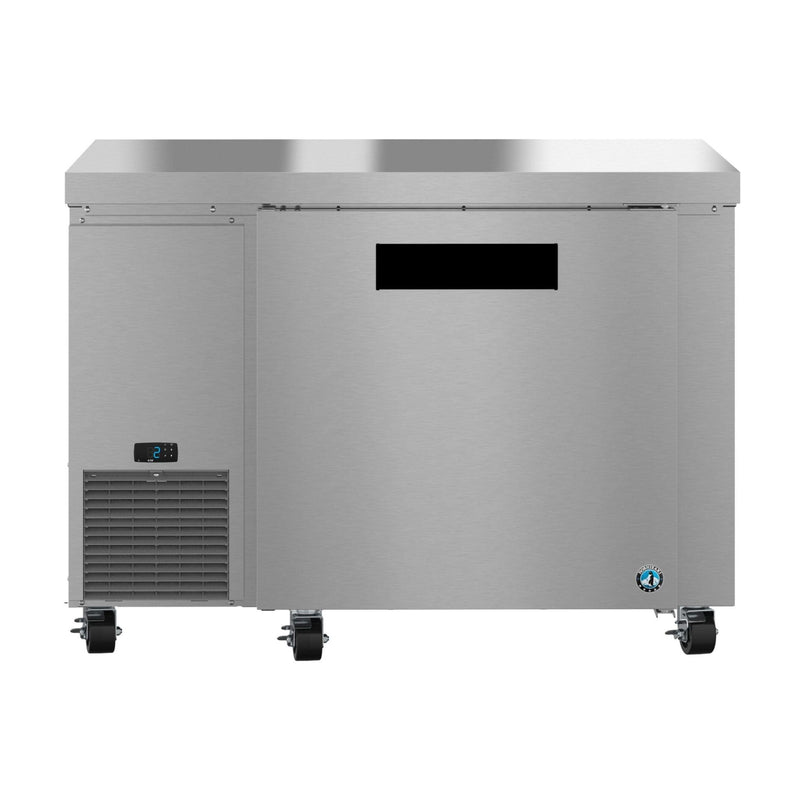

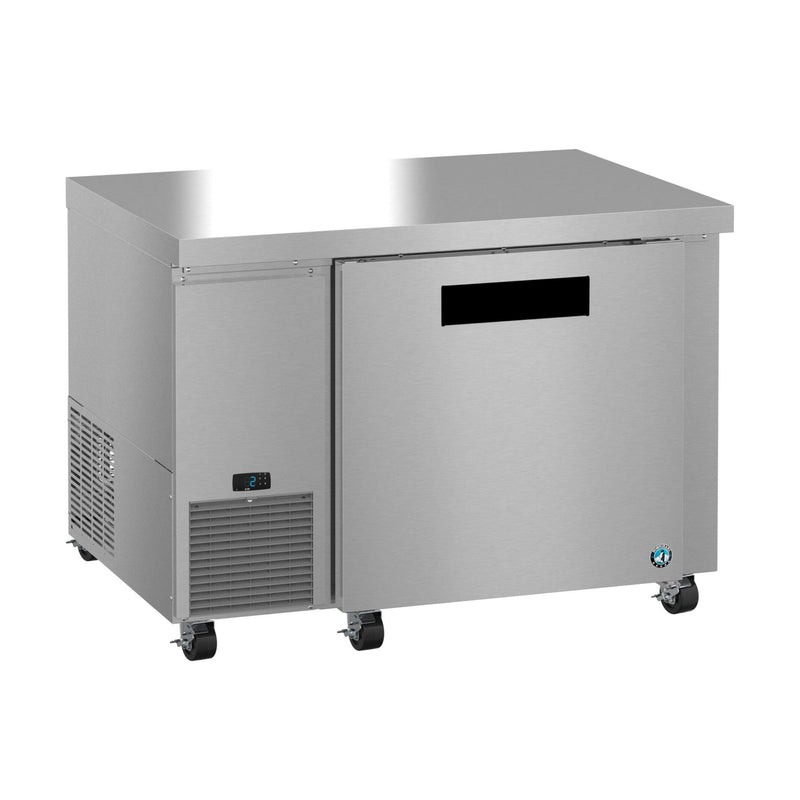

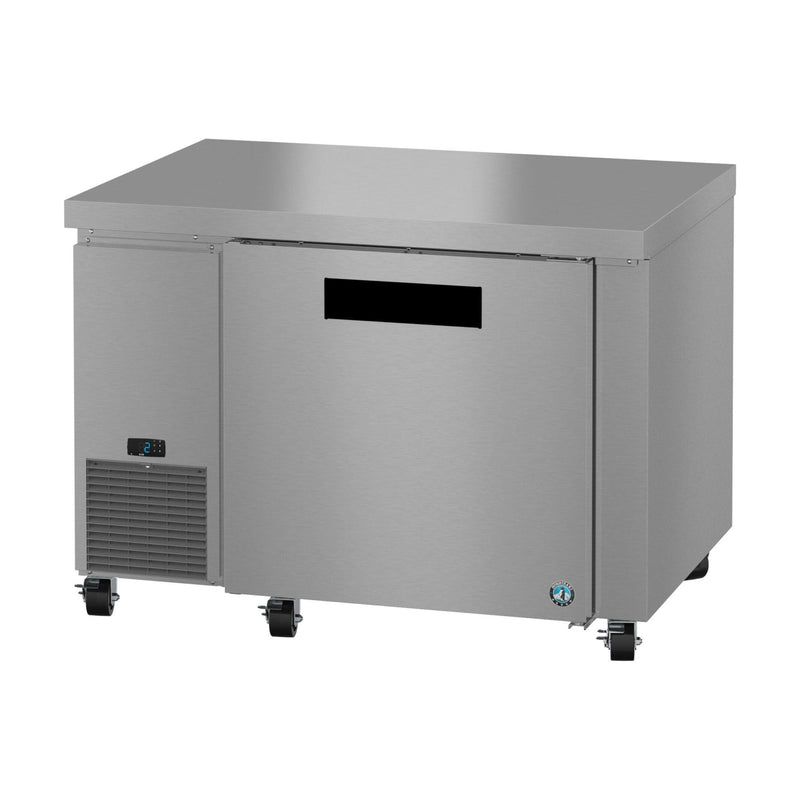

Hoshizaki ULF46B 46" Side Mount Undercounter Freezer with One Door
Overview
The Hoshizaki ULF46B is a compact, high-performance undercounter freezer designed for commercial kitchens that demand reliability and efficiency. With a single-door configuration and side-mounted refrigeration system, this unit offers optimal storage capacity while maintaining NSF-7 temperatures in ambient conditions up to 100°F. Ideal for tight spaces and high-volume operations.
Key Features
- Single Solid Door with field-reversible hinges and stay-open feature past 90°
- Digital Temperature Display with adjustable control from -10°F to 10°F
- Environmentally Friendly Refrigerant: R290 hydrocarbon
- Magnetic Snap-In Door Gaskets: Easily removable for cleaning
- Hot Gas Condensate Removal for efficient moisture control
- E-coated Evaporator Coil for extended life
- Two Heavy-Duty Epoxy-Coated Shelves (adjustable in ½" increments)
- Shelves Support Full-Size Sheet Pans and up to 120 lbs. each
- Removable Air Filter for easy maintenance
Construction & Durability
- Exterior: Stainless steel front, sides, and top
- Interior: Stainless steel back, sides, top, and floor
- Door: Stainless steel exterior with ABS interior liner
- Insulation: 2" CFC-free, foamed-in-place polyurethane
- Casters: 4" polyolefin stem casters (three with brakes)
- Flush-Mount Handle: Extruded aluminum for durability and ease of use
Mobility & Installation
- Dimensions: 46"W x 33.25"D x 33.875"H (with casters)
- Electrical: 115V / 60Hz / 1Ph, 5-15P plug, 15.0 Amps
- Cord Length: 10 ft.
-
Installation Notes:
- Front breathing design allows for 1" rear clearance
- Requires 1.5" overhead clearance
- GFCI breaker must be used if GFCI protection is required
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Casters:
- 2" (HS-5037)
- 6" (HS-5036)
-
Foot Pedal Kits:
- Left hinge (HS-5555)
- Right hinge (HS-5556)
- Pan Slide Rack: HS-5514
-
Overshelves:
- Single (HS-5229)
- Double (HS-5228)
-
Additional Shelves:
- Epoxy (HS-5152)
- Stainless Steel (HS-5154)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The ULF46B freezer exemplifies this legacy with its durable construction, energy-efficient design, and advanced cooling technology. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers equipment that goes Beyond Strong.
