Overview

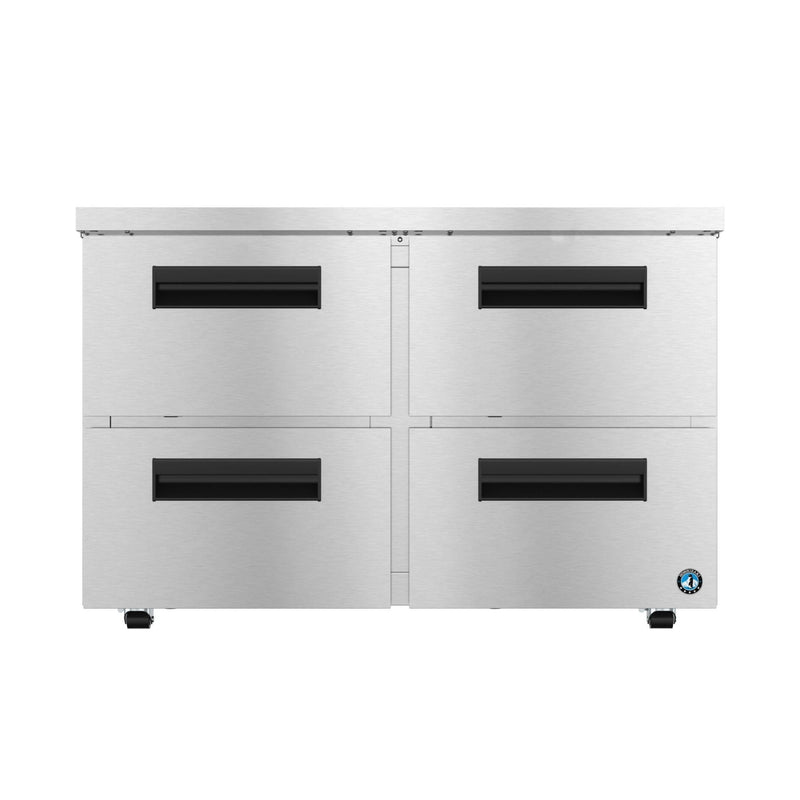

The Hoshizaki UF48B-LPD4 is a compact, high-performance undercounter freezer designed to meet the needs of commercial kitchens with limited space. Featuring four durable stainless steel drawers, this low-profile unit fits under ADA-compliant counters and maintains NSF-7 temperatures even in ambient conditions up to 100°F. With a sleek design and robust construction, it’s ideal for restaurants, cafés, and institutional foodservice operations.
Key Features
-
Four Stainless Steel Drawers: Top and bottom drawers accommodate various pan sizes including 1/2, 1/3, 1/4, 1/6, and full-size pans
-
Drawer Load Rating: Each drawer supports up to 175 lbs. dynamic load
-
Magnetic Snap-In Drawer Gaskets: Easy to remove and clean
-
Flush-Mount Handles: Extruded aluminum for durability and ease of use
-
Environmentally Friendly Refrigerant: R290 hydrocarbon
-
Digital Temperature Control: Adjustable from -18°F to 10°F
-
Hot Gas Condensate Removal: Efficient moisture management
-
E-Coated Evaporator Coil: Corrosion-resistant and long-lasting
-
Off-Cycle Defrost System: Eliminates ice buildup without manual intervention
-
10 ft. Cord and Plug: NEMA 5-15P connection
Construction & Durability
-
Exterior: Stainless steel top, front, and sides; coated steel back and bottom
-
Interior: Stainless steel sides, back, and floor with ABS top
-
Insulation: 2" CFC-free, foamed-in-place polyurethane
-
Drawer Slides: 16-gauge stainless steel with acetal rollers
-
Drawer Frames: 14-gauge stainless steel, securely fastened
-
Casters: 2.25" polyolefin stem casters (two with brakes)
Mobility & Installation
-
Dimensions: 48"W x 30"D x 31.9"H (with casters)
-
Electrical: 115V / 60Hz / 1Ph, 15.0 Amps
-
Crated Weight: 331 lbs.
-
Crated Dimensions: 52.5"W x 34"D x 35.5"H
-
Installation Notes:
- Requires 1.5" overhead clearance
- GFCI breaker must be used if GFCI protection is required
Certifications & Warranty
-
Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Casters:
- 4" (HS-5035)
- 6" (HS-5036)
-
Drawer Liners:
- Upper (HS-5738)
- Lower (HS-5739)
-
Overshelves:
- Single (HS-5173)
- Double (HS-5164)
-
Drawer Divider Bars:
- Vertical (HS-4007)
- Horizontal (HS-5432)
-
Stainless Steel Back Panel: Factory request option
Why Choose Hoshizaki?
Hoshizaki is a globally recognized leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The UF48B-LPD4 freezer exemplifies this legacy with its durable construction, energy-efficient design, and advanced cooling technology. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers equipment that goes Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
