Overview

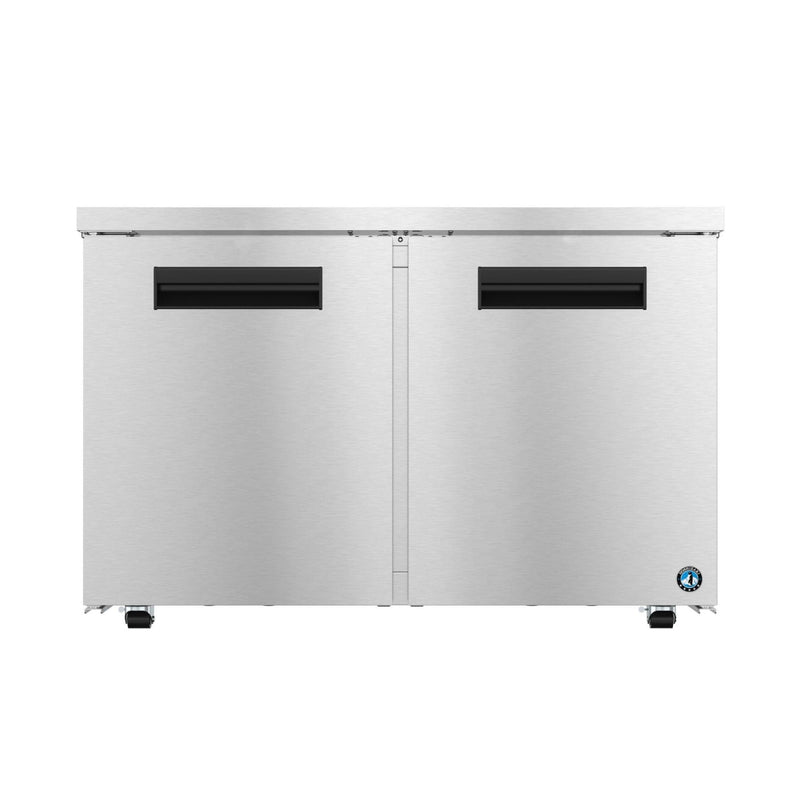

The Hoshizaki UF48B-LP is a high-performance, low-profile undercounter freezer designed to meet the rigorous demands of commercial kitchens. With a compact 31.9" height, it fits seamlessly under ADA-compliant counters while delivering powerful and energy-efficient freezing performance. Built with premium stainless steel and advanced refrigeration technology, this unit ensures consistent temperatures even in high ambient conditions.
Key Features
-
Low Profile Design: Fits under 34" ADA-compliant counters
-
Two Solid Doors: Spring-assisted self-closing with stay-open feature
-
Stepped Door Design: Protects door gaskets from damage
-
Magnetic Snap-In Gaskets: Easy to remove and clean
-
Digital Temperature Control: Adjustable from -18°F to 10°F
-
Hot Gas Condensate Removal: No need for external drains
-
E-Coated Evaporator Coil: Corrosion-resistant for extended life
-
Efficient Air Distribution System: Maintains NSF-7 temperatures in up to 100°F ambient
Construction & Durability
-
Exterior: Stainless steel top, front, and sides; coated steel back and bottom
-
Interior: Stainless steel sides, back, and floor with ABS top
-
Insulation: 2" CFC-free, foamed-in-place polyurethane
-
Doors: Field-reversible with extruded aluminum flush-mount handles
-
Shelving: Two heavy-duty epoxy-coated shelves (one per section), adjustable in ½" increments
-
Casters: 2.25" polyolefin stem casters (two with brakes)
Mobility & Installation
-
Dimensions: 48"W x 30"D x 31.9"H (with casters)
-
Door Opening: 19.5"W x 23"H
-
Depth with Door Open: 51.5"
-
Electrical: 115V / 60Hz / 1Ph, 15.0 Amps, NEMA 5-15P plug
-
Crated Weight: 258 lbs.
-
Crated Dimensions: 52.5"W x 34"D x 35.5"H
-
Installation Notes:
- Requires 1.5" overhead clearance
- GFCI breaker must be used if GFCI protection is required
Certifications & Warranty
-
Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Casters:
- 4" (HS-5035)
- 6" (HS-5036)
-
Foot Pedal Kits:
- Left hinge (HS-5555)
- Right hinge (HS-5556)
-
Door Locks: (UR48B-LP01)
-
Overshelves:
- Single (HS-5173)
- Double (HS-5164)
-
Additional Shelves:
- Epoxy (HS-5059)
- Stainless Steel (HS-5117)
-
Stainless Steel Back Panel: Factory request option
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The UF48B-LP freezer exemplifies this legacy with its robust construction, energy-efficient operation, and thoughtful design. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers equipment that goes Beyond Strong.
