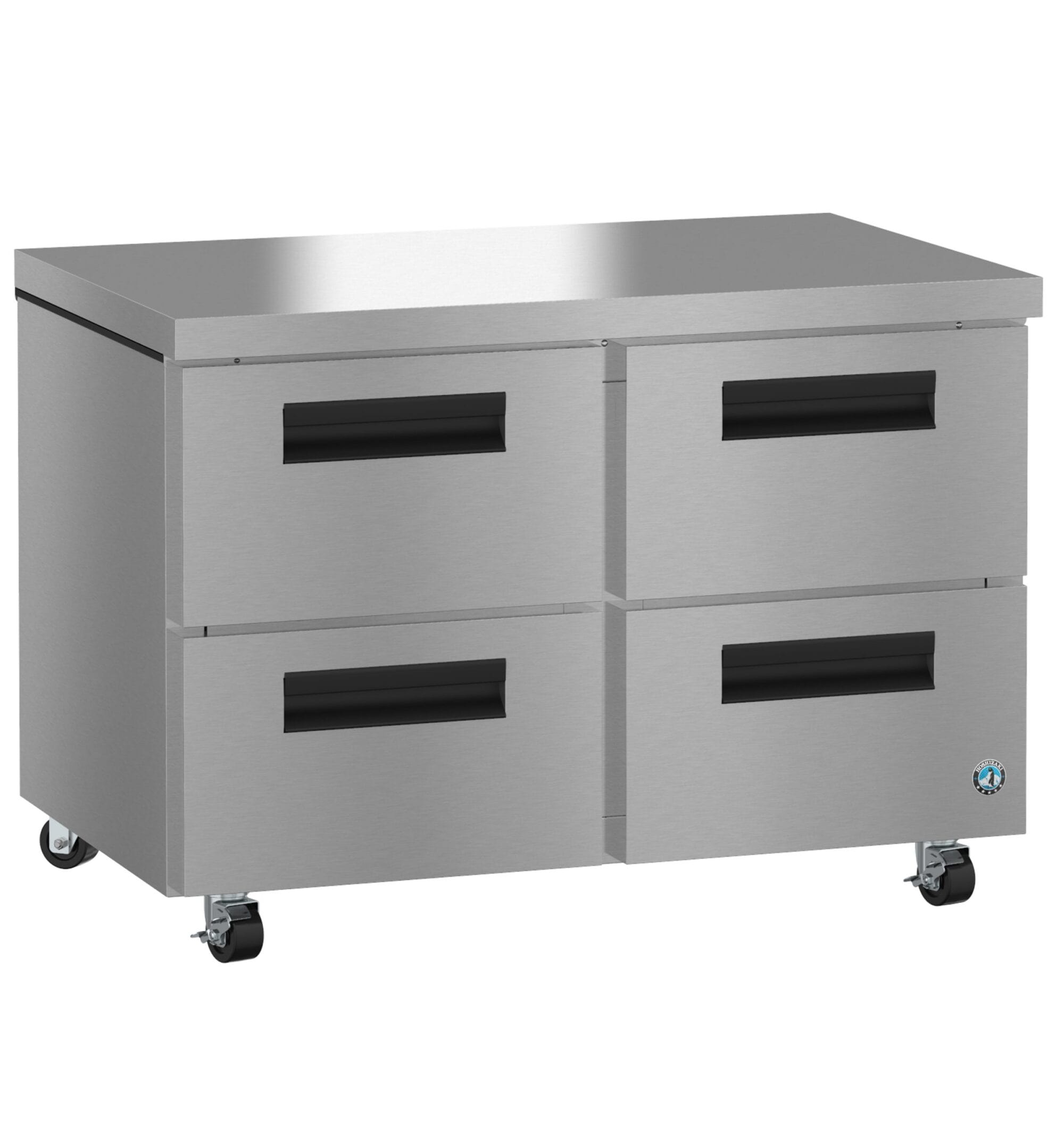

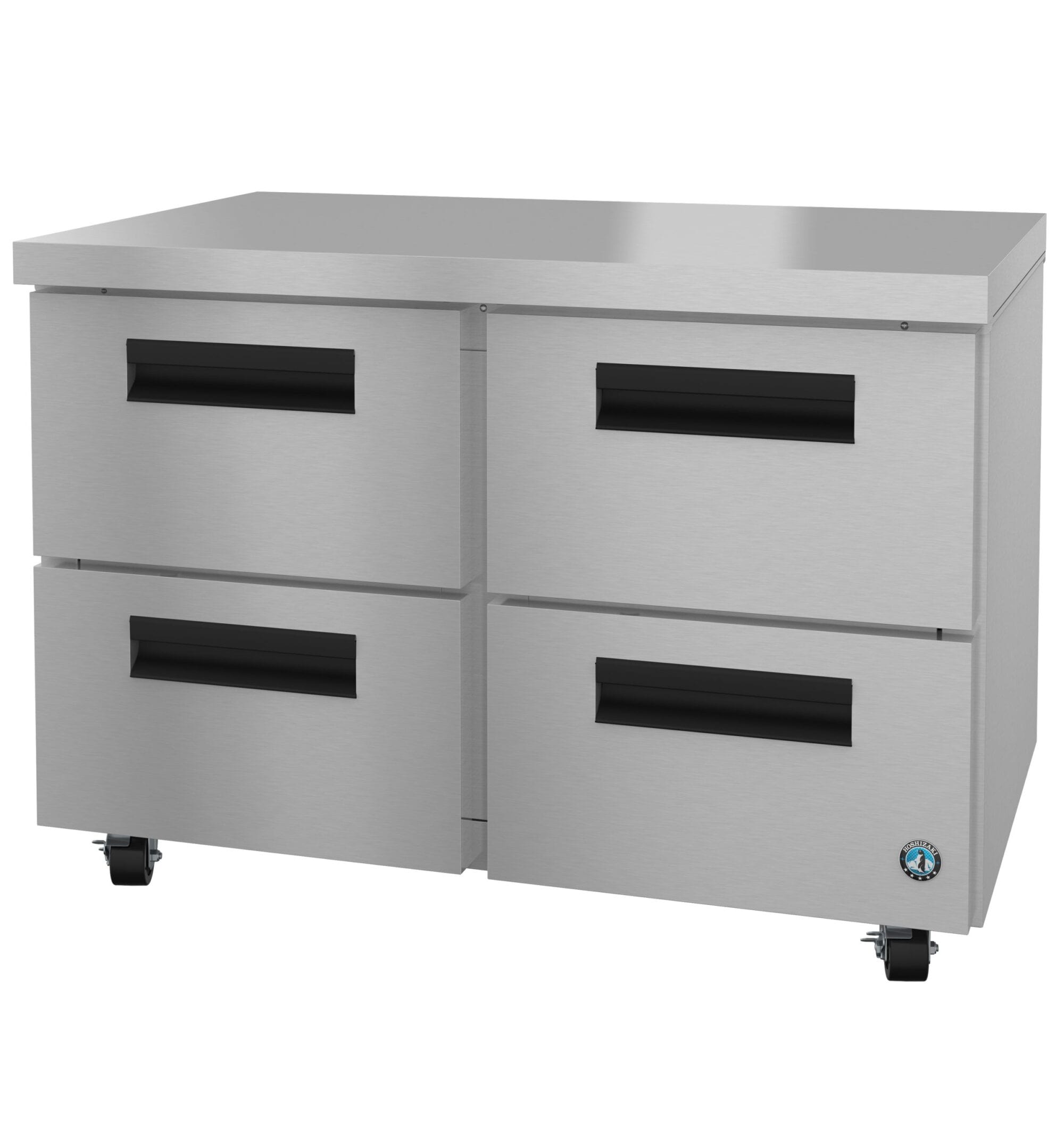

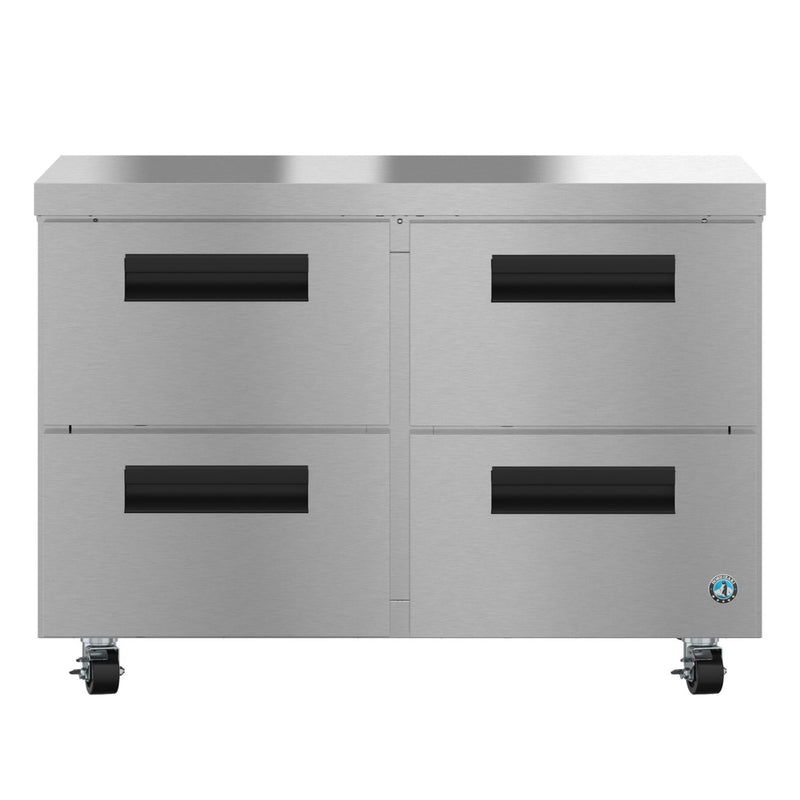

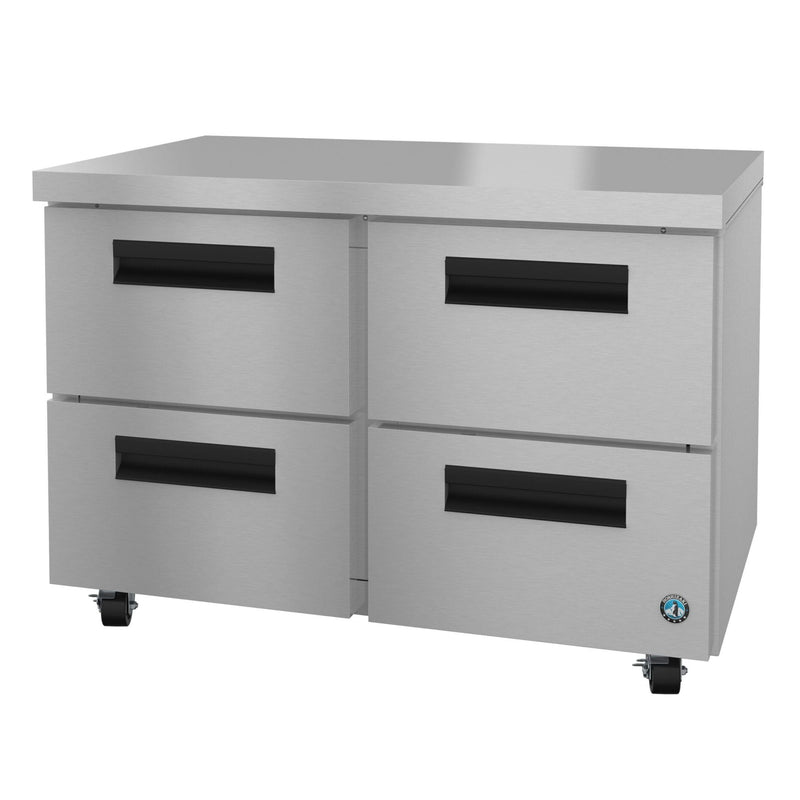

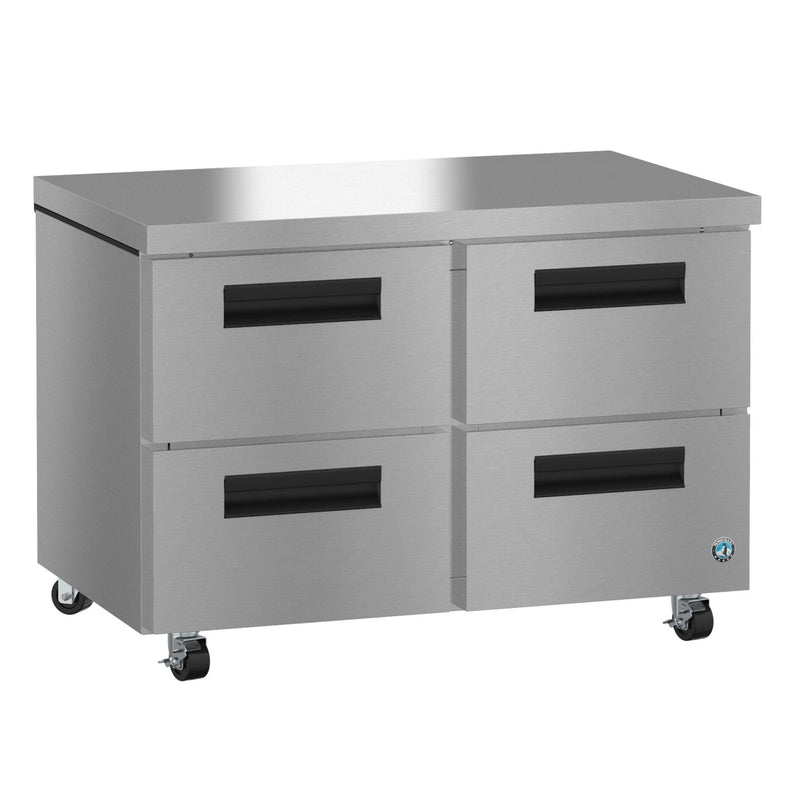

Hoshizaki UF48B-D4 Undercounter Freezer – 48” Two-Section with Four Drawers
Overview
The Hoshizaki UF48B-D4 is a high-performance, two-section undercounter freezer designed for demanding commercial environments. With four heavy-duty drawers, this unit offers flexible storage, durable construction, and energy-efficient operation. Engineered to maintain NSF-7 temperatures in ambient conditions up to 100°F, it’s ideal for kitchens requiring reliable frozen storage in a compact footprint.
Key Features
- NSF-7 Certified: Maintains safe temperatures in ambient conditions up to 100°F.
- Four Stainless Steel Drawers: Each drawer accommodates various pan configurations, including full, ½, 1/3, ¼, 1/6, and 1/9 sizes.
- Drawer Slides: 16-gauge stainless steel with acetal rollers, rated for 175 lbs. and tested for 300,000 cycles.
- Magnetic Drawer Gaskets: Snap-in design for easy cleaning and replacement.
- Front Breathing Design: Allows for built-in installation with minimal clearance.
- Hot Gas Condensate Removal: Maintenance-free and efficient.
- E-coated Evaporator Coil: Corrosion-resistant for extended life.
- Flush-Mount Handles: Extruded aluminum for a sleek, ergonomic look.
Construction & Durability
- Exterior: Stainless steel top, front, and sides; coated steel back and bottom.
- Interior: Stainless steel sides, back, floor, and top.
- Insulation: 2” CFC-free foamed-in-place polyurethane throughout cabinet and drawers.
- Casters: 4” polyolefin stem casters (two with brakes) standard.
-
Drawer Configuration:
- Top drawers: Fit 6” deep pans in multiple configurations.
- Bottom drawers: Fit 6” deep pans (½ and 1/3 size).
- Alternate top drawer layout: 1 full-size pan (front-to-back) + 3 1/9 size pans.
Mobility & Installation
- Dimensions: 48” W x 30” D x 33.75” H (with 4” casters)
- Depth with Drawers Open: 52”
- Interior Capacity: 12 ft³ (AHAM)
- Crated Weight: 331 lbs.
- Crated Dimensions: 52.5” x 34” x 36.5”
-
Electrical Specs:
- Voltage: 115V / 60Hz / 1Ph
- Plug: NEMA 5-15P
- Amperage: 4.0A
- Compressor: 1/3 HP, 1426 BTU/hr
- Energy Use: 3.60 kWh/day
- Refrigerant: R290 (2.6 oz)
Certifications & Warranty
- Certifications: NSF-7, UL, ENERGY STAR®
- Warranty: 7-Year warranty covering labor, parts, and compressor (valid in U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- 2.25” or 6” Casters
- Stainless Steel Back Panel
- Drawer Divider Bars
- Overshelves
Why Choose Hoshizaki?
Hoshizaki is a trusted name in commercial refrigeration, known for its durability, innovation, and commitment to sustainability. The UF48B-D4 exemplifies this legacy with its rugged construction, flexible drawer storage, and energy-efficient performance. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers reliability and peace of mind.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
