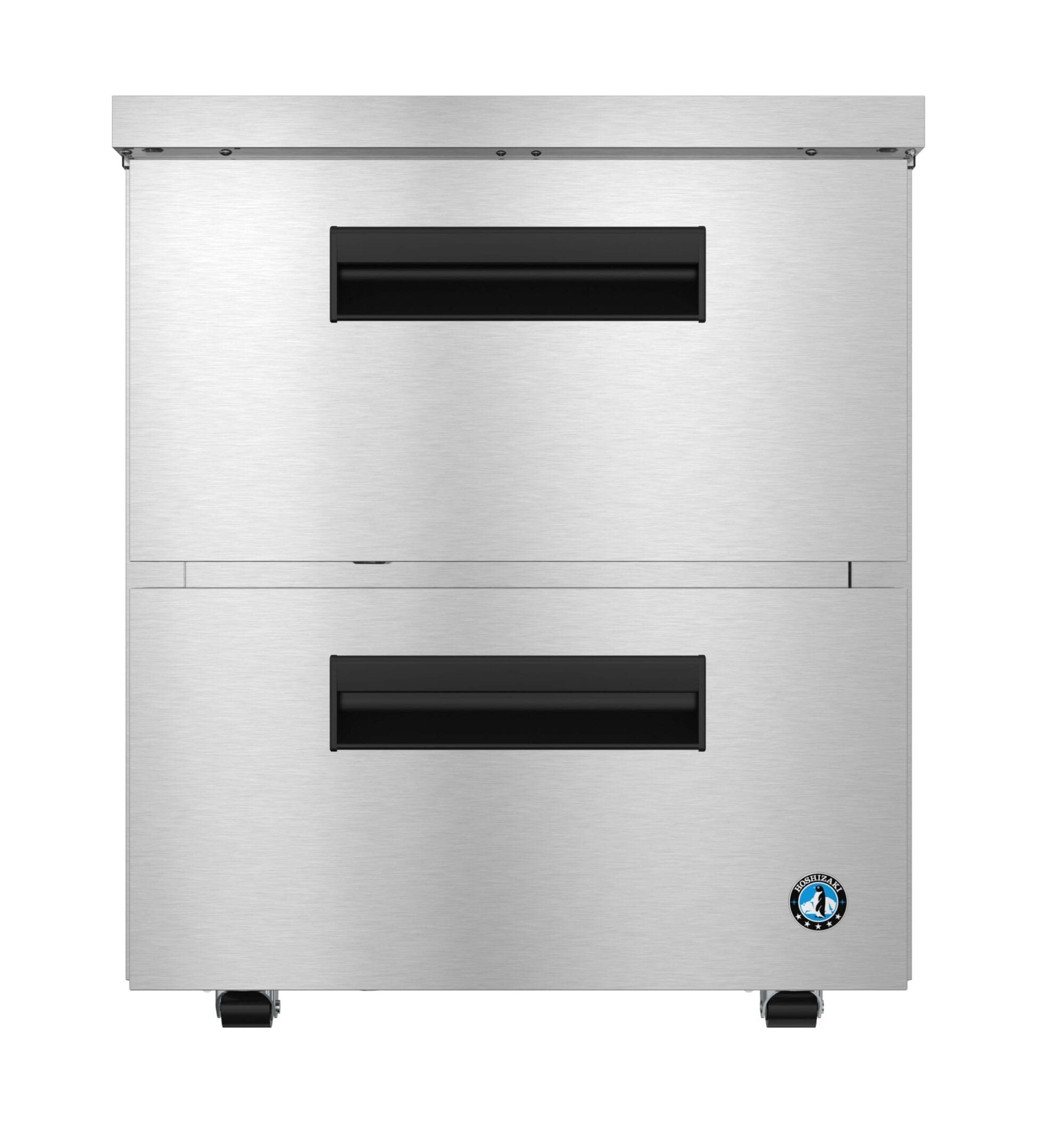

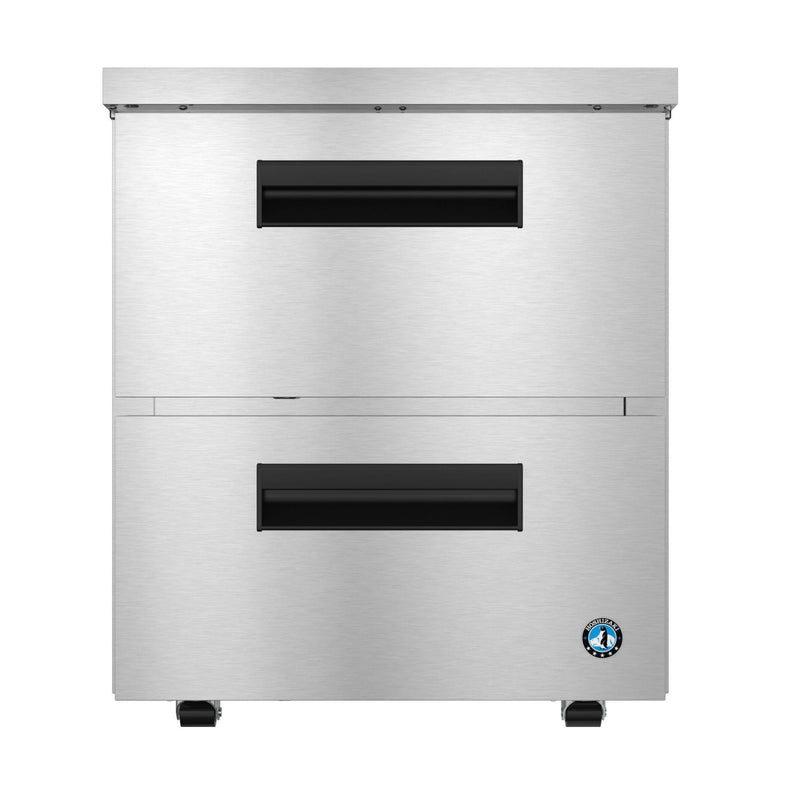

Hoshizaki UF27B-LPD2 27" Low Profile Undercounter Freezer – Two Drawers

Overview

The Hoshizaki UF27B-LPD2 is a compact, ADA-compliant undercounter freezer designed for high-performance commercial kitchens. With two heavy-duty drawers and a low-profile design, it fits seamlessly under 34" countertops while delivering reliable freezing performance in demanding environments. Built with premium stainless steel and engineered for energy efficiency, this unit is ideal for space-conscious operations that require durability and precision.

Key Features

• Two-Drawer Configuration:
  • Top drawer: (1) 12x20 full-size pan + (2) ¼-size pans or (1) ½-size + (1) 1/3-size + (1) ¼-size + (1) 1/6-size pan
  • Bottom drawer: (1) full-size pan
  • Both drawers accommodate 6" deep pans
• Drawer Load Rating: 175 lb. dynamic capacity, life-tested to 300,000 cycles
• Magnetic Snap-In Drawer Gaskets: Tool-free removal for easy cleaning
• Flush Mount Handles: Durable extruded aluminum design
• Digital Temperature Control: Adjustable from -12°F to 11°F
• Hot Gas Condensate Removal: No external drain required
• E-Coated Evaporator Coil: Corrosion-resistant for extended life

Construction & Durability

• Exterior: Stainless steel top, front, and sides; coated steel back and bottom
• Interior: Stainless steel back, sides, and floor with ABS top
• Insulation: 2" CFC-free, foamed-in-place polyurethane
• Drawer Slides: 16-gauge stainless steel with acetal rollers
• Drawer Frames: 14-gauge stainless steel, securely fastened
• Casters: 2.25" polyolefin stem casters (two with brakes)

Mobility & Installation

• Dimensions: 27"W x 30"D x 31.9"H (with casters)
• Drawer Opening: 22.75"W x 23"D
• Depth with Drawers Open: 51"
• Electrical: 115V / 60Hz / 1Ph, 15.0 Amps, NEMA 5-15P plug
• Crated Weight: 207 lbs.
• Crated Dimensions: 34"W x 31.5"D x 35.5"H
• Installation Notes:
  • Requires 1.5" overhead clearance
  • GFCI breaker must be used if GFCI protection is required

Certifications & Warranty

• Certifications: NSF, UL, ENERGY STAR®
• Warranty:
  • 7 Years Labor
  • 7 Years Parts
  • 7 Years Compressor
• Valid in the U.S., Canada, Puerto Rico, and U.S. Territories

Optional Accessories

• Casters:
  • 4" (HS-5035)
  • 6" (HS-5036)
• Drawer Liners:
  • Upper (HS-5736)
  • Lower (HS-5737)
• Drawer Divider Bars:
  • Vertical (HS-4007)
  • Horizontal (HS-5433)
• Overshelves:
  • Single (HS-5172)
  • Double (HS-5163)
• Stainless Steel Back Panel: Factory request option

Why Choose Hoshizaki?

Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The UF27B-LPD2 exemplifies this legacy with its rugged construction, energy-efficient performance, and thoughtful design. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers equipment that goes Beyond Strong.

Documentation

Spec Sheet

Instruction Manual

Parts Manual

Service Manual

Warranty Statement

Product Brochure
