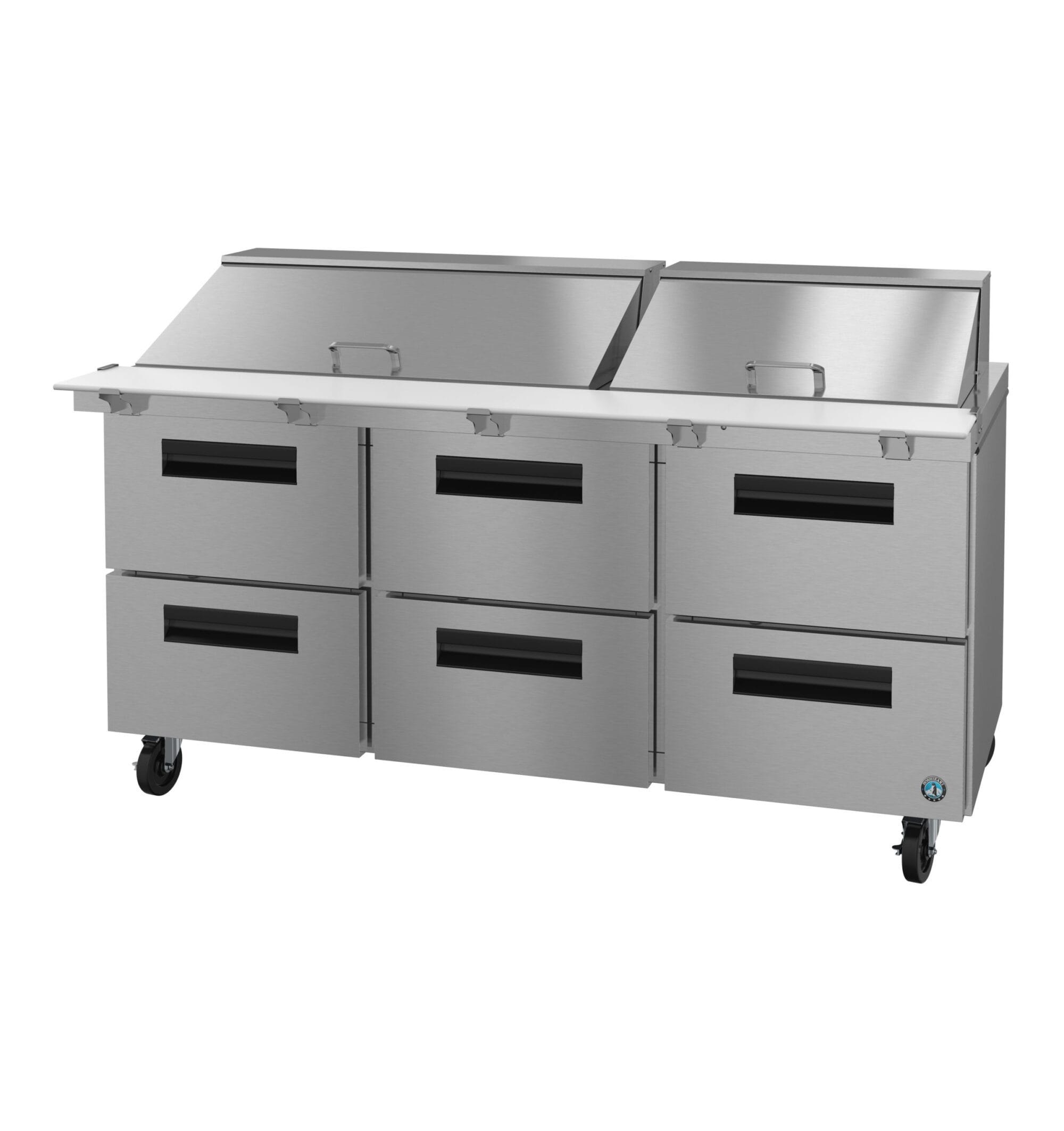

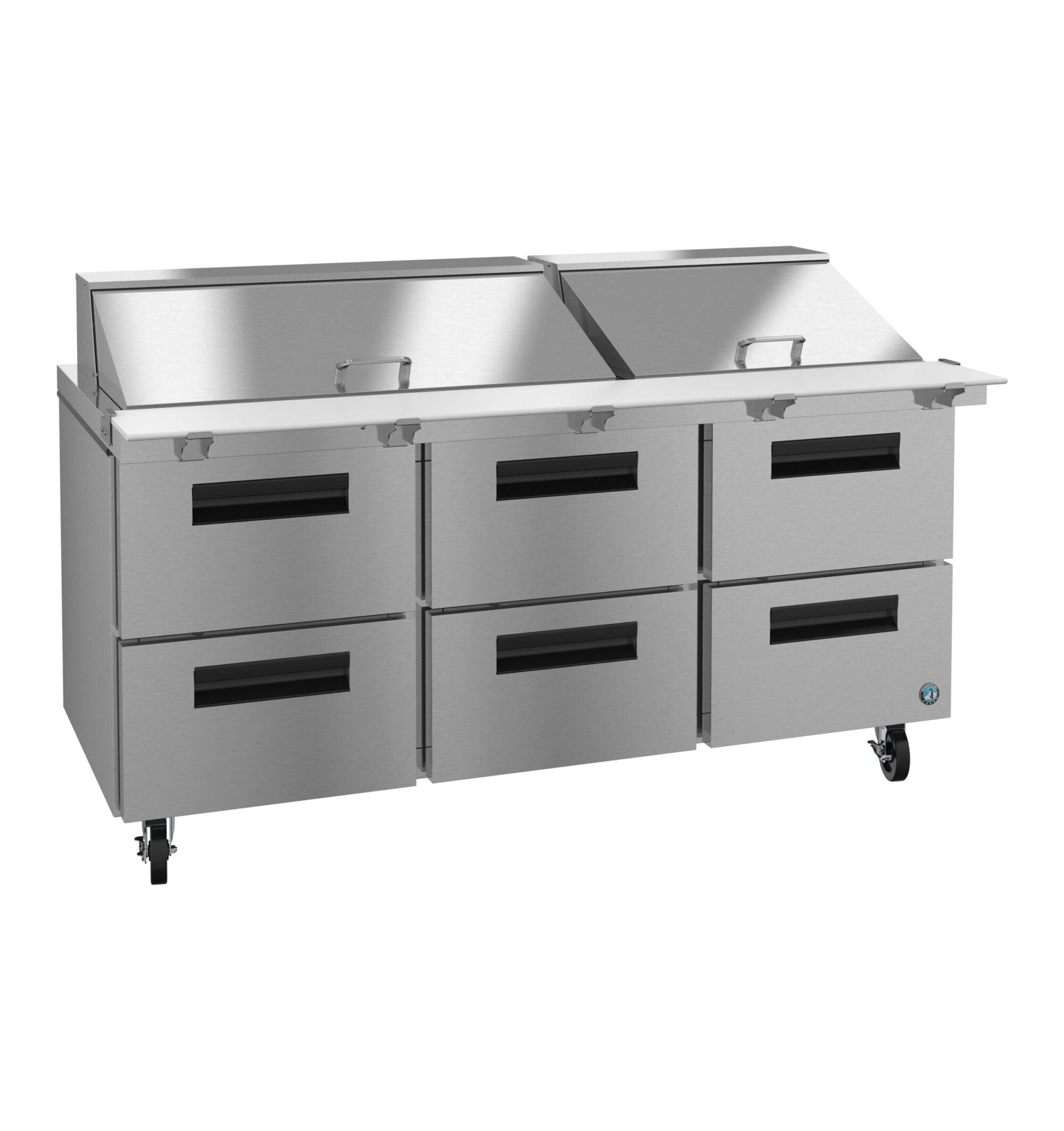

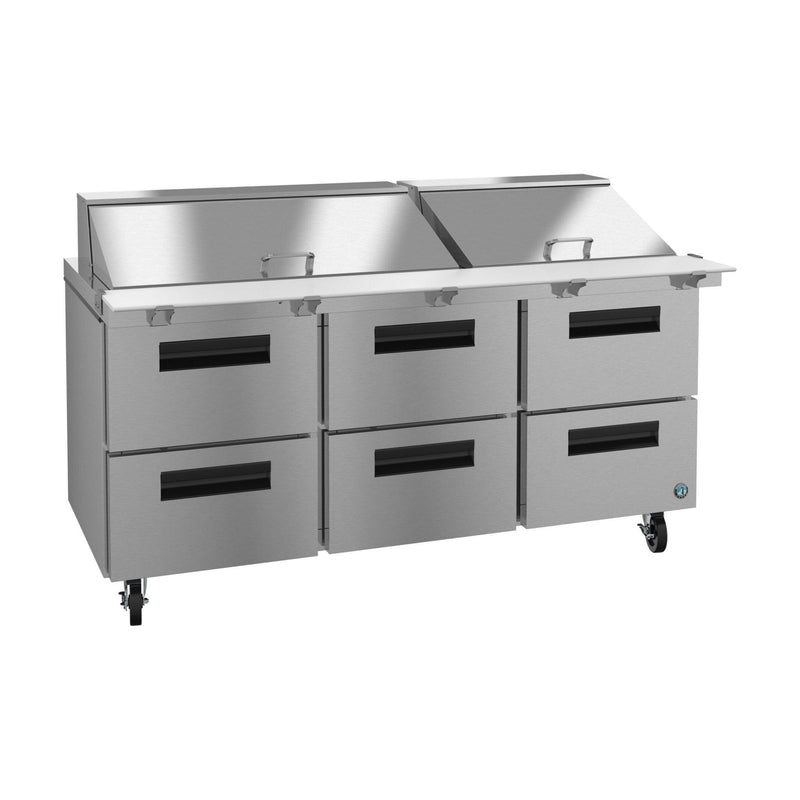

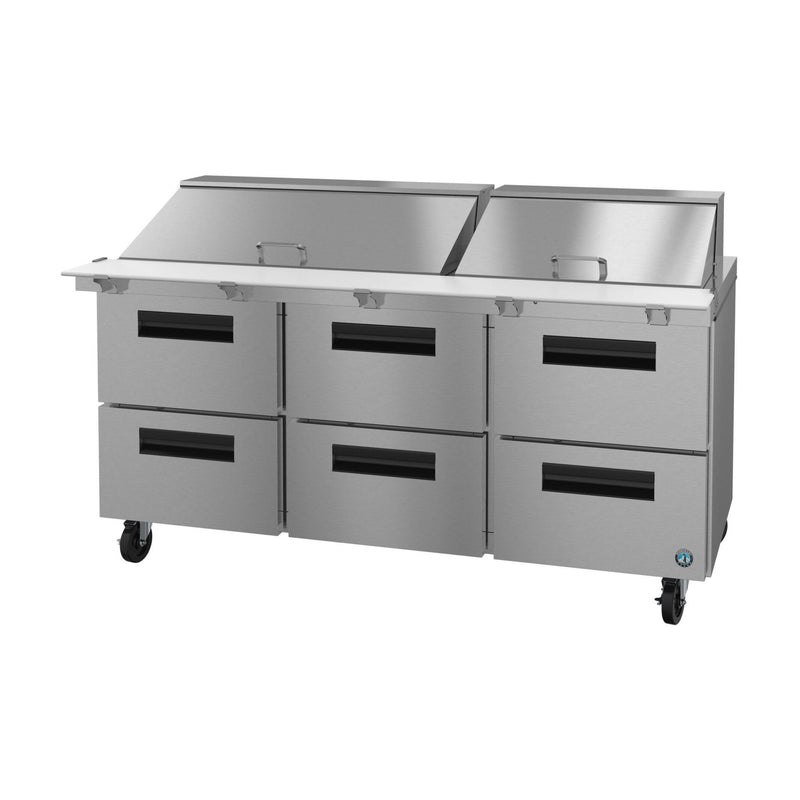

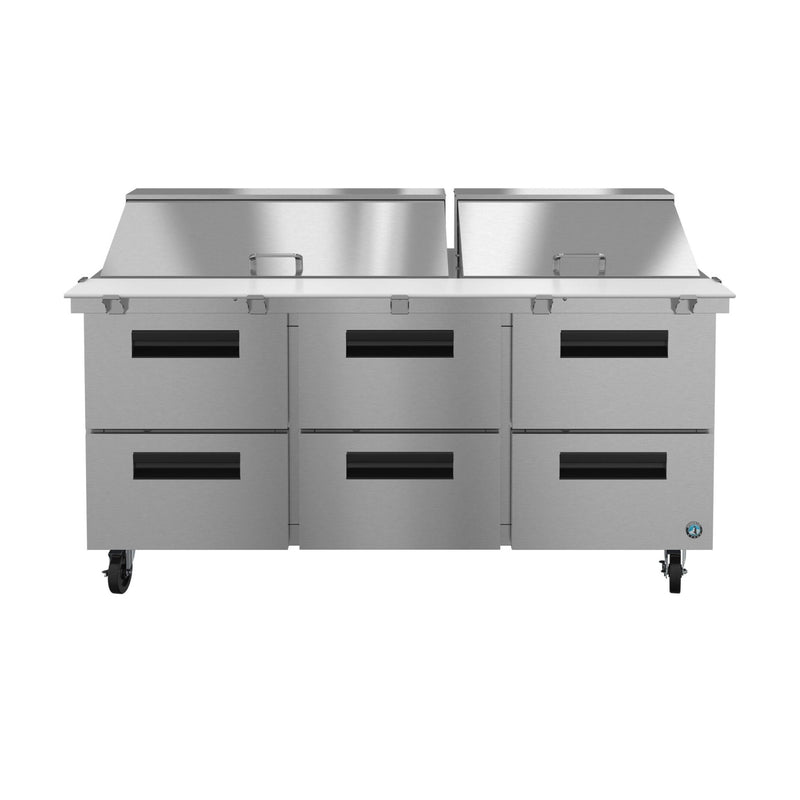

Hoshizaki SR72B-30MD6 Mega Top Prep Refrigerator – 72" Three-Section, 30 Pan Capacity, Six-Drawer Configuration
Overview
The Hoshizaki SR72B-30MD6 is a high-performance, all-drawer mega top prep refrigerator designed for demanding commercial kitchens. With a 72-inch width and 30-pan capacity, this unit offers exceptional prep space and refrigerated storage. Built with durable stainless steel and engineered to maintain NSF-7 temperatures in ambient conditions up to 100°F, it ensures food safety and consistent performance in high-volume environments.
Key Features
- Mega Top Configuration: Includes 30 NSF-approved 1/6-size pans (4" deep) and stainless steel adapter bars. Compatible with 6" deep pans for increased capacity.
- Cutting Board: Comes standard with a 72" x 10" x ½" thick white polyethylene cutting board.
-
All-Drawer Design: Six heavy-duty drawers accommodate a variety of pan configurations:
- Top and bottom drawers support (1) ½ size + (1) 1/3 size pan (6" deep).
- Top drawers also support (1) ¼ size + (1) 1/6 size pan (4" deep) or (1) full-size pan (front-to-back) + (3) 1/9 size pans.
- Drawer Construction: 16-gauge stainless steel slides with acetal rollers and stainless steel ball bearings. Rated for 175 lbs. and tested for 300,000 cycles.
- Air Distribution: Innovative airflow system ensures even cooling across all pans.
- Energy Efficient: Uses eco-friendly R290 refrigerant and consumes only 5.05 kWh/day.
Construction & Durability
- Exterior: Stainless steel front, sides, and top.
- Interior: Stainless steel sides, back, and floor with ABS ceiling.
- Insulation: 2" CFC-free foamed-in-place polyurethane.
- Casters: 6" polyolefin stem casters (two with brakes) standard.
-
Additional Features:
- Magnetic door gaskets (removable for cleaning)
- Hot gas condensate removal
- E-coated evaporator coil
- Removable stainless steel prep guard
Mobility & Installation
- Dimensions: 72" W x 34" D x 44.25" H (with casters)
- Depth with Cutting Board: 37.5"
- Depth with Drawers Fully Open: 52"
- Electrical: 115V/60Hz/1-phase, 15.0 amps, NEMA 5-15P plug
- Cord Length: 10 ft.
- Ambient Range: 45°F to 100°F
- Shipping Weight: Approx. 539 lbs.
- Crated Dimensions: 73.75" x 36" x 46.5"
Certifications & Warranty
- Certifications: NSF/ANSI Standard 7, UL Listed
-
Warranty:
- 7-Year Parts & Labor
- 7-Year Compressor Warranty
- Refrigerant: R290 Hydrocarbon (2.6 oz)
- Energy Consumption: 5.05 kWh/day @ NSF
Optional Accessories
- Stainless steel back
- Stainless steel lift-off covers
- Overshelves
- Additional epoxy or stainless steel shelves
- Composite cutting board (HS-5267)
- Drawer divider bars
- Rail adapter bars
- 2.25" or 4" casters
Why Choose Hoshizaki?
Hoshizaki is a globally trusted leader in commercial refrigeration, known for its innovation, reliability, and commitment to sustainability. The SR72B-30MD6 is engineered for performance and built to last, making it the ideal solution for foodservice professionals who demand the best in prep refrigeration.
