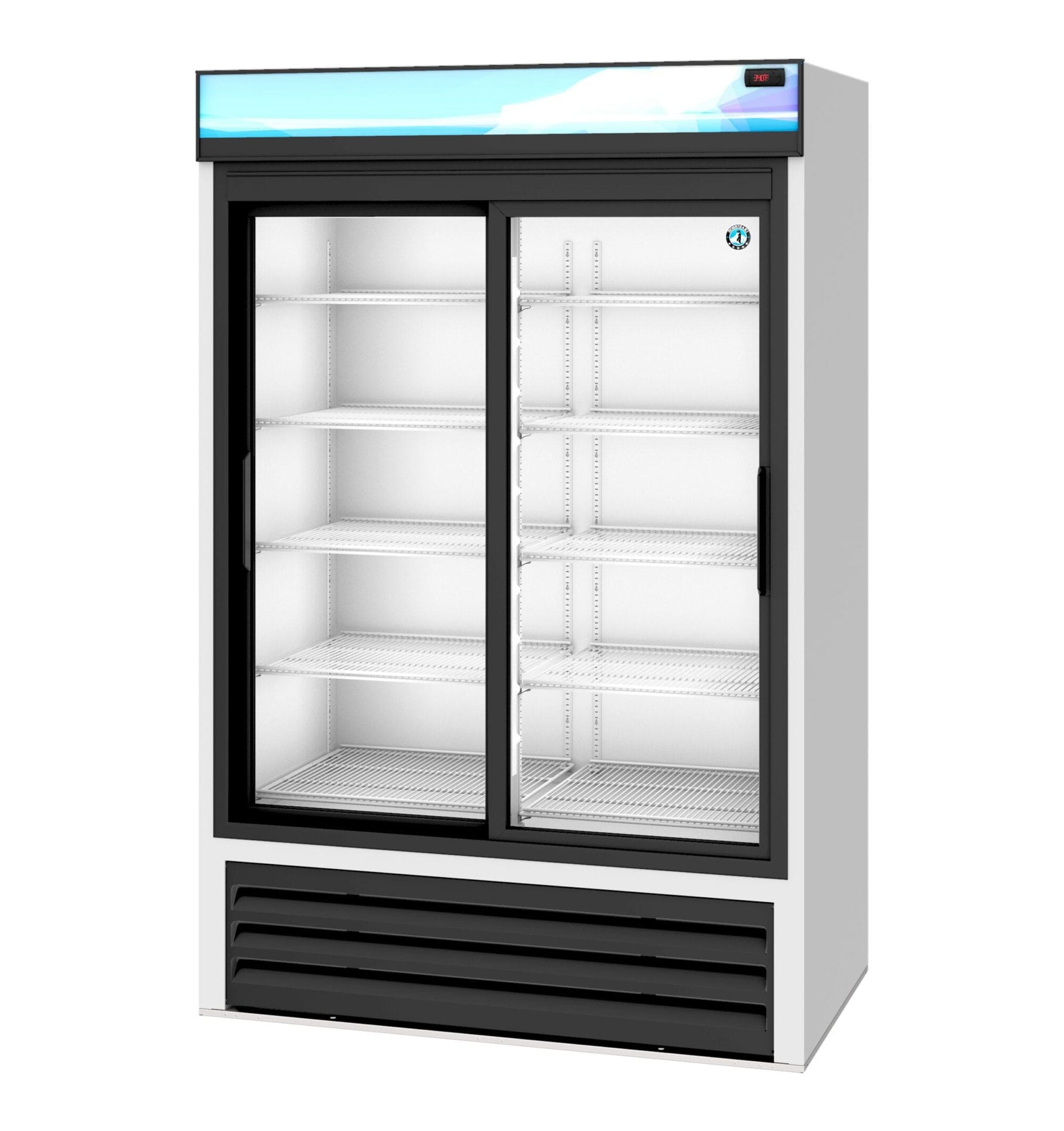

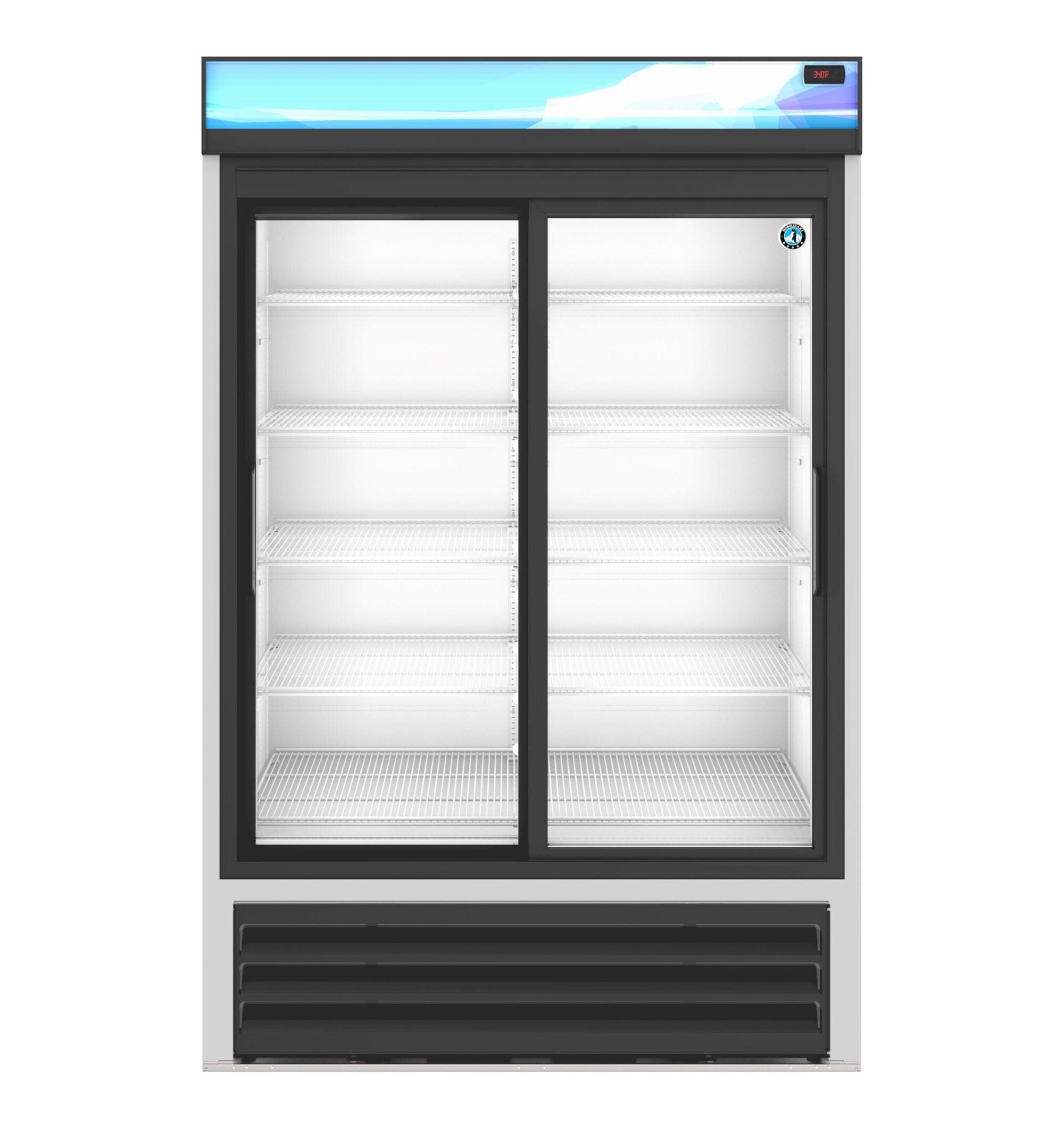

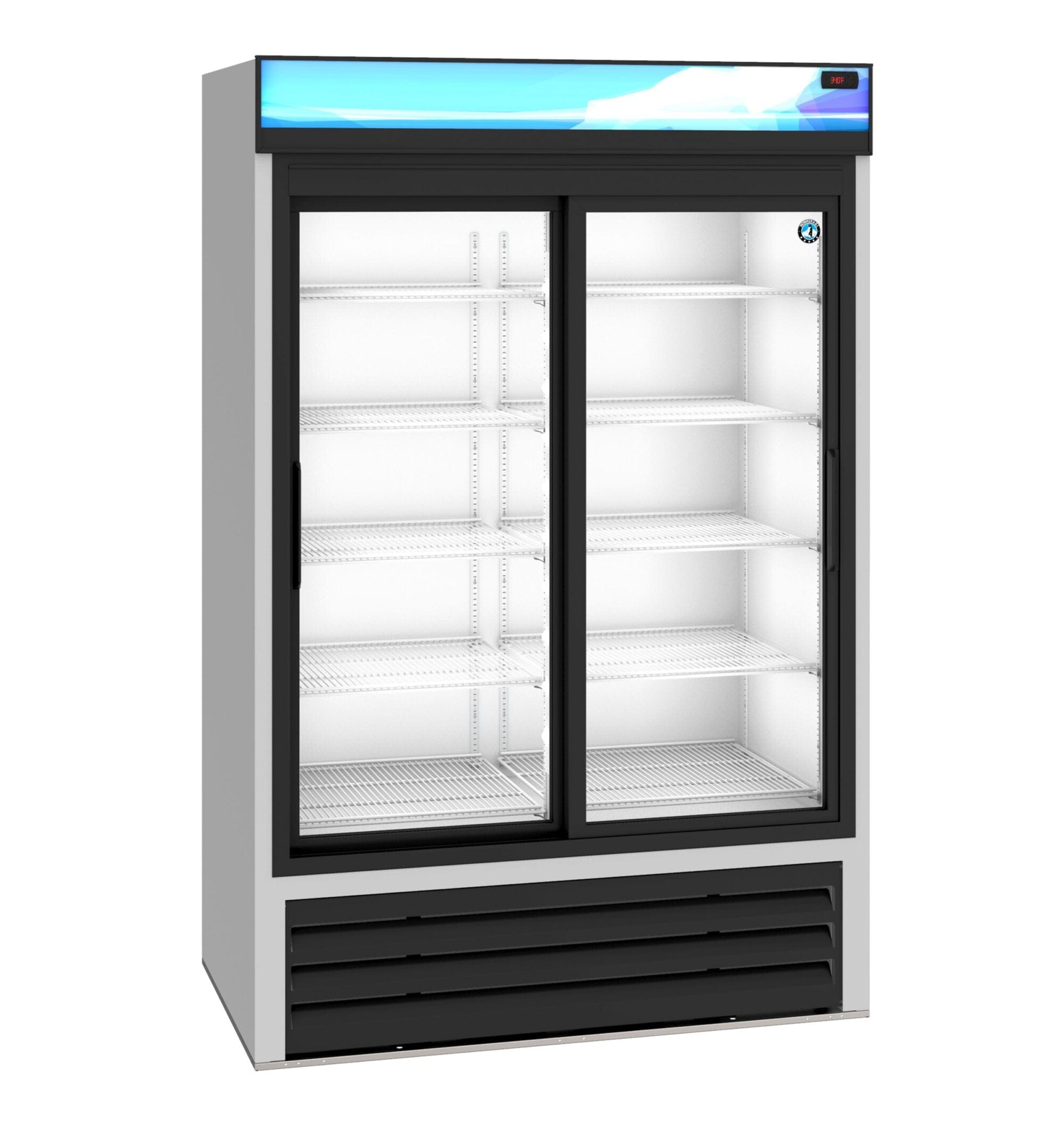

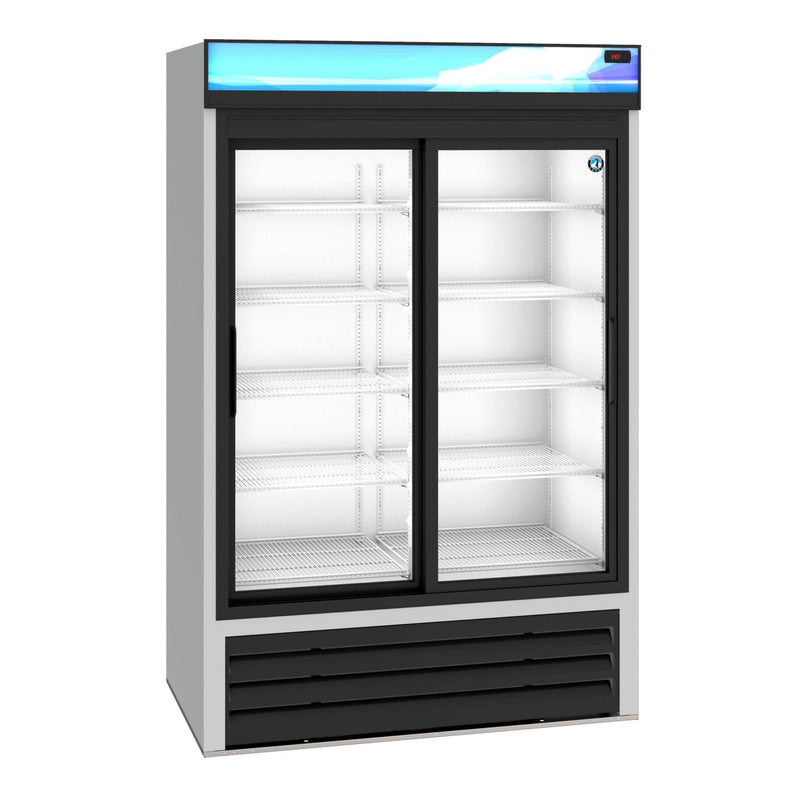

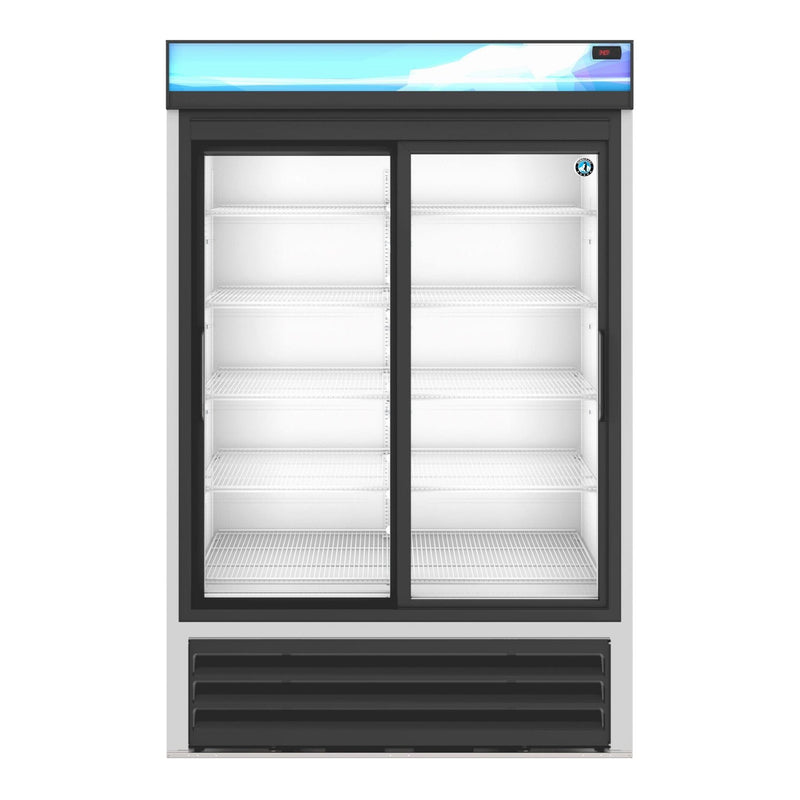

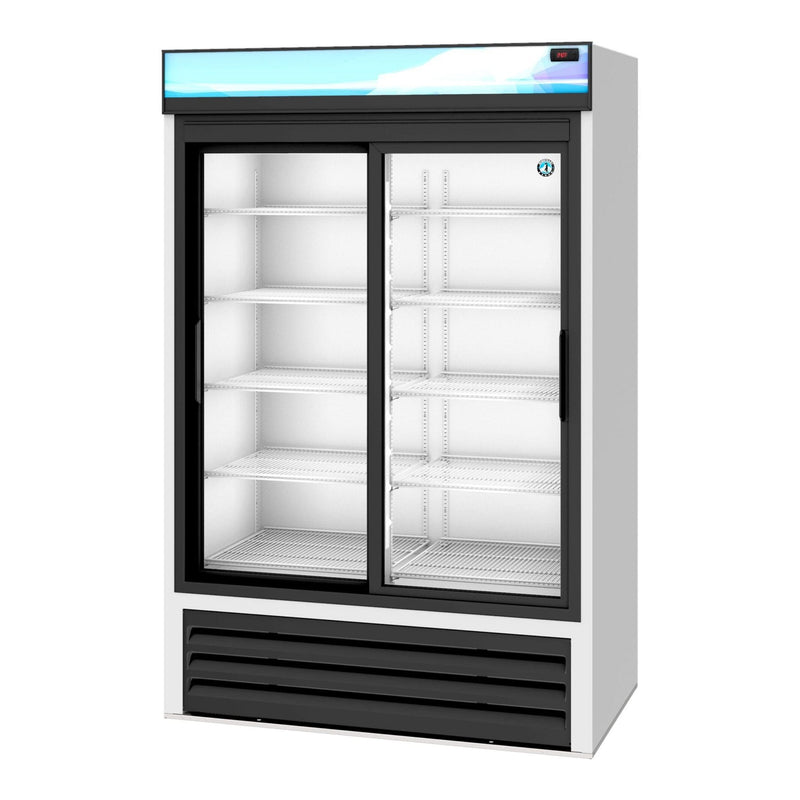

Hoshizaki RM-45-SD-HC Glass Door Merchandiser – 2-Section Sliding Door Display Refrigerator
Overview
The Hoshizaki RM-45-SD-HC is a high-capacity, two-section glass door merchandiser designed for optimal product visibility and energy efficiency. With sliding doors, brilliant LED lighting, and a sleek aluminum exterior, this unit is ideal for retail, foodservice, and beverage display environments where space-saving access and reliable performance are essential.
Key Features
- 38.26 cu. ft. interior capacity
- Dual sliding glass doors with Low-E multi-pane glass
- Self-closing doors with spring assist and stay-open feature
- LED-illuminated exterior canopy and vertical interior lighting
- Forced-air evaporator for rapid temperature pull-down
- Energy-saving hot gas loop reduces condensation
- Electronic control with adjustable temperature range: 32°F to 39°F
- NSF/ANSI Standard 7 certified for packaged/bottled product display
Construction & Durability
- Exterior Finish: Silver, black, or white painted aluminum
- Interior: NSF-approved white aluminum with stainless steel floor
- Dimensions: 51" W x 29" D x 79.5" H
- Shipping Weight: 520 lbs.
- Shelving: 5 white epoxy-coated shelves per section (10 total) with product stops
- Shelf Dimensions: 23" W x 20.5" D
- Insulation: CFC-free polyurethane with cyclopentane blowing agent
- Leveling Legs: 2" adjustable
Mobility & Installation
- Electrical Requirements: 115V/60Hz/1Ph
- Plug Type: NEMA 5-15P (8 ft. cord included)
- Amperage: 6.5 Amps
- Energy Consumption: 4.55 kWh/day (ASHRAE)
- Compressor: 1/2 HP, 2032 BTU/hr
- Refrigerant: R290 (natural, 3.7 oz. charge)
- Ambient Temp Range: 60°F to 86°F
-
Installation Notes:
- Indoor use only
- Requires 8" clearance behind unit for airflow
- Must be leveled for proper drainage and door operation
Certifications & Warranty
- Certifications: UL Listed, NSF/ANSI 7, ENERGY STAR® Partner
-
Warranty Coverage:
- 3 Years Parts & Labor on entire unit
- 5 Years Parts on compressor
- Valid in: United States, Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Organizer Shelf: HS-5293
- Price Tag Holder: HS-5294
- Epoxy Shelf: HS-5318
- 4" Casters (2 sets required): HS-5288
- Custom Graphics: Header signage area available (see spec sheet for dimensions)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The RM-45-SD-HC merchandiser combines high-capacity storage with space-saving sliding doors and energy-efficient performance. With ENERGY STAR® certification and a robust warranty, this unit delivers value that goes Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
