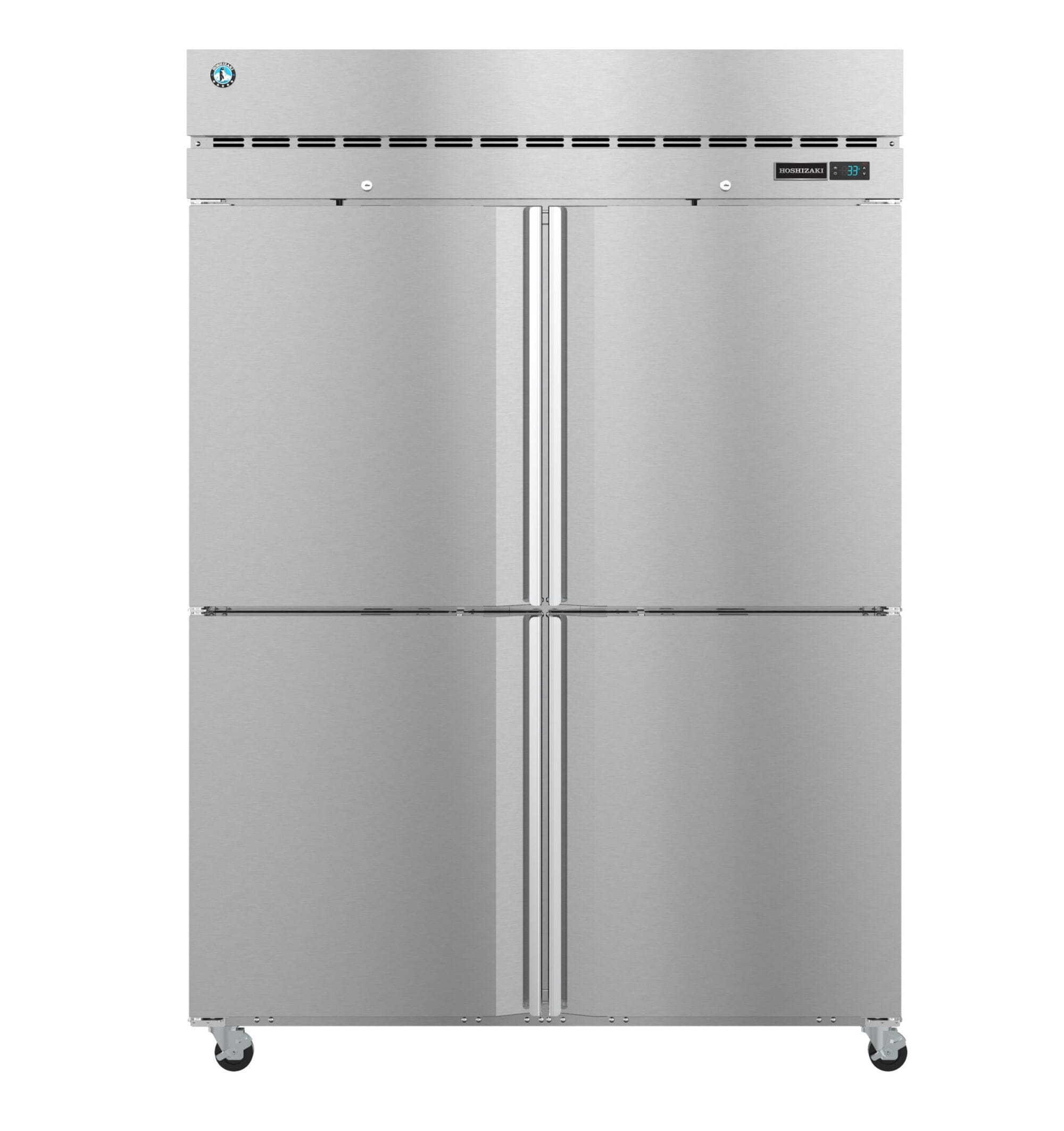

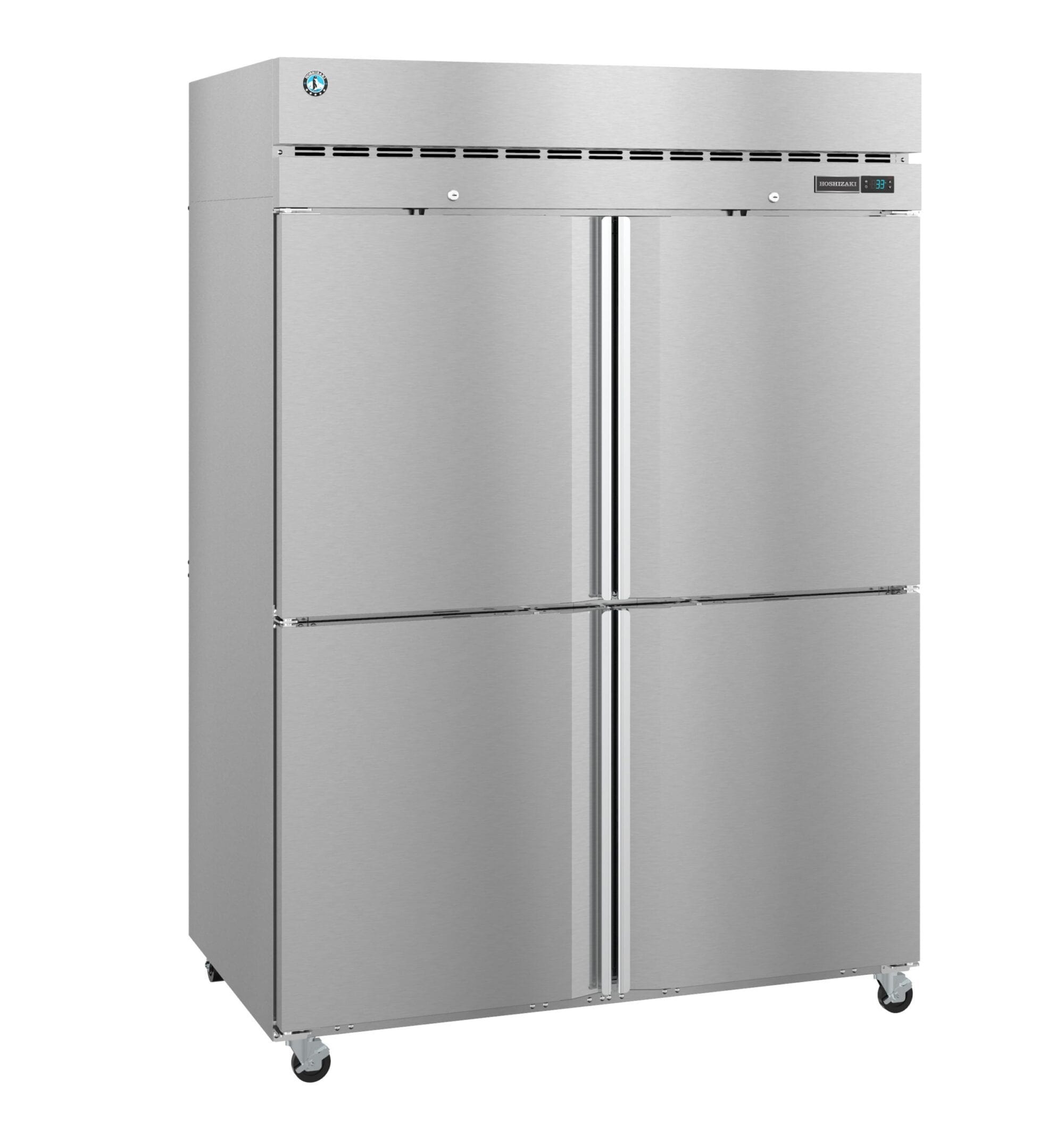

Hoshizaki R2A-HS 55" Two Section Half Stainless Door Reach-In Refrigerator

Overview

The Hoshizaki R2A-HS is a premium commercial refrigerator designed for high-capacity storage, energy efficiency, and long-term durability. Featuring half stainless steel doors and a sleek stainless steel exterior, this unit is ideal for demanding foodservice environments. With advanced airflow technology and robust construction, it ensures consistent cooling and reliable performance.

Key Features

• Half Stainless Steel Doors:
  • Durable stainless steel interior and exterior
  • Field reversible, spring-assisted self-closing with stay-open feature
  • Locks included for added security
• Digital Controls:
  • Solid-state controller with LED temperature display (°F/°C)
  • Visual high/low temperature and voltage alarms
• Energy Efficiency:
  • R290 hydrocarbon refrigerant
  • Automatic hot gas condensate evaporator
  • Interior LED lighting activated by door opening
• Shelving:
  • 3 epoxy-coated wire shelves per section (6 total)
  • 3 adjustable center shelves
  • Stainless steel shelf supports with 1" increments
• Airflow:
  • Unique ducted air distribution system for uniform cooling
• Mobility:
  • 4" polyolefin casters (two with brakes)
  • Stackable up to two units high

Construction & Durability

• Exterior: Stainless steel front, sides, and top; coated steel back and bottom
• Interior: Stainless steel with ducted airflow
• Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
• Hinges: 8-gauge stainless steel hinge plates with welded pins
• Handles: Full-length extruded aluminum flush mount
• Doors: Stepped design protects recessed gasket; magnetic gaskets are removable for cleaning

Mobility & Installation

• Dimensions: 55"W x 33.5"D x 79.5"H (with casters)
• Door Opening: 21.75"W x 27.75"H
• Depth with Door Open: 59.25"
• Electrical:
  • Voltage: 115V / 60Hz / 1Ph
  • Amperage: 15.0 Amps
  • Plug: NEMA 5-15P
  • Cord Length: 10 ft
• Crated Weight: 562 lbs
• Crated Dimensions: 58"W x 37.5"D x 81"H
• Ambient Operating Range: 45°F to 100°F
• Installation Notes:
  • Minimum rear clearance: 3"
  • GFCI breaker required if GFCI protection is needed

Certifications & Warranty

• Certifications: NSF, UL, ENERGY STAR®
• Warranty:
  • 7 Years Labor
  • 7 Years Parts
  • 7 Years Compressor
• Valid in the U.S., Canada, Puerto Rico, and U.S. Territories

Optional Accessories

• Additional epoxy-coated shelves
• Stainless steel shelves
• Additional center shelves
• Tray/pan slides
• Foot pedal door opener
• 6" adjustable legs
• Condensate pan (HS-5462)

Why Choose Hoshizaki?

Hoshizaki is a trusted name in commercial refrigeration, known for its innovation, reliability, and commitment to sustainability. The R2A-HS refrigerator exemplifies this legacy with its rugged half stainless door design, advanced cooling system, and energy-saving features. Built to perform in the most demanding environments, Hoshizaki equipment is Beyond Strong.
