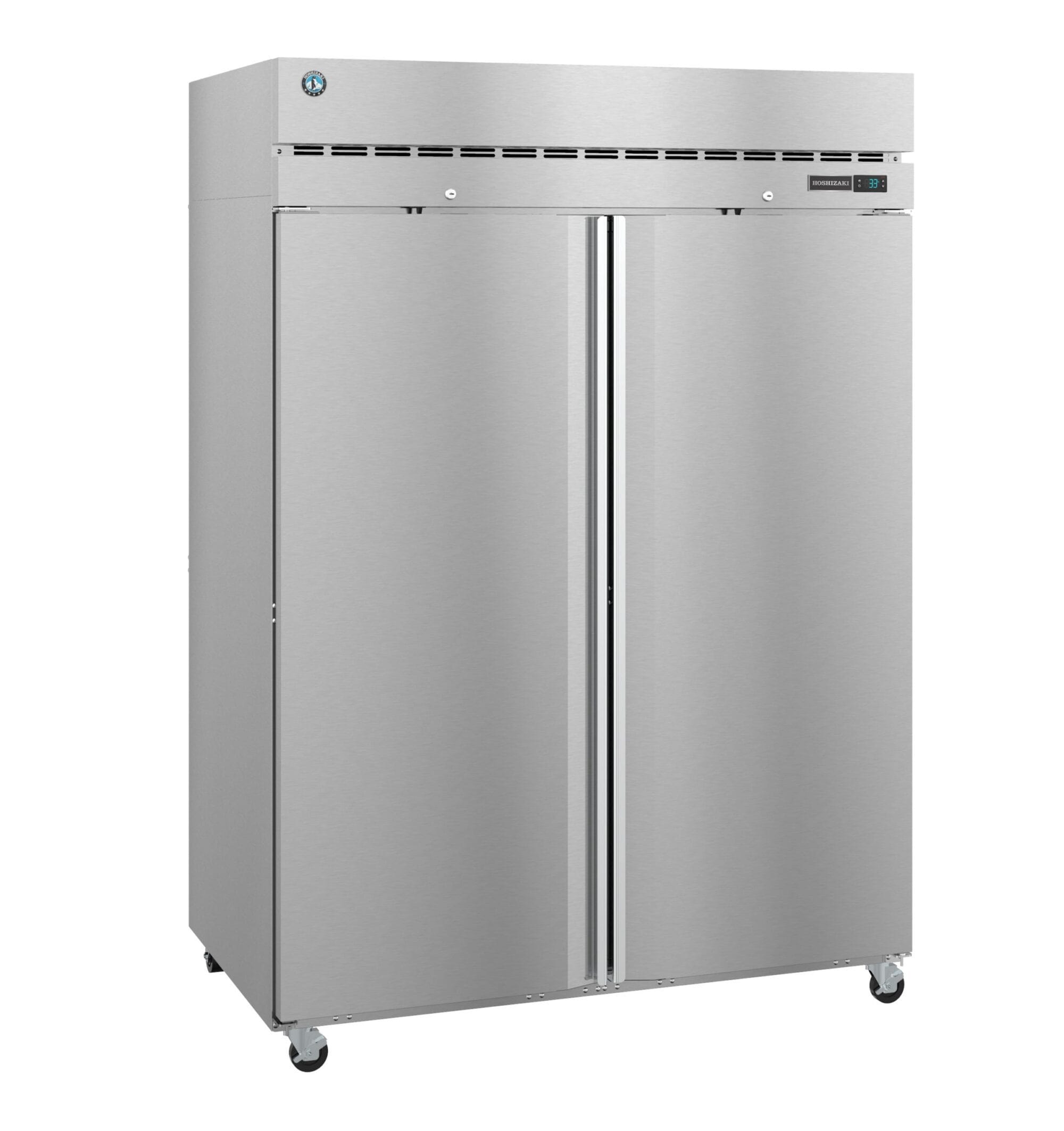

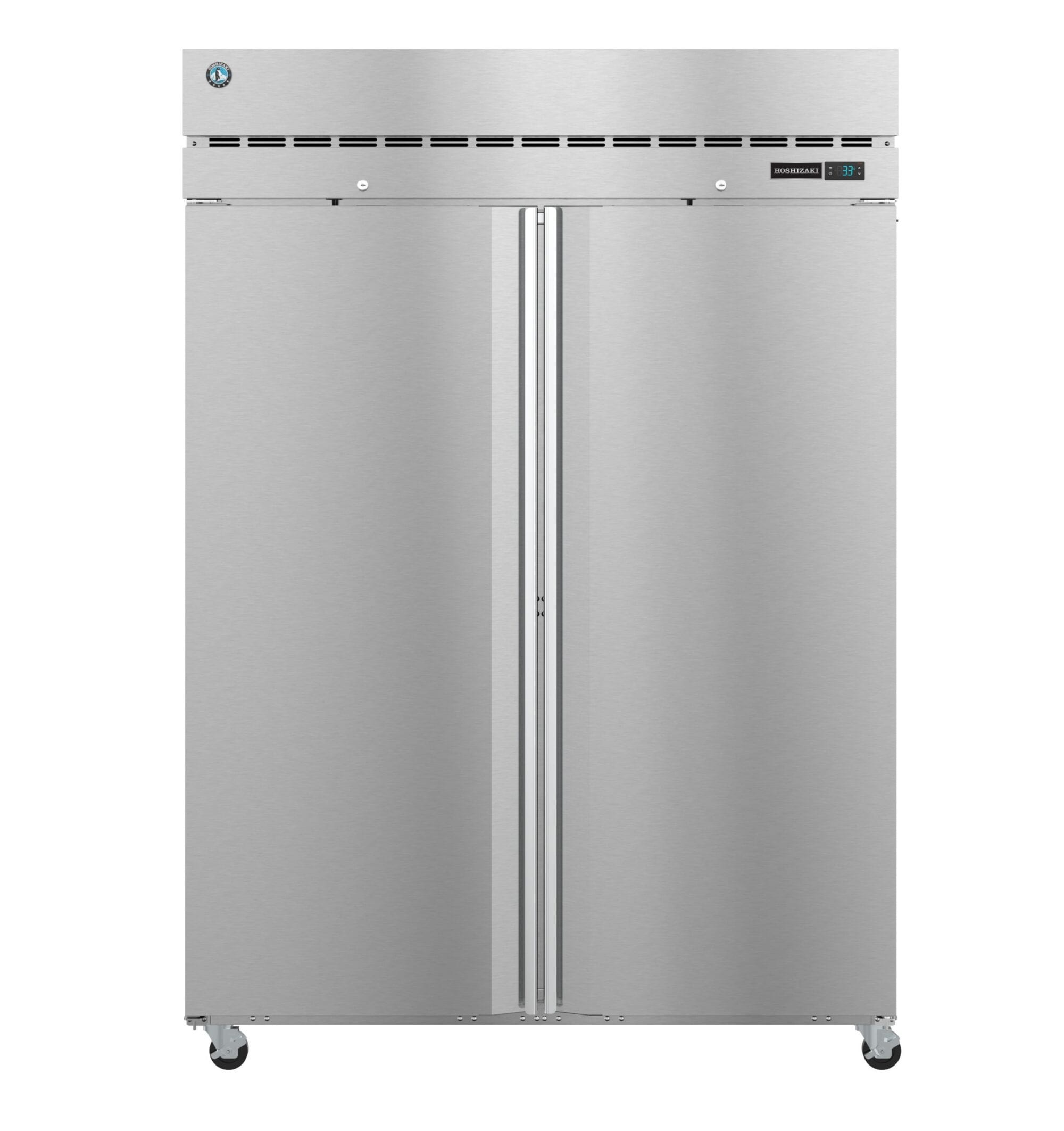

Hoshizaki R2A-FS 55" Two Section Full Stainless Door Reach-In Refrigerator
Overview
The Hoshizaki R2A-FS is a high-performance commercial refrigerator designed for maximum storage capacity and energy efficiency. With a full stainless steel exterior and interior, this unit is built to withstand the rigors of busy kitchens while maintaining optimal food safety and cooling performance. Ideal for restaurants, institutions, and foodservice operations requiring reliable cold storage.
Key Features
-
Full Stainless Steel Doors:
- Durable stainless steel interior and exterior
- Field reversible, spring-assisted self-closing doors with stay-open feature
- Integrated locks and flush mount handles
-
Advanced Controls:
- Solid-state digital controller with LED temperature display (°F/°C)
- Visual high/low temperature and voltage alarms
-
Energy Efficiency:
- R290 hydrocarbon refrigerant
- Automatic hot gas condensate evaporator
- Interior LED lighting activated by door opening
-
Shelving:
- 3 epoxy-coated wire shelves per section (6 total)
- 3 adjustable center shelves
- Stainless steel shelf supports with 1" increments
-
Airflow System:
- Unique ducted air distribution system for uniform cooling
-
Mobility:
- 4" polyolefin casters (two with brakes)
- Stackable up to two units high
Construction & Durability
- Exterior: Stainless steel front, sides, and top; coated steel back and bottom
- Interior: Stainless steel with ducted airflow
- Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
- Hinges: 8-gauge stainless steel hinge plates with welded pins
- Handles: Full-length extruded aluminum flush mount
- Doors: Stepped design protects recessed gasket; magnetic gaskets are removable for cleaning
Mobility & Installation
- Dimensions: 55"W x 33.5"D x 79.5"H (with casters)
- Door Opening: 21.75"W x 59.25"H
- Depth with Door Open: 59.25"
-
Electrical:
- Voltage: 115V / 60Hz / 1Ph
- Amperage: 15.0 Amps
- Plug: NEMA 5-15P
- Cord Length: 10 ft
- Crated Weight: 562 lbs
- Crated Dimensions: 58"W x 37.5"D x 81"H
- Ambient Operating Range: 45°F to 100°F
-
Installation Notes:
- Minimum rear clearance: 3"
- GFCI breaker required if GFCI protection is needed
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Additional epoxy-coated shelves
- Stainless steel shelves
- Additional center shelves
- Tray/pan slides
- Foot pedal door opener
- 6" adjustable legs
- Condensate pan (HS-5462)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The R2A-FS refrigerator exemplifies this legacy with its robust full stainless steel construction, advanced cooling system, and energy-saving features. Built to perform in the most demanding environments, Hoshizaki equipment is Beyond Strong.
Overview
The Hoshizaki R2A-FS is a high-performance commercial refrigerator designed for maximum storage capacity and energy efficiency. With a full stainless steel exterior and interior, this unit is built to withstand the rigors of busy kitchens while maintaining optimal food safety and cooling performance. Ideal for restaurants, institutions, and foodservice operations requiring reliable cold storage.
Key Features
-
Full Stainless Steel Doors:
- Durable stainless steel interior and exterior
- Field reversible, spring-assisted self-closing doors with stay-open feature
- Integrated locks and flush mount handles
-
Advanced Controls:
- Solid-state digital controller with LED temperature display (°F/°C)
- Visual high/low temperature and voltage alarms
-
Energy Efficiency:
- R290 hydrocarbon refrigerant
- Automatic hot gas condensate evaporator
- Interior LED lighting activated by door opening
-
Shelving:
- 3 epoxy-coated wire shelves per section (6 total)
- 3 adjustable center shelves
- Stainless steel shelf supports with 1" increments
-
Airflow System:
- Unique ducted air distribution system for uniform cooling
-
Mobility:
- 4" polyolefin casters (two with brakes)
- Stackable up to two units high
Construction & Durability
- Exterior: Stainless steel front, sides, and top; coated steel back and bottom
- Interior: Stainless steel with ducted airflow
- Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
- Hinges: 8-gauge stainless steel hinge plates with welded pins
- Handles: Full-length extruded aluminum flush mount
- Doors: Stepped design protects recessed gasket; magnetic gaskets are removable for cleaning
Mobility & Installation
- Dimensions: 55"W x 33.5"D x 79.5"H (with casters)
- Door Opening: 21.75"W x 59.25"H
- Depth with Door Open: 59.25"
-
Electrical:
- Voltage: 115V / 60Hz / 1Ph
- Amperage: 15.0 Amps
- Plug: NEMA 5-15P
- Cord Length: 10 ft
- Crated Weight: 562 lbs
- Crated Dimensions: 58"W x 37.5"D x 81"H
- Ambient Operating Range: 45°F to 100°F
-
Installation Notes:
- Minimum rear clearance: 3"
- GFCI breaker required if GFCI protection is needed
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Additional epoxy-coated shelves
- Stainless steel shelves
- Additional center shelves
- Tray/pan slides
- Foot pedal door opener
- 6" adjustable legs
- Condensate pan (HS-5462)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The R2A-FS refrigerator exemplifies this legacy with its robust full stainless steel construction, advanced cooling system, and energy-saving features. Built to perform in the most demanding environments, Hoshizaki equipment is Beyond Strong.
