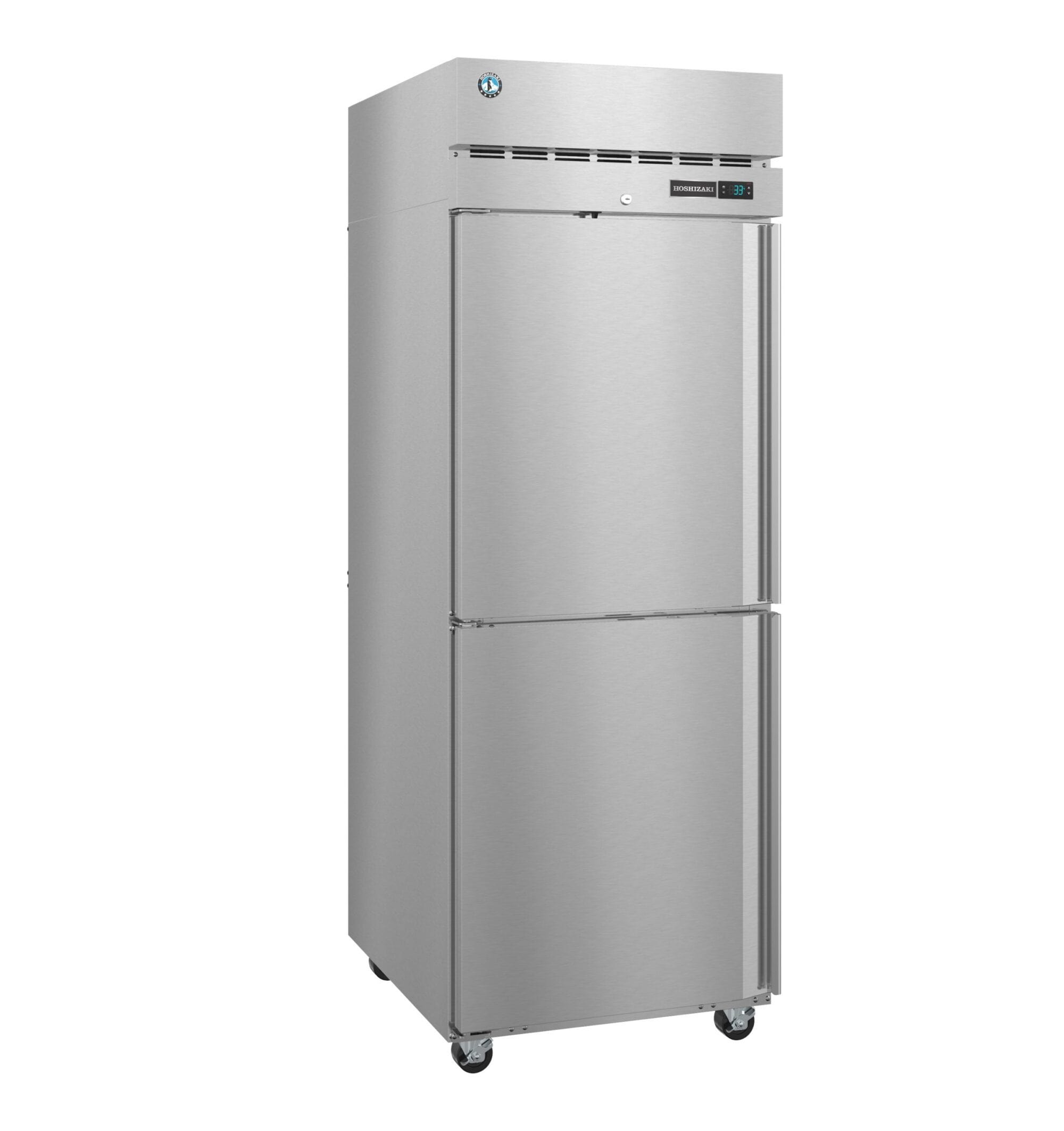

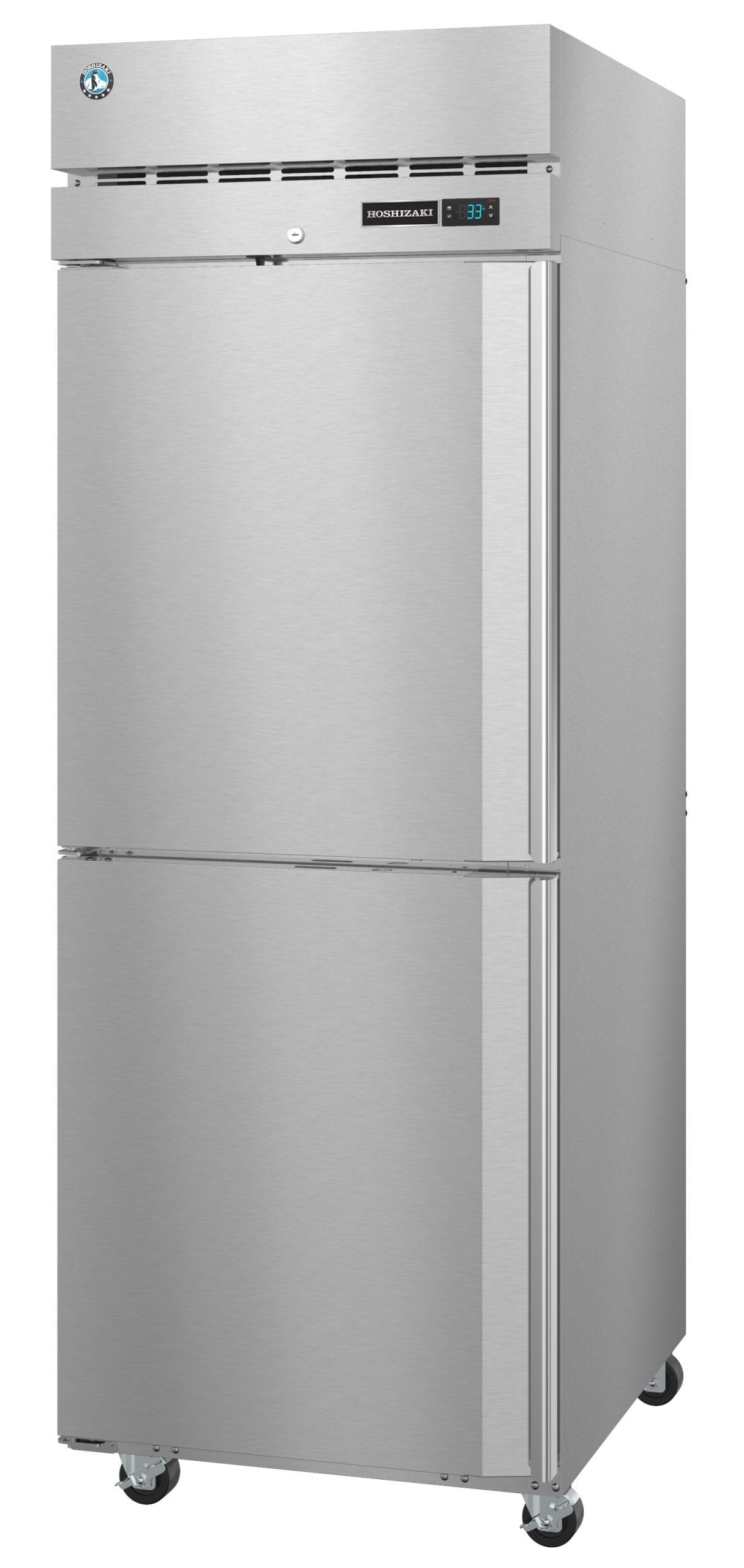

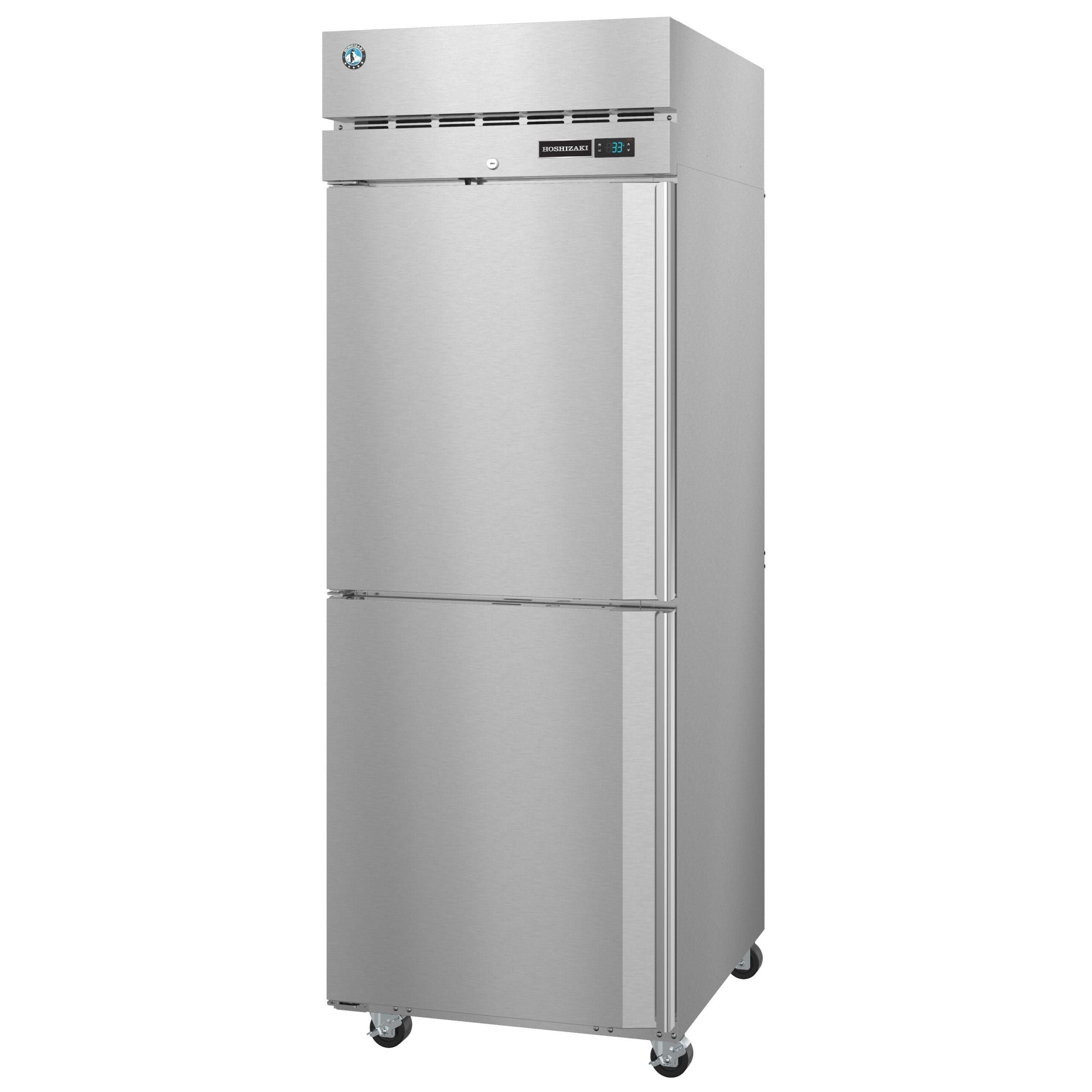

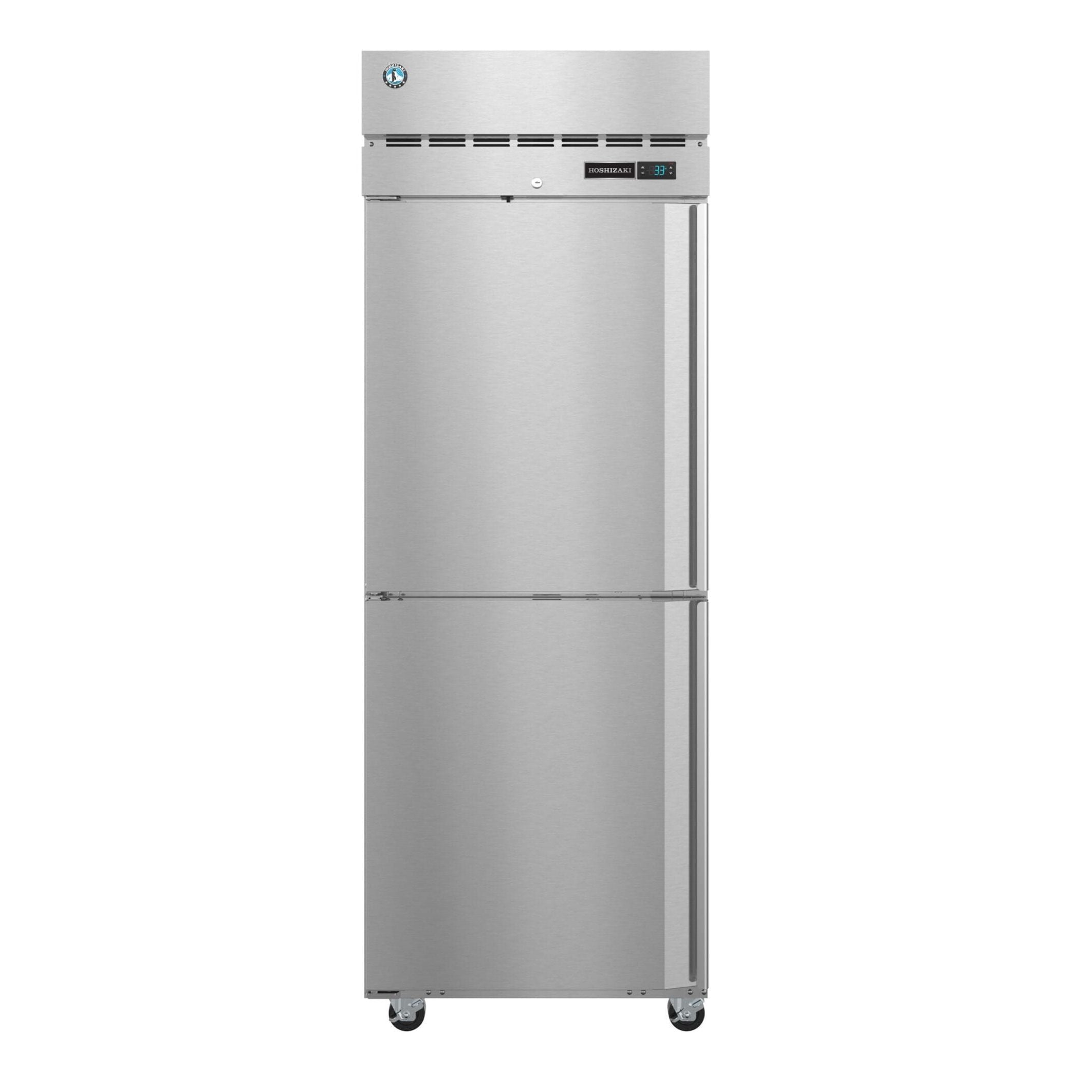

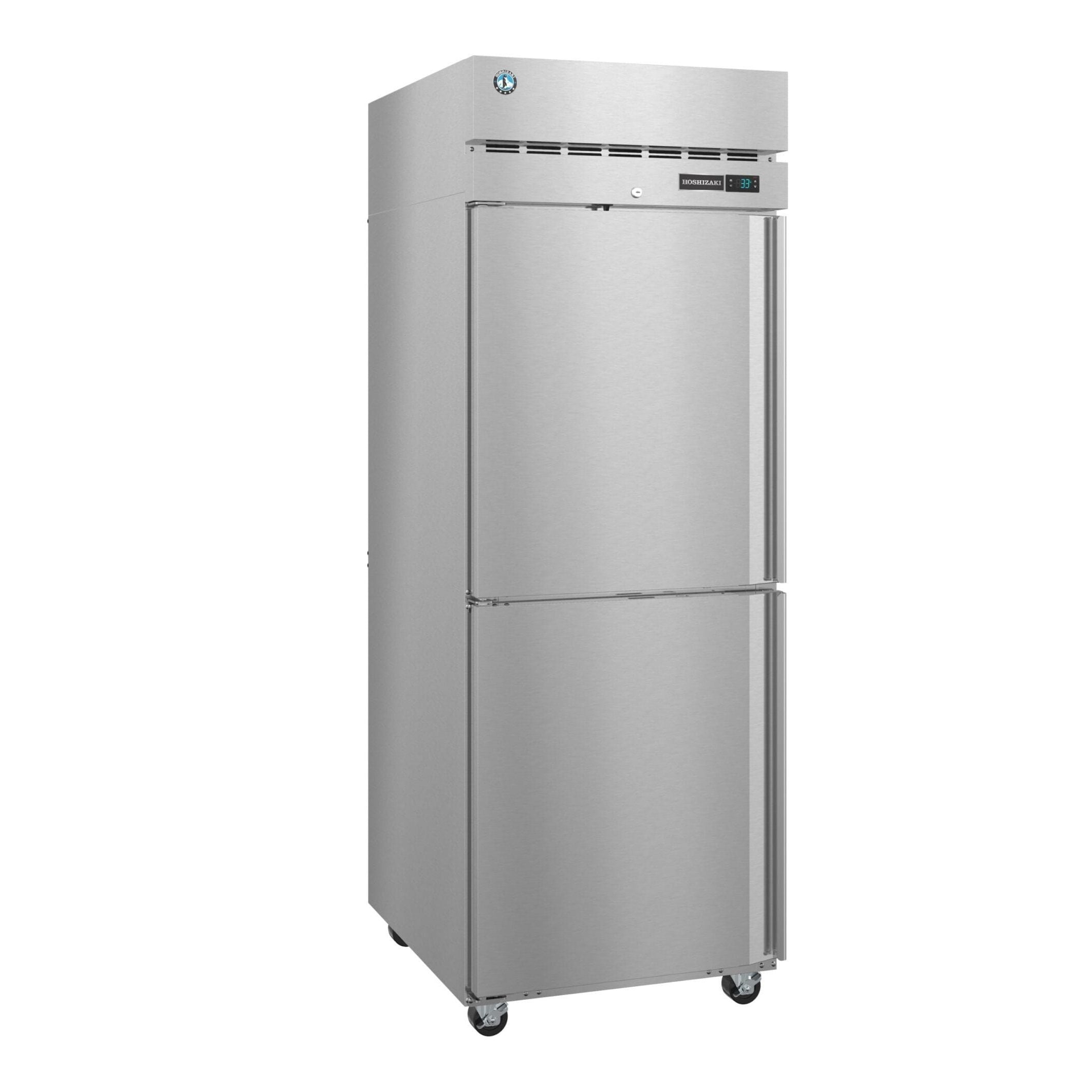

Hoshizaki R1A-HSL 27.5" Upright Reach-In Refrigerator – Half Stainless Door
Overview
The Hoshizaki R1A-HSL is a high-performance, energy-efficient reach-in refrigerator designed for demanding commercial environments. Featuring a half stainless steel door configuration, this unit offers a sleek, durable design with advanced temperature control and maximum storage capacity in a compact footprint. Ideal for kitchens, foodservice operations, and institutional use.
Key Features
-
Half Stainless Steel Door Design:
- Durable stainless steel interior and exterior
- Field reversible doors with locks
- Spring-assisted self-closing doors with stay-open feature
-

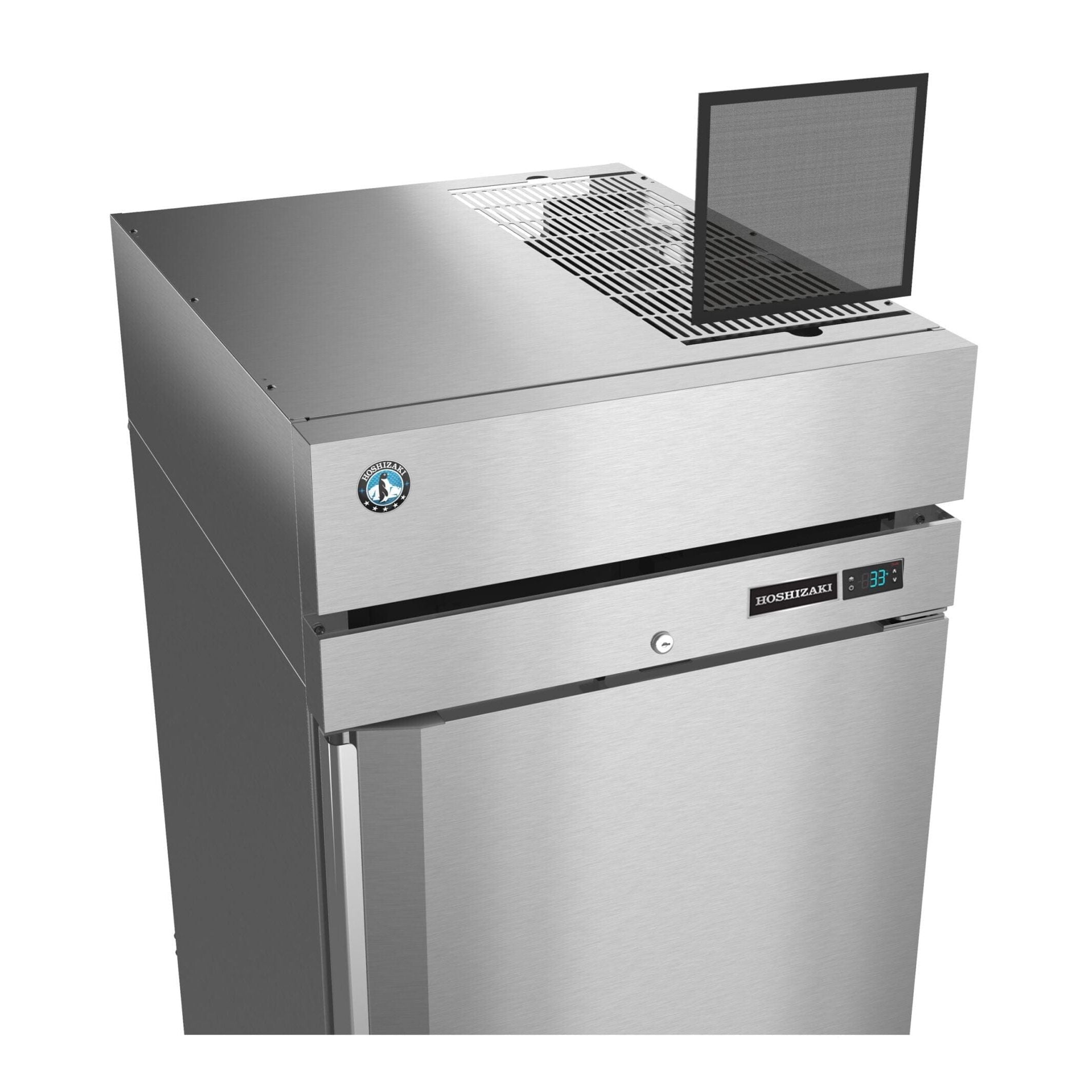

Advanced Temperature Control:

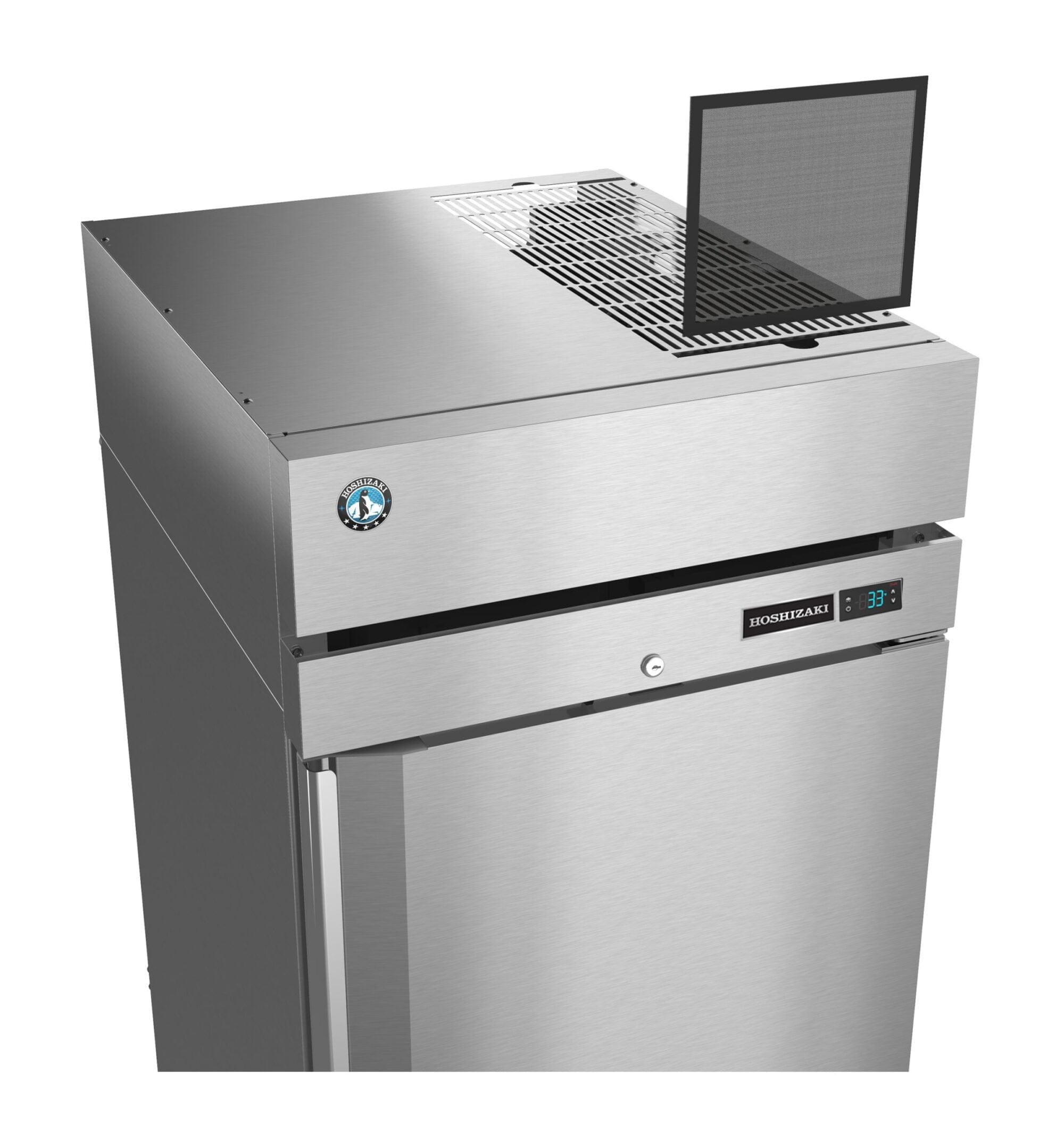

- Solid-state digital controller with LED display (°F/°C)
- High/low temperature and voltage alarms
-

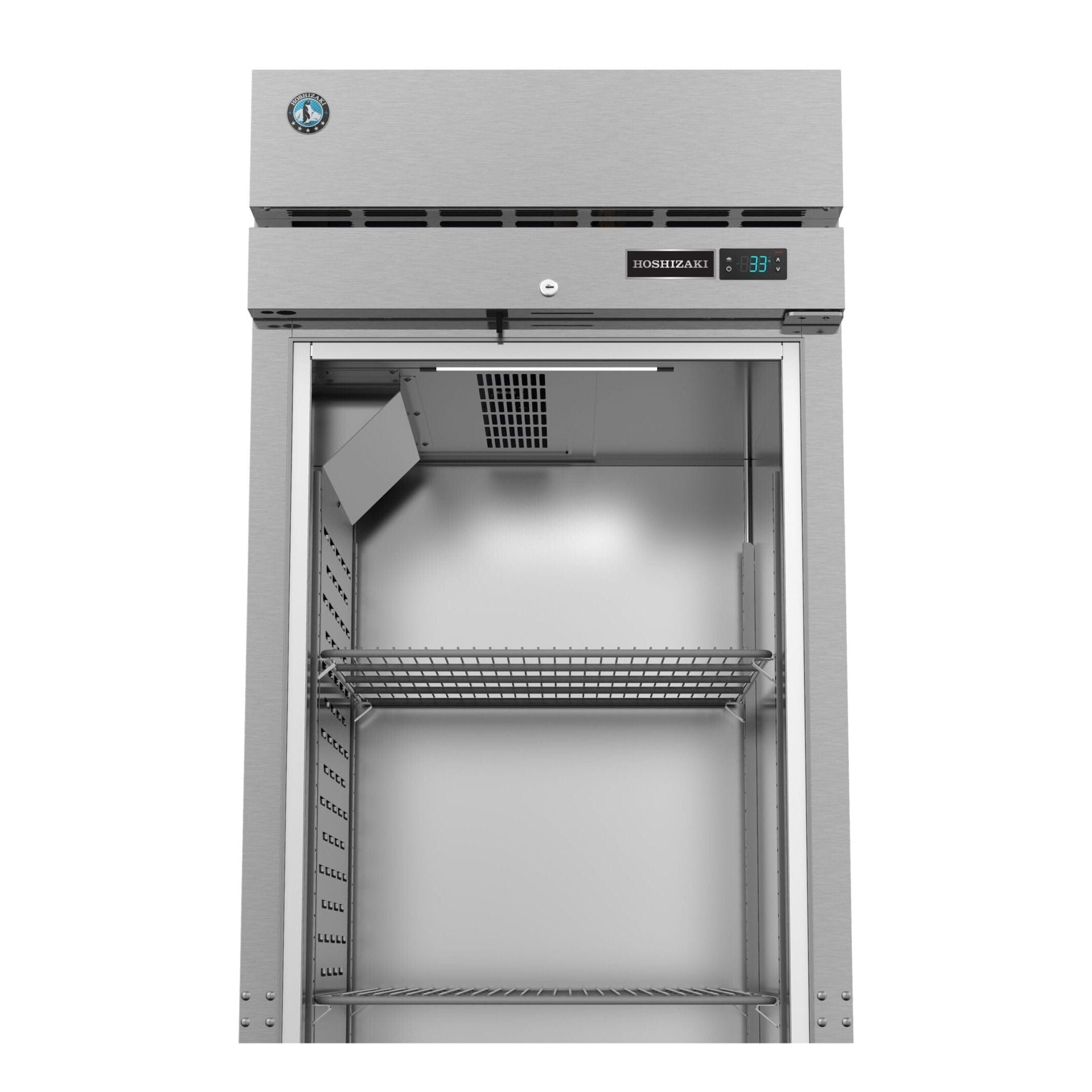

Interior Lighting:
- Energy-efficient LED light activates when doors open
-

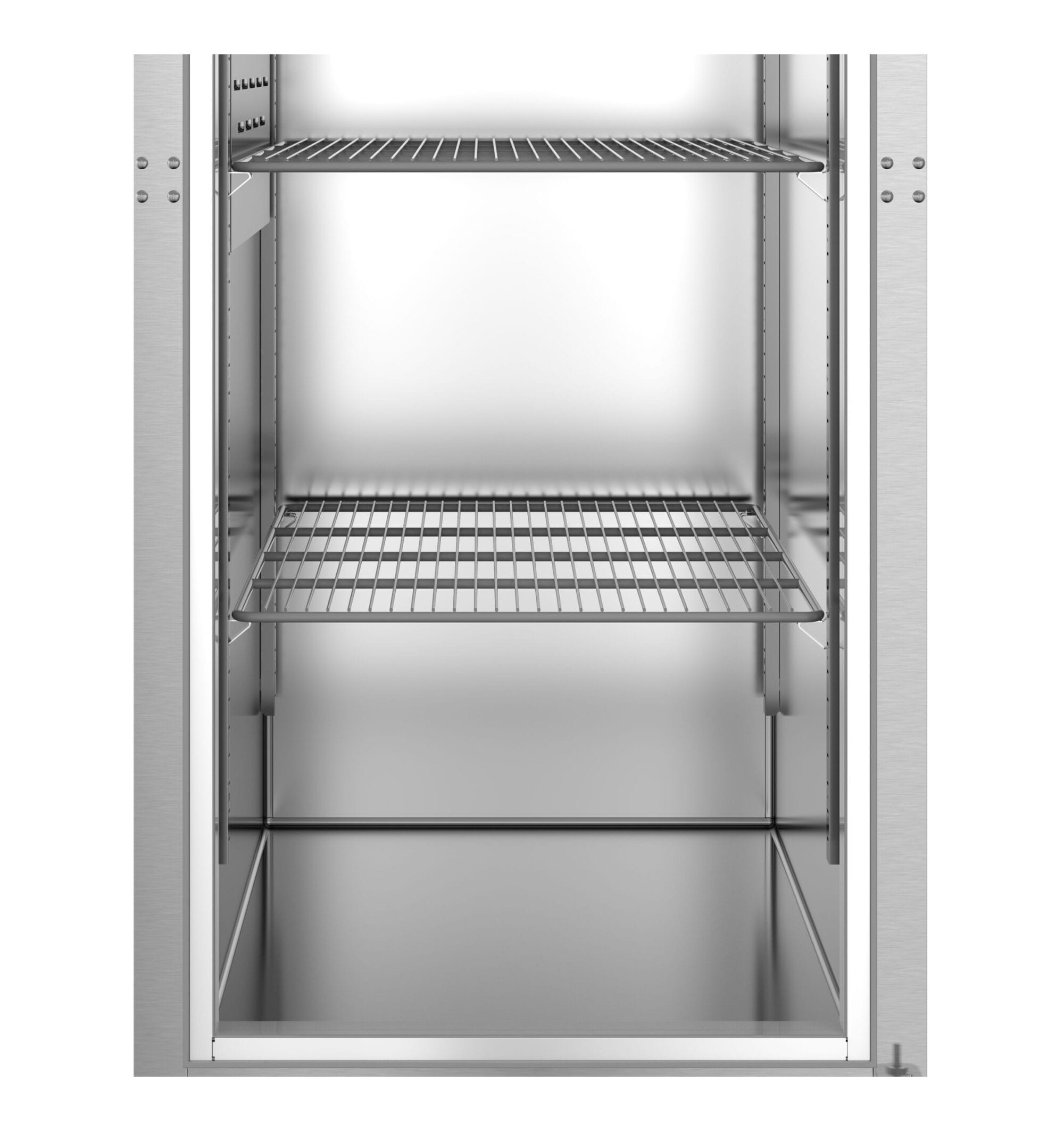

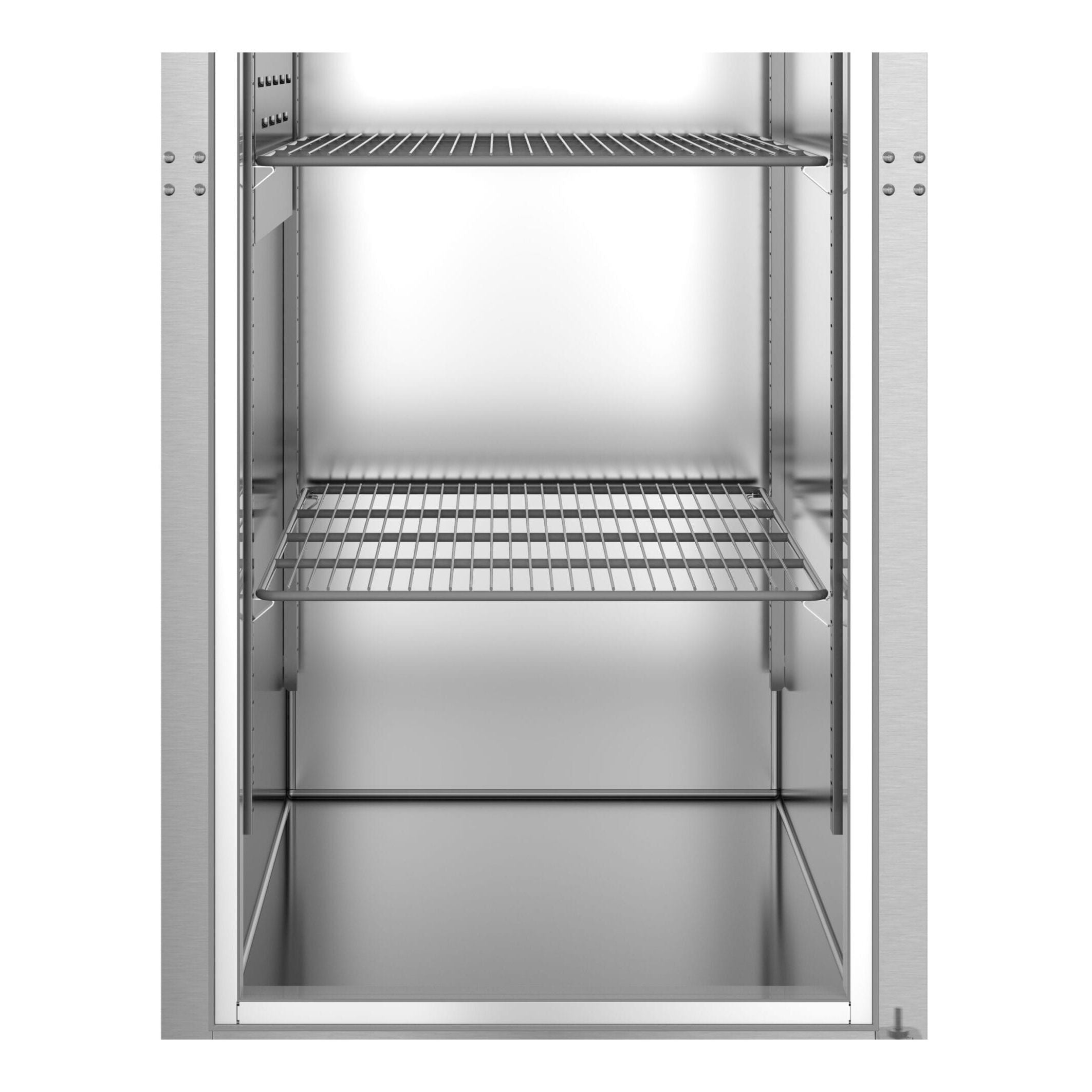

Shelving:
- Three adjustable epoxy-coated wire shelves
- Stainless steel shelf supports with 1" increments
-
Door Gasket Protection:
- Exclusive stepped door design protects recessed magnetic gasket
Construction & Durability
- Exterior: Stainless steel front, sides, and top; coated steel back and bottom

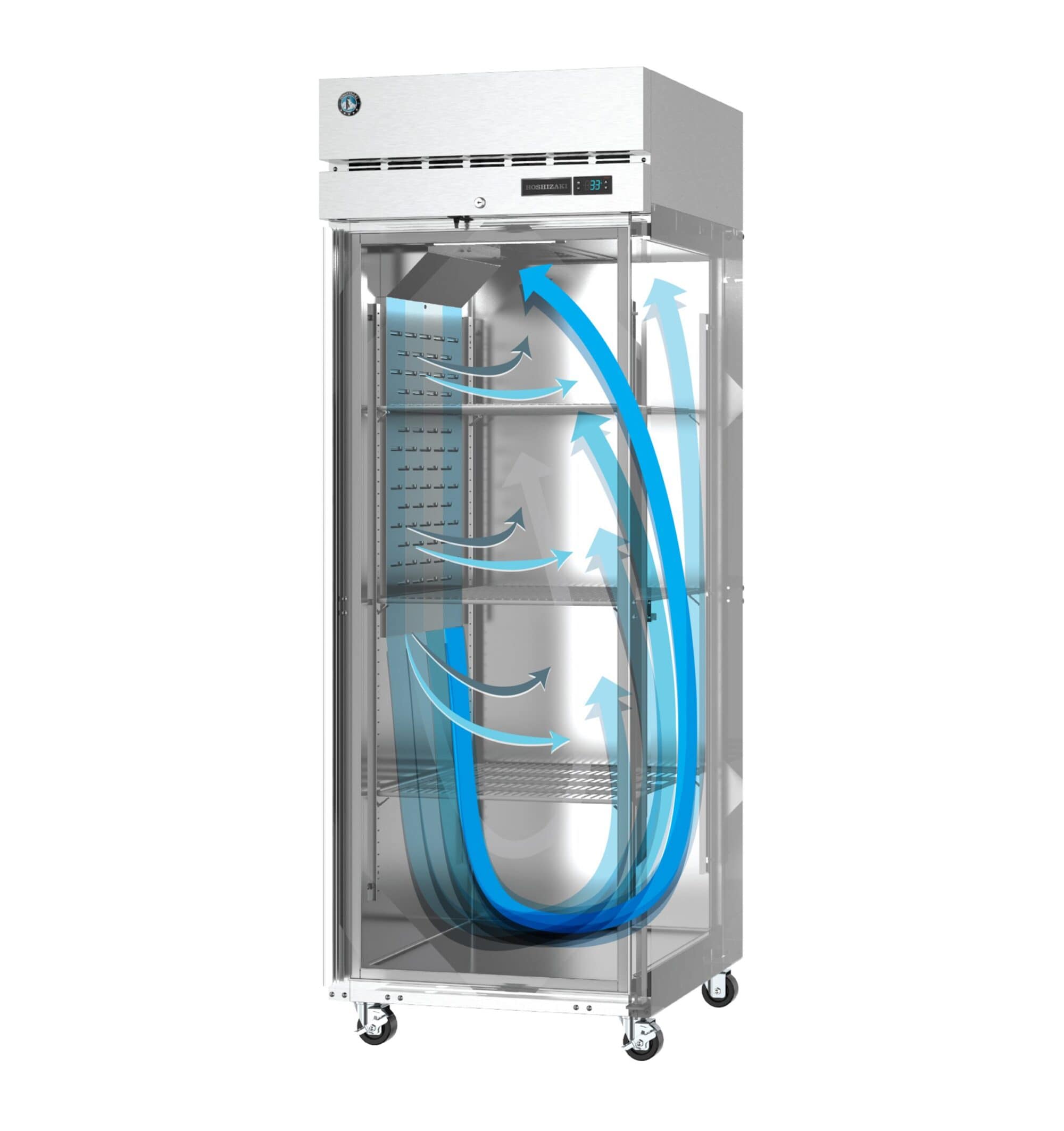

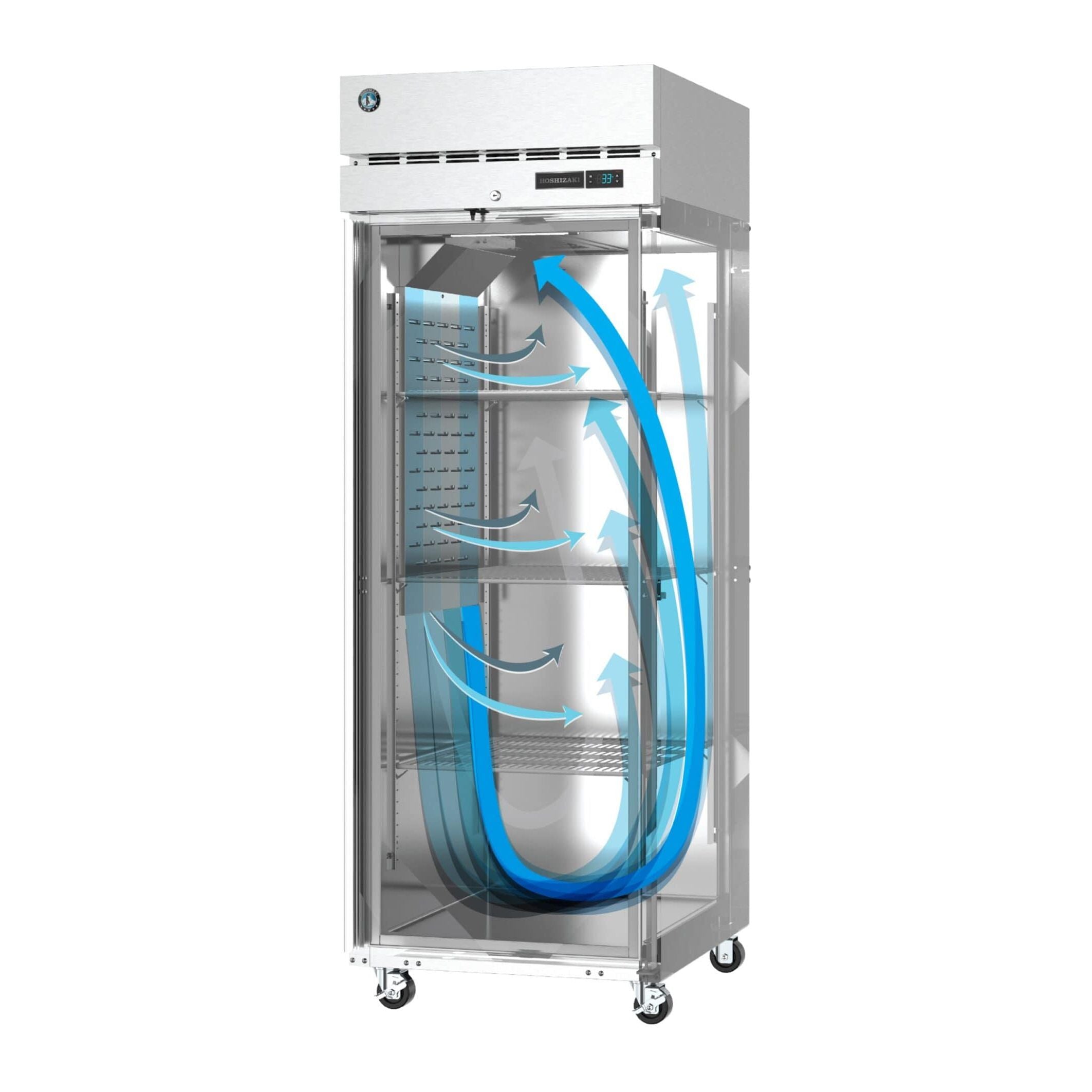

- Interior: All stainless steel with ducted air distribution system
- Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
- Door Hinges: 8-gauge stainless steel hinge plates with welded pins
- Casters: 4" polyolefin casters (two with brakes)
- Stackable: Units can be stacked two-high to save space
Mobility & Installation
- Dimensions: 27.5"W x 33.5"D x 79.5"H (with casters)
- Door Opening: 21.75"W x 59.25"H
- Depth with Door Open: 59.25"
- Electrical: 115V / 60Hz / 1Ph, 15.0 Amps, NEMA 5-15P plug
- Crated Weight: 345 lbs.
- Crated Dimensions: 37.5"W x 31.5"D x 81"H
-
Installation Notes:
- Minimum rear clearance: 3"
- Ambient operating range: 45°F to 100°F
- GFCI breaker required if GFCI protection is needed
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Additional epoxy-coated shelves
- Stainless steel shelves
- Tray/pan slides
- Foot pedal door opener
- 6" adjustable legs
- Condensate pan (HS-5462)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The R1A-HSL refrigerator exemplifies this legacy with its robust construction, energy-saving features, and intuitive controls. Designed to perform in the most demanding environments, Hoshizaki equipment is Beyond Strong.
Overview
The Hoshizaki R1A-HSL is a high-performance, energy-efficient reach-in refrigerator designed for demanding commercial environments. Featuring a half stainless steel door configuration, this unit offers a sleek, durable design with advanced temperature control and maximum storage capacity in a compact footprint. Ideal for kitchens, foodservice operations, and institutional use.
Key Features
-
Half Stainless Steel Door Design:
- Durable stainless steel interior and exterior
- Field reversible doors with locks
- Spring-assisted self-closing doors with stay-open feature
-
Advanced Temperature Control:
- Solid-state digital controller with LED display (°F/°C)
- High/low temperature and voltage alarms
-
Interior Lighting:
- Energy-efficient LED light activates when doors open
-
Shelving:
- Three adjustable epoxy-coated wire shelves
- Stainless steel shelf supports with 1" increments
-
Door Gasket Protection:
- Exclusive stepped door design protects recessed magnetic gasket
Construction & Durability
- Exterior: Stainless steel front, sides, and top; coated steel back and bottom
- Interior: All stainless steel with ducted air distribution system
- Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
- Door Hinges: 8-gauge stainless steel hinge plates with welded pins
- Casters: 4" polyolefin casters (two with brakes)
- Stackable: Units can be stacked two-high to save space
Mobility & Installation
- Dimensions: 27.5"W x 33.5"D x 79.5"H (with casters)
- Door Opening: 21.75"W x 59.25"H
- Depth with Door Open: 59.25"
- Electrical: 115V / 60Hz / 1Ph, 15.0 Amps, NEMA 5-15P plug
- Crated Weight: 345 lbs.
- Crated Dimensions: 37.5"W x 31.5"D x 81"H
-
Installation Notes:
- Minimum rear clearance: 3"
- Ambient operating range: 45°F to 100°F
- GFCI breaker required if GFCI protection is needed
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Additional epoxy-coated shelves
- Stainless steel shelves
- Tray/pan slides
- Foot pedal door opener
- 6" adjustable legs
- Condensate pan (HS-5462)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The R1A-HSL refrigerator exemplifies this legacy with its robust construction, energy-saving features, and intuitive controls. Designed to perform in the most demanding environments, Hoshizaki equipment is Beyond Strong.
