Overview

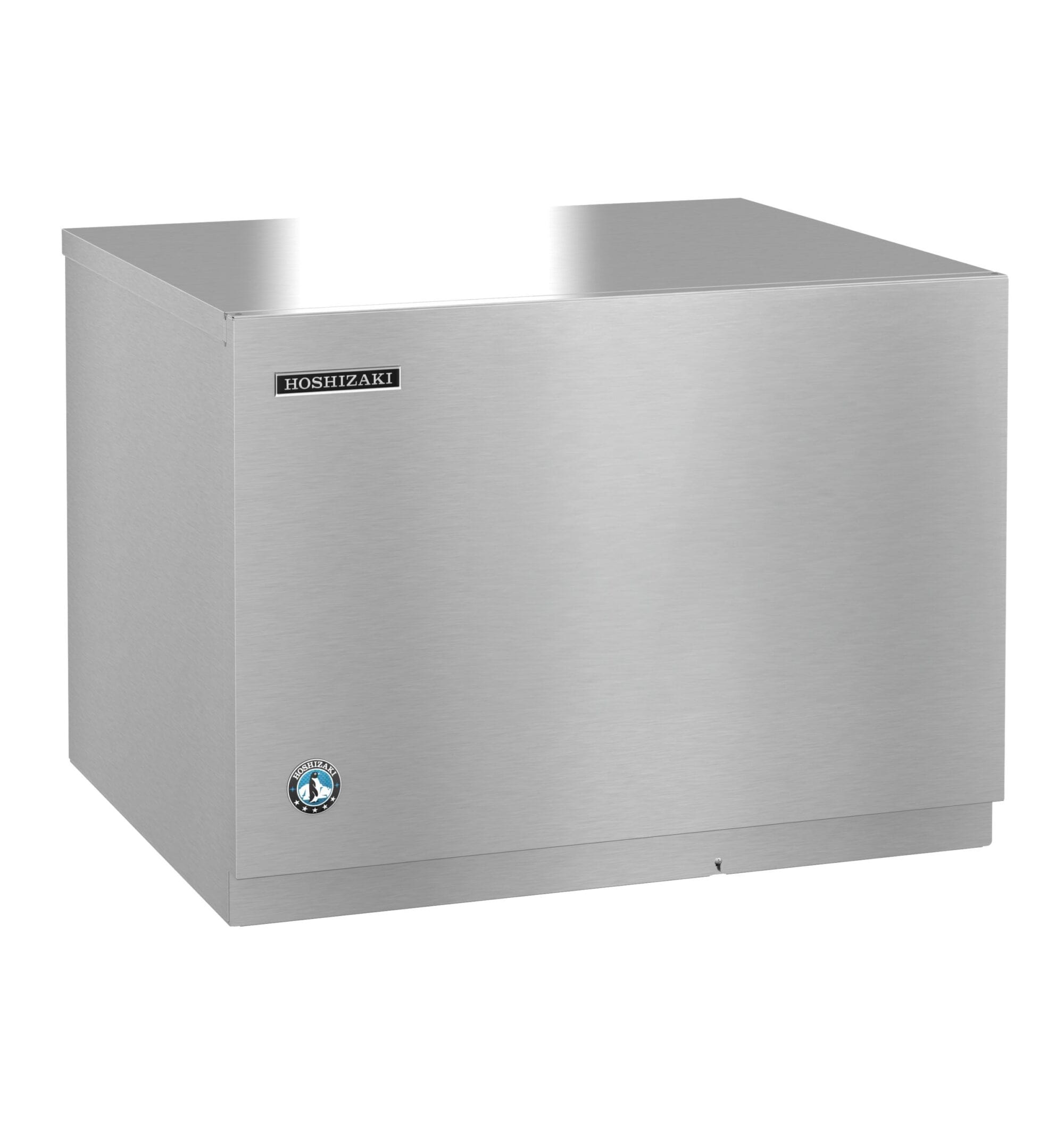

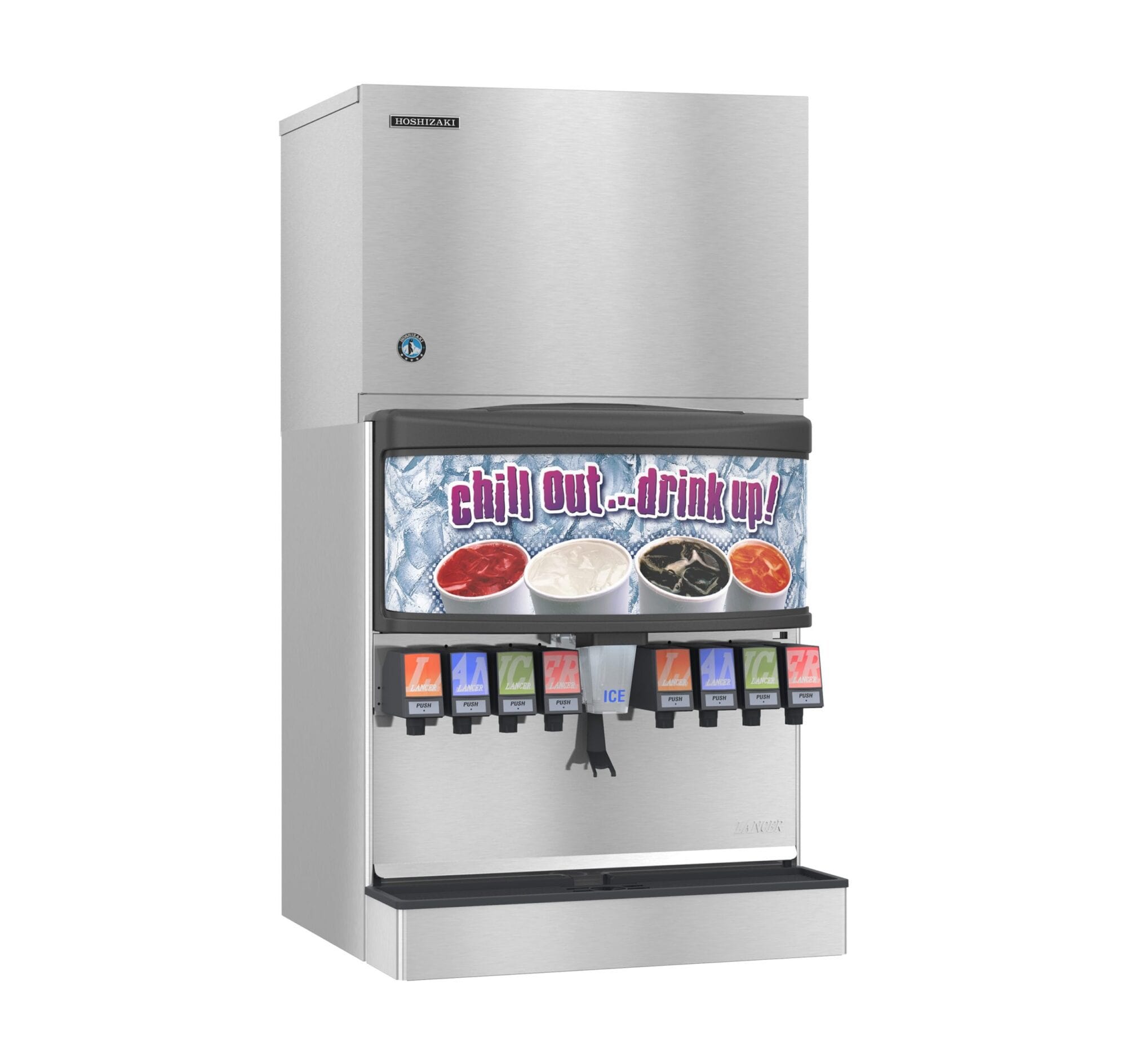

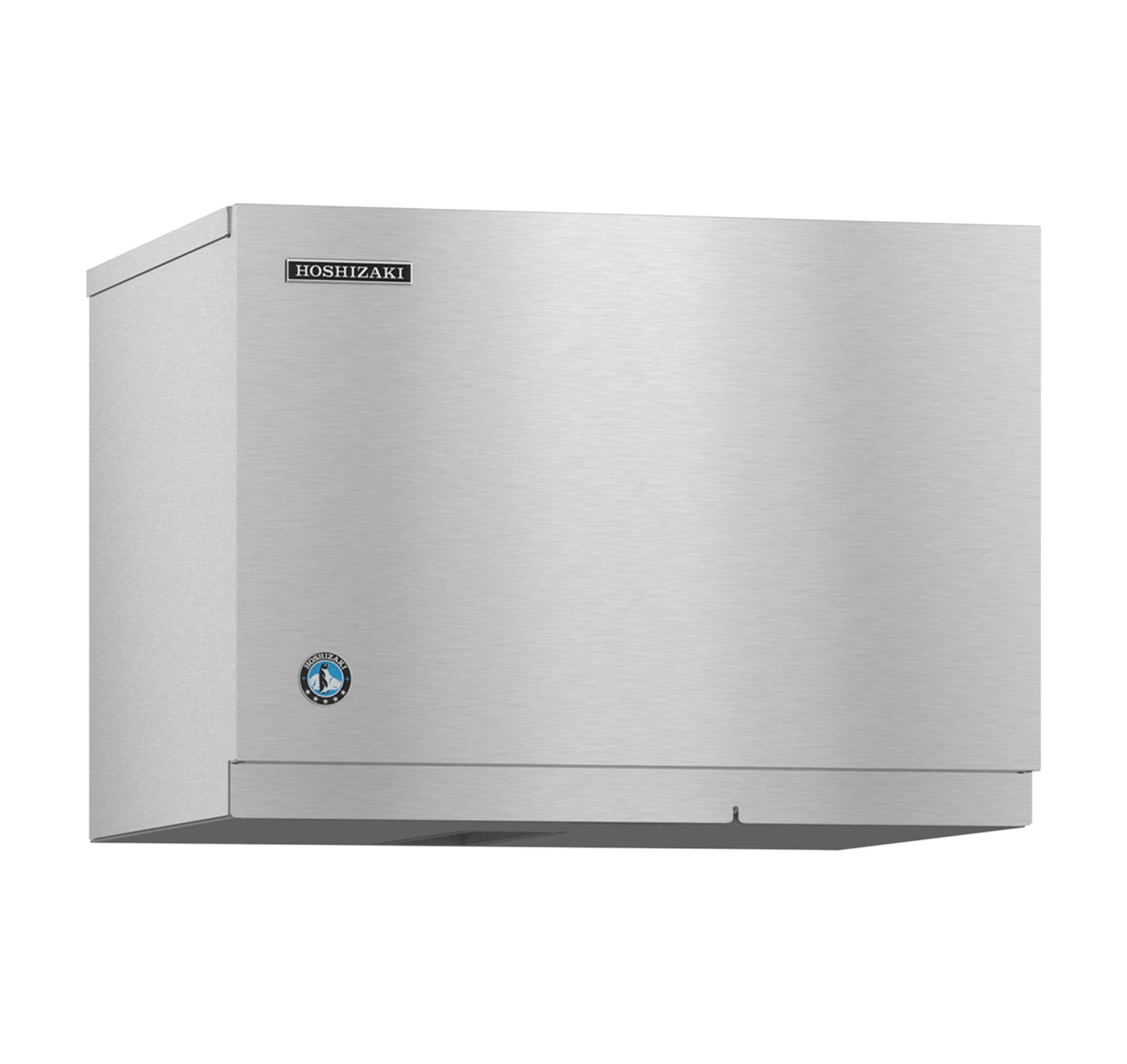

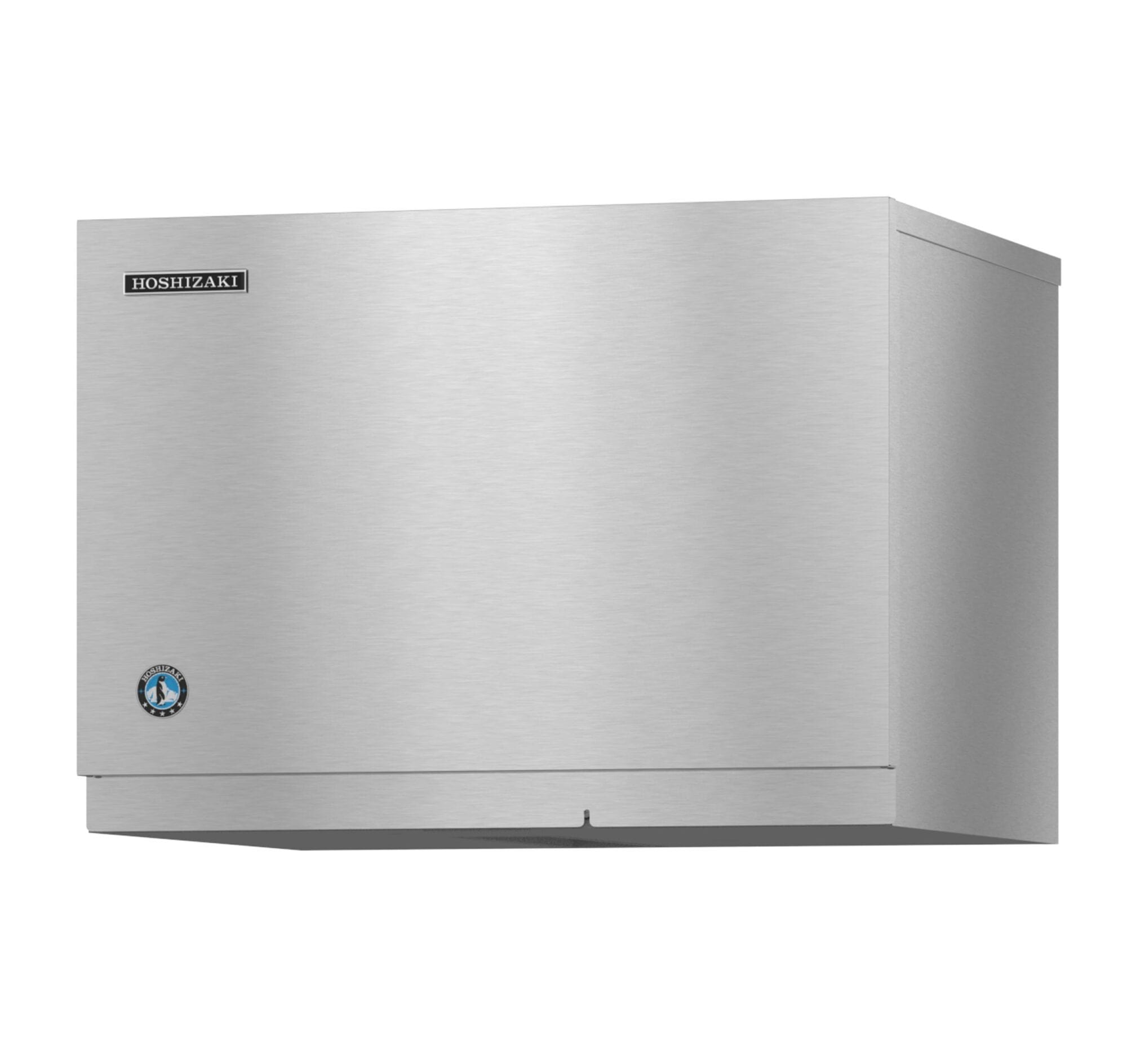

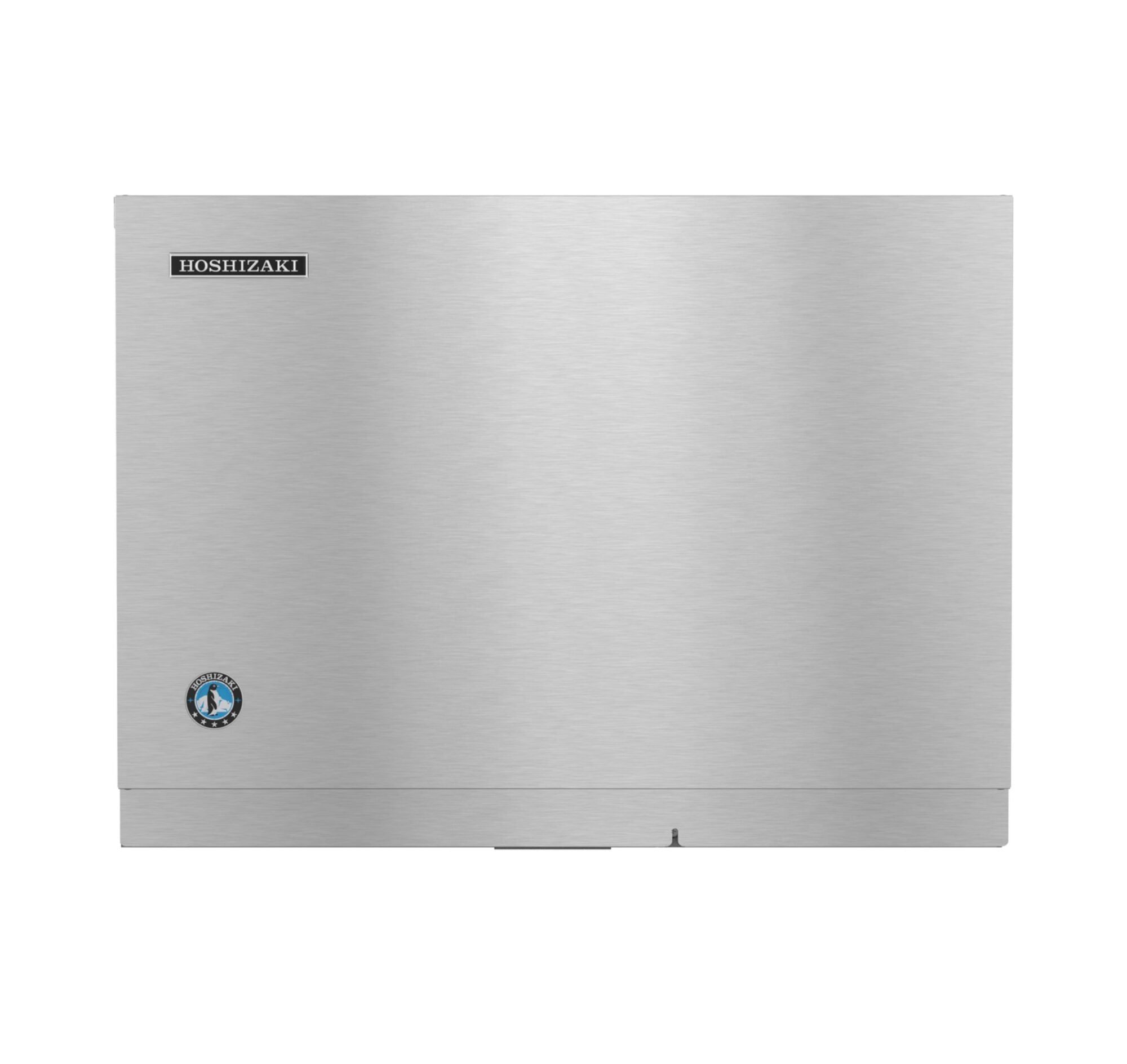

The Hoshizaki KMD-505MRJZ is a high-capacity modular crescent cuber designed for remote air-cooled applications, delivering up to 560 lbs. of ice per day under optimal conditions. Engineered for beverage dispensers and high-volume operations, this unit combines energy efficiency, quiet operation, and easy maintenance for superior performance in demanding environments.
Key Features
- Produces up to 560 lbs. of crescent ice per day (70°F air / 50°F water)
-
Individual crescent cubes for better beverage displacement and reduced splash
-
Remote air-cooled system for quieter operation and reduced heat in the kitchen
-
CycleSaver™ design for energy efficiency
-
EverCheck™ alert system for proactive maintenance
- CleanAssist™ one-hour cleaning process
- Uses R-404A refrigerant for reliable cooling performance
Construction & Durability
-
Stainless steel double-sided evaporator for long-lasting performance
- Durable construction with fewer parts for reduced maintenance
- Snap-fit components for easy cleaning and servicing
- Panels easily removed for full service access
Mobility & Installation
- Dimensions: 30" W x 24" D x 22" H
- Requires 6" clearance on rear, sides, and top for proper airflow
- Electrical: 115V/60/1, 20A circuit
- Heat Rejection: 7,900 BTU/hr
- Refrigerant: R-404A, total charge with URC-5FZ condenser: 4 lb. 11.8 oz.
- Compatible Remote Condenser: URC-5FZ (sold separately)
- Recommended bins: B-500SF, BD-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS (Top kit may be required)
Certifications & Warranty
-
NSF, UL, and AHRI certified
-
3-Year Parts & Labor on entire machine
-
5-Year Parts & Labor on evaporator
-
5-Year Parts on compressor
Optional Accessories
-
HS-2148 – DB Top Kit
-
HS-5562 – Remote Monitoring System
-
HS-5283 – EcO Ice Filter
-
HS-5734 – Side-Breathing Kit
-
H9320-51 – Single Water Filter Kit
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial ice-making solutions, known for innovative technology, energy efficiency, and unmatched reliability. With CycleSaver™ and EverCheck™ systems, you get maximum performance with minimal downtime—backed by industry-leading warranties and support.
