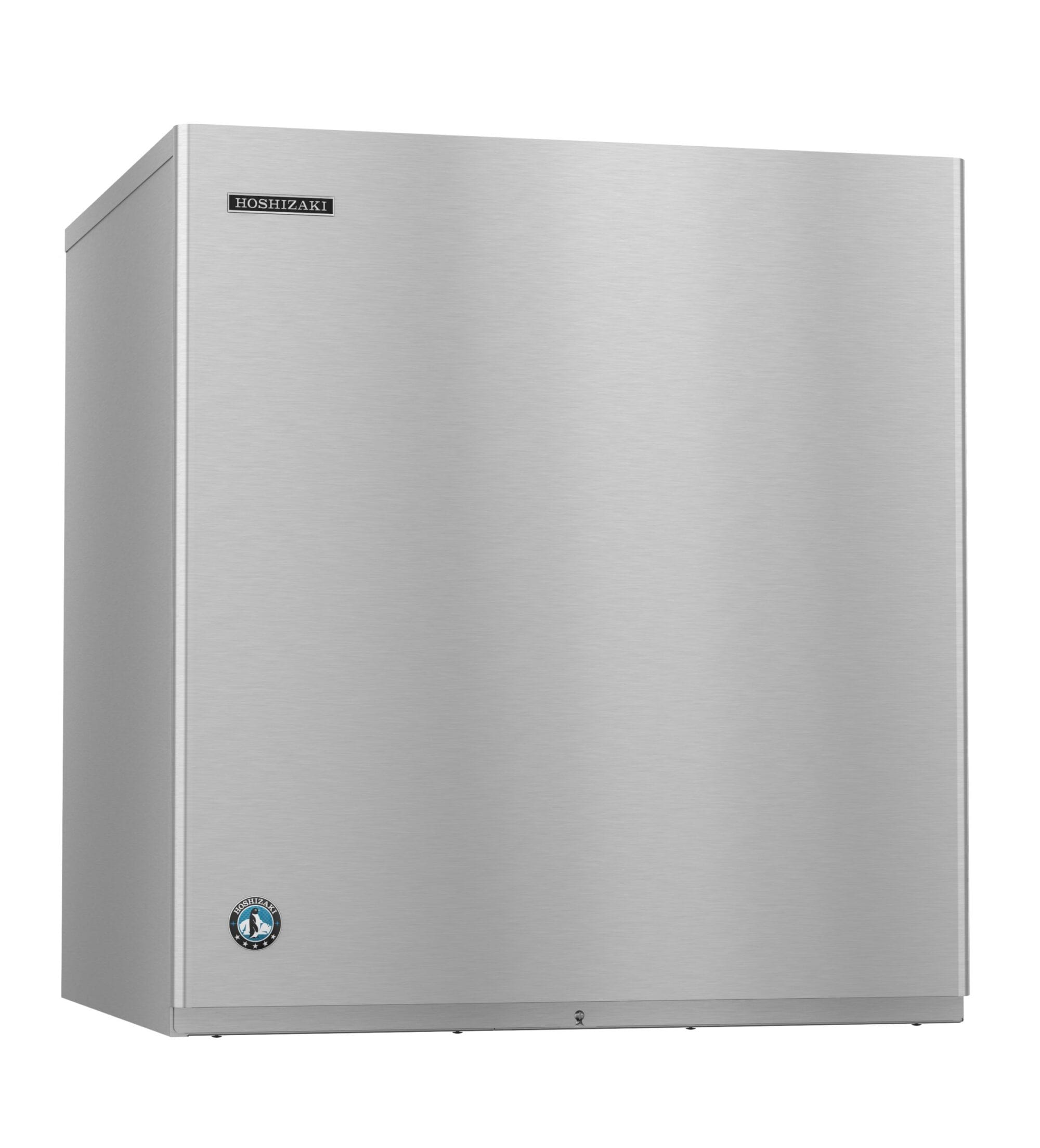

Hoshizaki KM-901MWJ Modular Crescent Cuber – Water-Cooled, 950 lbs/24 hrs

Overview

The Hoshizaki KM-901MWJ is a high-capacity, water-cooled modular ice maker engineered for commercial environments that demand consistent ice production and energy efficiency. Delivering up to 950 lbs. of crescent ice per day, this unit is ideal for restaurants, bars, hotels, and institutions. Its stainless steel construction, advanced features, and easy maintenance make it a reliable choice for businesses that value performance and durability.

Key Features

• High Ice Production: Up to 950 lbs. of ice per 24 hours (at 70°F air / 50°F water)
• Water-Cooled System: Efficient cooling for consistent performance in warm environments
• Individual Crescent Cubes: Hard, clear cubes for superior beverage presentation
• CycleSaver™ Design: Maximizes ice production while reducing energy consumption
• EverCheck™ Alert System: Self-diagnostic feature for easy troubleshooting
• H-GUARD Plus Antimicrobial Protection: Enhances food safety
• Simple One-Hour Cleaning Process: Reduces downtime and labor costs

Construction & Durability

• Stainless Steel Exterior: Corrosion-resistant and easy to clean
• Stainless Steel Evaporator: Ensures consistent ice quality and long service life
• Accessible Components: Panels easily removed for quick service
• Heavy-Duty Design: Built for continuous commercial use

Mobility & Installation

• Dimensions: 30" W x 27 3/8" D x 32 1/2" H
• Shipping Dimensions: 33.5" L x 33.25" W x 38.5" H (24.82 ft³)
• Weight: 218 lbs. (net) / 250 lbs. (shipping)
• Electrical: 208-230V/60/1 (single-phase), 20A minimum circuit
• Heat Rejection: 12,700 BTU/hr
• Refrigerant: R-404A (Charge: 1 lb. 14 oz.)
• Operating Limits: Ambient 45°F–100°F, Water 45°F–90°F, Water Pressure 10–113 PSIG
• Plumbing:
  • Icemaker Water Supply: 1/2" FPT (min. 3/8" ID tubing)
  • Icemaker Drain: 3/4" FPT (min. 3/4" ID pipe)
  • Condenser Water Supply: 1/2" FPT (min. 3/8" ID tubing)
  • Condenser Drain: 3/8" FPT (min. 3/8" ID pipe)
• Clearance: 12" at rear, sides, and top for proper air circulation

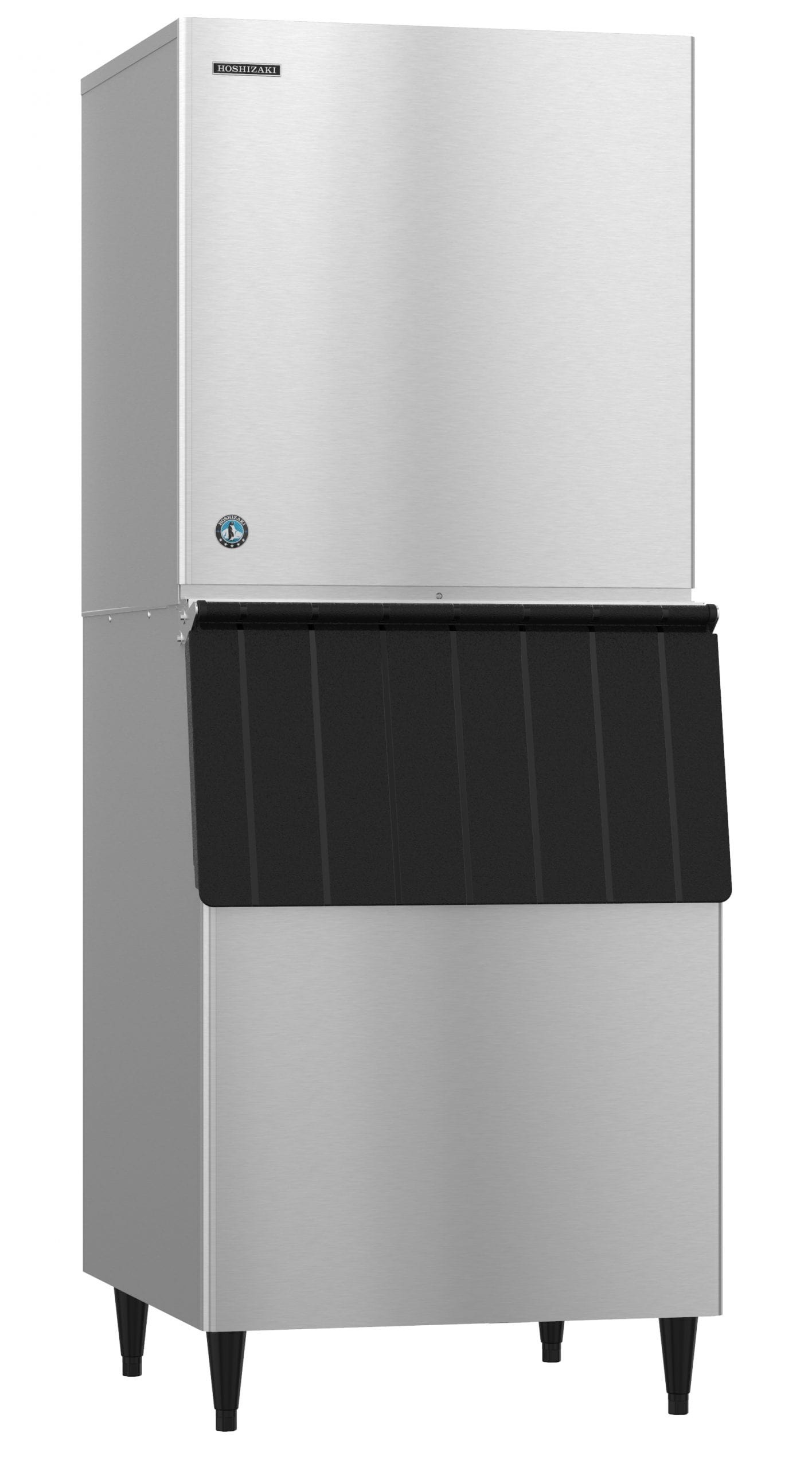

• Compatible Bins: B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS, B-1650SS

Certifications & Warranty

• Certifications: NSF, UL, AHRI, ENERGY STAR®
• Warranty:
  • 3-Year Parts & Labor on entire machine
  • 5-Year Parts & Labor on evaporator
  • 5-Year Parts on compressor

Optional Accessories

• Ice Storage Bins: B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS, B-1650SS
• Top Kits: Required for certain bin configurations
• Water Filter Systems: Recommended for optimal performance

Why Choose Hoshizaki?

Hoshizaki is a global leader in commercial ice-making solutions, known for innovation, energy efficiency, and reliability. With features like CycleSaver™, EverCheck™, and H-GUARD Plus, the KM-901MWJ delivers consistent performance, reduces operating costs, and ensures food safety. Backed by industry-leading warranties and support, Hoshizaki products are built to last.
