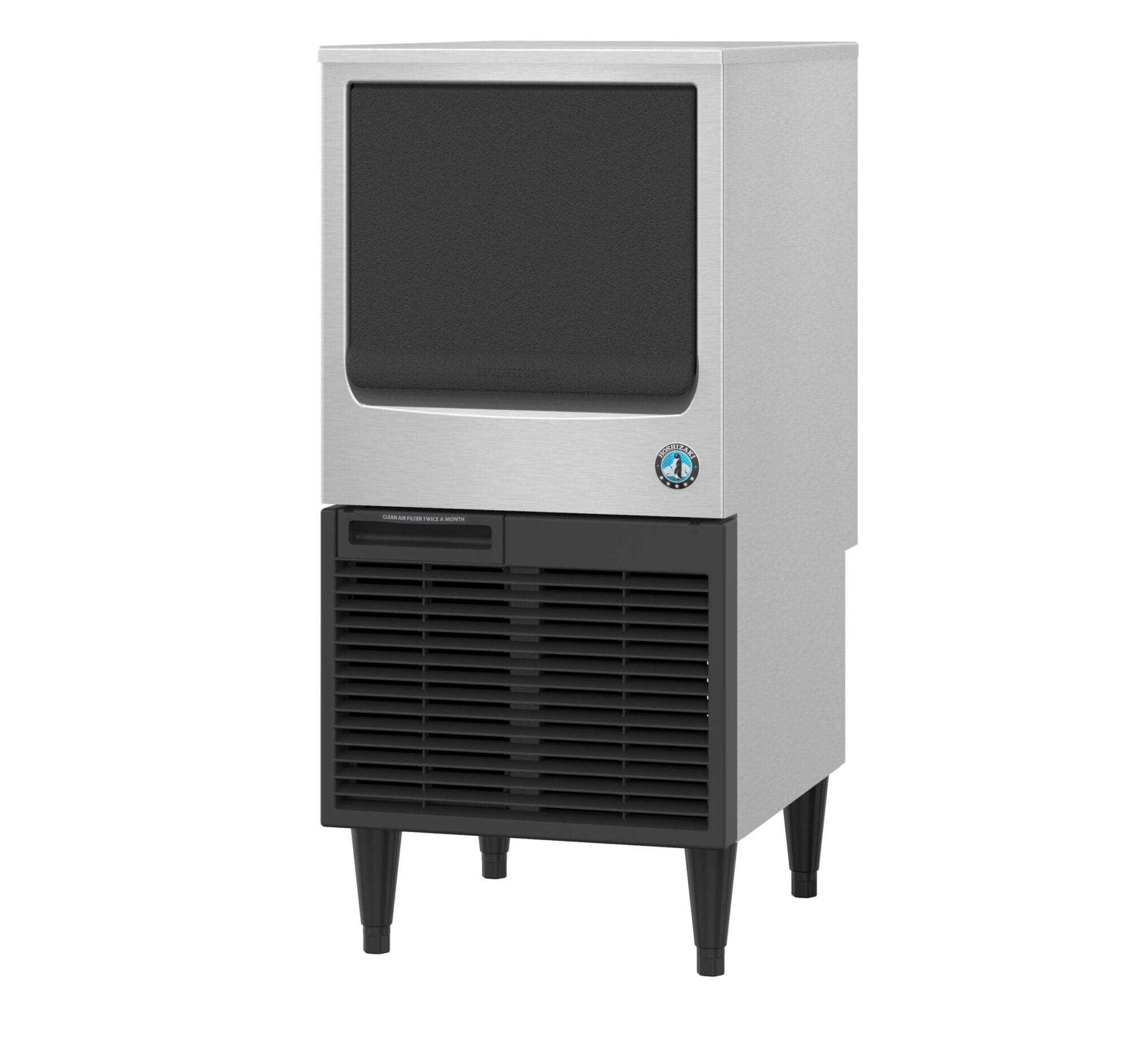

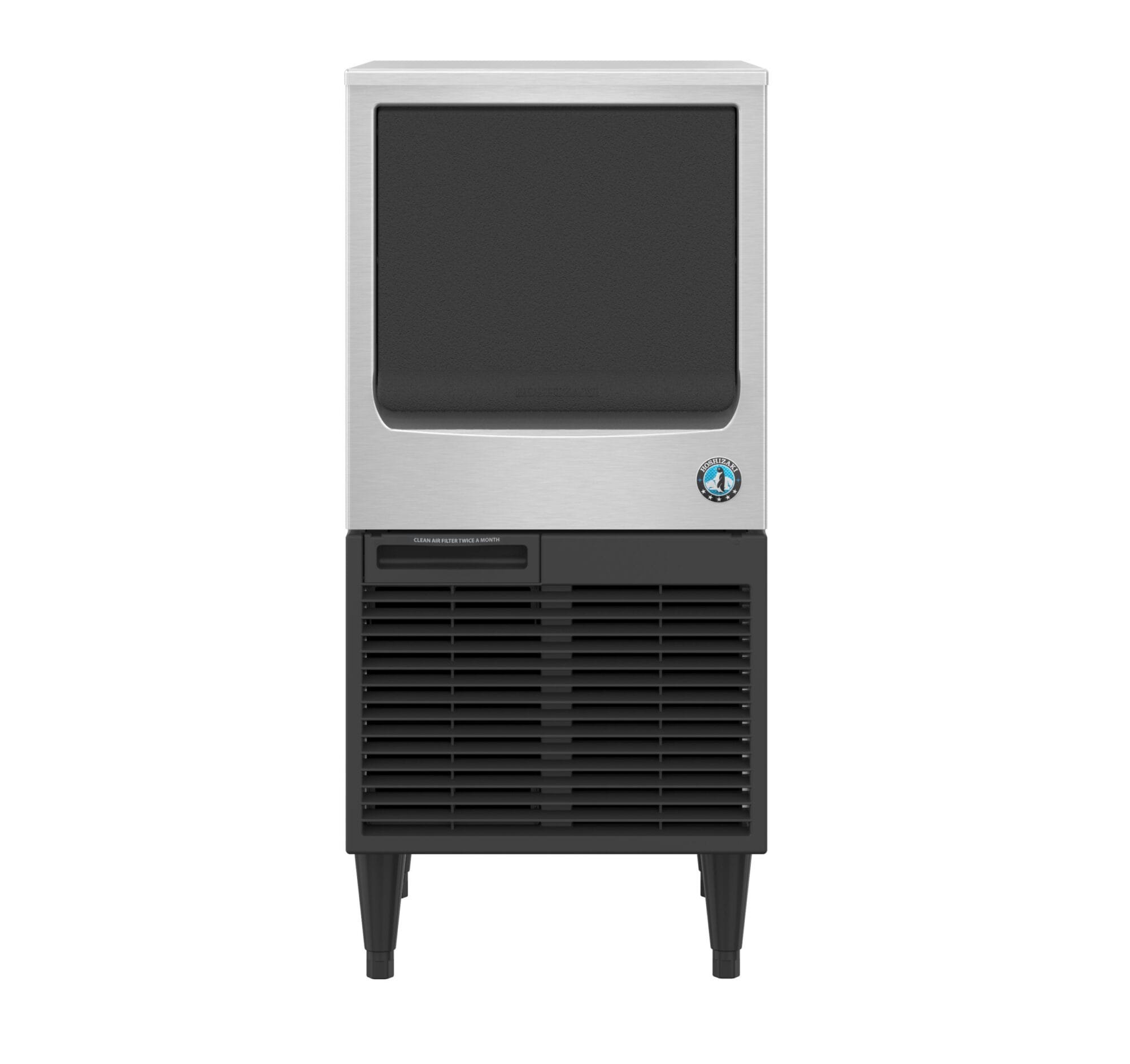

Hoshizaki KM-81BAJ Self-Contained Crescent Cuber with Built-In Storage – Air-Cooled, 78 lbs/24 hrs
by Hoshizaki
$2,680.00
- Product Details
- Shipping
- Assembly
- Warranty
- Reviews
Product Details
Overview
The Hoshizaki KM-81BAJ is a compact, self-contained ice maker designed for undercounter or built-in applications. Perfect for bars, cafes, and small restaurants, this unit produces up to 78 lbs. of crescent ice per day and stores up to 38 lbs. in its built-in bin. With its front-in, front-out airflow, stainless steel exterior, and ADA-compliant design, the KM-81BAJ combines performance, durability, and convenience in a space-saving footprint.
Key Features
- Produces up to 78 lbs. of crescent ice per day
- Built-in storage bin holds 38 lbs. of ice
- Individual crescent cubes for superior beverage presentation
- CycleSaver™ design for energy efficiency
- EverCheck™ alert system for proactive maintenance
- Front-in, front-out airflow for easy built-in installation
- Slide-in door for convenient access
- Power switch accessible without panel removal
- 6.5 ft. power cord with NEMA 5-15P plug
- Uses R-134a refrigerant
Construction & Durability
- Durable stainless steel exterior for long-lasting performance
- Stainless steel evaporator for reliability and easy cleaning
- Snap-fit components for simplified maintenance
- ADA-compliant design for accessibility
Mobility & Installation
- Dimensions: 17 3/4" W x 24" D x 39" H (including 6" legs)
- Electrical: 115V/60/1, 3.5A, 15A circuit
- Heat Rejection: 1,350 BTU/hr
- Refrigerant: R-134a, charge amount: 7.1 oz
- Built-in installation possible with proper clearance (12" front, 0.6" top)
- Water supply: 1/4" ID copper tubing or equivalent
- Drain: 3/4" ID hard pipe or equivalent
- Optional drain pump assembly (HS-5061) available
Certifications & Warranty
- NSF, UL, AHRI certified
- ENERGY STAR® qualified
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on evaporator
- 5-Year Parts on compressor
- 1-Year Parts & Labor on optional drain pump
Optional Accessories
- HS-5061 – Drain Pump Assembly
- Water filter kits (refer to Hoshizaki water filter spec sheet)
Why Choose Hoshizaki?
Hoshizaki is a trusted leader in commercial ice-making solutions, known for innovative technology, energy efficiency, and unmatched reliability. With features like CycleSaver™ and EverCheck™, you get maximum performance with minimal maintenance—backed by industry-leading warranties and support.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
