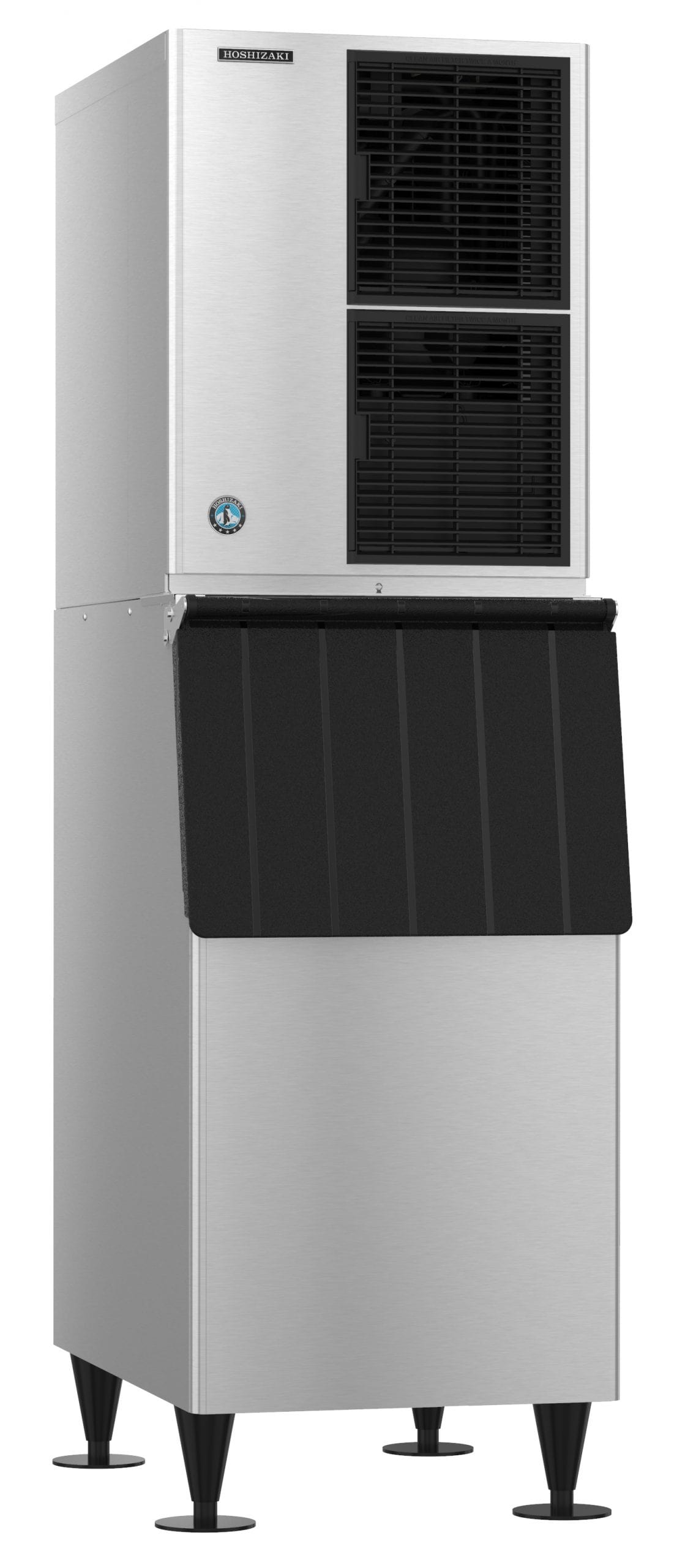

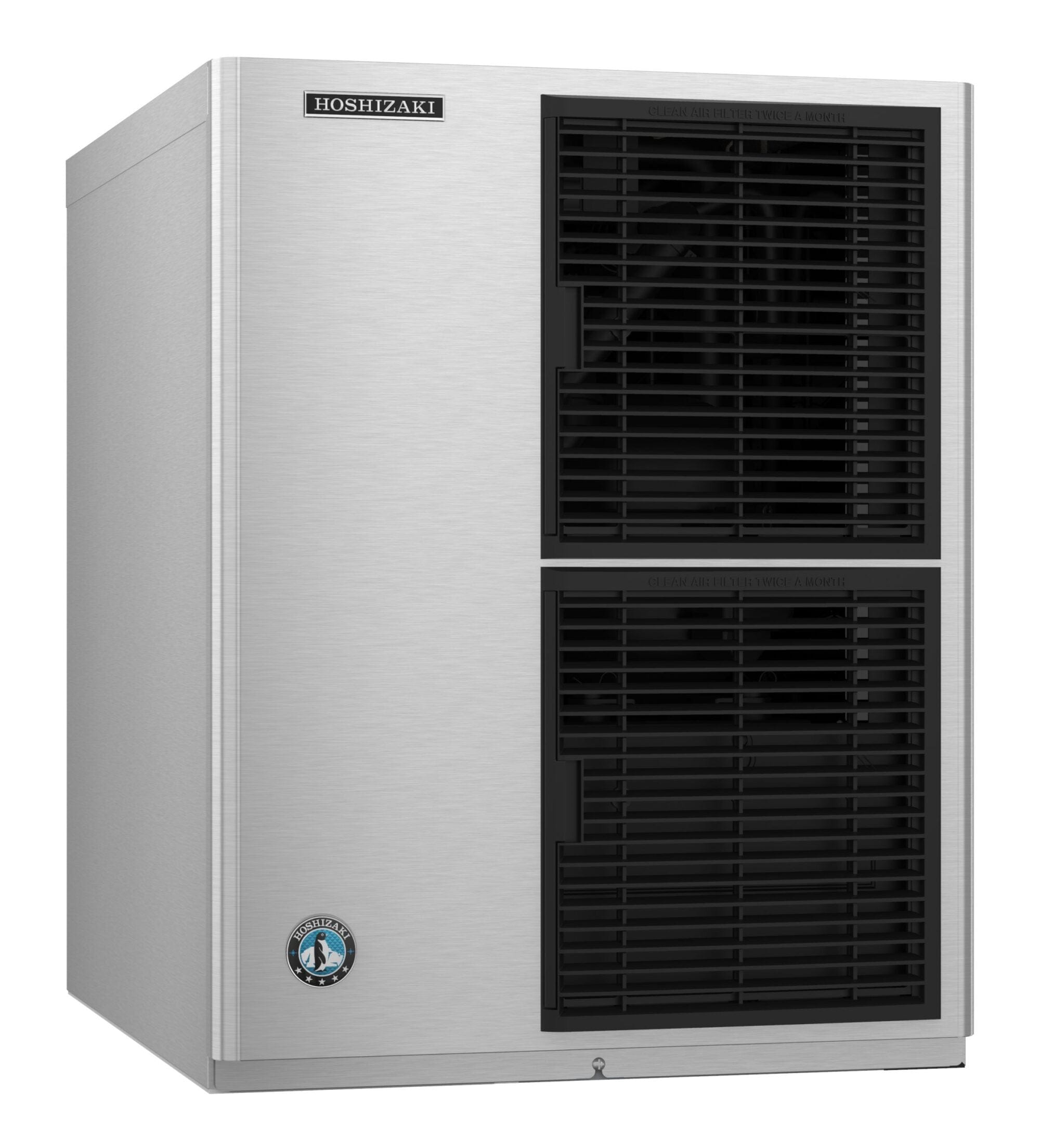

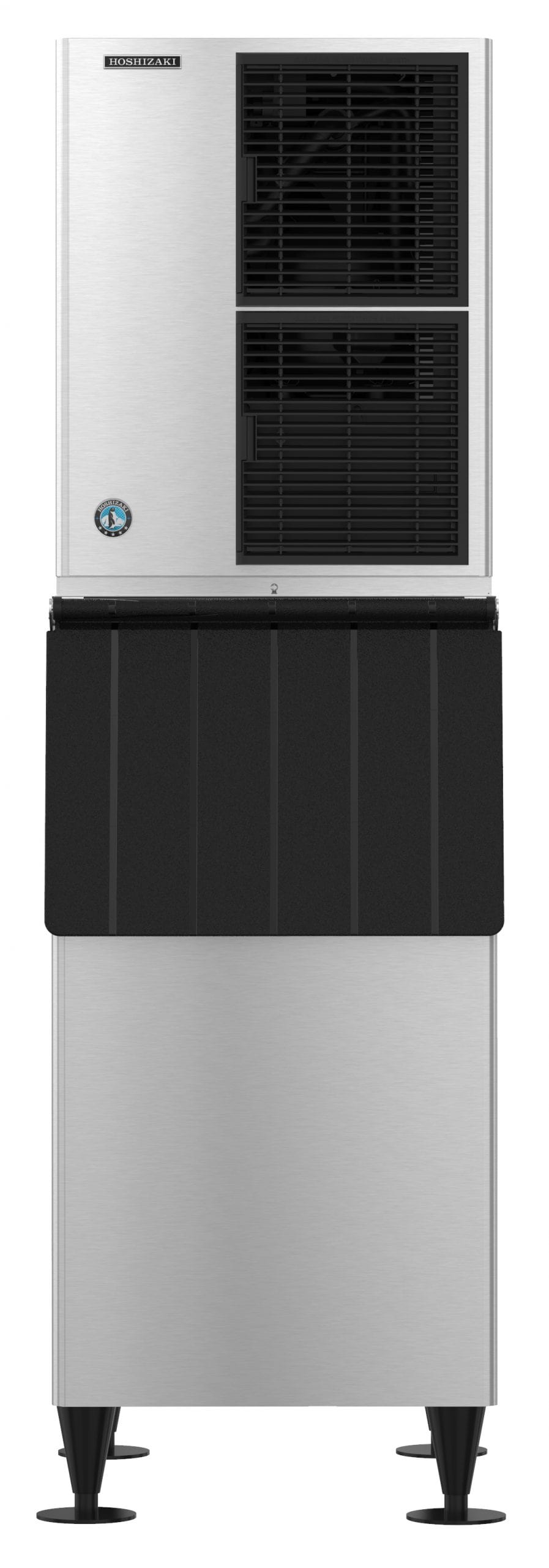

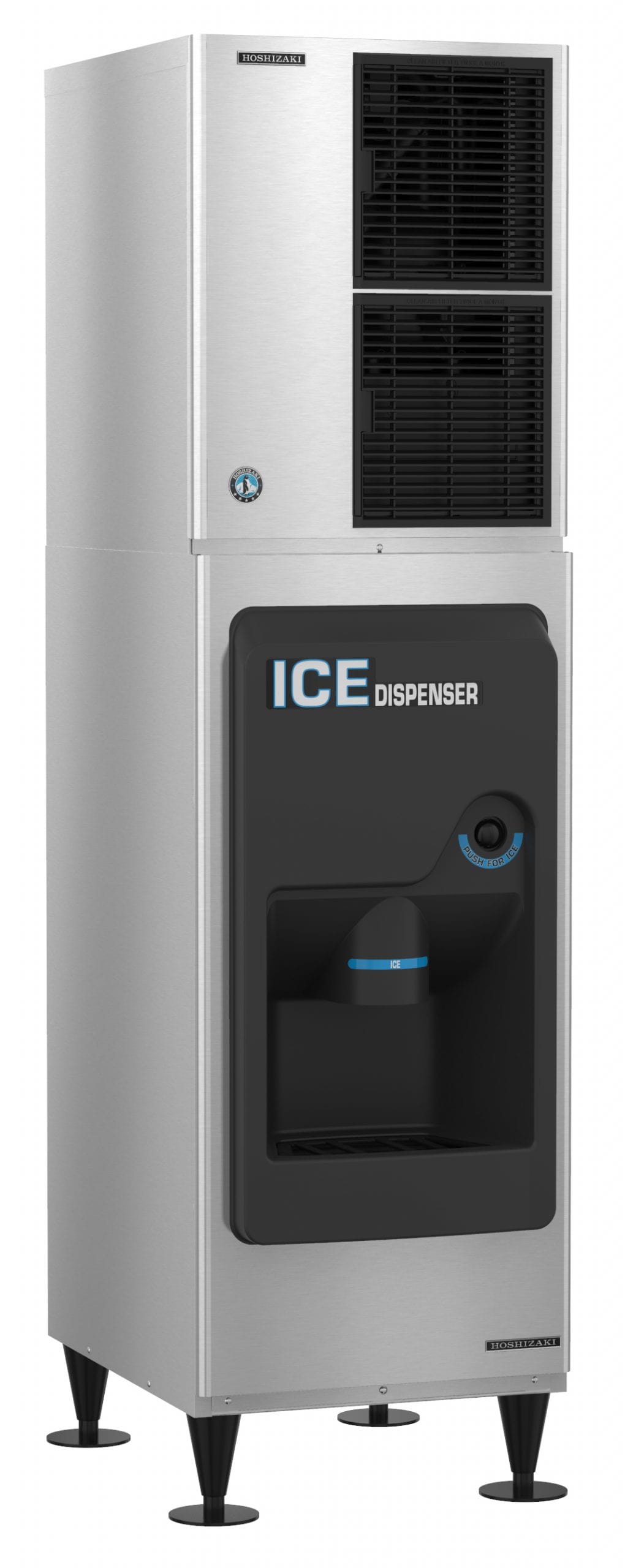

Hoshizaki KM-520MAJ Air-Cooled Modular Crescent Cuber – 556 lbs/day
Overview
The Hoshizaki KM-520MAJ is a high-performance, air-cooled modular ice machine designed for commercial kitchens, bars, and hospitality environments. With a slim 22-inch width and the ability to produce up to 556 lbs of individual crescent-shaped ice cubes per day, this ENERGY STAR® qualified unit combines efficiency, durability, and ease of maintenance.
Key Features
- Ice Production: Up to 556 lbs of crescent cubes per 24 hours (at 70°F air / 50°F water)
- Compact Design: Slim 22" width fits tight spaces
- CycleSaver™ Design: Reduces energy consumption and extends equipment life
- H-GUARD Plus Antimicrobial Protection: Built-in defense against bacteria
- EverCheck™ Alert System: Audible alerts for easy maintenance
- Removable Air Filters: For quick cleaning and improved airflow
- Factory-Installed Ultrasonic Bin Control: Adjustable for precise ice levels
- ENERGY STAR® Certified: Meets strict energy efficiency standards
Construction & Durability
- Stainless Steel Exterior: Corrosion-resistant and easy to clean
- Double-Sided Stainless Steel Evaporator: Ensures consistent ice quality
- Snap-Fit Components: Simplifies cleaning and servicing
- Operating Limits: Ambient 45°F–100°F, Water 45°F–90°F, Water Pressure 10–113 PSIG
Mobility & Installation
- Dimensions: 22" W x 27 3/8" D x 28" H
- Weight: Approx. 145 lbs (net)
- Electrical: 115V/60/1, 20A dedicated circuit (hard-wired)
- Clearance: Minimum 6" on sides, rear, and top for airflow
- Compatible Bins: B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS
- Plumbing: 1/2" FPT water inlet, 3/4" FPT drain outlet
Certifications & Warranty
- Certifications: ENERGY STAR®, UL, AHRI, NSF
-
Warranty:
- 3-Year Parts & Labor (entire machine)
- 5-Year Parts & Labor (evaporator)
- 5-Year Parts (compressor & air-cooled condenser coil)
Optional Accessories
- Ice Storage Bins: B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS
- Top Kits: Required for certain bin configurations
- Water Filters: Recommended for optimal performance and warranty compliance
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration and ice-making solutions, known for innovation, reliability, and sustainability. The KM-520MAJ exemplifies this commitment with its energy efficiency, antimicrobial protection, and user-friendly design, making it the perfect choice for businesses that demand consistent ice production and long-term value.
