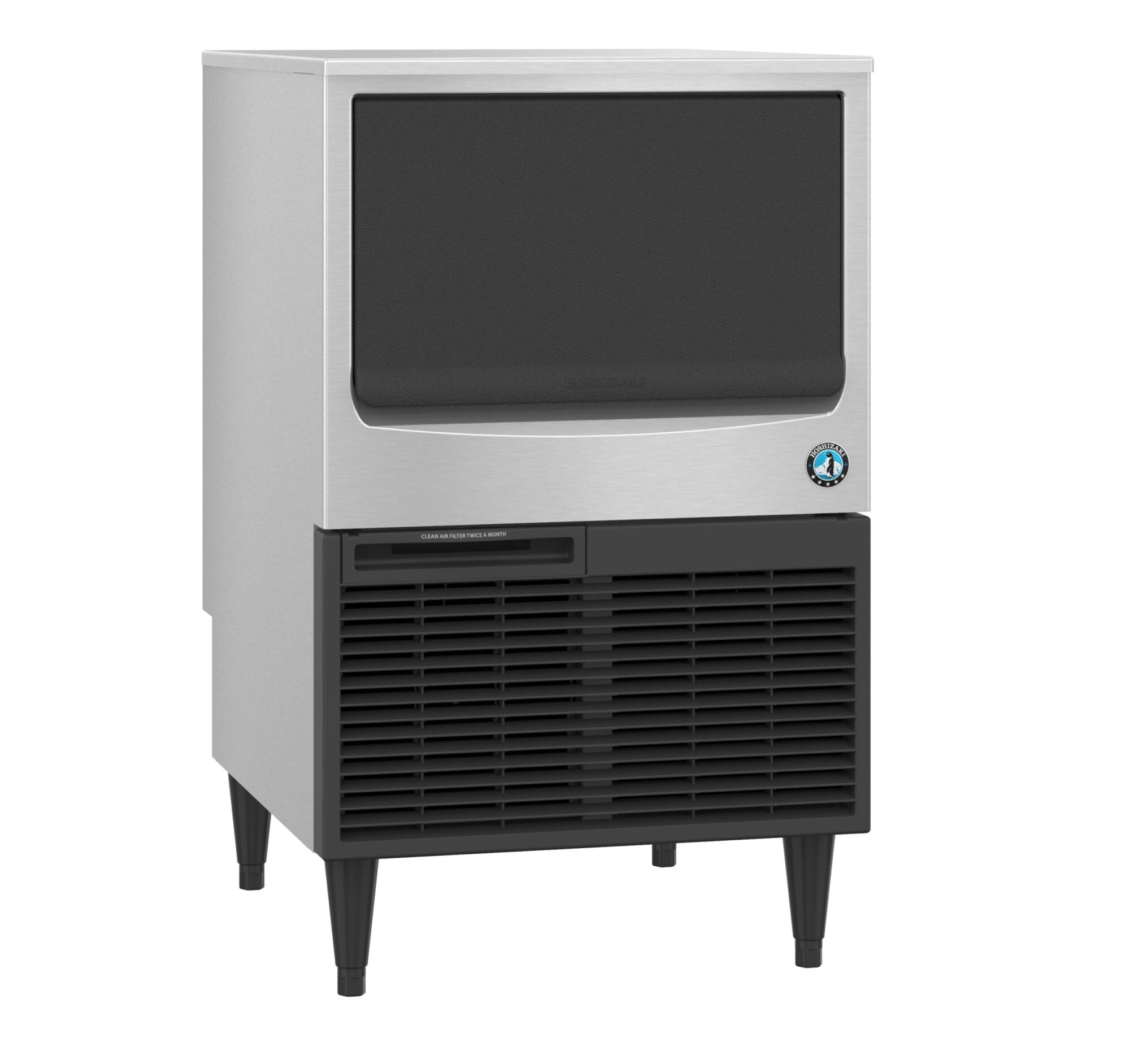

Hoshizaki KM-161BWJ Self-Contained Crescent Cuber with Built-In Storage Bin – Water-Cooled, 153 lbs/day
by Hoshizaki
$3,500.00
- Product Details
- Shipping
- Assembly
- Warranty
- Reviews
Product Details
Overview
The Hoshizaki KM-161BWJ is a high-performance, water-cooled, self-contained ice maker designed for undercounter or built-in applications. It produces up to 153 lbs of crescent-shaped ice per day and includes a 78 lb built-in storage bin, making it ideal for bars, restaurants, and hospitality environments where consistent ice supply and quiet operation are essential.
Key Features
- Ice Production: Up to 153 lbs per 24 hours at 70°F air / 50°F water.
- Built-In Storage: Holds up to 78 lbs of ice.
- Water-Cooled System: Efficient cooling for environments with high ambient temperatures.
- CycleSaver™ Technology: Reduces energy consumption without sacrificing performance.
- EverCheck™ Alert System: Audible alerts for easy maintenance.
- Front-In, Front-Out Airflow: Allows zero clearance at sides for flexible placement.
- Slide-In Door: Convenient access to ice bin.
- Removable Air Filter: Simplifies cleaning and maintenance.
- Factory-Installed Power Cord: 6.5 ft. with NEMA 5-15P plug.
- Refrigerant: R-134a, environmentally friendly.
Construction & Durability
- Stainless Steel Exterior: Corrosion-resistant and easy to clean.
- Stainless Steel Evaporator: Ensures consistent ice quality and long-lasting performance.
- ADA Compliant: Meets accessibility requirements.
- Built-In Installation Possible: Professional finish for commercial kitchens.
Mobility & Installation
- Dimensions: 23 3/4" W x 28" D x 39" H (including 6" legs).
- Clearances: 12" front, 0.6" top, no side clearance required.
-
Operating Limits:
- Ambient: 45°F – 100°F
- Water: 45°F – 90°F
- Water Pressure: 10 – 113 PSIG
- Electrical: 115V/60/1, 6.4A, 15A circuit.
-
Plumbing:
- Icemaker Water Inlet: 1/2" FPT
- Icemaker Drain: 3/4" FPT
- Condenser Water Inlet: 1/2" FPT
- Condenser Drain: 1/2" FPT
- Installation: Built-in or freestanding; optional drain pump available.
Certifications & Warranty
- Certifications: NSF, UL, AHRI, ENERGY STAR®.
-
Warranty:
- 3-Year Parts & Labor (entire machine)
- 5-Year Parts & Labor (evaporator)
- 5-Year Parts (compressor and water-cooled condenser coil)
Optional Accessories
- Drain Pump Kit: For installations without a gravity drain.
- Water Filtration System: Recommended for optimal performance and ice quality.
- Leg Kits: Adjustable for custom installation.
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial ice-making equipment, known for durability, energy efficiency, and innovative design. With features like CycleSaver™, EverCheck™, and H-GUARD Plus® antimicrobial protection, Hoshizaki ensures consistent ice production, reduced operating costs, and superior sanitation.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
