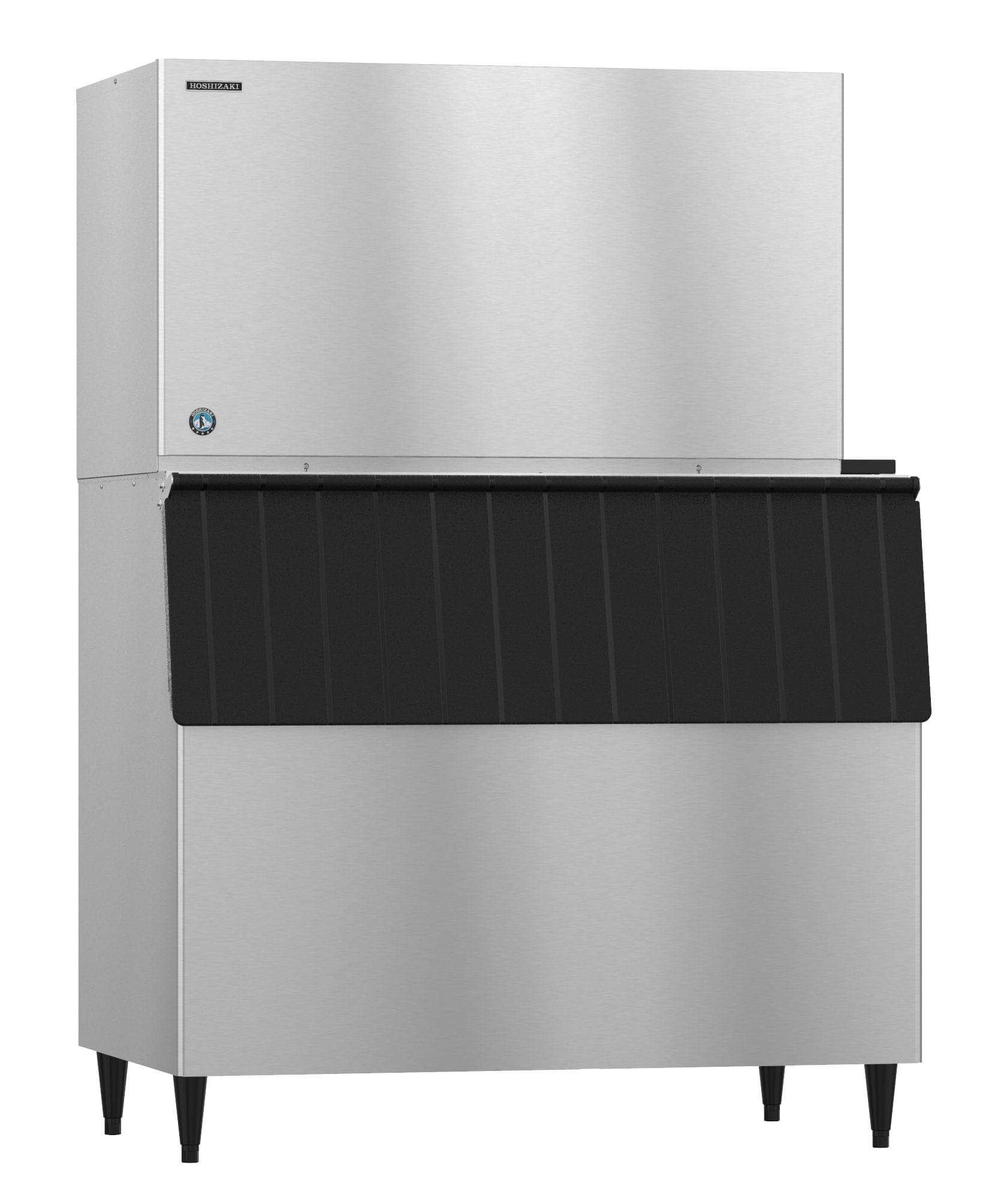

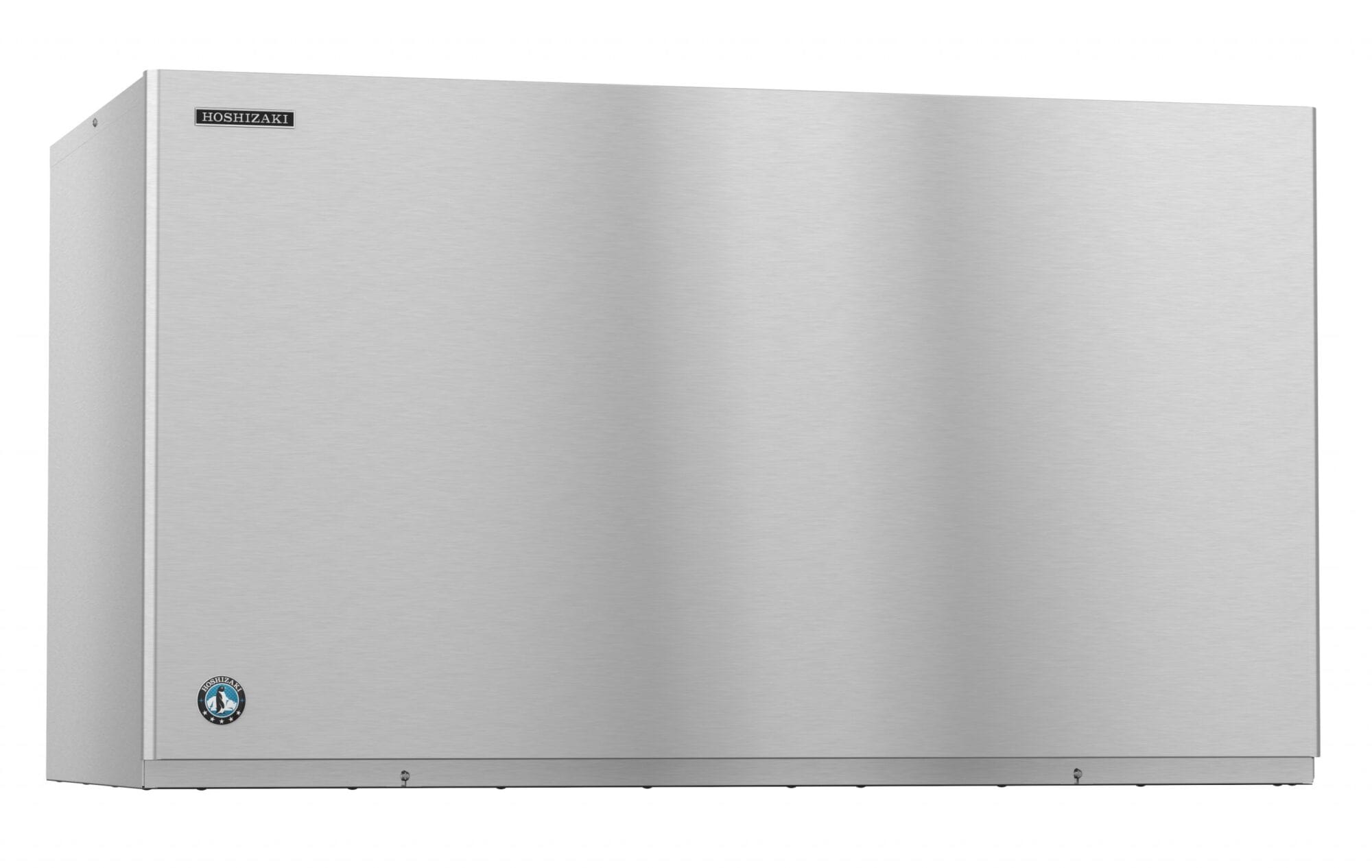

Hoshizaki KM-1301SWJ3 Modular Crescent Cuber – Water-Cooled, 3-Phase, Up to 1,360 lbs/day
Overview
The Hoshizaki KM-1301SWJ3 is a high-capacity, water-cooled modular ice maker engineered for demanding commercial environments. Producing up to 1,360 lbs. of crescent-shaped ice per day, this ENERGY STAR® qualified unit is ideal for hotels, restaurants, and large-scale foodservice operations. Its stackable design allows you to double production without increasing your footprint.
Key Features
- Ice Production: Up to 1,360 lbs. per 24 hours at 70°F air / 50°F water.
- Stackable Design: Combine two units for up to 2,720 lbs/day in the same floor space.
- Crescent Cube Design: Hard, clear cubes that melt slowly and maximize storage.
- CycleSaver™ Technology: Reduces energy consumption and extends equipment life.
- EverCheck™ Alert System: Self-diagnostic system with audible alerts for easy troubleshooting.
- Factory-Installed Ultrasonic Bin Control: Adjustable on-site for precise ice levels.
- CleanAssist™: Simple, one-hour cleaning process.
- Stainless Steel Double-Sided Evaporator: Corrosion-resistant for long-lasting performance.
- R-404A Refrigerant: Environmentally responsible and efficient.
Construction & Durability
- Heavy-Duty Stainless Steel Exterior: Built to withstand rigorous commercial use.
- Snap-Fit Components: Simplifies cleaning and maintenance.
- Fewer Moving Parts: Enhances reliability and reduces service costs.
Mobility & Installation
- Dimensions: 48" W x 27-3/8" D x 27-3/8" H (1219 mm x 695 mm x 695 mm).
- Clearances: 6" (15 cm) at rear, sides, and top for proper airflow and maintenance.
-
Operating Limits:
- Ambient: 45°F – 100°F (7°C – 38°C)
- Water: 45°F – 90°F (7°C – 32°C)
- Water Pressure: 10 – 113 PSIG
-
Electrical:
- 208-230V / 60Hz / 3 Phase, 6.1A, 20A circuit
-
Plumbing:
- Icemaker Water Inlet: 1/2" FPT
- Drain: 3/4" FPT
- Condenser Water Inlet: 1/2" FPT
- Condenser Drain: 3/8" FPT
- Installation: Compatible with Hoshizaki bins (B-800, B-900, B-1150SS, B-1300SS, B-1500SS, B-1650SS). Top kit may be required.
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®, AHRI Standard 810.
-
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on Evaporator
- 5-Year Parts on Compressor
Optional Accessories
- Ice Storage Bins: B-800, B-900, B-1150SS, B-1300SS, B-1500SS, B-1650SS.
- Water Filtration System: Recommended for optimal performance and ice quality.
- Top Kits: Required for certain bin configurations.
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial ice-making equipment, known for innovation, reliability, and energy efficiency. With features like CycleSaver™, EverCheck™, and H-GUARD Plus® antimicrobial protection, Hoshizaki ensures consistent ice production, reduced operating costs, and superior sanitation.
