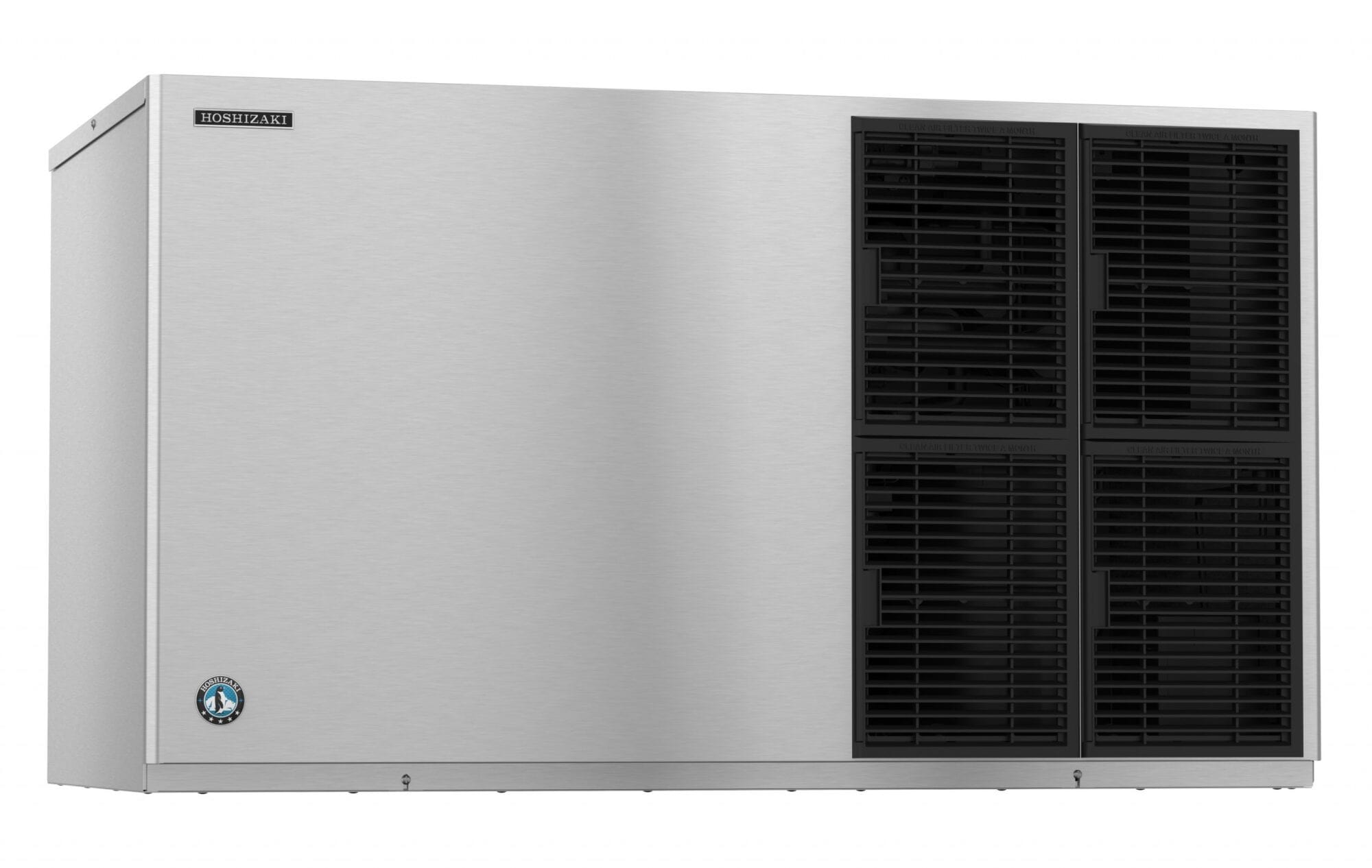

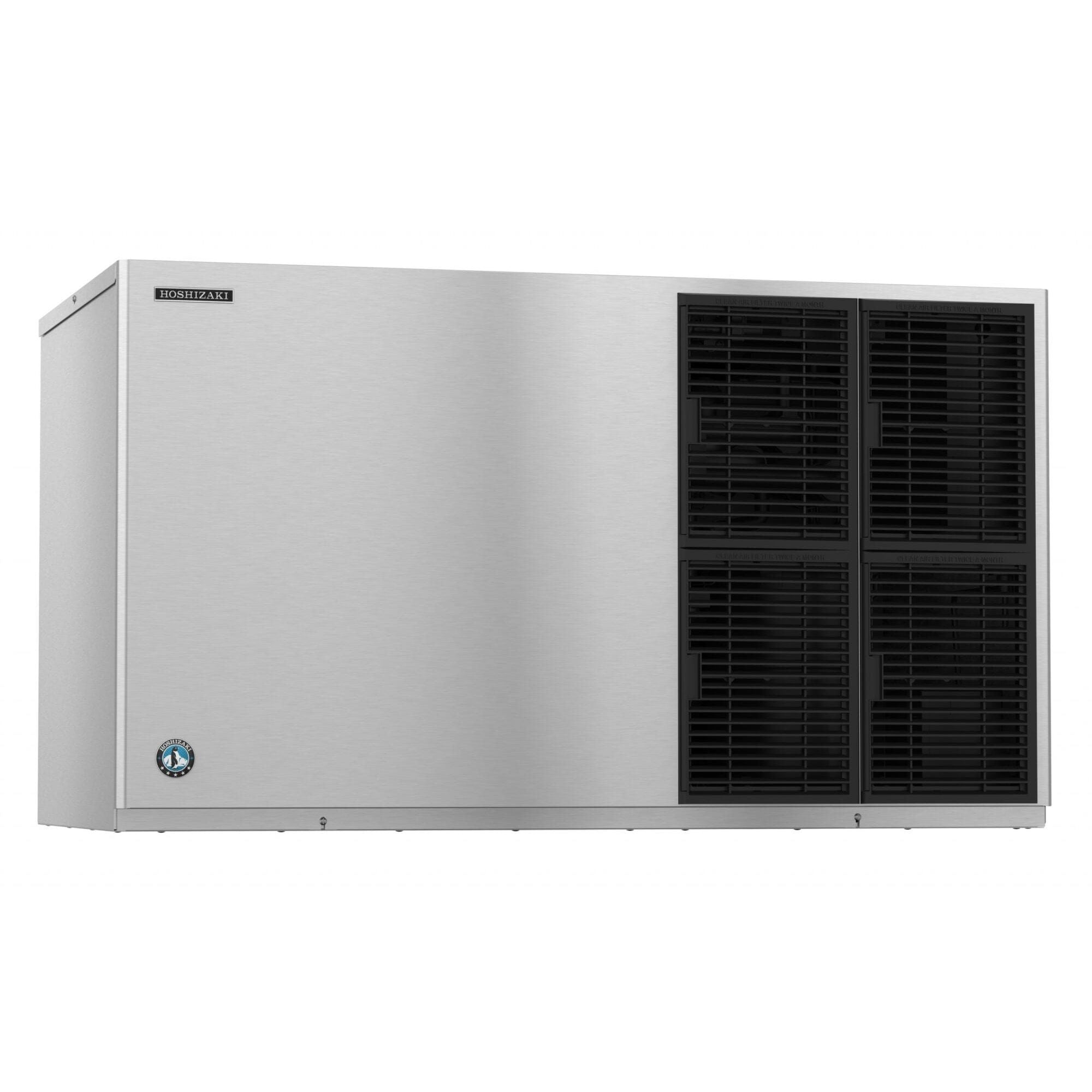

Hoshizaki KM-1301SAJ – Stackable Modular Crescent Cube Ice Machine (Air-Cooled)

Overview

The Hoshizaki KM-1301SAJ is a high-capacity, stackable modular ice maker engineered for demanding commercial environments. With the ability to produce up to 1,301 lbs. of crescent-shaped ice in 24 hours, this ENERGY STAR® qualified unit combines efficiency, durability, and advanced technology. Ideal for restaurants, bars, hotels, and healthcare facilities, the KM-1301SAJ ensures consistent ice production while minimizing energy and water consumption.

Key Features

• High Production Capacity: Up to 1,301 lbs. of crescent ice per day
• Stackable Design: Double your output to 2,602 lbs. in the same footprint
• CycleSaver™ Technology: Reduces cycles for energy efficiency and longer component life
• EverCheck™ Alert System: Audible alerts for easy maintenance and troubleshooting
• Factory-Installed Ultrasonic Bin Control: Adjustable on-site for precise ice levels
• CLEANASSIST™: Simplifies cleaning with a one-hour process
• Durable Stainless Steel Evaporator: Corrosion-resistant for long-term reliability
• ENERGY STAR® Certified: Meets strict energy-efficiency standards

Construction & Durability

• Exterior: Heavy-duty stainless steel for superior durability
• Evaporator: Double-sided stainless steel for consistent ice quality
• Panels: Removable for easy access during cleaning and service
• Snap-Fit Components: Simplifies maintenance and reduces downtime

Mobility & Installation

• Dimensions: 48" W x 27 3/8" D x 27 3/8" H
• Clearance: 6" at rear, sides, and top for proper airflow
• Plumbing Requirements:
  • Water Inlet: 1/2" FPT
  • Drain Outlet: 3/4" FPT
• Operating Conditions:
  • Ambient: 45°F – 100°F
  • Water: 45°F – 90°F
  • Water Pressure: 10 – 113 PSIG
• Electrical: 208-230V/60/1, 20A circuit

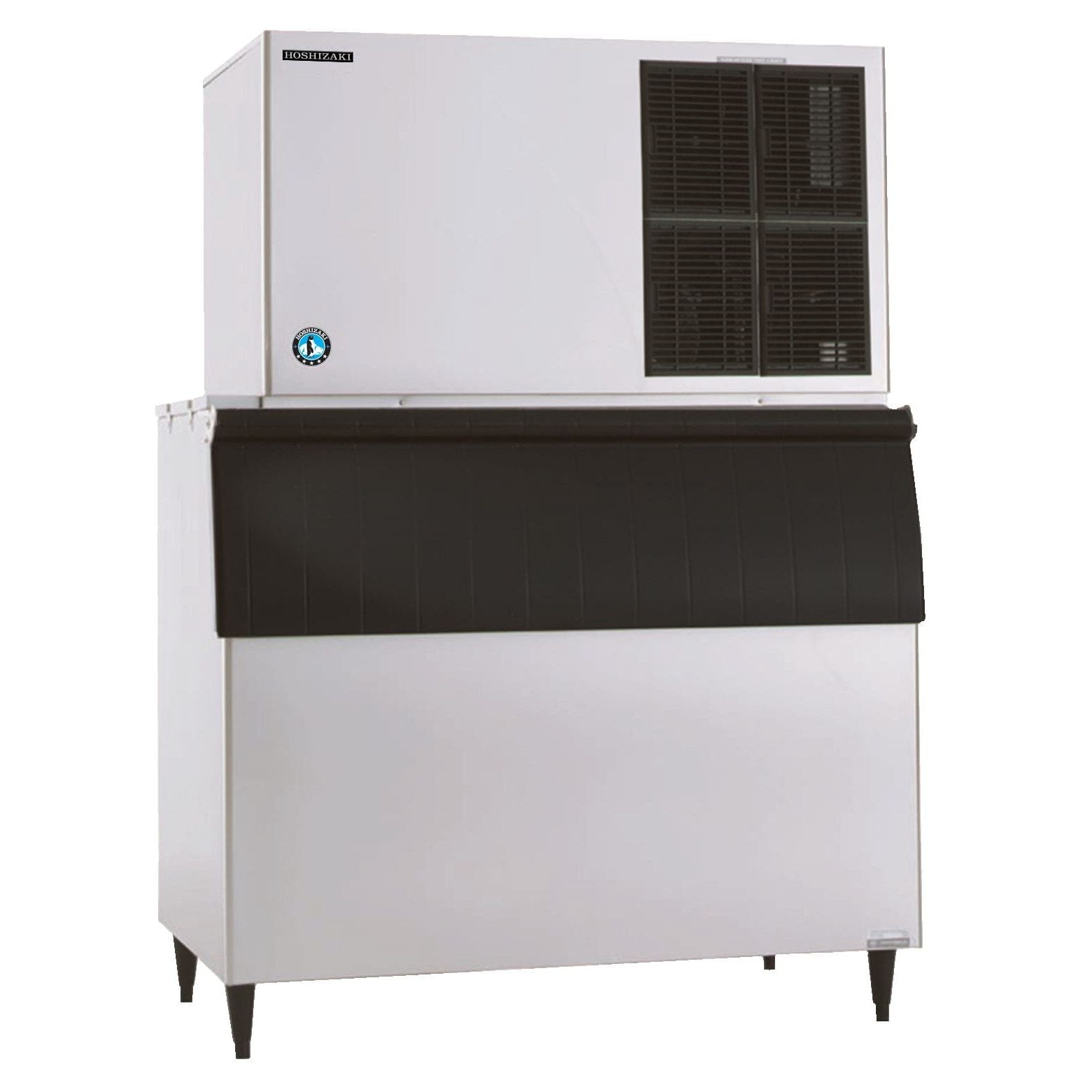

• Compatible Bins: B-800, B-900, B-1150SS, B-1300SS, B-1500SS, B-1650SS
• Stacking: Requires top kit for dual installation
• Remote Option: URC-14FZ condenser available for remote-cooled models

Certifications & Warranty

• Certifications: NSF, UL, ENERGY STAR®, AHRI Certified
• Warranty:
  • 3-Year Parts & Labor on entire machine
  • 5-Year Parts & Labor on Evaporator
  • 5-Year Parts on Compressor

Optional Accessories

• Ice Storage Bins: B-800, B-900, B-1150SS, B-1300SS, B-1500SS, B-1650SS
• Top Kits: Required for stacking applications
• Water Filtration System: Recommended for optimal performance and warranty protection
• Remote Condenser (for SRJZ models): URC-14FZ
• Line Sets: HS-5604 (25'), HS-5605 (35'), HS-5606 (55')

Why Choose Hoshizaki?

Hoshizaki is a global leader in commercial ice-making solutions, trusted for innovation, reliability, and energy efficiency. With advanced features like CycleSaver™, EverCheck™, and stainless steel construction, Hoshizaki machines deliver consistent performance, lower operating costs, and exceptional durability—making them the preferred choice for foodservice professionals worldwide.

Documentation

Spec Sheet

Instruction Manual

Parts Manual

Service Manual

Warranty Statement

Product Brochure
