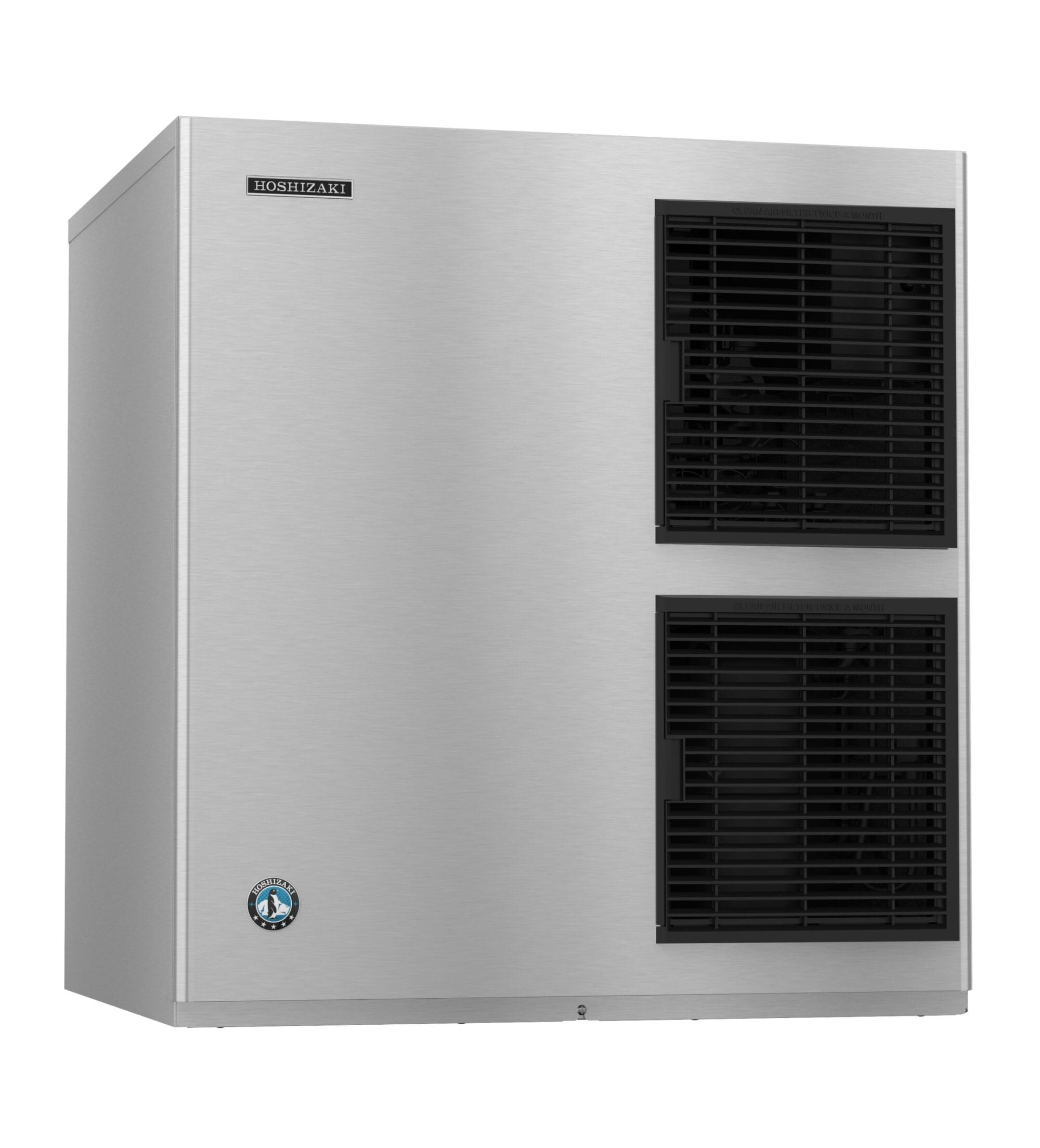

Hoshizaki KM-1100MAJ – Modular Crescent Cube Ice Machine
Overview
The Hoshizaki KM-1100MAJ is a high-capacity modular ice maker engineered for demanding commercial environments. With the ability to produce up to 1,156 lbs. of crescent-shaped ice per day, this unit is ideal for restaurants, bars, hotels, and institutions that require a consistent and reliable ice supply. Its CycleSaver™ design and EverCheck™ alert system ensure efficient operation and simplified maintenance, while the stainless steel exterior guarantees durability in the busiest kitchens.
Key Features
- Ice Production: Up to 1,156 lbs. of crescent ice per 24 hours
- Cube Type: Individual crescent cubes for superior cooling and reduced splash
- Energy Efficiency: ENERGY STAR® qualified for lower operating costs
- CycleSaver™ Design: Reduces energy consumption and extends component life
- EverCheck™ Alert System: Audible alerts for easy troubleshooting
- Front-Accessible Components: Simplifies cleaning and maintenance
- Stackable Design: Mount two units side-by-side for up to 2,312 lbs. of ice in just 60" of floor space
Construction & Durability
- Exterior: Heavy-duty stainless steel for long-lasting performance
- Evaporator: Stainless steel for superior corrosion resistance
- Panels: Removable for easy access to internal components
- Insulation: High-density foam for energy efficiency
Mobility & Installation
- Dimensions: 30" W x 27 3/8" D x 32 1/2" H
- Clearance: 12" at rear, sides, and top for proper airflow and service access
-
Plumbing Requirements:
- Water Inlet: 1/2" FPT
- Drain Outlet: 3/4" FPT
-
Operating Conditions:
- Ambient: 45°F – 100°F
- Water: 45°F – 90°F
- Water Pressure: 10 – 113 PSIG
- Electrical: 208-230V/60/1, 20A circuit
- Installation: Compatible with Hoshizaki B-series bins (B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650)
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®, AHRI Certified
-
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on Evaporator
- 5-Year Parts on Compressor and Air-Cooled Condenser Coil
Optional Accessories
- Ice Storage Bins: B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS, B-1650SS
- Remote Condenser (for MRJZ models): URC-14FZ
- Line Sets: HS-5604 (25'), HS-5605 (35'), HS-5606 (55')
- Water Filtration System: Recommended for optimal performance and warranty protection
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial ice-making solutions, known for innovation, reliability, and energy efficiency. With advanced features like the CycleSaver™ design, EverCheck™ alert system, and durable stainless steel construction, Hoshizaki machines deliver consistent performance and lower operating costs, making them the preferred choice for foodservice professionals worldwide.
