Overview

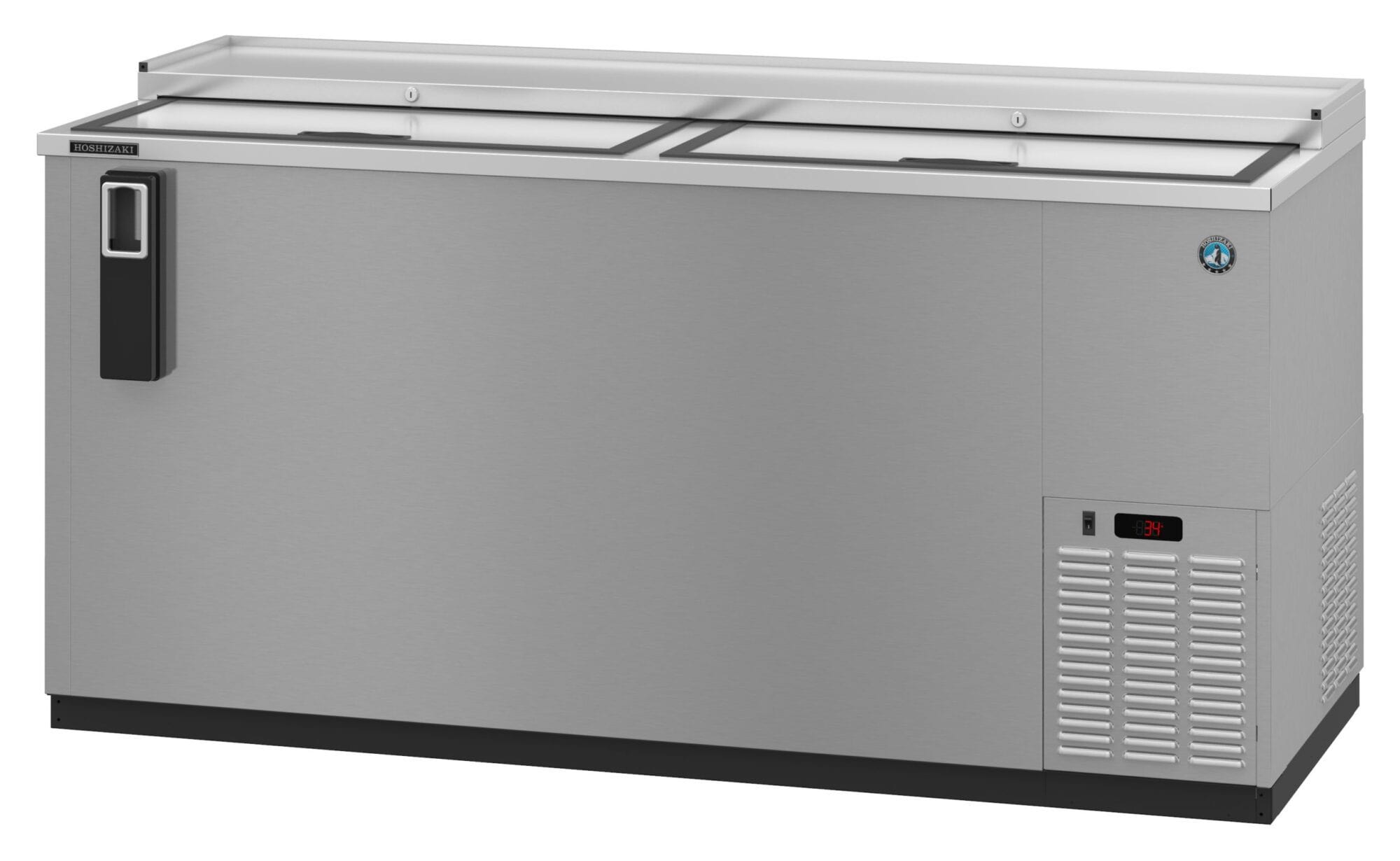

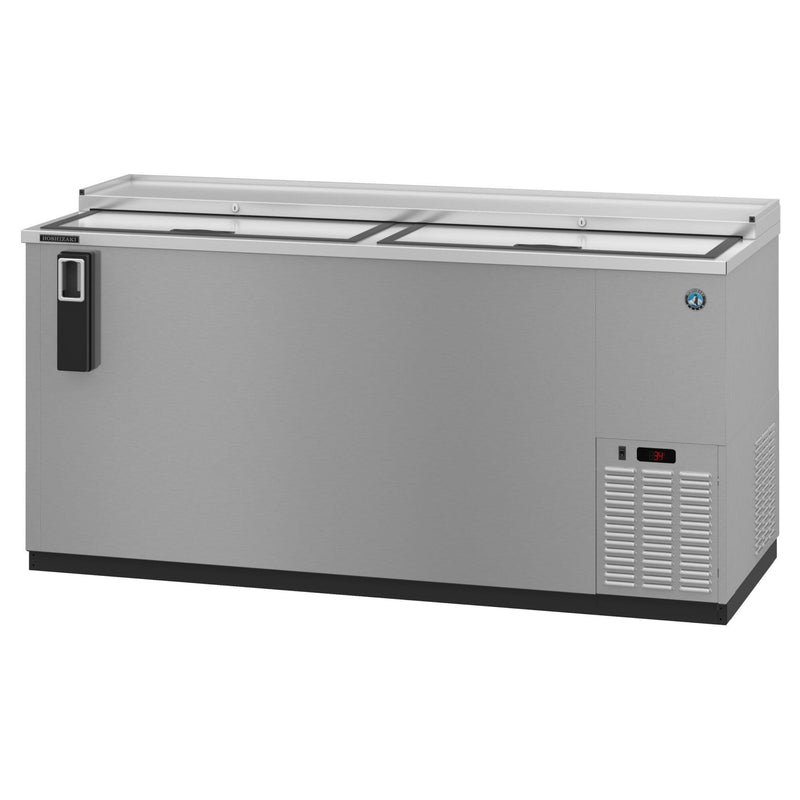

The Hoshizaki CC65-S is a premium commercial bottle cooler designed for high-volume beverage service. With a spacious 19.6 cu. ft. capacity and storage for up to 890 12oz bottles or 360 20oz bottles, this unit offers exceptional performance, durability, and energy efficiency. Engineered to maintain NSF-7 compliant temperatures in ambient conditions up to 100°F, the CC65-S is ideal for bars, restaurants, and hospitality venues.
Key Features
-
Two stainless steel slide-top lids with integrated locks
- Heavy-duty 18-gauge stainless steel top
-
Stainless steel interior with 4 adjustable gray epoxy-coated bin dividers
-
Digital LED temperature display (°F or °C)
- Bottle opener and cap catcher included
-
Interior floor drain for easy cleaning
-
Front-breathing, side-mounted refrigeration for easy access and service
-
Temperature range: 32°F to 38°F
- Environmentally friendly R290 refrigerant
-
NSF-7 compliant for use in up to 100°F ambient conditions
Construction & Durability
-
Exterior: Black vinyl-coated front, sides, and rear (optional stainless steel exterior available)
-
Interior: Stainless steel
-
Insulation: 1.5" CFC-free foamed-in-place polyurethane
-
Cabinet Dimensions: 65.5" W x 26.5" D x 33.38" H
-
Shipping Dimensions: 68.5" W x 31.25" D x 39" H
-
Shipping Weight: 275 lbs
Mobility & Installation
-
Electrical: 115V / 60Hz / 1Ph, 2.0 Amps
-
Plug Type: NEMA 5-15P, 8 ft. cord
-
Installation Notes:
- Indoor use only
- Maintain 2" clearance from walls
- Avoid placement near heat sources
- Maximum ambient temperature: 90°F
- Level surface required for proper drainage
Certifications & Warranty
-
Certifications: NSF, UL, ETL Sanitation Listed
-
Warranty:
- 3-Year Parts & Labor
- 5-Year Compressor
Optional Accessories
-
Stainless steel exterior (made to order)
-
Caster & rail kits:
- HS-5408 (2 rails, 4 casters)
- HS-5409 (3 rails, 6 casters)
Why Choose Hoshizaki?
Hoshizaki is a globally trusted name in commercial refrigeration, known for its innovation, reliability, and commitment to sustainability. The CC65-S exemplifies this legacy with its robust construction, energy-efficient operation, and thoughtful design. Whether you're outfitting a busy bar or beverage station, Hoshizaki ensures your products stay cold and your service stays smooth.
