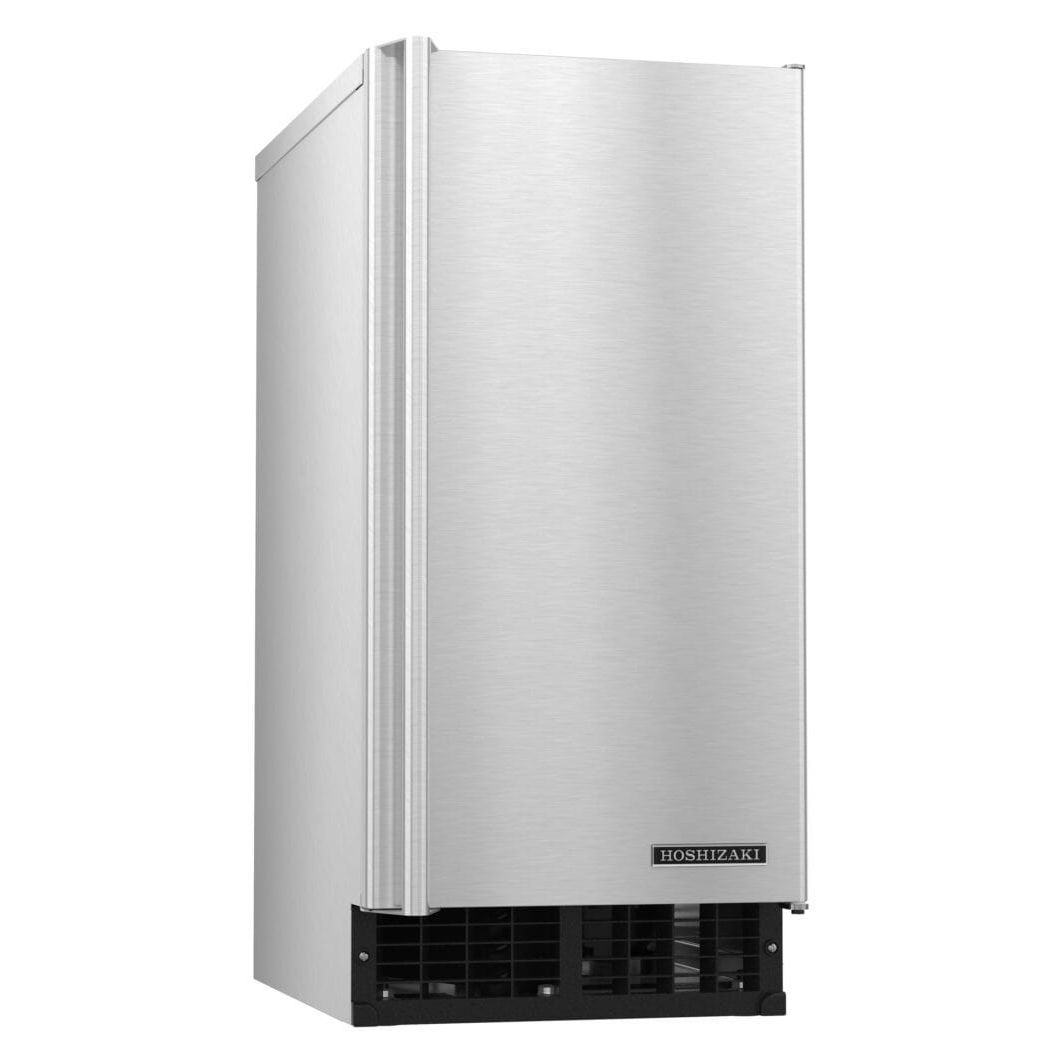

Hoshizaki AM-50BAK Undercounter Ice Maker – Air-Cooled, Built-In Bin

by Hoshizaki
SKU AM-50BAK
$3,000.00 - $3,000.00
$3,000.00
$3,000.00 - $3,000.00
$3,000.00
Availability:
In stock
Ships out in ~ 7-10 Business Days
5-Star Multi-Channel Support
Questions? Talk to an Expert.
854-220-0367 Message Us
Secure Checkout SSL Encrypted & Safe
Simple Returns View Return Policy Authorized Dealer Why Buy From Us
Highlights
Hoshizaki AM-50BAK Undercounter Ice Maker

Overview

This compact, high-performance undercounter ice maker is designed for residential and commercial use. With a sleek stainless steel exterior and efficient air-cooled system, this self-contained cuber produces up to 54 lbs. of top hat-shaped ice per day and stores up to 27 lbs. in its built-in bin. Built for durability and ease of use, it is ideal for kitchens, bars, breakrooms, and outdoor entertaining spaces.

Key Features
  • Ice Production: Up to 54 lbs. per 24 hours
  • Storage Capacity: Built-in bin holds up to 27 lbs.
  • Cube Type: Top hat-shaped, hard, clear, slow-melting cubes
  • Compact Dimensions: 14-7/8" W × 22-5/8" D × 33-1/2" H
  • Front Airflow: Front in/out ventilation — no side clearance required
  • Outdoor Rated: UL approved for outdoor use
  • Eco-Friendly Refrigerant: R-290
  • Power Switch: Accessible without panel removal
  • Plug-and-Play: 6 ft. cord with NEMA 5-15 plug
  • Full-Length Stainless Steel Door Handle
  • Fewer Moving Parts: Increased reliability and longer operational life
  • Easily Disassembled Water Circuit: Simplified cleaning and maintenance
  • Stainless Steel Exterior: Built to withstand indoor and outdoor environments
  • IPX4 Water Resistance Rating
  • Climatic Class 5: Factory-tested for ambient temperatures up to 104°F
  • Made in Georgia, USA
Compatibility & Accessories
  • HS-5061 Drain Pump Assembly
  • HS-0182 Side Trim Kit
  • H9320-51 Water Filter
  • Overlay Panel Kit for custom cabinetry (requires professional fabrication)
Specifications
Model AM-50BAK
Ice Production Up to 54 lbs. / 24 hours
Storage Capacity 27 lbs.
Cube Type Top hat, hard, clear, slow-melting
Dimensions (W × D × H) 14-7/8" × 22-5/8" × 33-1/2"
Min. Front Clearance 15"
Voltage 115V / 60Hz / 1 Phase
Plug Type NEMA 5-15 (6 ft. cord included)
Refrigerant R-290
Water Pressure 10–113 PSIG
Water Temperature 45–95°F
Water Resistance IPX4
Climatic Class Class 5 (up to 104°F)
Certifications UL Listed · NSF Certified · Energy Star Partner
Warranty

This product is covered by a 2-year parts & labor warranty on the entire machine, and a 1-year parts & labor warranty on the optional drain pump (HS-5061). See the full warranty statement for complete terms and conditions: Warranty Statement (PDF)
