Overview

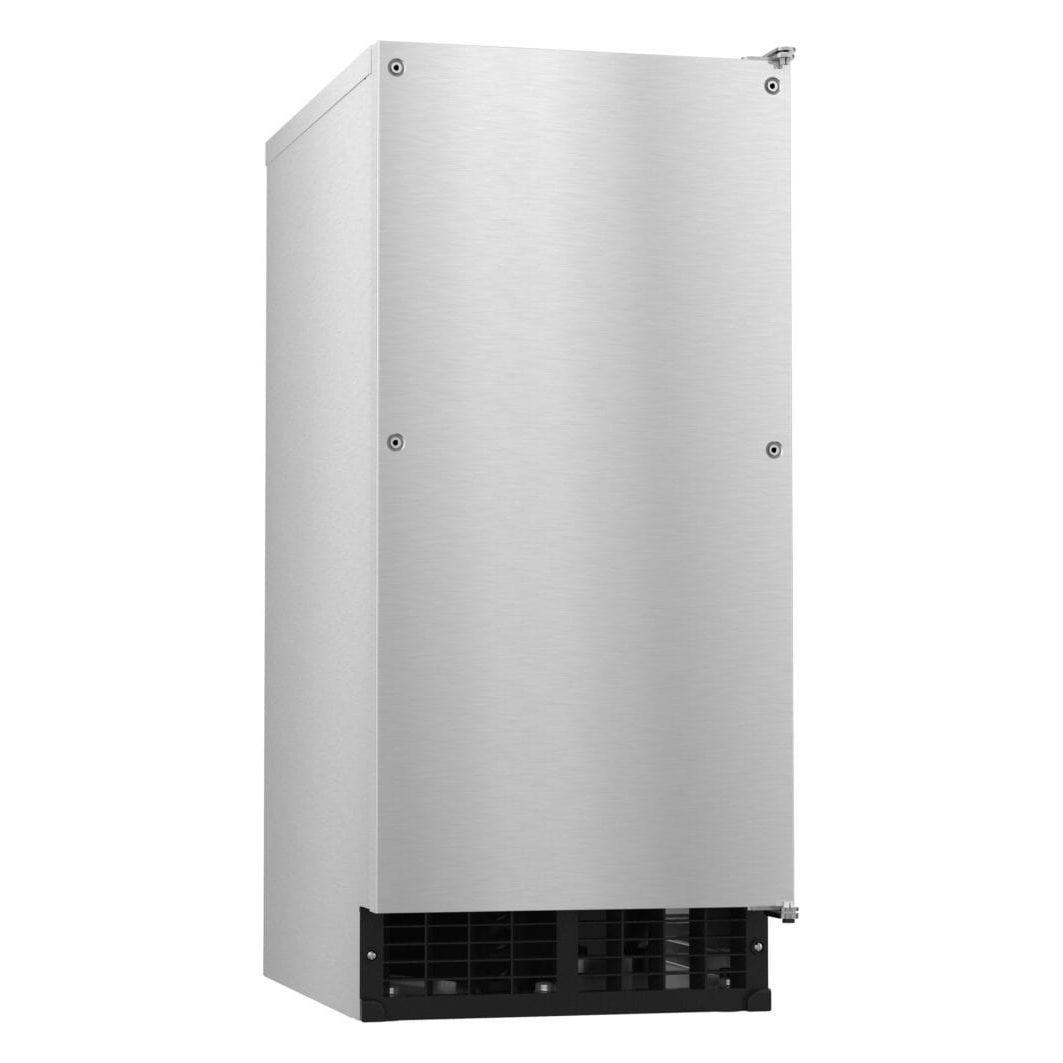

The Hoshizaki AM-50BAK-DS is a compact, undercounter ice maker designed for residential and commercial use. With a sleek stainless steel exterior and the ability to produce up to 55 lbs of top-hat style ice per day, this unit is perfect for bars, kitchens, break rooms, and outdoor entertainment spaces. Its built-in storage bin holds up to 27 lbs of ice, and the front-breathing design allows for flexible installation.
Key Features
- Produces up to 55 lbs of top-hat ice per 24 hours
- 27 lbs of built-in storage capacity
-
Undercounter design with front in/out airflow
- UL approved for outdoor use
-

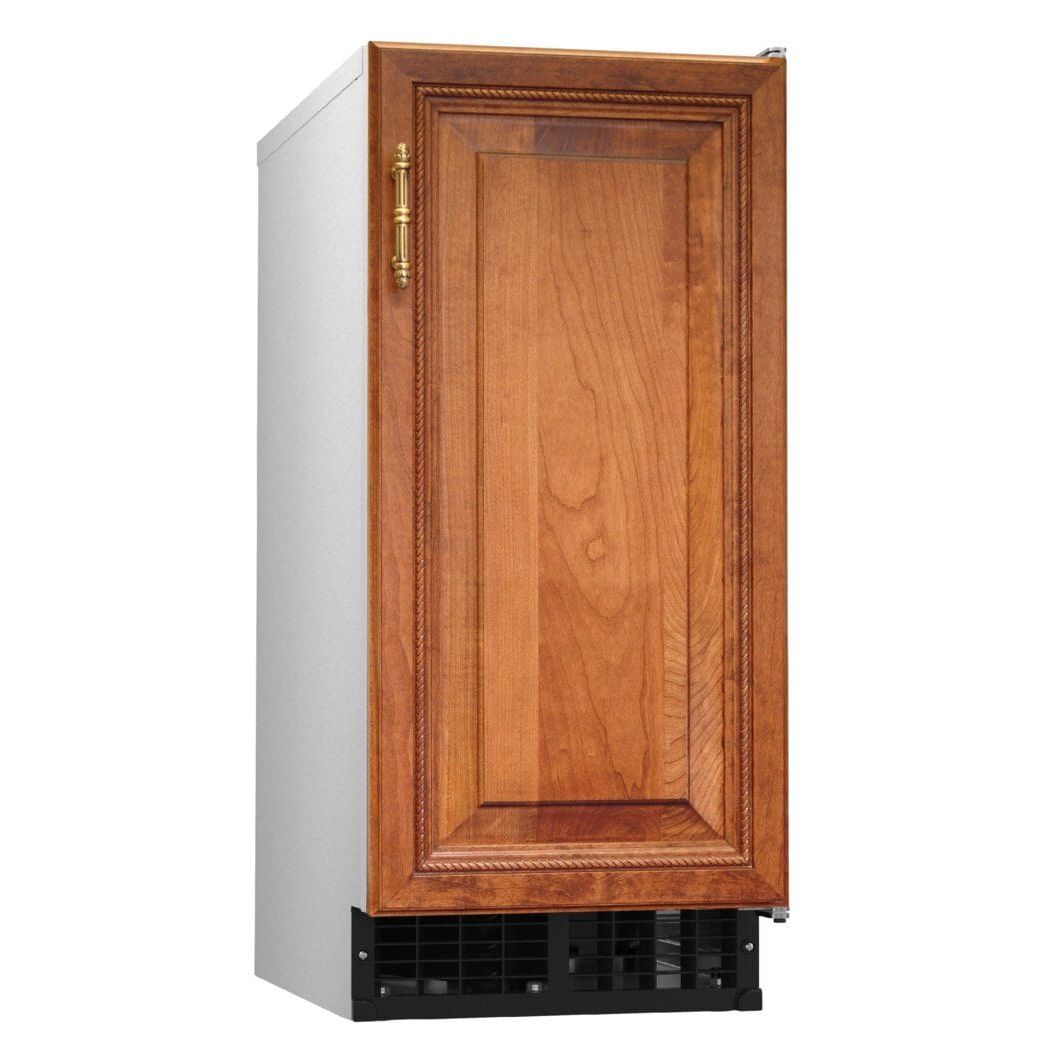

Custom panel-ready door for seamless integration (DS model)
-
Power switch accessible without panel removal
-
Fewer moving parts for longer life and easier maintenance
- Environmentally friendly R290 refrigerant
-
6 ft. power cord with NEMA 5-15 plug included
Construction & Durability
-
Exterior Dimensions: 14 7/8″ W x 22 5/8″ D x 33 1/2″ H (not including handle)
-
Cabinet Finish: Stainless steel
-
Ice Shape: Top-hat cube (1" H x 7/8" D)
-
Net Weight: 103 lbs
-
Shipping Weight: 112 lbs
-
Refrigerant: R-290 (2.3 oz charge)
-
Durability: Designed for indoor or outdoor use
Mobility & Installation
-
Front-breathing design allows built-in or freestanding installation
-
Drain pump option available (HS-5061)
-
Side trim kit available (HS-0182)
-
Water Supply Line: 1/4″ copper tubing or equivalent
-
Drain Line: 1/2″ nominal ID hard pipe or equivalent
-
Electrical: 115V/60Hz/1 phase, 2.0A, 15A circuit
Certifications & Warranty
- UL Certified for outdoor use
- NSF Certified
- Made in Georgia, USA
-
Warranty:
- 2-Year Parts & Labor on entire machine
- 1-Year Parts & Labor on optional drain pump (HS-5061)
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
HS-5061 – Drain Pump Assembly
-
HS-0182 – Side Trim Kit
-
H9320-51 – Water Filter System
-
Custom Cabinetry Kit – For DS model overlay panel installation
Why Choose Hoshizaki?
Hoshizaki is a global leader in ice machine innovation, known for reliability, energy efficiency, and exceptional craftsmanship. The AM-50BAK-DS is a testament to their commitment to quality, offering quiet operation, sleek design, and dependable performance in a compact footprint. Whether for home or hospitality, Hoshizaki delivers ice that’s Beyond Strong.
