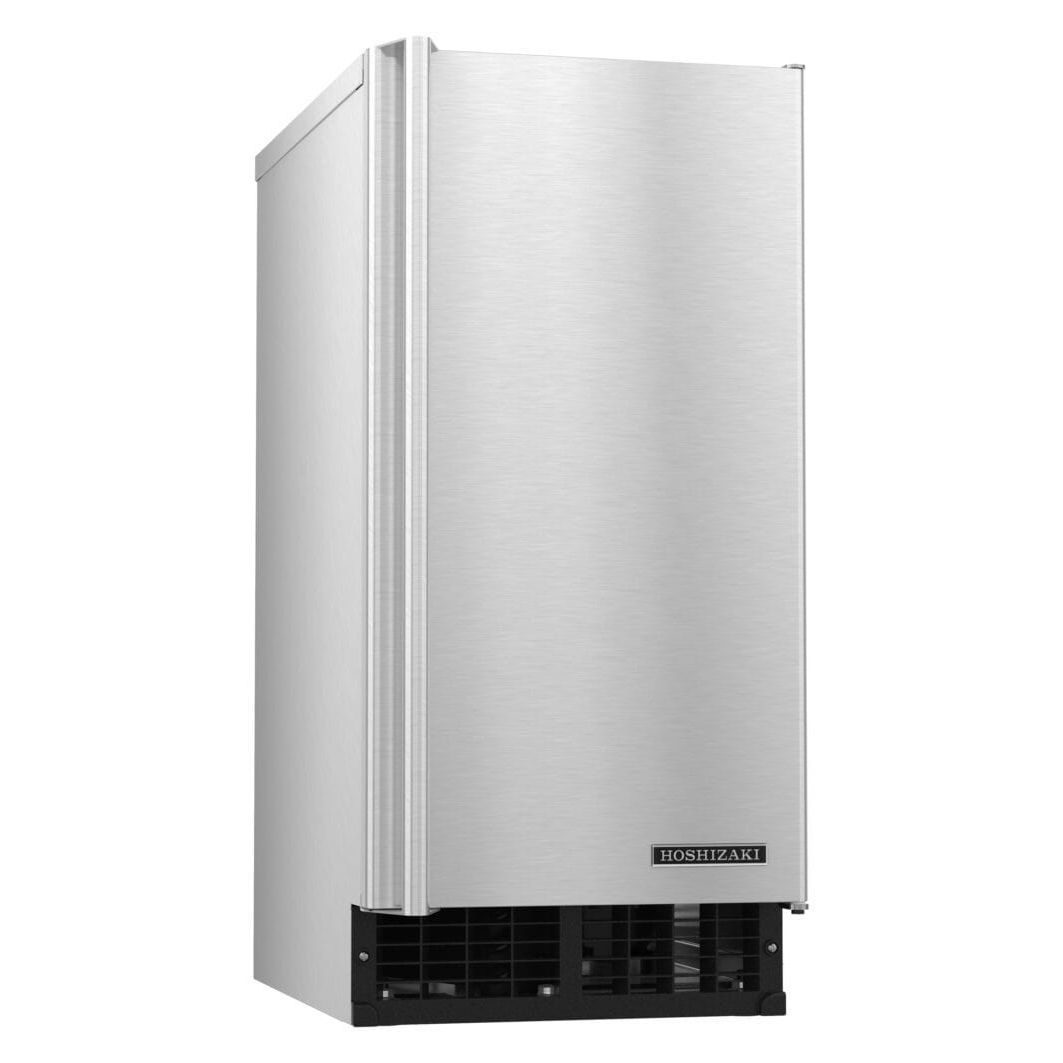

Hoshizaki AM-50BAK-AD Undercounter Ice Maker – ADA Compliant, Air-Cooled
Overview
The Hoshizaki AM-50BAK-AD is a compact, ADA-compliant undercounter ice maker designed for residential and commercial use. With a sleek stainless steel exterior and efficient air-cooled system, this self-contained cuber produces up to 54 lbs. of top-hat shaped ice per day and stores up to 27 lbs. Built for durability and ease of use, it’s ideal for kitchens, bars, breakrooms, and outdoor entertaining spaces.
Key Features
- Produces up to 54 lbs. of ice per 24 hours
- Built-in storage bin holds up to 27 lbs. of ice
- Top-hat ice shape – hard, clear, and slow-melting
- ADA compliant – less than 32" tall
- Front in/out airflow – perfect for built-in installations
- 6 ft. cord with NEMA 5-15 plug for easy setup
- UL approved for outdoor use
- Environmentally friendly R-290 refrigerant
Construction & Durability
- Full-length stainless steel door handle
- Fewer moving parts for longer operational life
- Easily disassembled water circuit for simplified cleaning
- Durable stainless steel exterior built to withstand indoor and outdoor environments
- IPX4 rating for water resistance
Mobility & Installation
- Compact footprint: 14-7/8" W x 22-5/8" D x 31-1/2" H

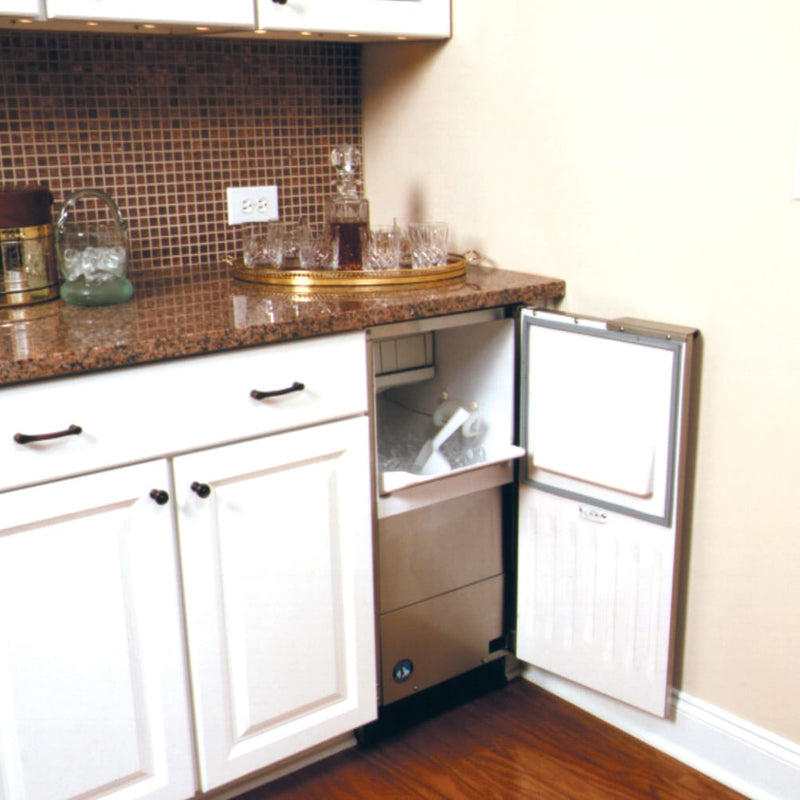

- Undercounter design fits seamlessly into cabinetry
- Front ventilation allows flush installation
- Drain pump option available (HS-5061)
- Side trim kit available (HS-0182)
- Water filter accessory (H9320-51)
- Easy door reversal and overlay panel customization for cabinetry integration
Certifications & Warranty
- UL Listed for safety and outdoor use
- NSF Certified
- Energy Star Partner
- Made in Georgia, USA
-
Warranty:
- 2-Year Parts & Labor on entire machine
- 1-Year Parts & Labor on optional drain pump (HS-5061)
Optional Accessories
- HS-5061 Drain Pump Assembly
- HS-0182 Side Trim Kit
- H9320-51 Water Filter
- Overlay Panel Kit for custom cabinetry (requires professional fabrication)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration and ice-making equipment, known for its precision engineering, energy efficiency, and exceptional reliability. The AM-50BAK-AD exemplifies Hoshizaki’s commitment to quality, offering a compact, stylish, and powerful solution for any space where premium ice is a must.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
