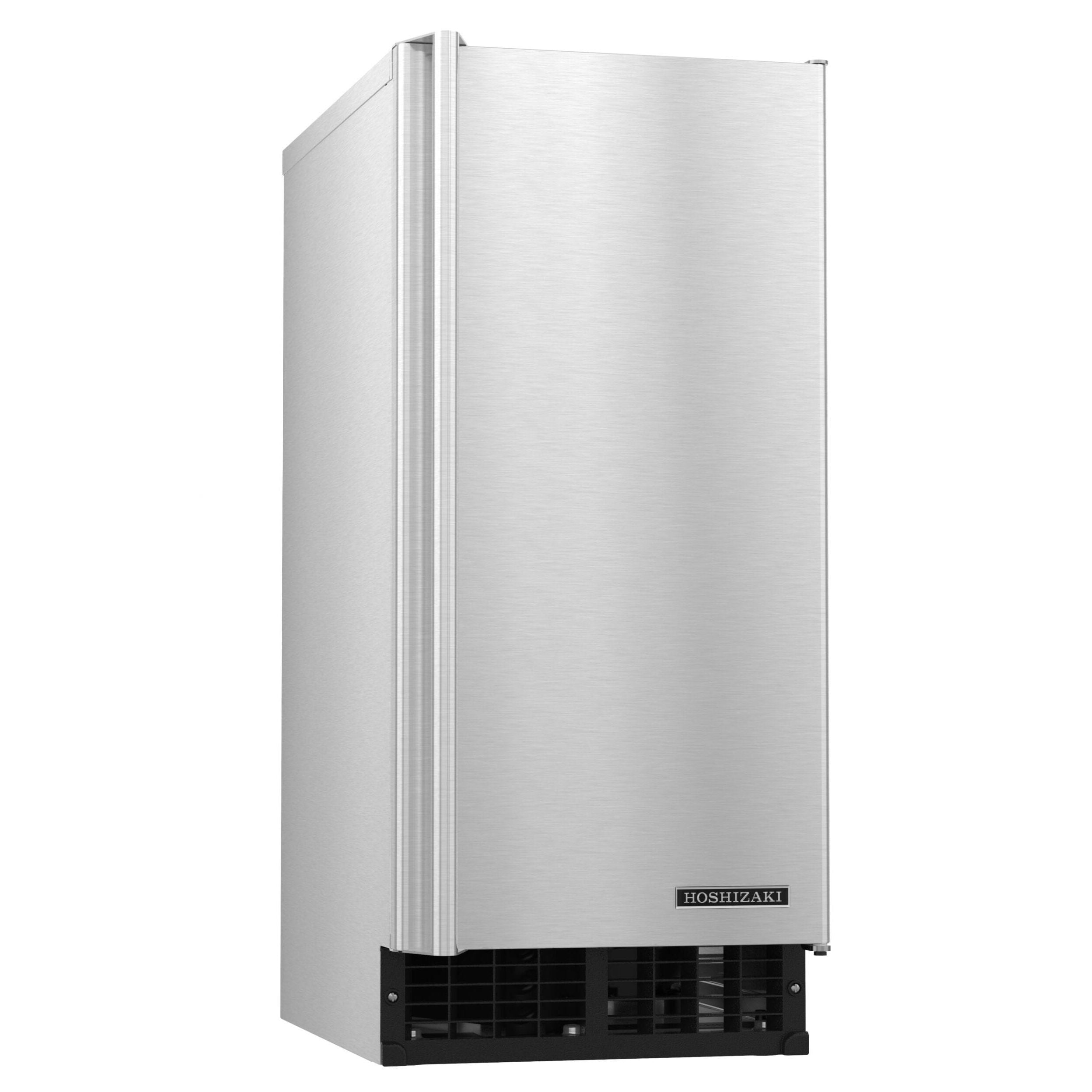

Hoshizaki AM-50BAJ Undercounter Ice Maker with Built-In Bin – Air-Cooled, Top Hat Cube
Overview
The Hoshizaki AM-50BAJ is a compact, high-performance undercounter ice maker designed for both residential and commercial use. With a sleek stainless steel exterior and front-breathing design, this unit produces up to 55 lbs. of crystal-clear top hat ice cubes per day and stores up to 22 lbs. in its built-in bin. Ideal for bars, kitchens, hospitality suites, and outdoor applications, the AM-50BAJ combines efficiency, durability, and style in a space-saving footprint.
Key Features
- Ice Production: Up to 55 lbs. of top hat ice per 24 hours
- Storage Capacity: 22 lbs. built-in bin
- Cube Type: Individual, hard, clear top hat-shaped cubes (1" H x 7/8" D)
- Compact Design: 14-7/8" W x 22-5/8" D x 33-1/2" H
- Front Airflow: No side clearance required
- Outdoor Rated: UL approved for outdoor use
- Power Switch: Accessible without removing the panel
- Plug-and-Play: Includes 6 ft. cord with NEMA 5-15 plug
- Eco-Friendly Refrigerant: R-134a
Construction & Durability
- Fewer moving parts for increased reliability and longer lifespan
- Easily disassembled water circuit for simplified cleaning and maintenance
- Durable stainless steel exterior with corrosion-resistant components
- Magnet catch door system for secure closure
- Factory-tested for ambient temperatures from 45°F to 100°F
Mobility & Installation
- Undercounter design fits flush with cabinetry
- No side or top clearance required
- Minimum front clearance: 15"
-
Plumbing Requirements:
- Water Supply Line: 1/4" nominal ID copper or equivalent
- Drain Line: 1/2" nominal ID hard pipe or equivalent
-
Electrical Requirements:
- Voltage: 115V/60Hz/1 Phase
- Amperage: 3.8A
- Plug Type: NEMA 5-15
- Weight: Net 88 lbs. / Ship 113 lbs.
Certifications & Warranty
- UL Listed (Indoor & Outdoor Use)
- NSF Certified
- Energy Star Partner
- Made in Georgia, USA
-
Warranty:
- 2-Year Parts & Labor on entire machine
- 1-Year Parts & Labor on optional drain pump (HS-5061)
Optional Accessories
- HS-5061 Drain Pump Assembly
- HS-0229 Door Reversal Kit
- H9320-51 Water Filter
- Side Trim Kit
- Overlay Panel Kit (for DS models)
Why Choose Hoshizaki?
Hoshizaki is a global leader in ice-making and refrigeration equipment, known for its precision engineering, energy efficiency, and exceptional reliability. The AM-50BAJ is a testament to Hoshizaki’s commitment to quality, offering a compact, high-performance solution that doesn’t compromise on durability or design. Whether for home entertaining or commercial use, Hoshizaki delivers ice-making excellence—Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Service Manual
Warranty Statement
Product Brochure
