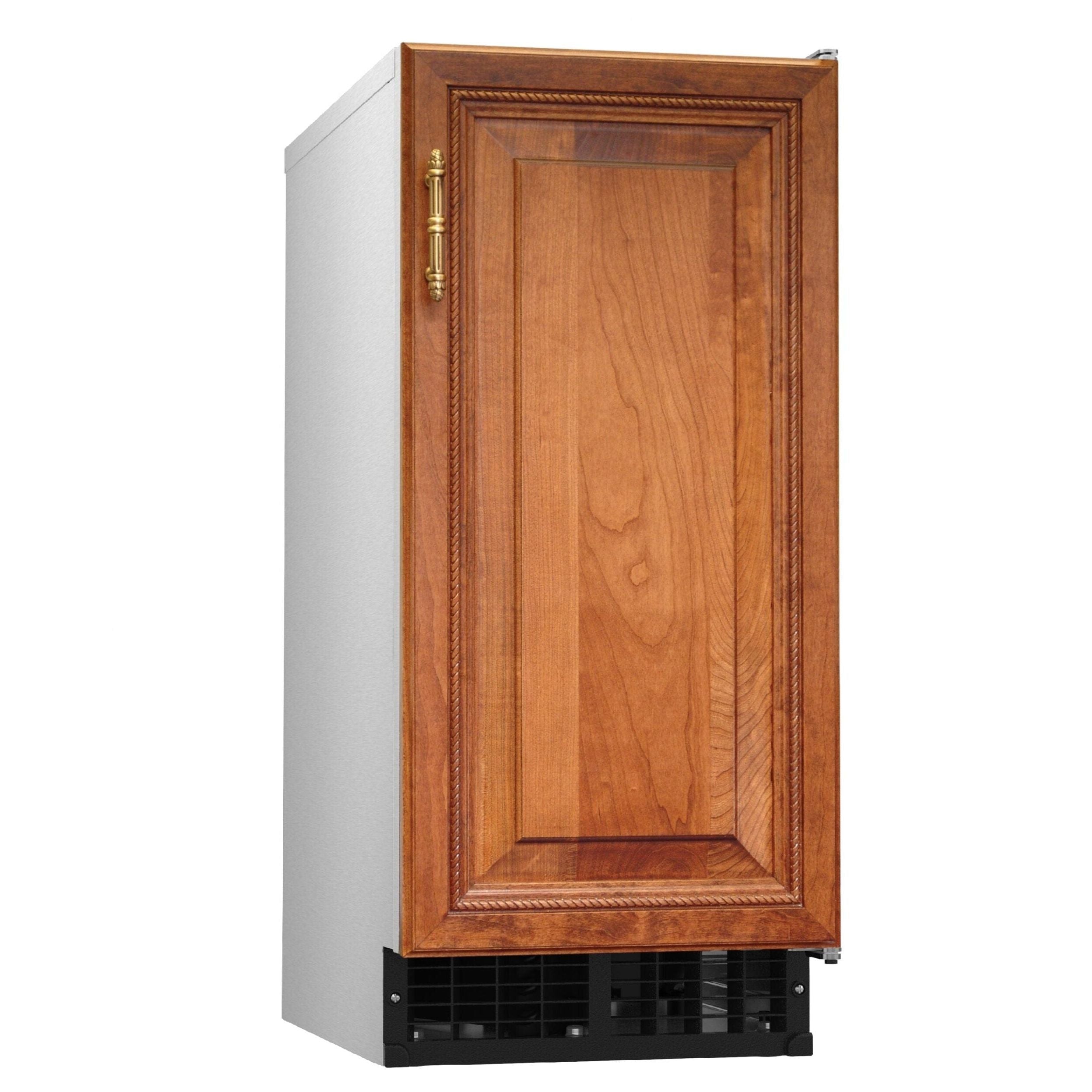

Hoshizaki AM-50BAJ-DS Undercounter Ice Maker – Air-Cooled, Custom Cabinetry Ready
Overview
The Hoshizaki AM-50BAJ-DS is a compact, self-contained ice maker designed for residential and commercial use. With a sleek undercounter profile and customizable door panel system, this unit produces up to 55 lbs. of top-hat shaped ice daily and stores up to 22 lbs. Its durable construction, quiet operation, and front airflow make it ideal for built-in applications in kitchens, bars, and outdoor entertainment areas.
Key Features
- Ice Production: Up to 55 lbs. per 24 hours
- Storage Capacity: Built-in bin holds up to 22 lbs.
- Top-Hat Ice Shape: Hard, clear, slow-melting cubes
- Compact Dimensions: 14-7/8" W x 22-5/8" D x 33-1/2" H
- Custom Cabinetry Ready: DS model allows overlay panel installation
- Front Airflow: No side clearance required
- UL Approved for Outdoor Use
- Power Switch Accessible Without Panel Removal
- 6 ft. Cord with NEMA 5-15 Plug
- Environmentally Friendly R-134a Refrigerant
Construction & Durability
- Fewer moving parts for longer operational life
- Easily disassembled water circuit for simplified cleaning
- Stainless steel components and corrosion-resistant design
- Factory-tested for ambient temperatures up to 100°F
- Magnet catch door system for secure closure
- IPX4 water resistance rating
Mobility & Installation
- Undercounter design fits flush with cabinetry
- Overlay panel kit available for custom door finish (requires HS-0229 kit)
- Drain pump option available (HS-5061)
- Side trim kit available
-
Installation Requirements:
- Water Pressure: 7–113 PSIG
- Water Temp: 45–95°F
- Voltage: 115V/60/1
- Clearance: 15" front, space at rear for plumbing
Certifications & Warranty
- UL Listed
- NSF Certified
- Energy Star Partner
- Made in Georgia, USA
-
Warranty:
- 2-Year Parts & Labor on entire machine
- 1-Year Parts & Labor on optional drain pump (HS-5061)
Optional Accessories
- HS-5061 Drain Pump Assembly
- HS-0229 Door Reversal Kit (for DS models)
- HS-0182 Side Trim Kit
- H9320-51 Water Filter
- Overlay Panel Kit (custom cabinetry integration)
Why Choose Hoshizaki?
Hoshizaki is a global leader in ice-making and refrigeration equipment, known for its precision engineering, energy efficiency, and exceptional reliability. The AM-50BAJ-DS combines style, performance, and flexibility—making it the perfect choice for discerning homeowners and professionals alike.
