Overview

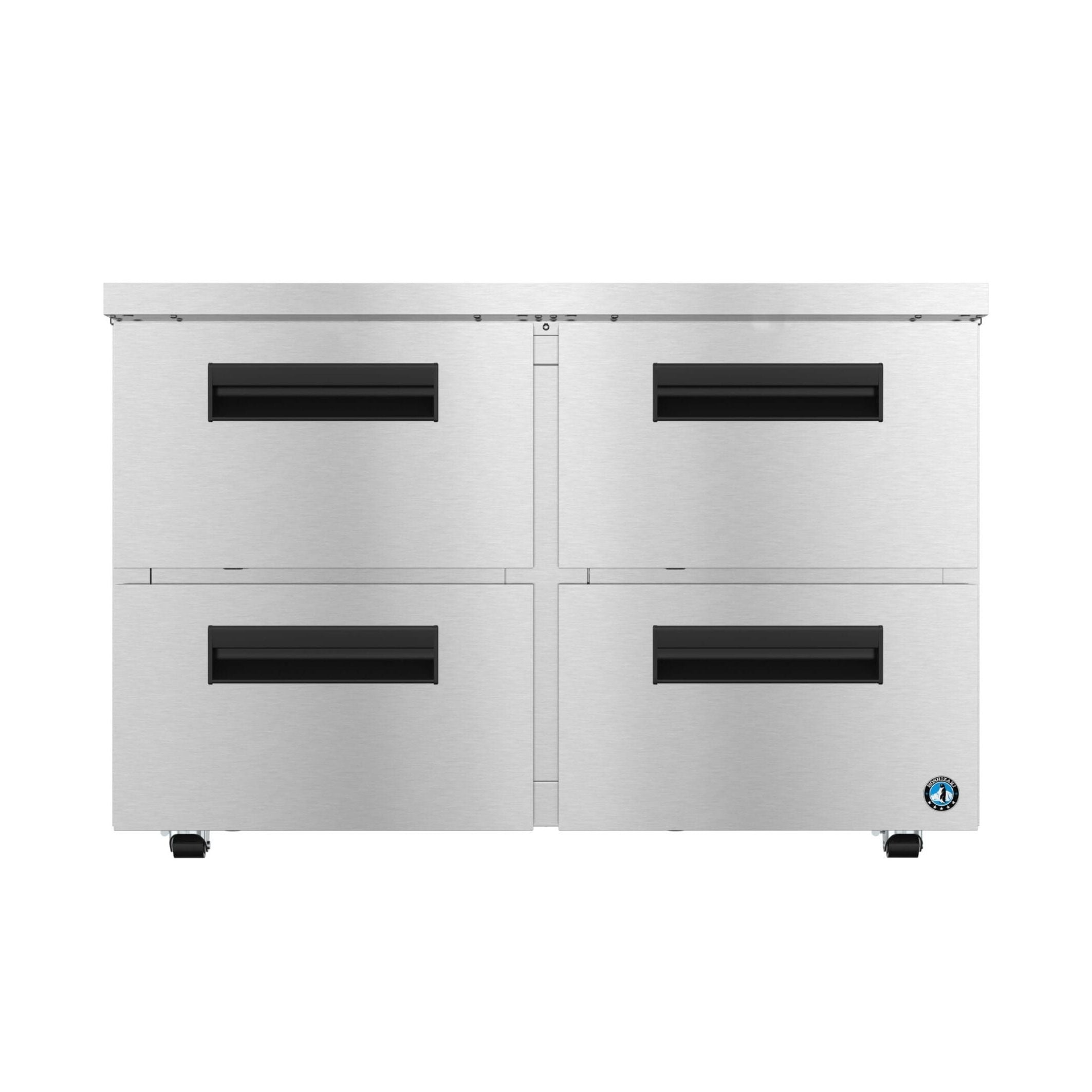

The Hoshizaki UR48B-LPD4 is a premium low-profile undercounter refrigerator designed to fit seamlessly beneath ADA-compliant 34" countertops. With four heavy-duty drawers and a compact footprint, this unit is ideal for commercial kitchens that demand high performance, energy efficiency, and space optimization. Engineered to maintain NSF-7 temperatures in ambient conditions up to 100°F, it ensures food safety and reliability in the most demanding environments.
Key Features
-
Low Profile Design: Fits under 34" ADA-compliant counters
-
Four Stainless Steel Drawers: Each drawer supports up to 175 lbs.
-
Pan Capacity:
- Bottom drawers: (1) 1/2 size + (1) 1/3 size pan
- Top drawers: (1) 1/2, (1) 1/3, (1) 1/4, and (1) 1/6 size pans or (1) full-size pan + (3) 1/9 size pans (with optional divider)
-
Digital Temperature Control: Adjustable from 32°F to 52°F
-
Magnetic Snap-In Drawer Gaskets: Easy to remove and clean
-
Hot Gas Condensate Removal: Reduces maintenance
-
E-coated Evaporator Coil: Corrosion-resistant for extended life
-
Front Breathing Design: Allows for flush installation with minimal clearance
Construction & Durability
-
Exterior: Stainless steel front, sides, and top
-
Interior: Stainless steel sides, back, and floor with ABS top
-
Insulation: 2" CFC-free, foamed-in-place polyurethane
-
Drawer Slides: 16-gauge stainless steel with acetal rollers, life-tested for 300,000 cycles
-
Handles: Flush-mount extruded aluminum
-
Casters: 2.25" polyolefin stem casters (two with brakes)
Mobility & Installation
-
Dimensions: 48"W x 30"D x 31.9"H (with casters)
-
Electrical: 115V / 60Hz / 1Ph, 3.0 Amps, NEMA 5-15P plug
-
Cord Length: 10 ft.
-
Installation Notes:
- Requires 1.5" overhead clearance
- Rear bumpers must remain in place for airflow
- GFCI breaker required if GFCI protection is needed
Certifications & Warranty
-
Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 5 Years Labor
- 6 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Casters:
- 4" (HS-5035)
- 6" (HS-5036)
-
Overshelves:
- Single (HS-5173)
- Double (HS-5164)
-
Drawer Divider Bars:
- Vertical (HS-4007)
- Horizontal (HS-5432)
-
Stainless Steel Back Panel (factory-installed option)
Why Choose Hoshizaki?
Hoshizaki is a globally recognized leader in commercial refrigeration, known for its commitment to innovation, sustainability, and reliability. The UR48B-LPD4 exemplifies this legacy with its robust construction, energy-efficient performance, and thoughtful design tailored for modern foodservice operations. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers equipment that goes Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
