Overview

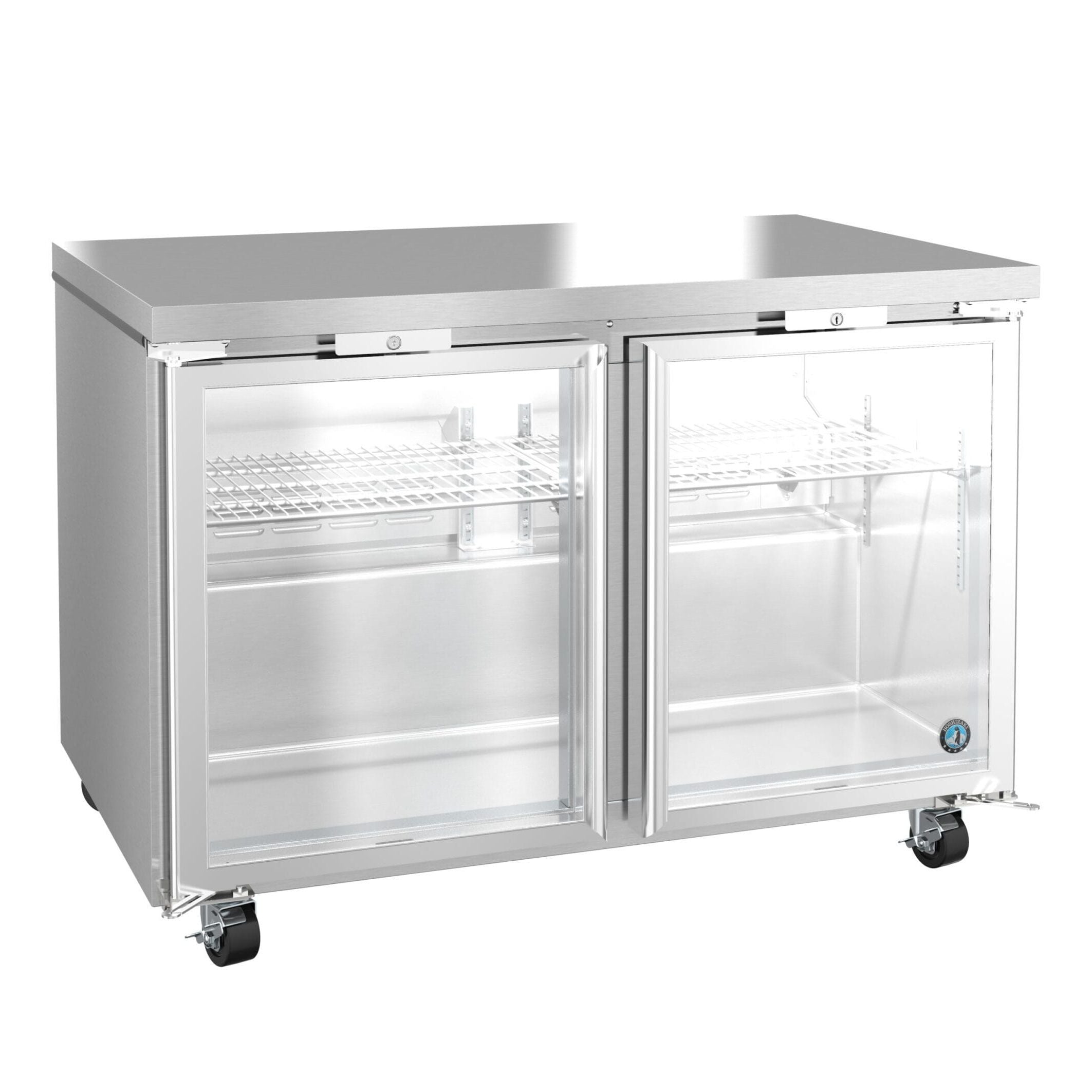

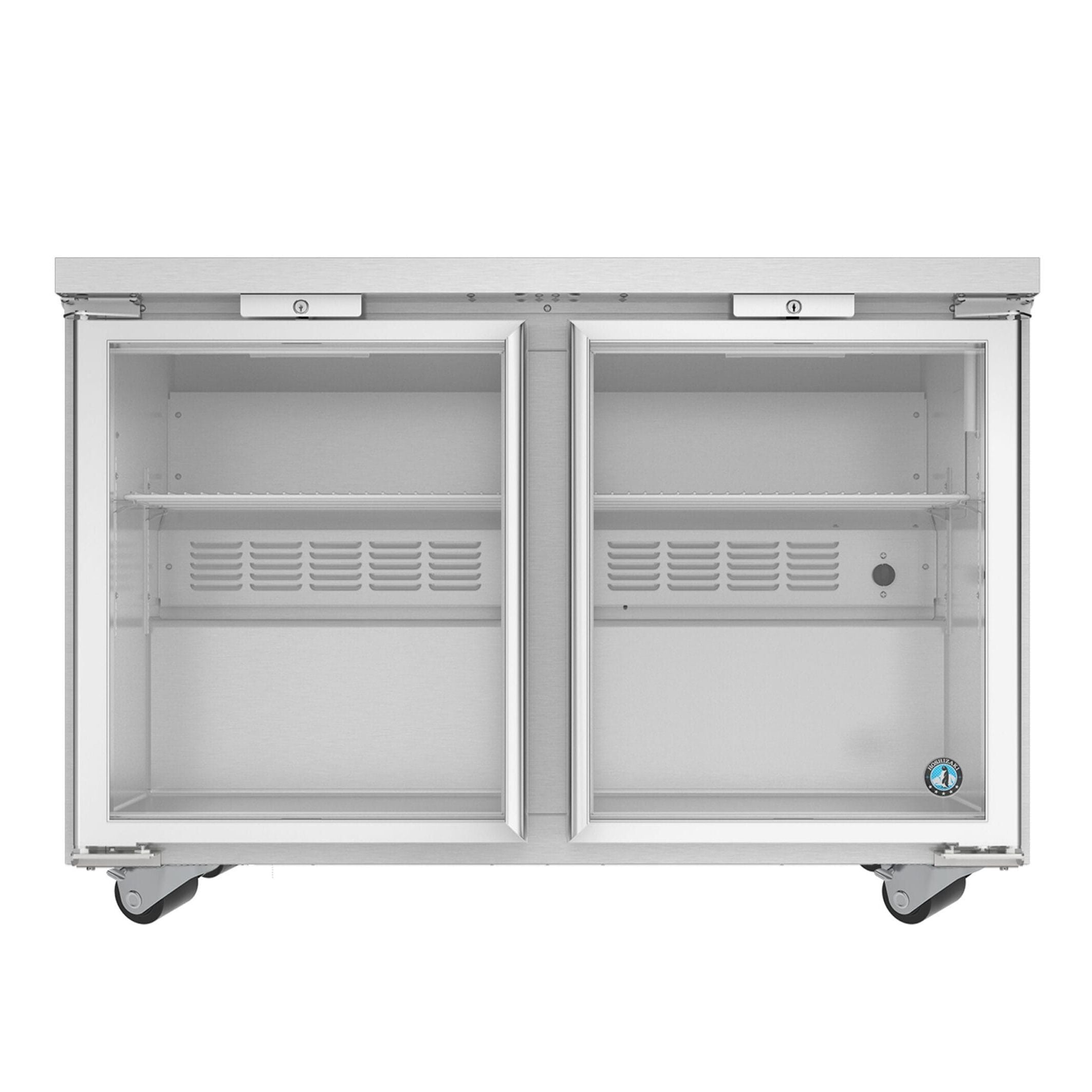

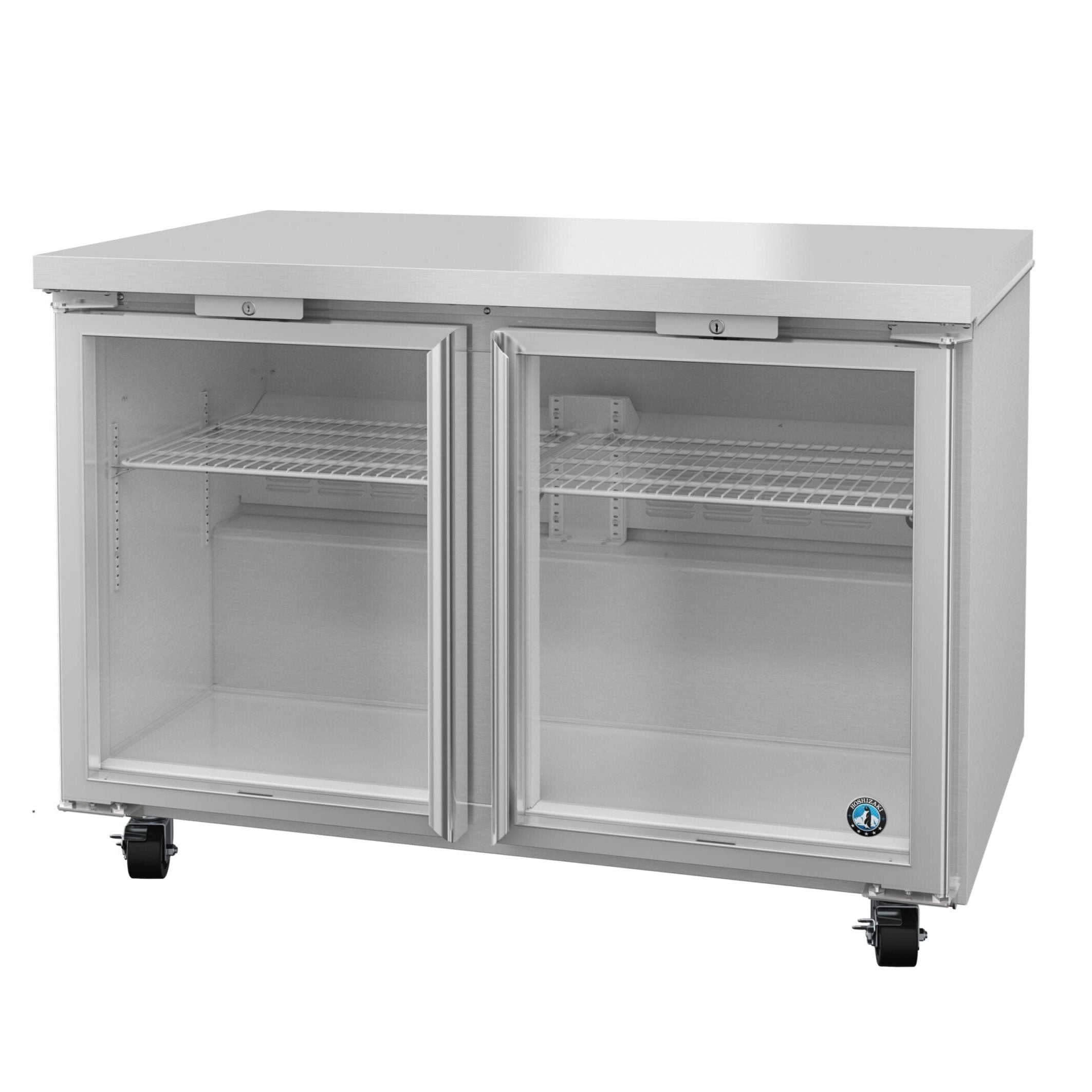

The Hoshizaki UR48B-GLP01 is a premium, low-profile undercounter refrigerator designed to meet ADA compliance while delivering exceptional performance in commercial kitchens. With a sleek stainless steel build and energy-efficient glass doors, this unit is ideal for tight spaces that require reliable cold storage without compromising accessibility or visibility.
Key Features
-
ADA-Compliant Design: Fits under 34” counters with a total height of 31.9”.
-
Glass Doors: Dual-pane, argon-filled, energy-efficient glass with locks and full-length chrome handles.
-
NSF-7 Certified: Maintains safe food temperatures in ambient conditions up to 100°F.
-
Eco-Friendly Refrigerant: Uses R290 hydrocarbon refrigerant.
-
Self-Closing Doors: Spring-assisted with stay-open feature at 90°.
-
Field-Reversible Hinges: Optional hinge kit available for door swing customization.
-
Magnetic Door Gaskets: Snap-in design for easy cleaning and replacement.
-
E-coated Evaporator Coil: Corrosion-resistant for extended life.
-
Hot Gas Condensate Removal: Maintenance-free and efficient.
Construction & Durability
-
Exterior: Stainless steel top, front, and sides; coated steel back and bottom.
-
Interior: Stainless steel sides, back, floor, and ceiling.
-
Insulation: 2” CFC-free foamed-in-place polyurethane.
-
Doors: Silver anodized aluminum frames with chrome handles and torsion spring hinges.
-
Casters: 2.25” polyolefin stem casters (two with brakes) standard.
Mobility & Installation
-
Dimensions: 48” W x 31” D x 31.9” H (with 2.25” casters)
-
Door Opening: 19.5” W x 23” H
-
Depth with Doors Open: 51.5”
-
Shelf Size: 21.5” W x 16” D (2 adjustable epoxy-coated shelves)
-
Crated Weight: 249 lbs.
-
Electrical Specs:
- Voltage: 115V / 60Hz / 1Ph
- Plug: NEMA 5-15P
- Amperage: 3.0A
- Compressor: 1/5 HP, 798 BTU/hr
- Energy Use: 1.46 kWh/day
- Refrigerant: R290 (2.1 oz)
-
Installation Notes:
- Requires 1.5" overhead clearance for ventilation
- GFCI breaker must be used if GFCI protection is required
Certifications & Warranty
-
Certifications: NSF-7, UL, ENERGY STAR®
-
Warranty: 7-Year warranty covering labor, parts, and compressor (valid in U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
-
Casters:
- 4” Casters (HS-5035)
- 6” Casters (HS-5036)
-
Foot Pedal Kits:
- HS-5555 (Left hinge)
- HS-5556 (Right hinge)
-
Shelving:
- Additional epoxy shelves (HS-5059)
- Stainless steel shelves (HS-5117)
-
Overshelves:
- Single (HS-5173)
- Double (HS-5164)
-
Back Panel:
- Stainless steel (factory-installed option)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its innovation, reliability, and commitment to sustainability. The UR48B-GLP01 exemplifies this legacy with its ADA-compliant design, energy efficiency, and robust construction. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers performance and peace of mind.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
