Overview

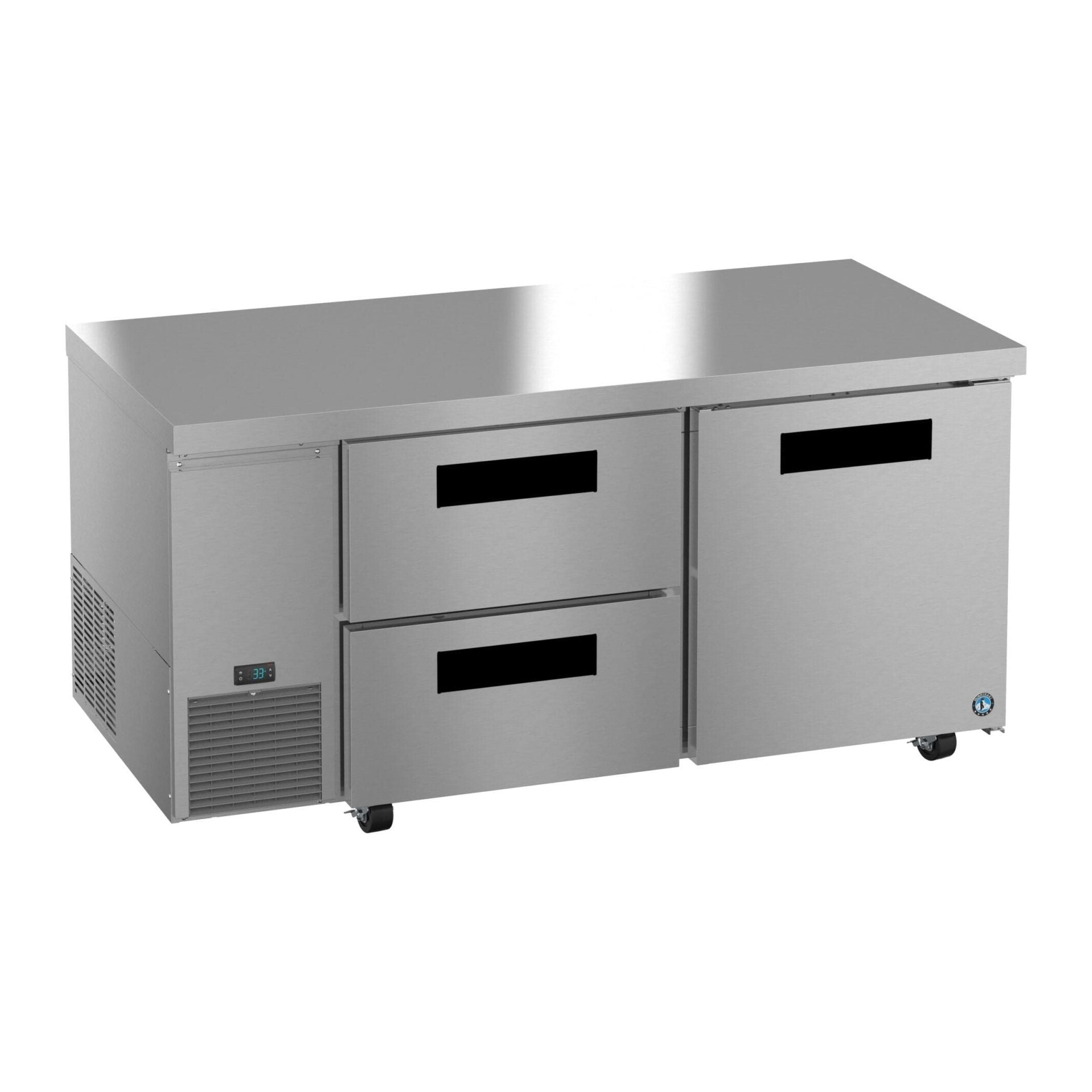

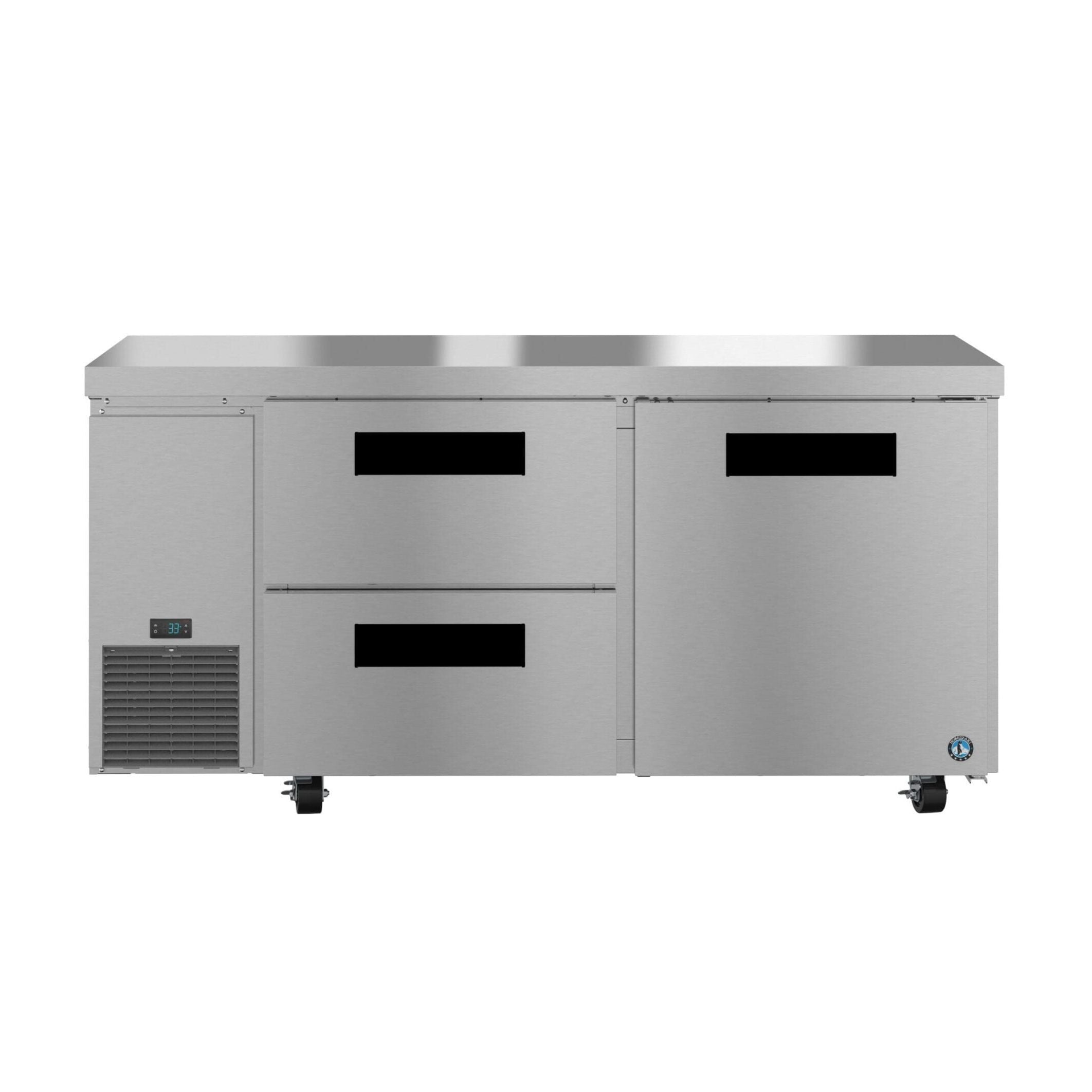

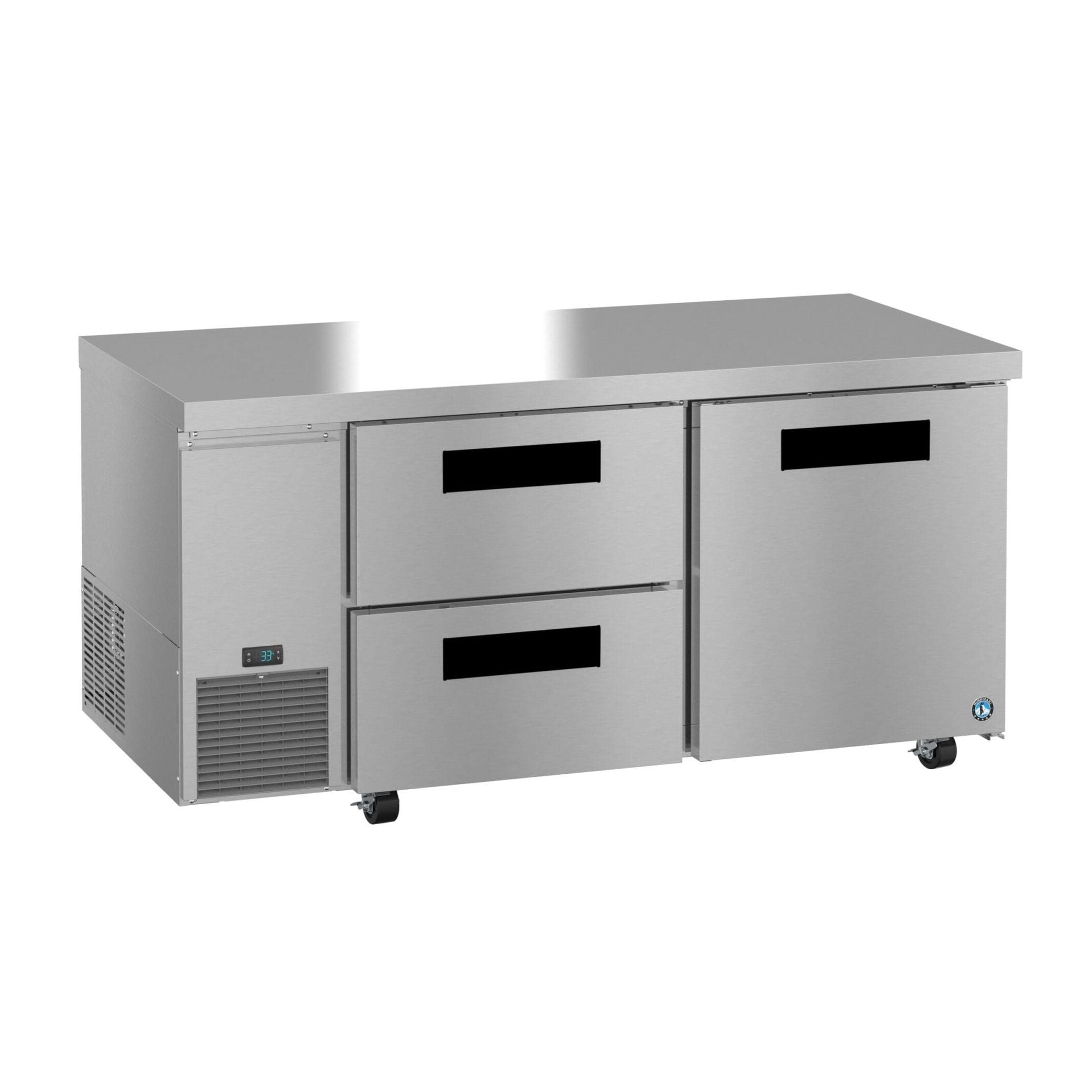

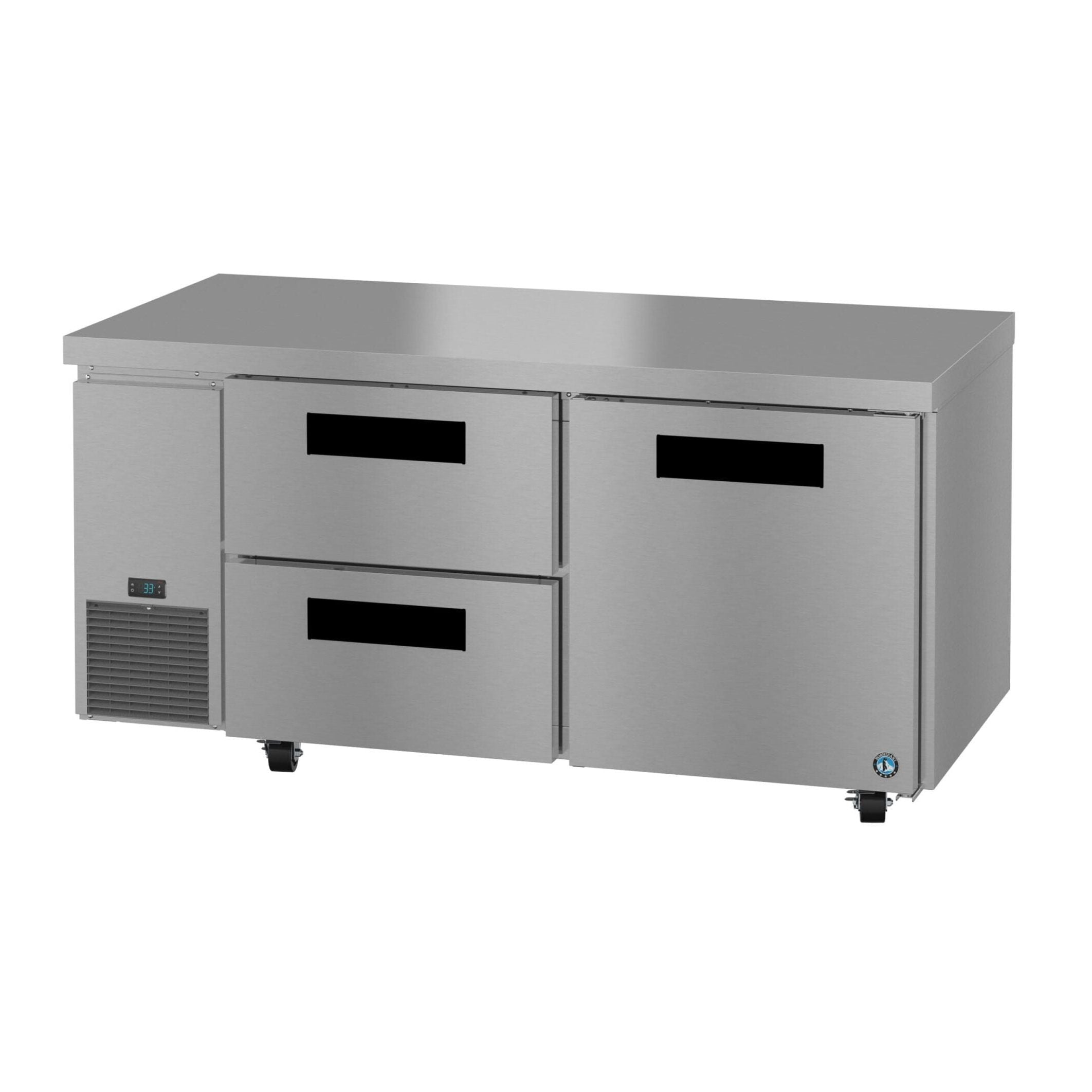

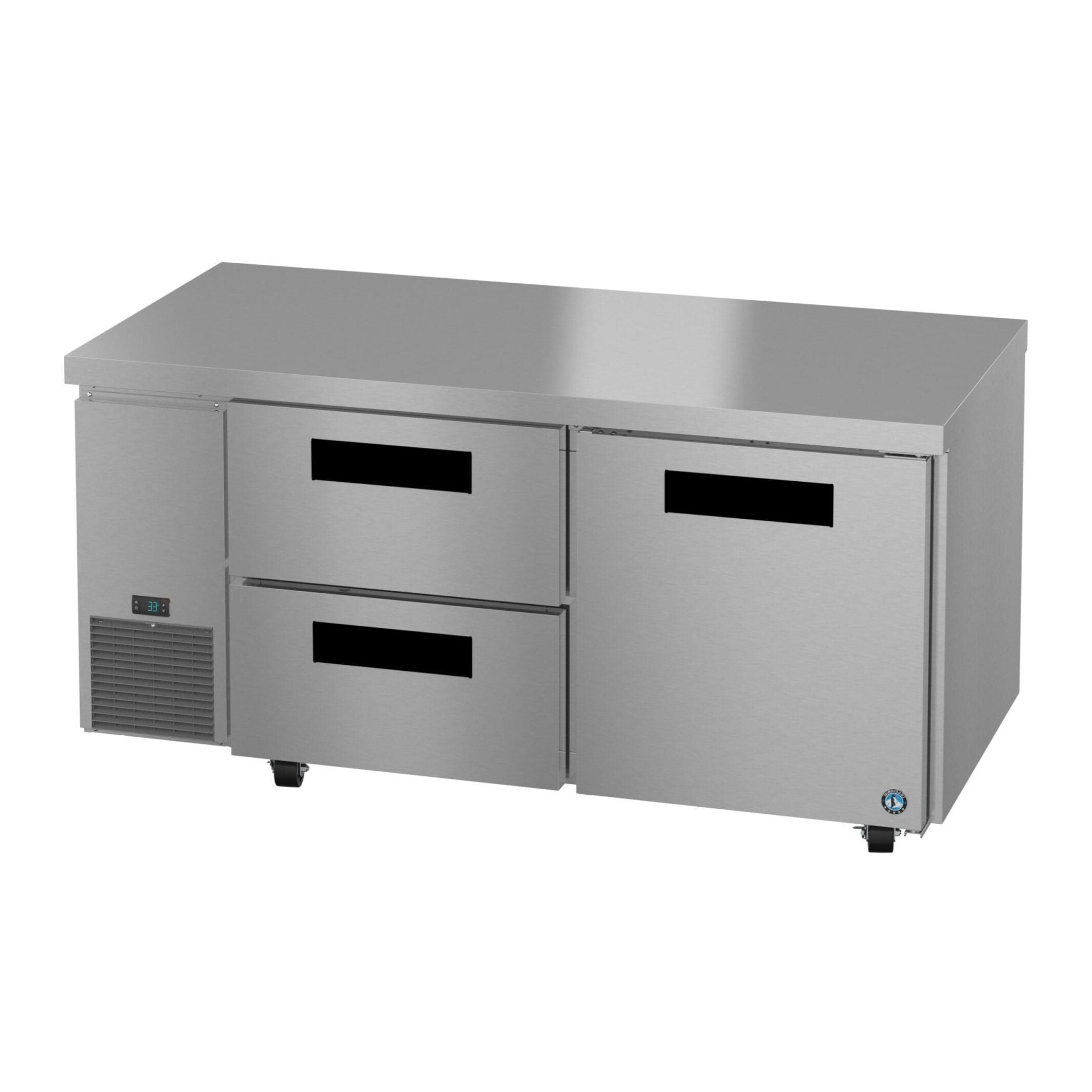

The Hoshizaki ULR67B-D2 is a versatile, high-performance undercounter refrigerator designed for demanding commercial kitchens. Featuring one door and two drawers, this unit offers flexible storage options, durable construction, and energy-efficient refrigeration. Ideal for prep stations, line kitchens, and foodservice environments requiring NSF-7 compliance.
Key Features
-
One door and two drawers configuration for flexible storage
-
Digital temperature display with adjustable setpoints (28°F to 45°F)
-
NSF-7 certified for safe food storage in ambient temperatures up to 100°F
-
Front-breathing air flow design allows for installation with minimal rear clearance
-
Removable air filter for easy maintenance
-
Hot gas condensate removal and mullion heaters to reduce condensation
-
E-coated evaporator coil for extended life
- Environmentally friendly R290 refrigerant
-
Energy efficient: 1.32 kWh/day
-
Standard 4” casters (two with brakes)
-
10 ft. cord and plug for quick setup
Construction & Durability
-
Exterior: Stainless steel front, sides, and top
-
Interior: Stainless steel sides, back, and floor with ABS top
-
Insulation: 2” CFC-free, foamed-in-place polyurethane
-
Doors: High-grade stainless steel exterior with ABS liner and stepped design to protect gaskets
-
Drawers:
- Heavy-duty stainless steel construction
- 14-gauge stainless steel slides with acetal rollers
- Dynamic load capacity: 250 lbs.
- Each drawer accommodates (2) 12" x 20" x 6" pans (pans not included)
-
Shelving:
- Two epoxy-coated shelves per section
- Adjustable in ½” increments
- Each shelf holds a full-size sheet pan and supports up to 120 lbs.
-
Handles: One-piece extruded aluminum flush mount
Mobility & Installation
-
Dimensions: 67"W x 33.25"D x 33.875"H (with 4" casters)
-
Electrical: 115V/60Hz/1Ph, 15.0 Amps, NEMA 5-15P plug
-
Voltage Range: 104–126V
-
Recommended Setpoint: 36°F
-
Crated Weight: 404 lbs.
-
Crated Dimensions: 70.75"W x 35.75"D x 36"H
Certifications & Warranty
- NSF-7 certified
- UL listed
- Made in Georgia, USA
-
Warranty:
- 5 years labor
- 6 years parts
- 7 years compressor
(Valid in the U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- 2” Casters (HS-5037)
- 6” Casters (HS-5036)
- Foot pedal kits: Left hinge (HS-5555), Right hinge (HS-5556)
- Overshelves: Single (HS-5321), Double (HS-5320)
- Additional epoxy shelves (HS-5151)
- Additional stainless shelves (HS-5153)
- Drawer divider bars: Vertical (HS-4007), Horizontal (HS-5691)
- Drawer liner (HS-5740)
Why Choose Hoshizaki?
Hoshizaki is a trusted leader in commercial refrigeration, known for its durability, energy efficiency, and innovative engineering. The ULR67B-D2 is part of the Steelheart® Series, built to perform in demanding environments while maintaining food safety and operational efficiency. With a focus on sustainability and reliability, Hoshizaki products are Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Warranty Statement
Product Brochure
