Overview

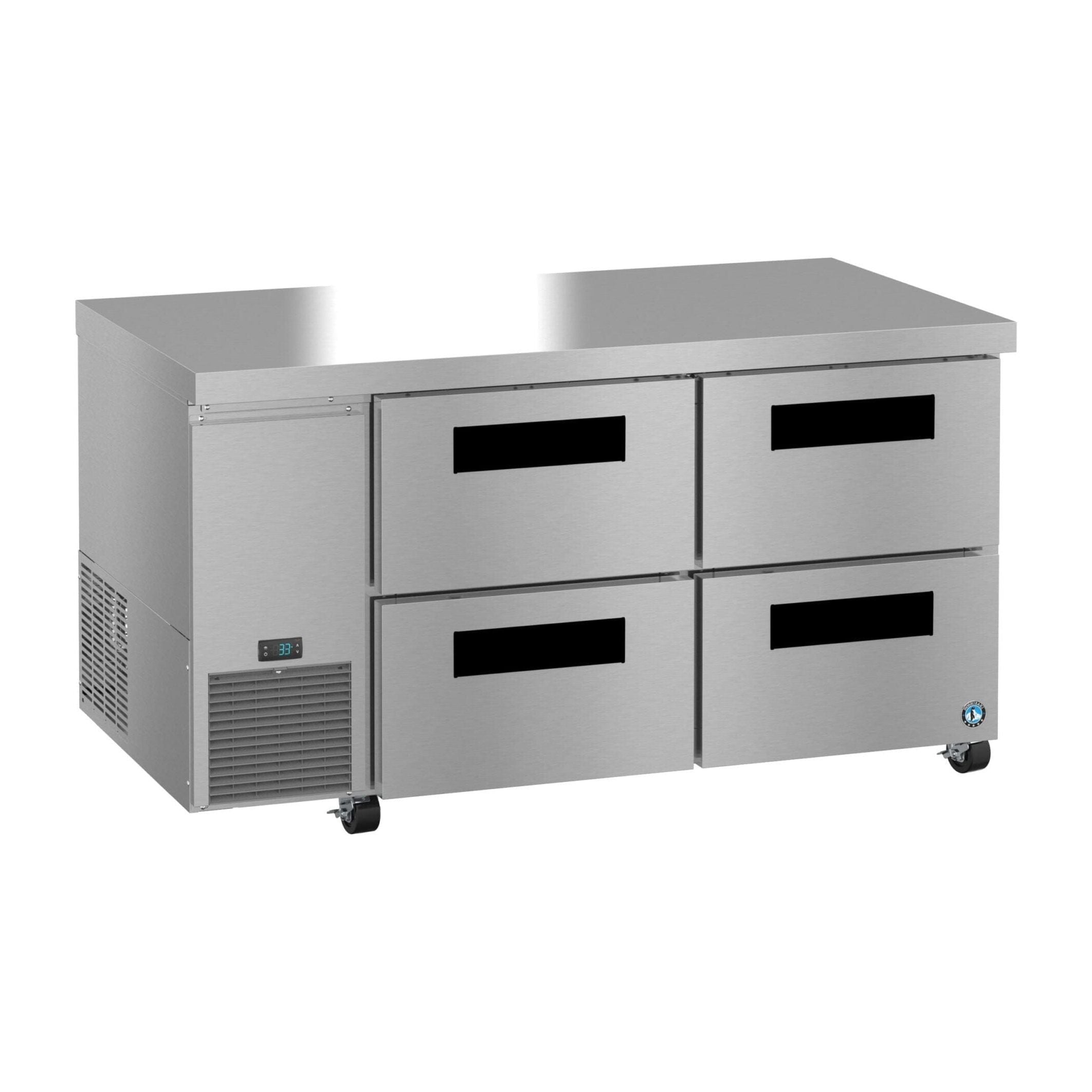

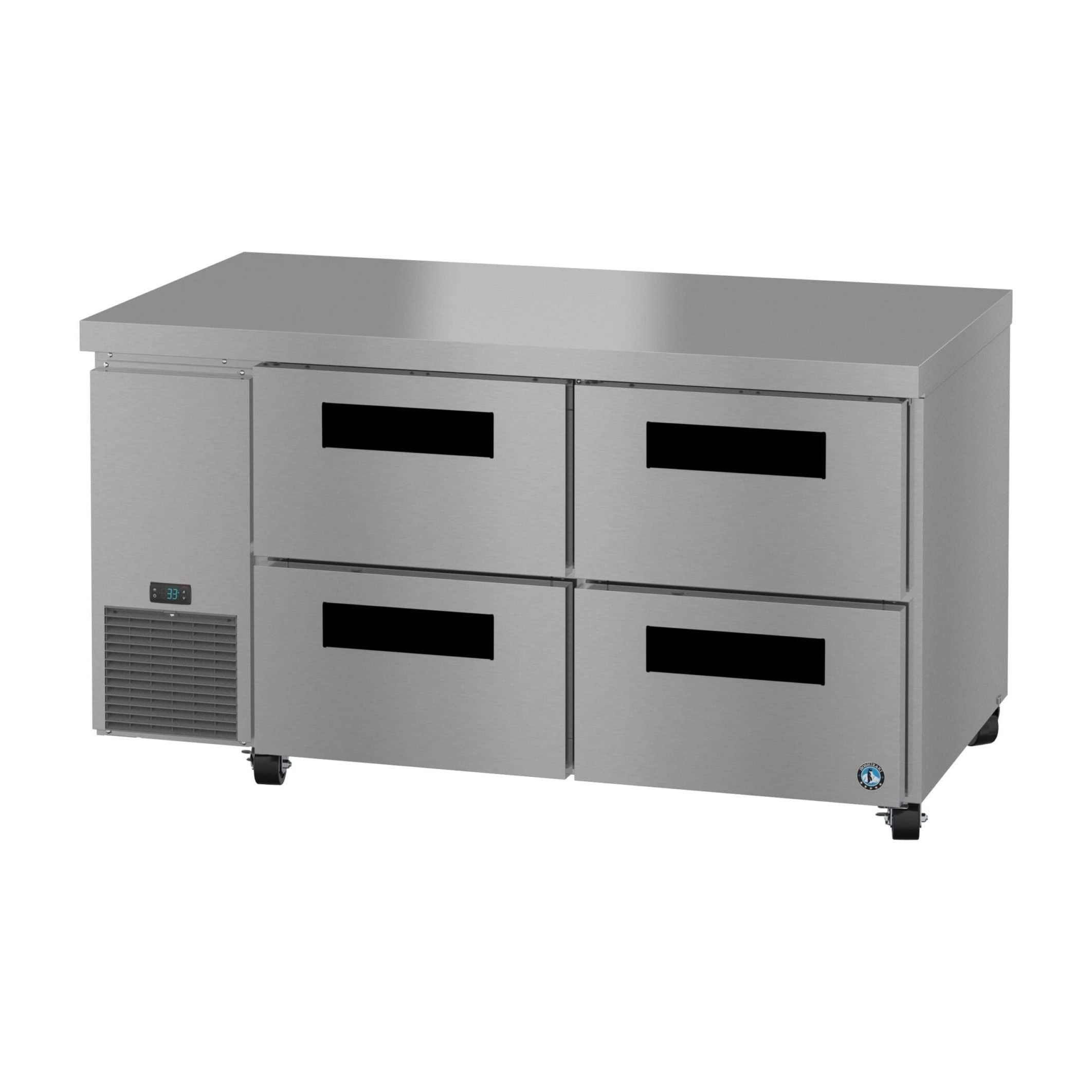

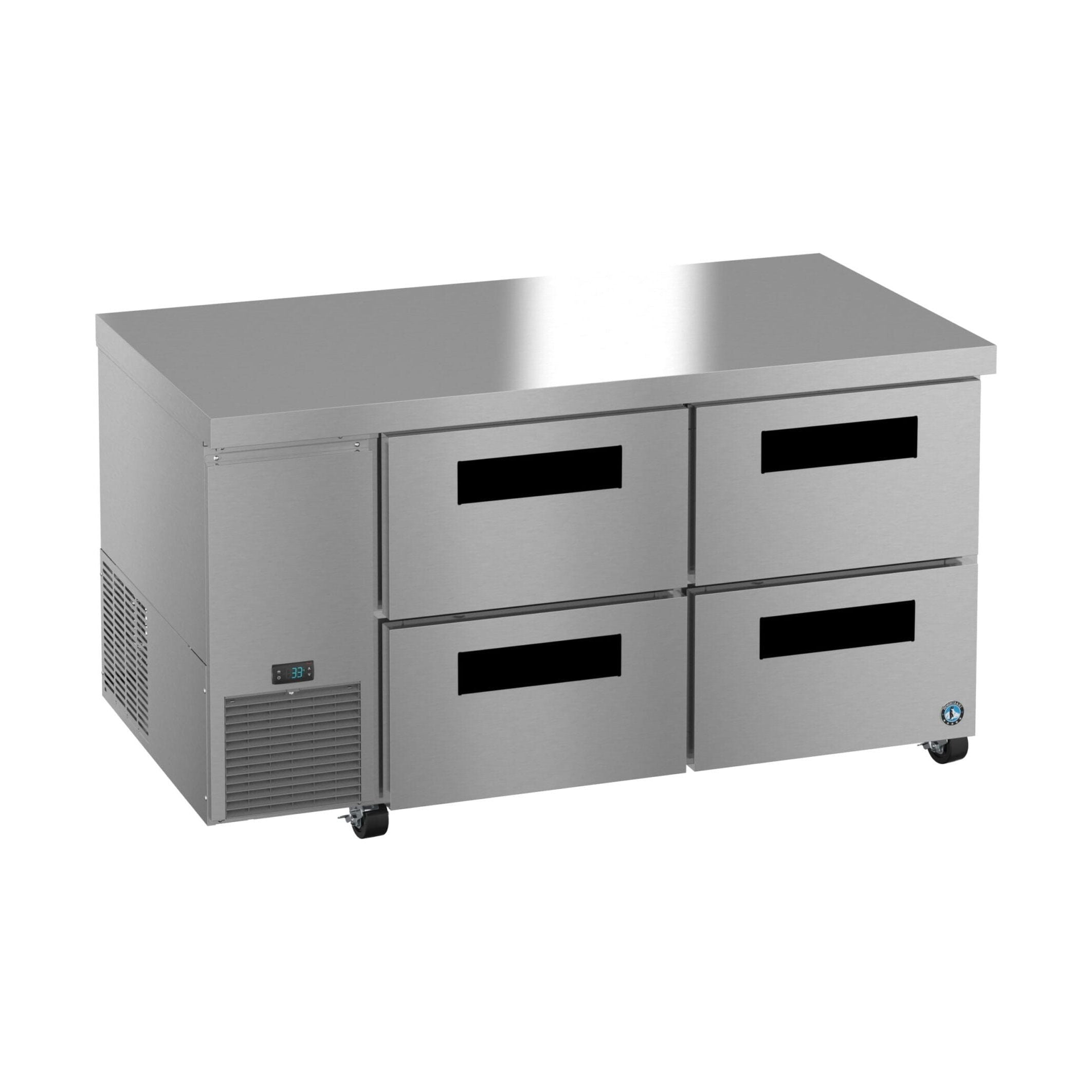

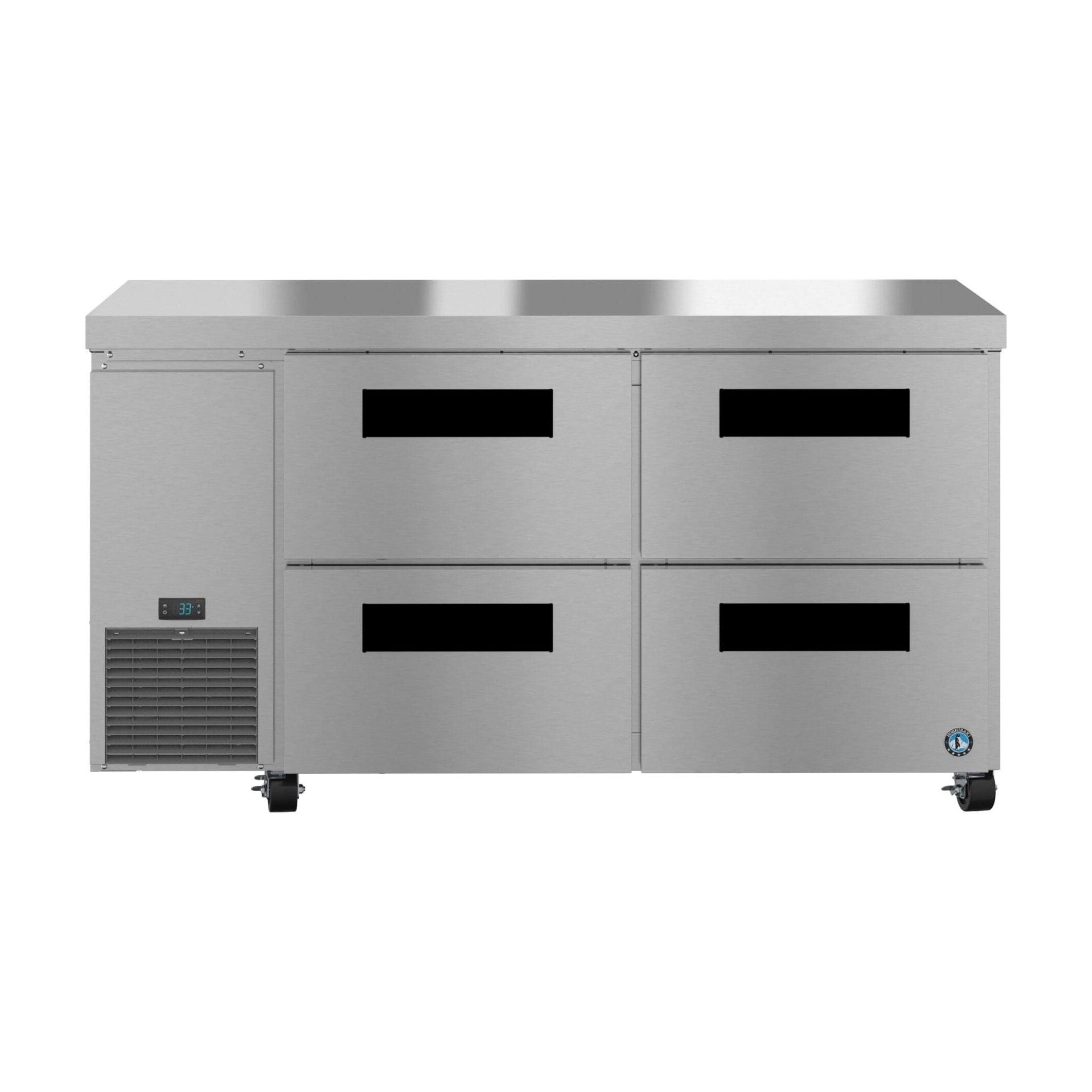

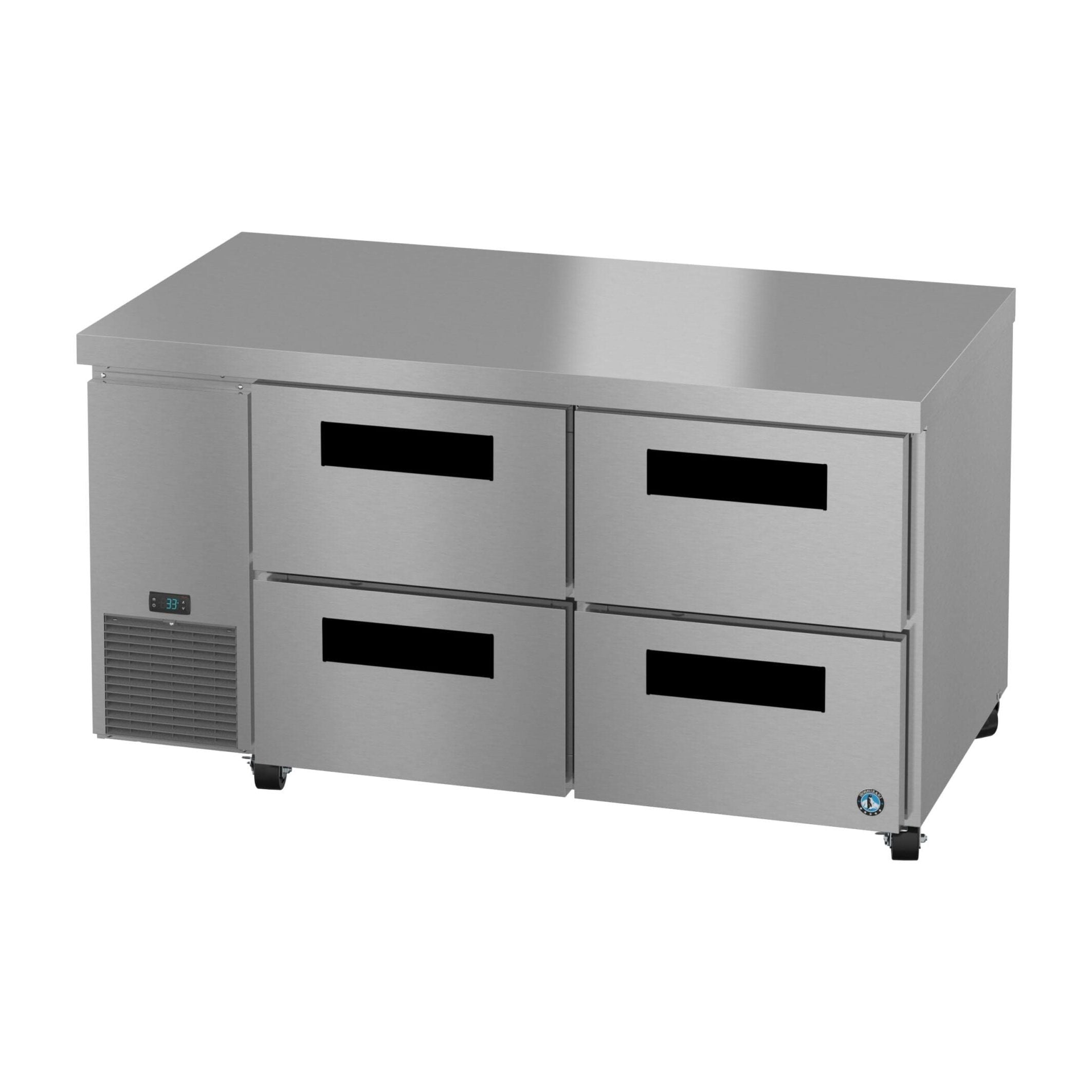

The Hoshizaki ULR60B-D4 is a high-performance, space-saving undercounter refrigerator designed for demanding commercial environments. With four heavy-duty drawers and a sleek stainless steel build, it offers reliable cold storage and easy access to ingredients, making it ideal for prep stations, kitchens, and foodservice operations.
Key Features
-
Four stainless steel drawers with flush mount handles
-
Digital temperature display with adjustable setpoints (28°F to 45°F)
-
NSF-7 certified for safe food storage in ambient temperatures up to 100°F
-
Front-breathing air flow design allows for installation with minimal rear clearance
-
Removable air filter for easy maintenance
-
Hot gas condensate removal and mullion heaters to reduce condensation
-
E-coated evaporator coil for extended life
- Environmentally friendly R290 refrigerant
-
Energy efficient: 1.26 kWh/day
-
Standard 4” casters (two with brakes)
-
10 ft. cord and plug for quick setup
Construction & Durability
-
Exterior: Stainless steel front, sides, and top
-
Interior: Stainless steel sides, back, floor, and top
-
Insulation: 2” CFC-free, foamed-in-place polyurethane
-
Drawer slides: 14-gauge stainless steel with acetal rollers, 250 lbs. dynamic load capacity
-
Drawer capacity: Each drawer accommodates (2) 12" x 10" x 6" and (2) 12" x 6" x 6" pans (pans not included)
-
Magnetic drawer gaskets: Snap-in design for easy cleaning
Mobility & Installation
-
Dimensions: 60"W x 33.25"D x 33.875"H (with 4" casters)
-
Electrical: 115V/60Hz/1Ph, 15.0 Amps, NEMA 5-15P plug
-
Voltage Range: 104–126V
-
Recommended Setpoint: 36°F
-
Crated Weight: 408 lbs.
-
Crated Dimensions: 63.75"W x 35.75"D x 36"H
Certifications & Warranty
- NSF-7 certified
- UL listed
- Made in Georgia, USA
-
Warranty:
- 5 years labor
- 6 years parts
- 7 years compressor
(Valid in the U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- 2” Casters (HS-5037)
- 6” Casters (HS-5036)
- Overshelves: Single (HS-5639), Double (HS-5640)
- Drawer divider bars: Vertical (HS-4007), Horizontal (HS-5692)
- Drawer liner (HS-5741)
Why Choose Hoshizaki?
Hoshizaki is a globally recognized leader in commercial refrigeration, known for its durability, energy efficiency, and innovative engineering. The ULR60B-D4 is part of the Steelheart® Series, built to perform in the toughest kitchen environments while maintaining food safety and operational efficiency.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Warranty Statement
Product Brochure
