Overview

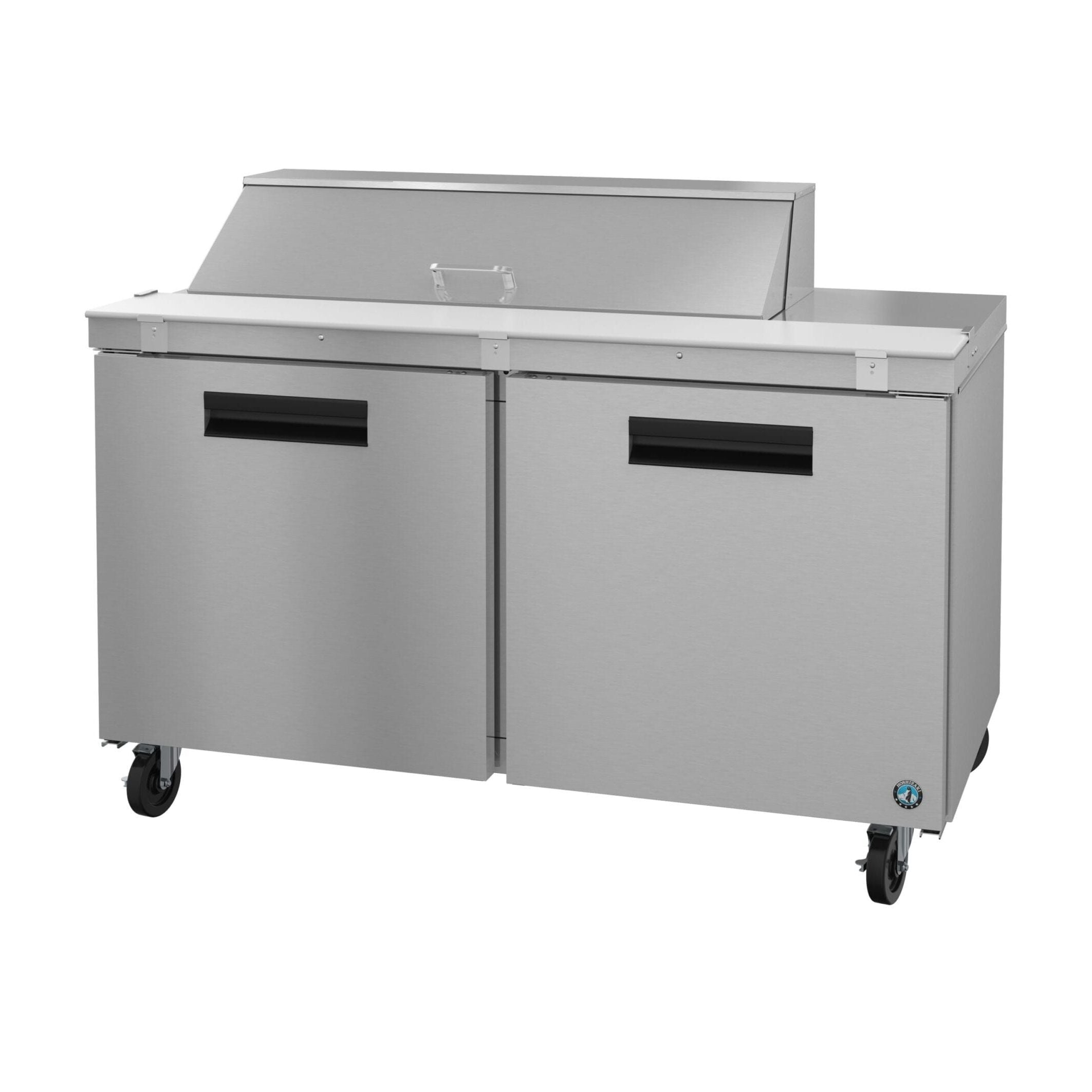

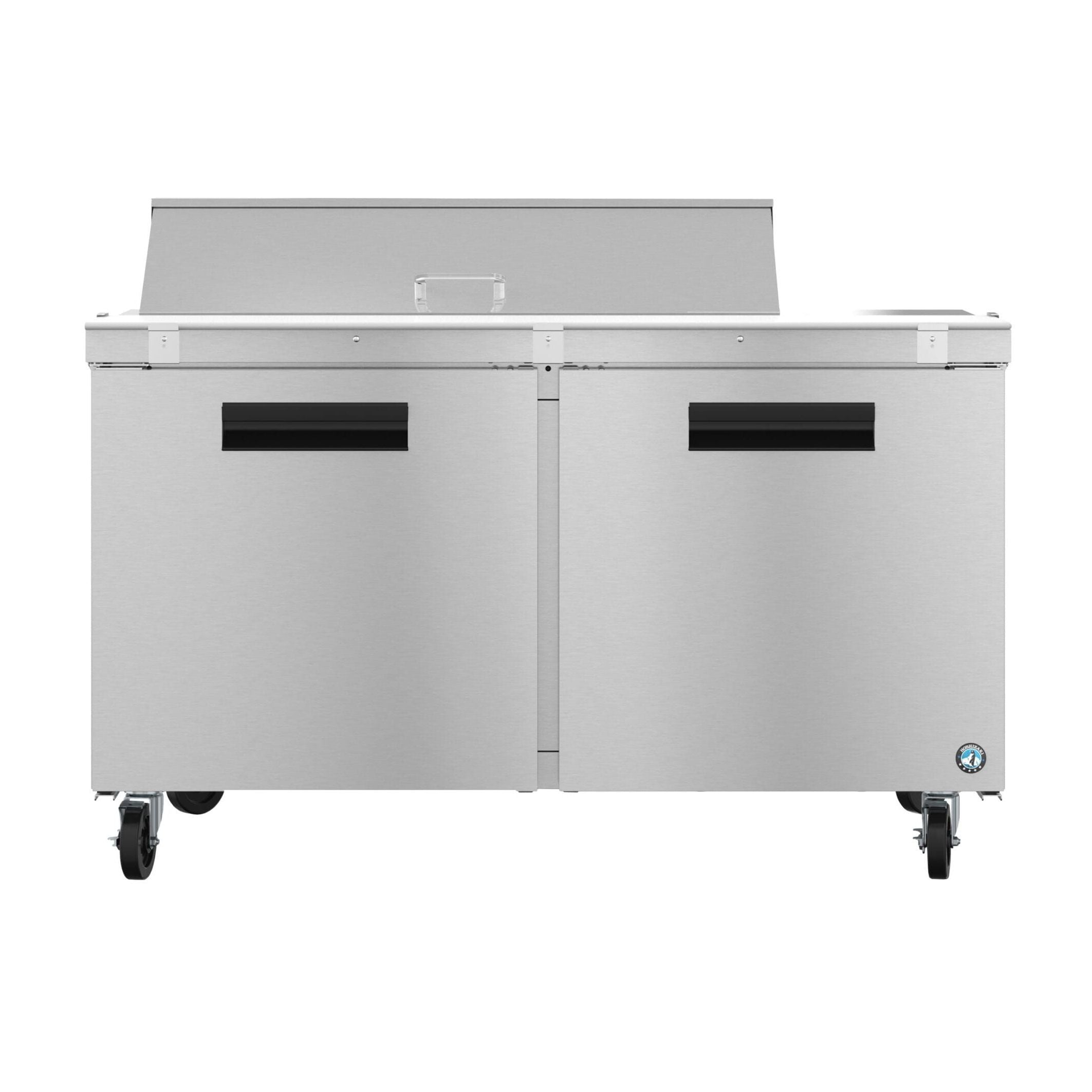

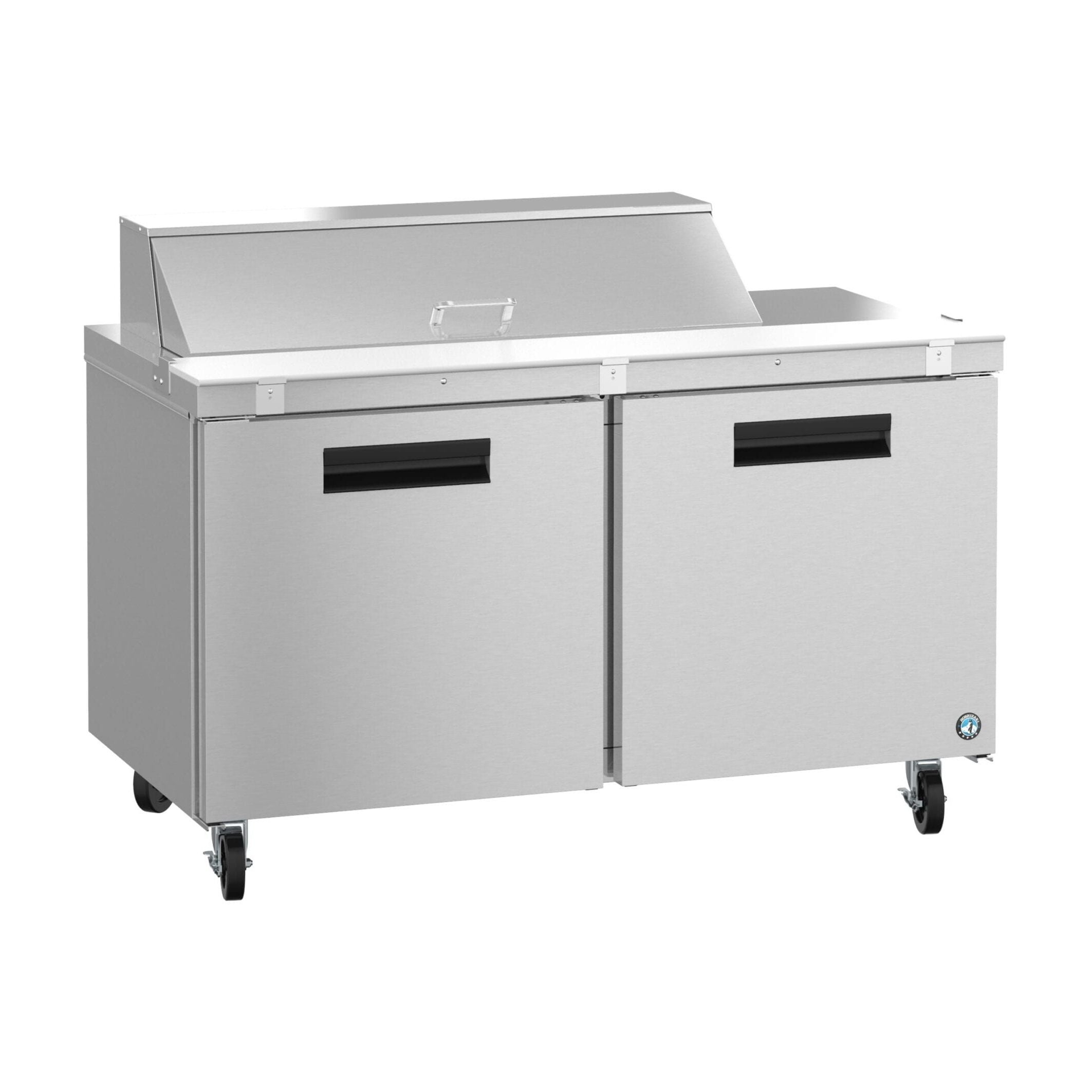

The Hoshizaki SR60B-12 is a high-performance, two-section sandwich top prep refrigerator designed for commercial kitchens. With a 60" width and capacity for up to 12 pans, this unit offers efficient refrigeration, durable construction, and ergonomic features to support fast-paced food preparation environments.
Key Features
-
Interior Capacity: 14.8 cu. ft.
-
Pan Rail: Holds up to 12 standard 1/6-size pans (4" deep pans included; supports 6" deep pans)
-
Cutting Board: NSF-approved 60" x 10" x ½" white polyethylene cutting board
-
Doors: 2 spring-assisted self-closing doors with stay-open feature
-
Shelving: Includes 2 adjustable epoxy-coated shelves
-
Temperature Range: 32°F to 52°F cabinet setpoint
-
Control Dial: Adjustable from 1 (warmest) to 9 (coldest); factory default at 5 (~34°F)
Construction & Durability
-
Exterior: Stainless steel front, sides, and top
-
Interior: Stainless steel sides, back, and floor with ABS ceiling
-
Insulation: 2" CFC-free foamed-in-place polyurethane
-
Doors: Field reversible with stepped design to protect gaskets
-
Handles: Flush mount extruded aluminum
-
Evaporator: E-coated for extended life
-
Prep Guard: Removable stainless steel guard for easy cleaning
Mobility & Installation
-
Casters: 6" polyolefin stem casters (2 with brakes)
-
Electrical: 115V/60Hz/1Ph, 5-15P NEMA plug, 10 ft. cord
-
Refrigeration: Front-breathing design allows zero side/rear clearance
-
Installation: Requires 10" clearance above rail hood for full access
Certifications & Warranty
-
Certifications: NSF-7 certified for 86°F ambient; engineered for 100°F
-
Energy Efficiency: Uses R290 hydrocarbon refrigerant (2.5 oz.)
-
Warranty: 7-year warranty on labor, parts, and compressor (U.S., Canada, Puerto Rico, U.S. Territories)
Optional Accessories
- Composite cutting board (HS-5268)
- Foot pedals (HS-5555 left hinge, HS-5556 right hinge)
- Overshelves
- Stainless steel lift-off covers
- Additional epoxy shelves
- Rail adapter bars
- Alternative caster sizes (2.25", 4")
Why Choose Hoshizaki?
Hoshizaki is a trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The SR60B-12 exemplifies this legacy with its robust build, energy-efficient operation, and thoughtful design features that enhance workflow and food safety. Whether you're running a busy kitchen, deli, or catering operation, Hoshizaki delivers reliability that goes Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
