Overview

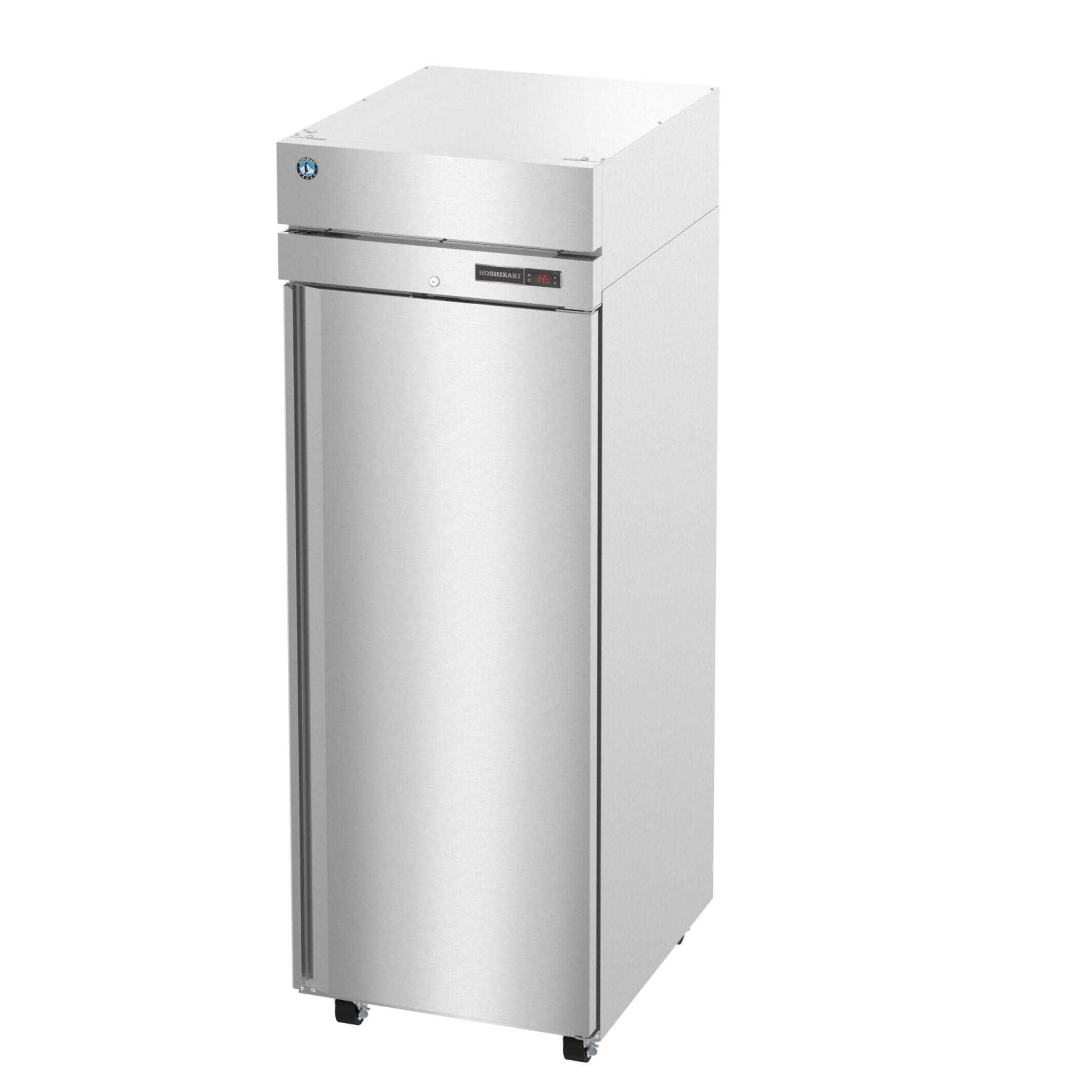

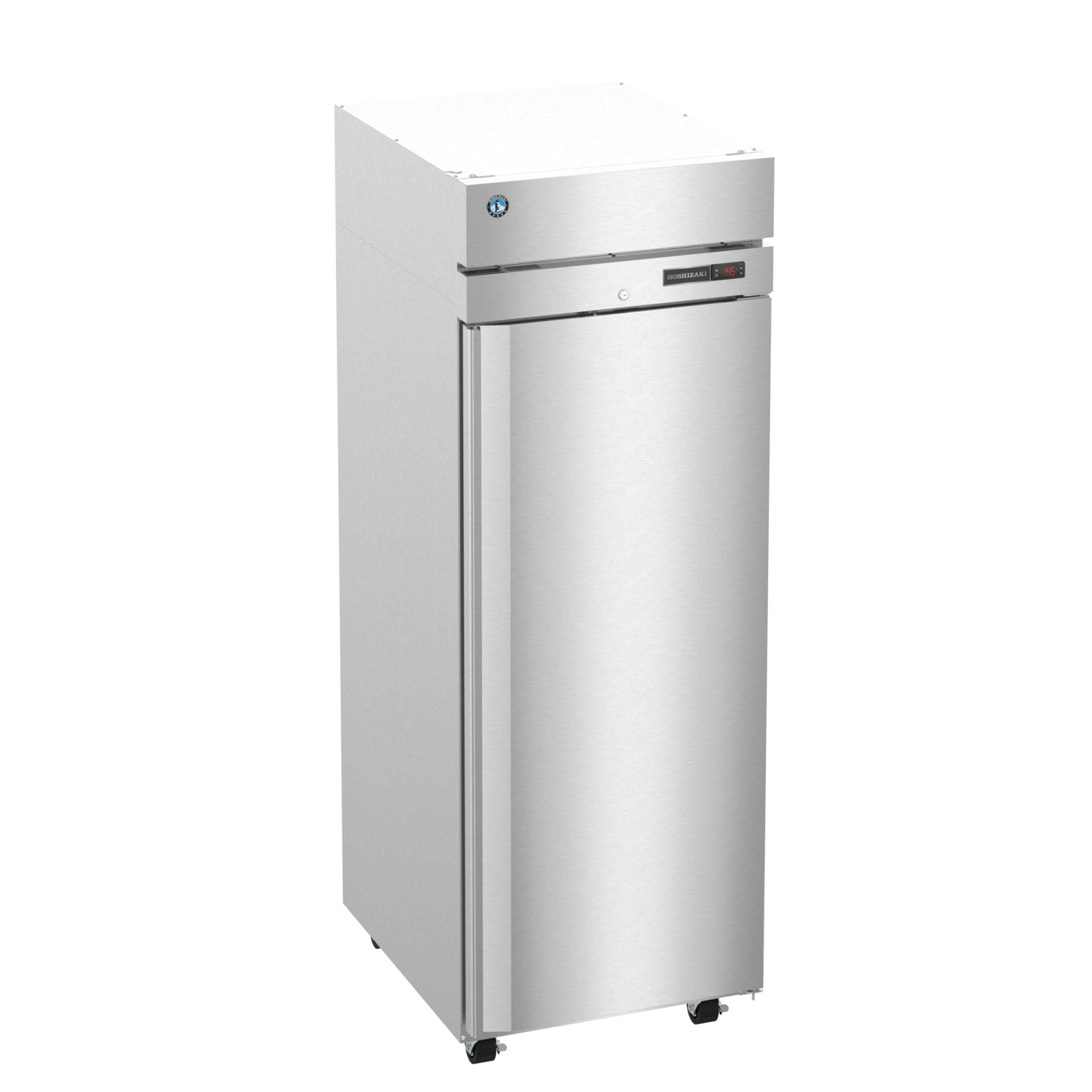

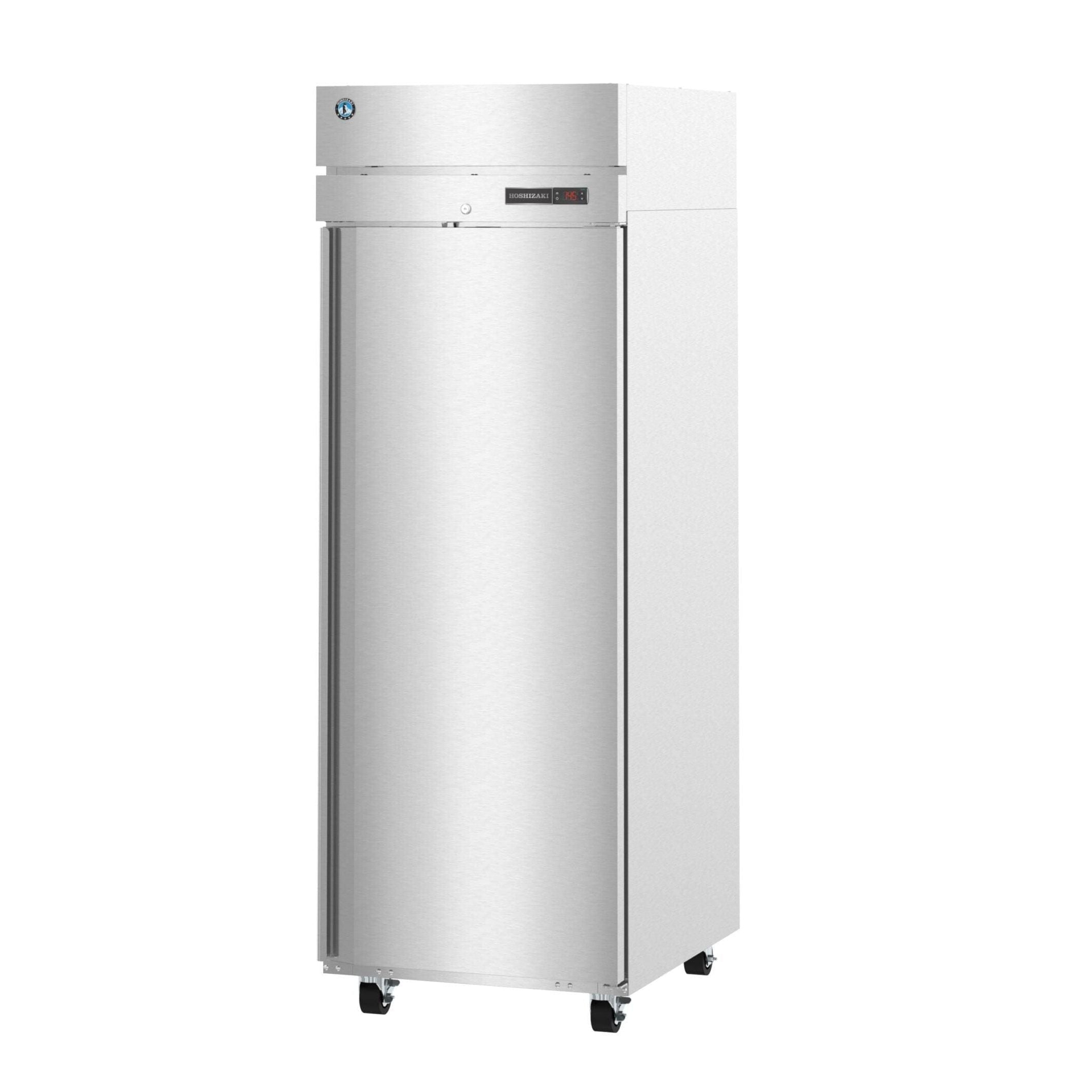

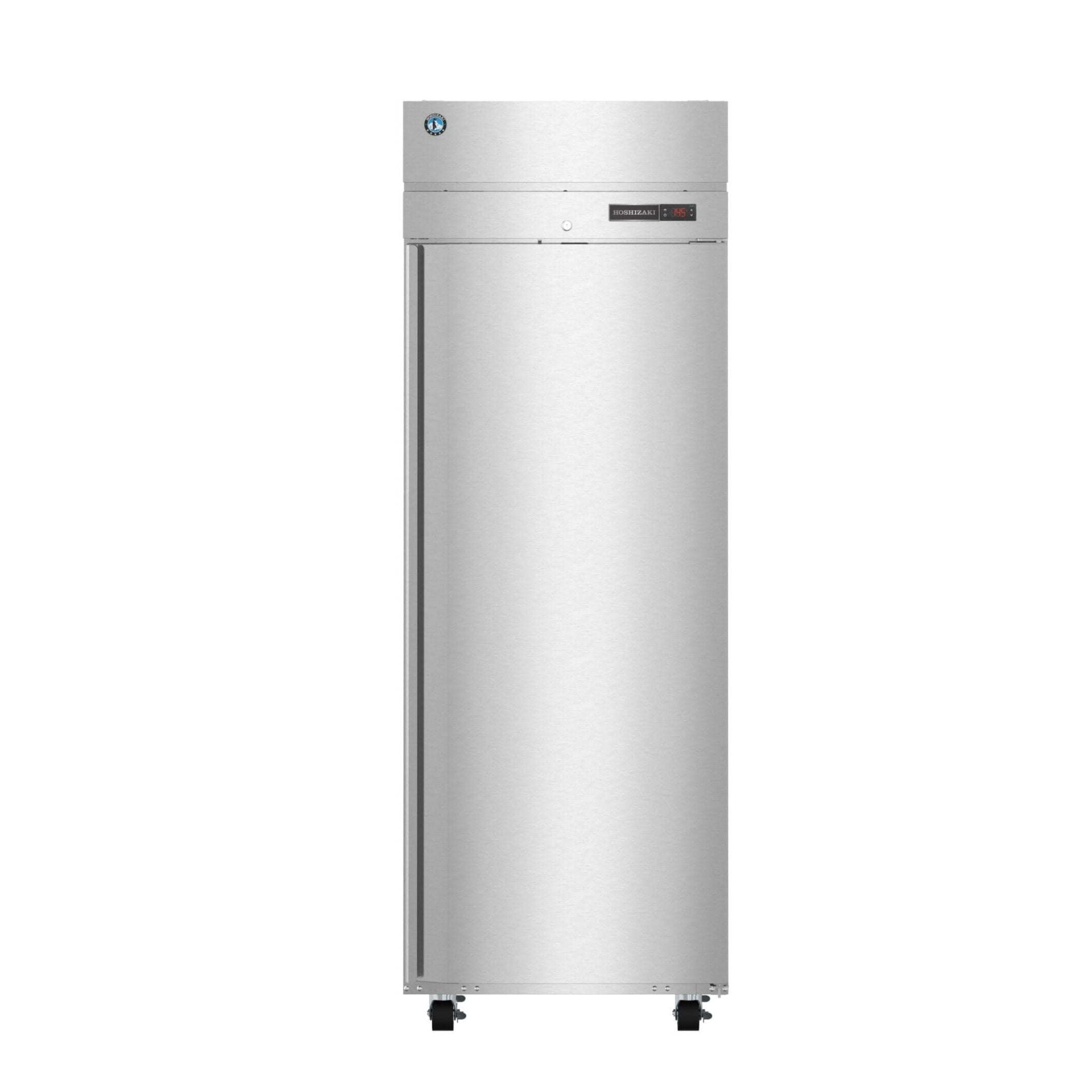

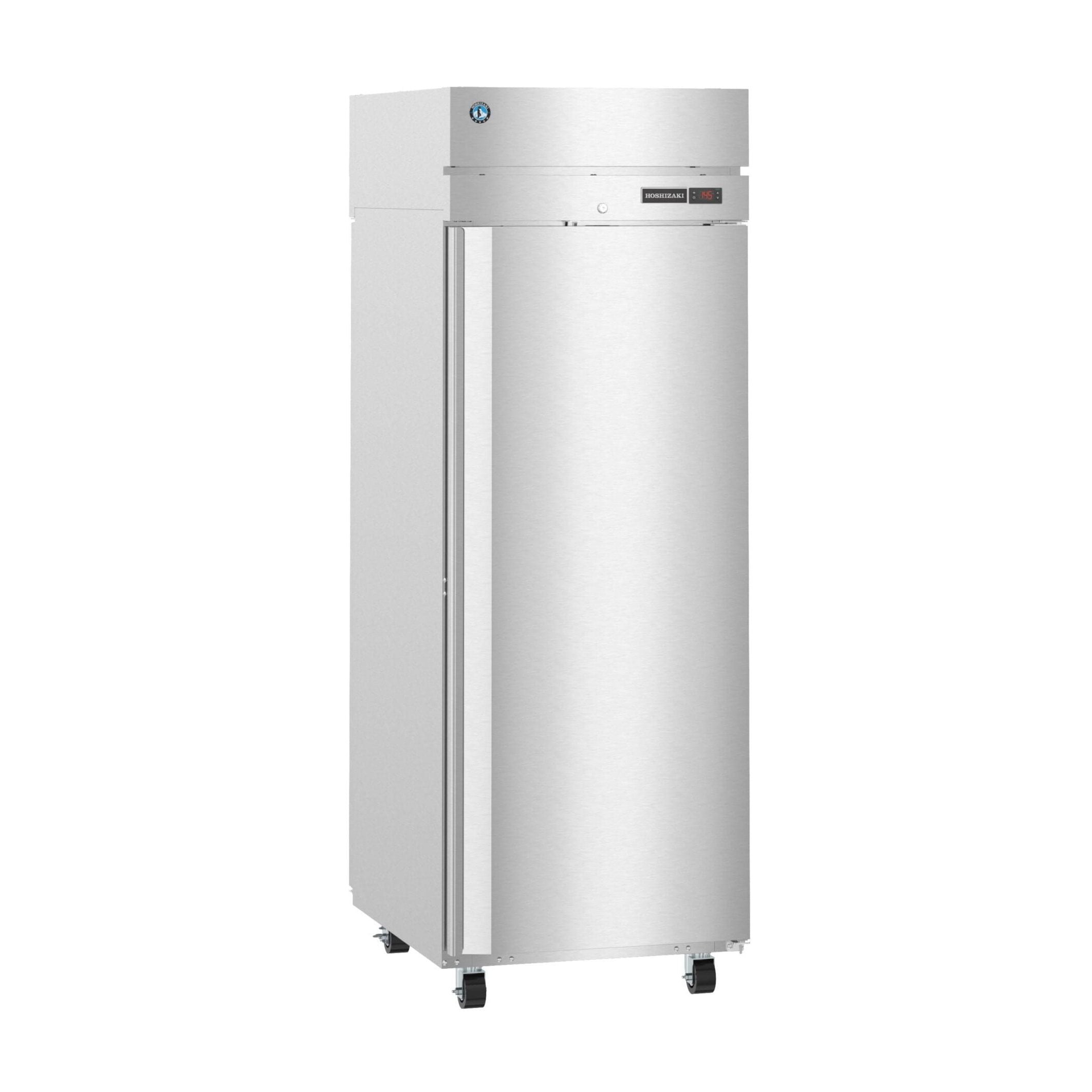

The Hoshizaki HC1A-FS is a high-performance, single-section heated holding cabinet designed for commercial kitchens that demand reliability, efficiency, and durability. With a compact footprint and robust stainless steel construction, this unit ensures optimal food holding temperatures and easy mobility, making it ideal for busy foodservice environments.
Key Features
-
Top-mounted heating element with fan for uniform heat distribution
-
Solid state digital controller with LED temperature display (°F/°C)
-
Temperature alarms for high/low temp and voltage
-
Field reversible door with lock and stay-open feature
- Energy-efficient LED interior lighting
-
Exclusive stepped door design protects recessed magnetic gaskets
-
Self-closing door with full-length handle
-
Stainless steel shelf supports and three epoxy-coated wire shelves
-
Fits up to 12 sheet pans for maximum storage
-
Standard 4" casters (two with brakes) for mobility
Construction & Durability
-
Exterior: Stainless steel front, sides, and top; coated steel back and bottom
-
Interior: Stainless steel with ducted airflow system
-
Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
-
Door: Stainless steel interior/exterior, spring-assisted, magnetic gasket
-
Dimensions: 27.5" W x 33.5" D x 79.5" H (with casters)
-
Shipping Weight: 340 lbs
Mobility & Installation
- Ships with 4" polyolefin casters (two locking)
- Optional 6" adjustable legs available
-
10 ft. cord and NEMA 5-15P plug for 115V/60/1 power
-
No clearance required on sides, top, or rear
-
Field reversible door for flexible installation
-
Easy shelf setup with adjustable pilasters and clips
Certifications & Warranty
-
Certifications: NSF, UL, ENERGY STAR® Partner
-
Warranty:
-
7-Year Parts & Labor on entire unit
- 7-Year Compressor Warranty
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Additional epoxy or stainless steel shelves
- Pan slides: 2, 6, or 8 sets (HS-3557, HS-5081, HS-3558)
- Wire slides: 1 or 4 sets (HS-5092, HS-5093)
- Foot pedal (HS-5379, right hinge)
- 6" adjustable legs
Why Choose Hoshizaki?
Hoshizaki is a globally recognized leader in commercial refrigeration and foodservice equipment. Known for its commitment to quality, innovation, and sustainability, Hoshizaki products are built to perform in demanding environments. With ENERGY STAR® certified efficiency and a reputation for durability, the HC1A-FS is a smart investment for any professional kitchen.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
