Overview

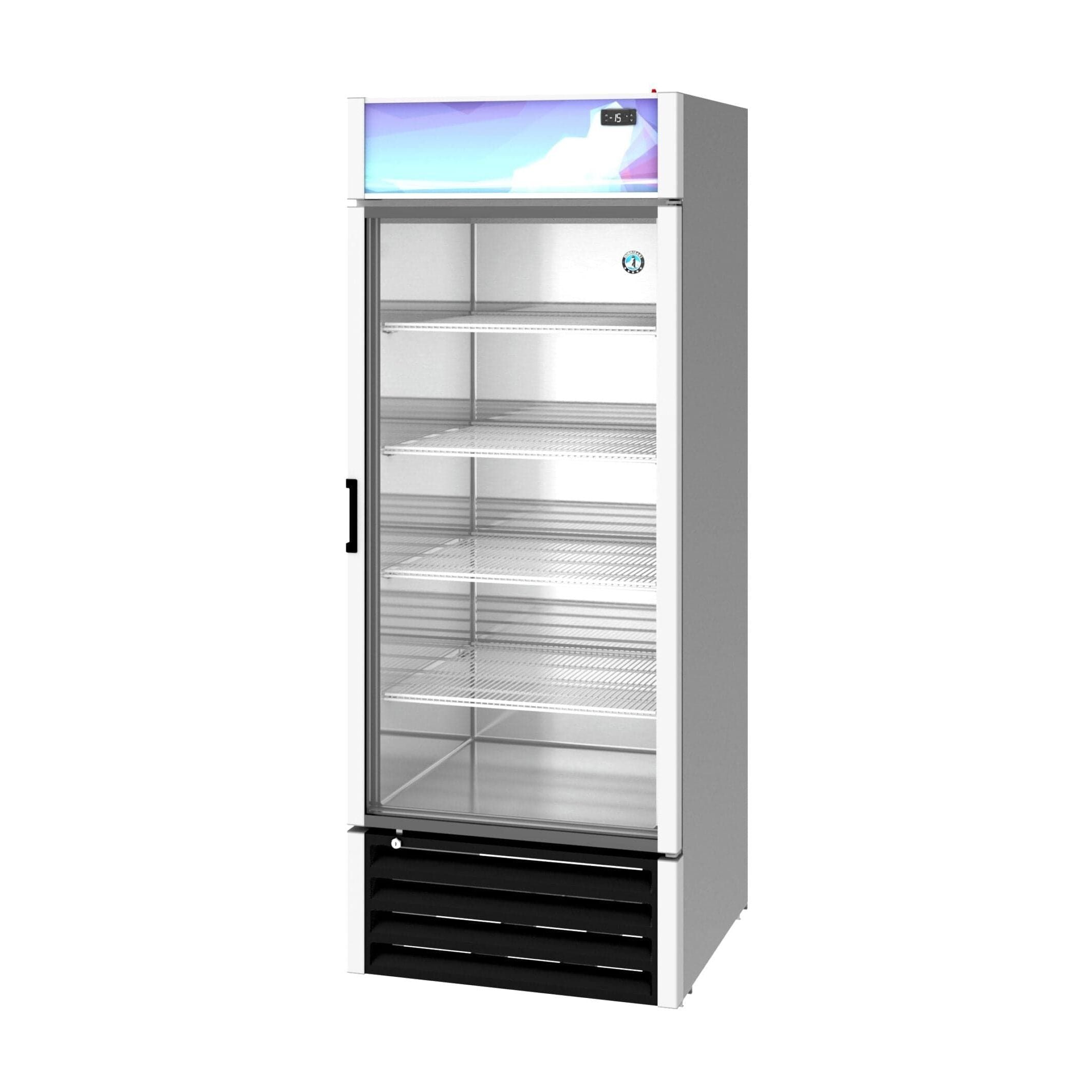

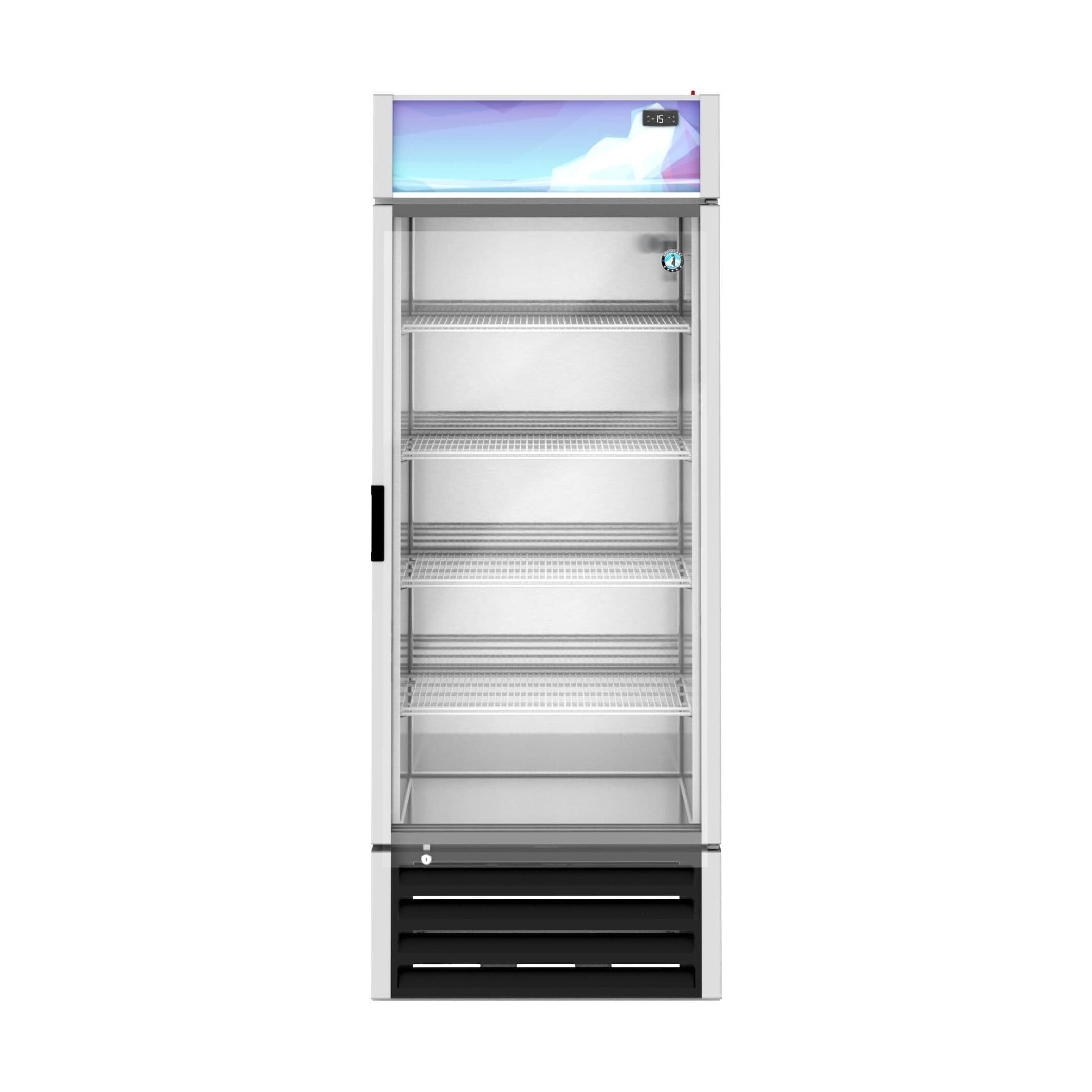

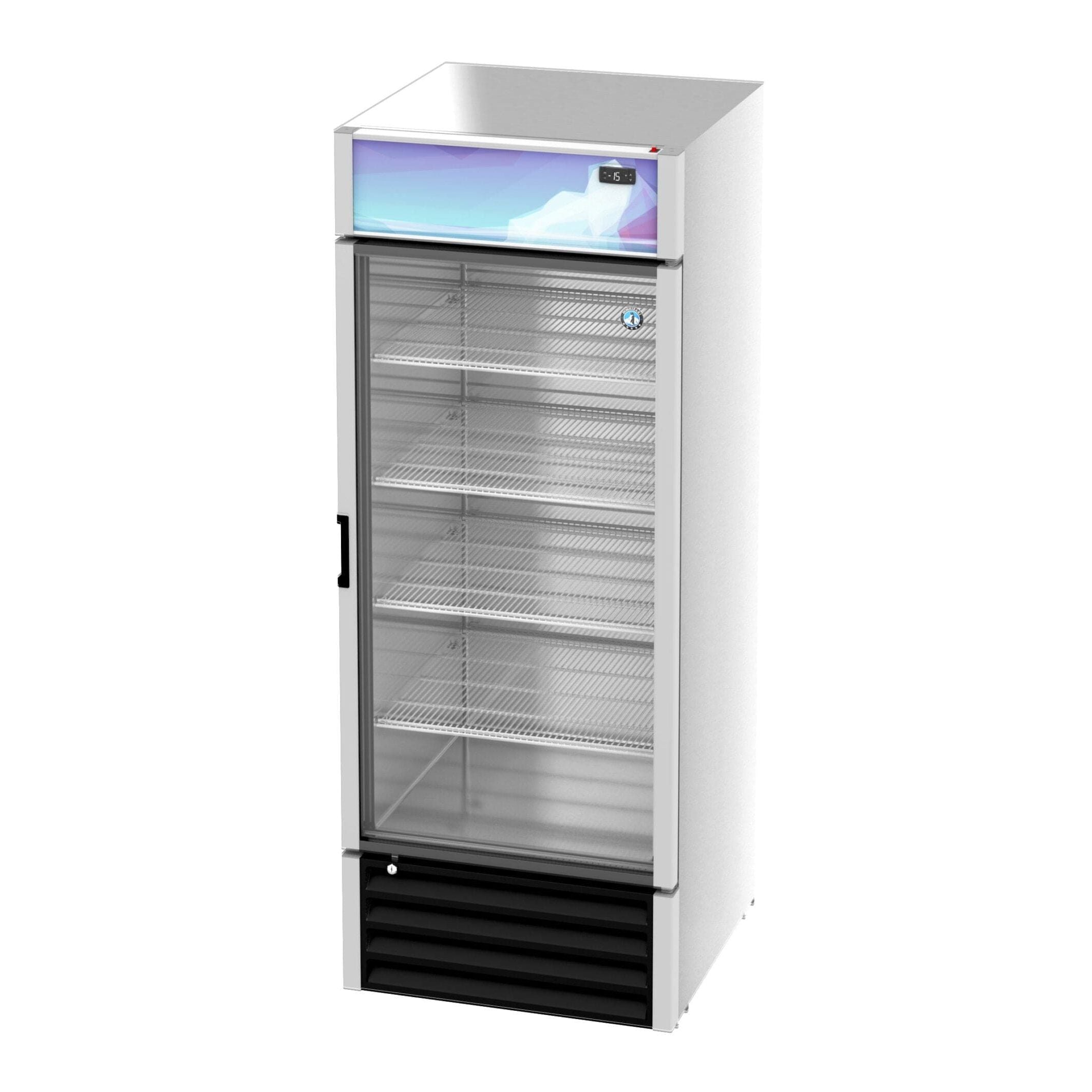

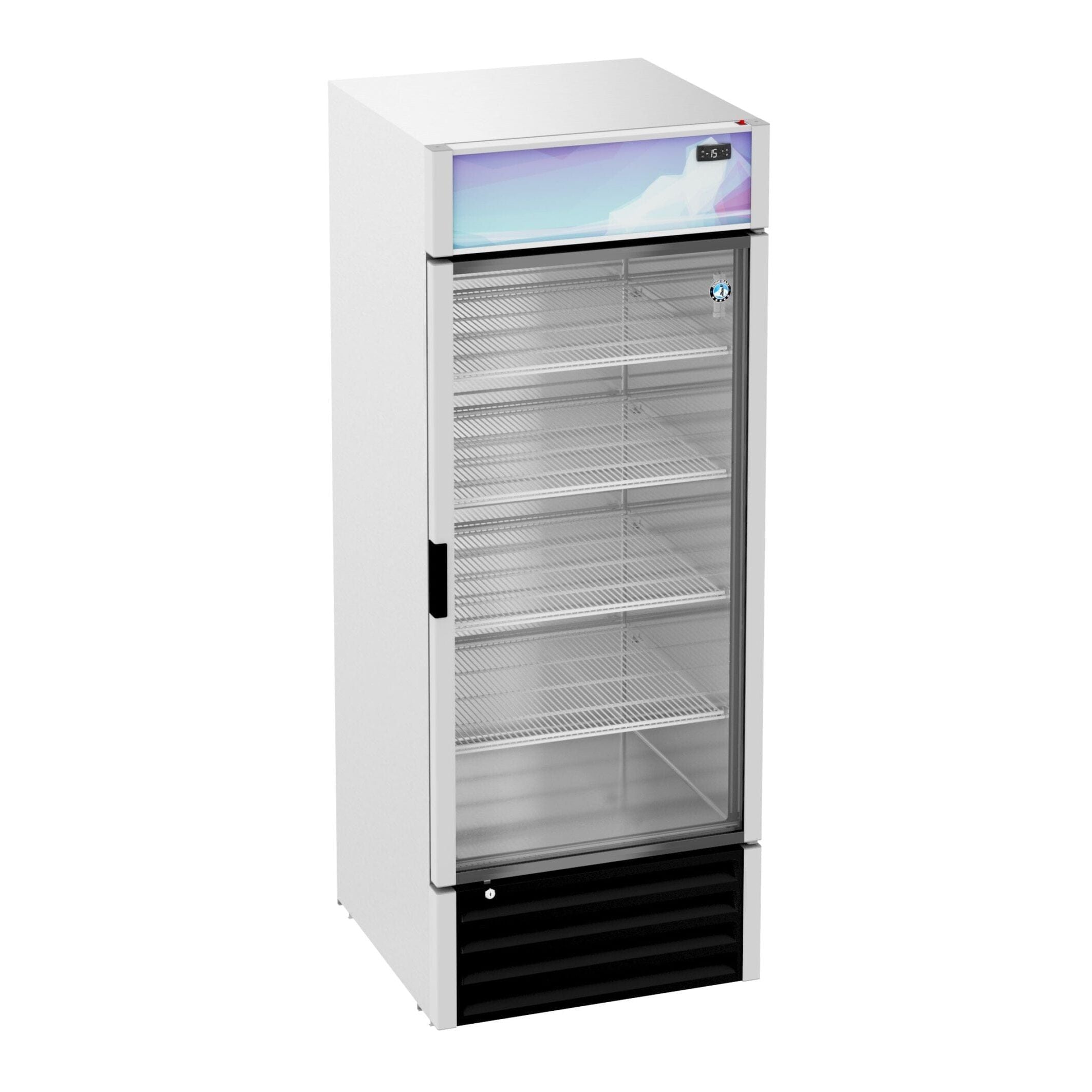

The Hoshizaki FM-23-HC is a high-performance glass door freezer merchandiser designed for maximum product visibility and energy efficiency. Ideal for convenience stores, cafes, and retail environments, this unit combines a sleek design with advanced refrigeration technology to keep your products at optimal frozen temperatures while showcasing them with brilliant LED lighting.
Key Features
-
Capacity: 20.71 cu. ft. storage space.
-
Dimensions: 30” W x 29.75” D x 78” H.
-
Door: Energy-efficient Low-E multi-pane glass door with lock.
-
Lighting: Bright vertical LED interior lights and illuminated exterior graphic display.
-
Shelving: (5) adjustable white epoxy-coated shelves with product stops.
-
Temperature Range: -10°F to 0°F (-23°C to -18°C).
-
Refrigerant: Environmentally friendly R290 hydrocarbon refrigerant.
-
Defrost: Time-initiated automatic defrost system.
-
Insulation: CFC-free polyurethane insulation with cyclopentane blowing agent.
-
Electrical: 115V/60Hz/1 phase, NEMA 5-15P plug.
-
Weight: 385 lbs.
Construction & Durability
- Silver-painted galvanized steel exterior with NSF-approved white steel interior.
- Stainless steel floor for added strength and easy cleaning.
- Heavy-duty door hinges with self-closing mechanism for durability and convenience.
- Forced-air evaporator for quick temperature recovery.
Mobility & Installation
- Standard 2” leveling legs for stability.
- Optional 4” casters available for enhanced mobility.
- Simple plug-and-play installation with an 8-foot cord and plug.
Certifications & Warranty
-
NSF/ANSI Standard 7 certified for the storage and display of packaged or bottled products.
-
UL Listed for safety and performance.
- Backed by Hoshizaki’s industry-leading warranty and support.
Optional Accessories
-
4” Casters Kit for easy mobility.
-
Custom Graphic Panels for branding and promotional displays.
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, renowned for innovative design, energy efficiency, and unmatched reliability. Every product is engineered to deliver superior performance, reduce energy costs, and provide long-lasting value for your business.
