Product Details
Overview

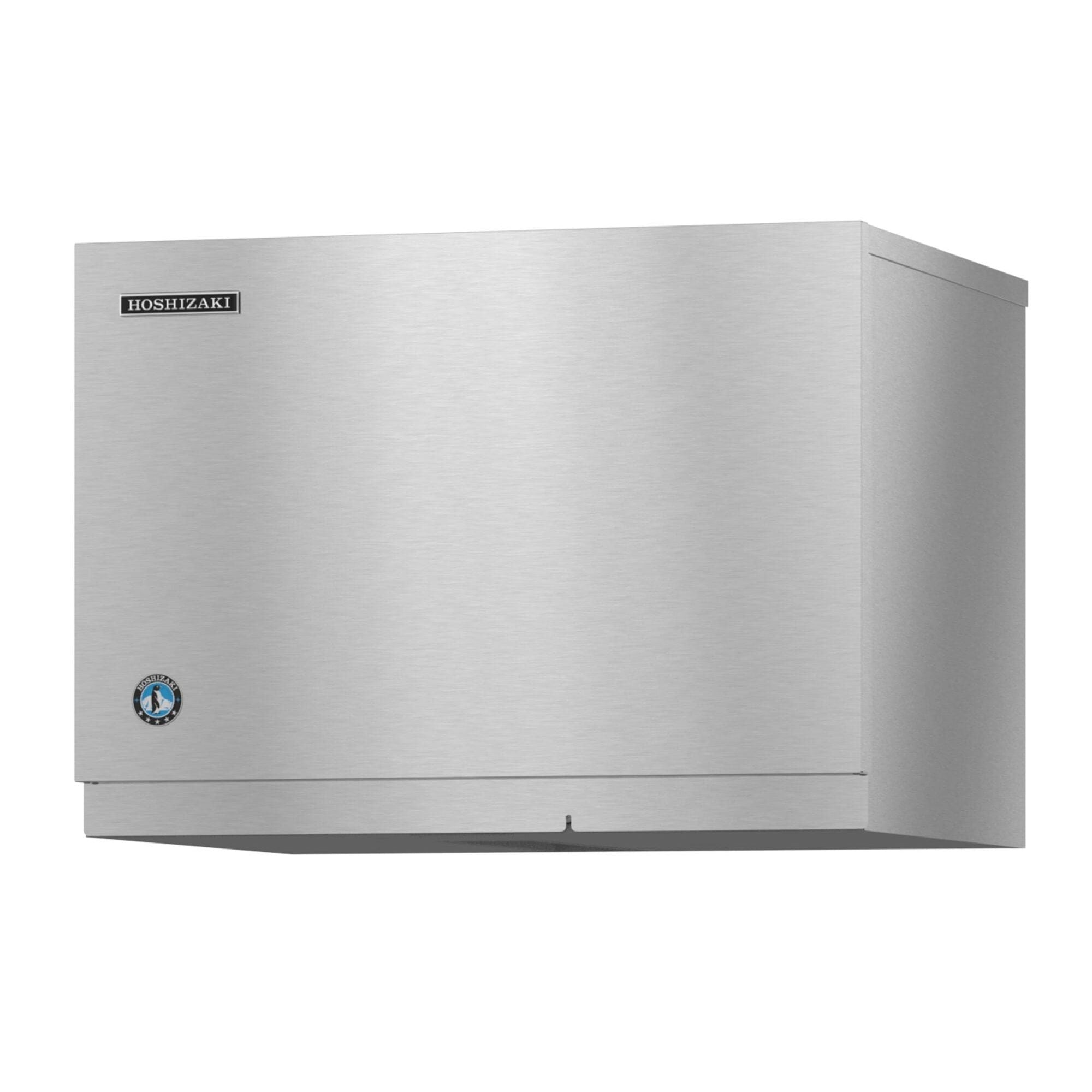

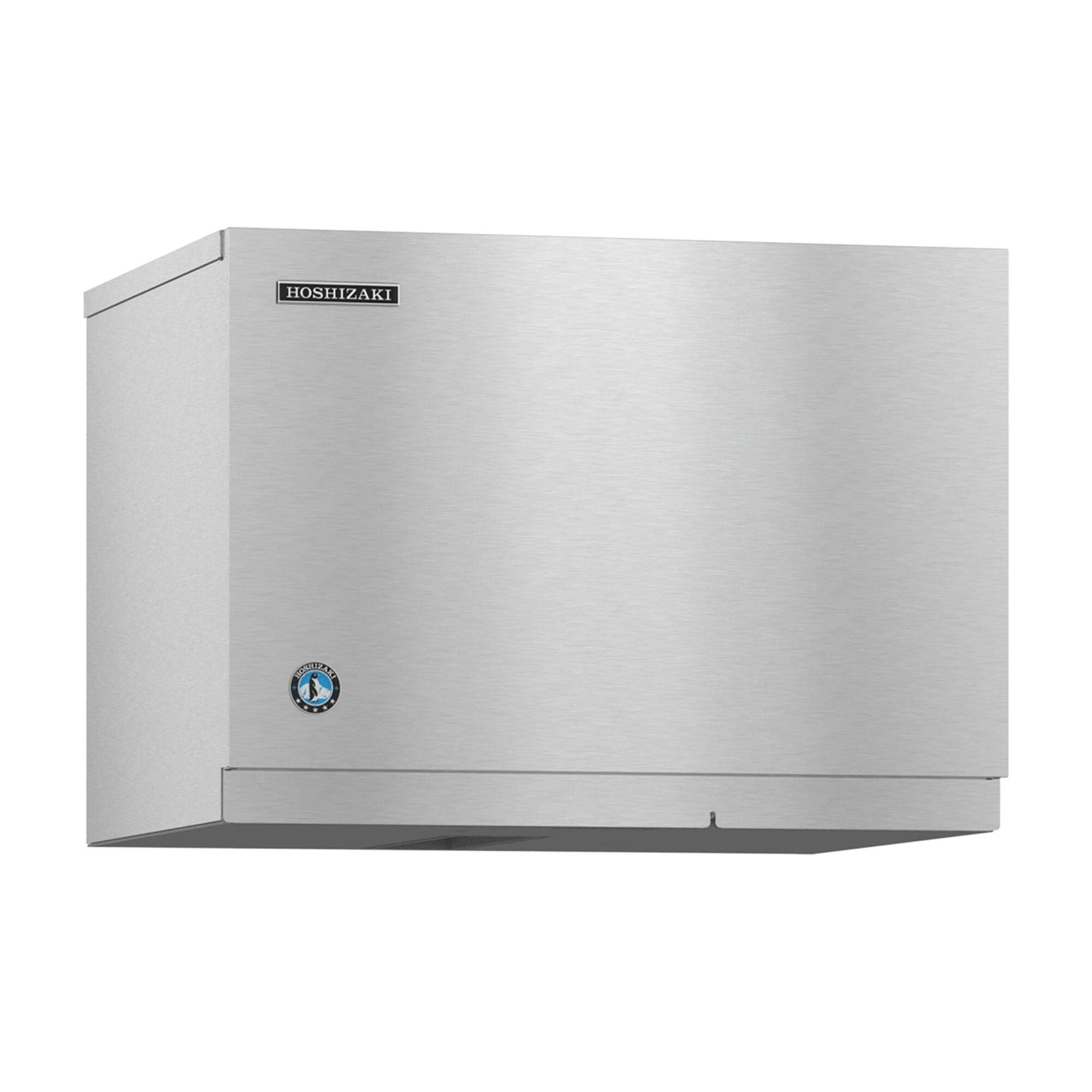

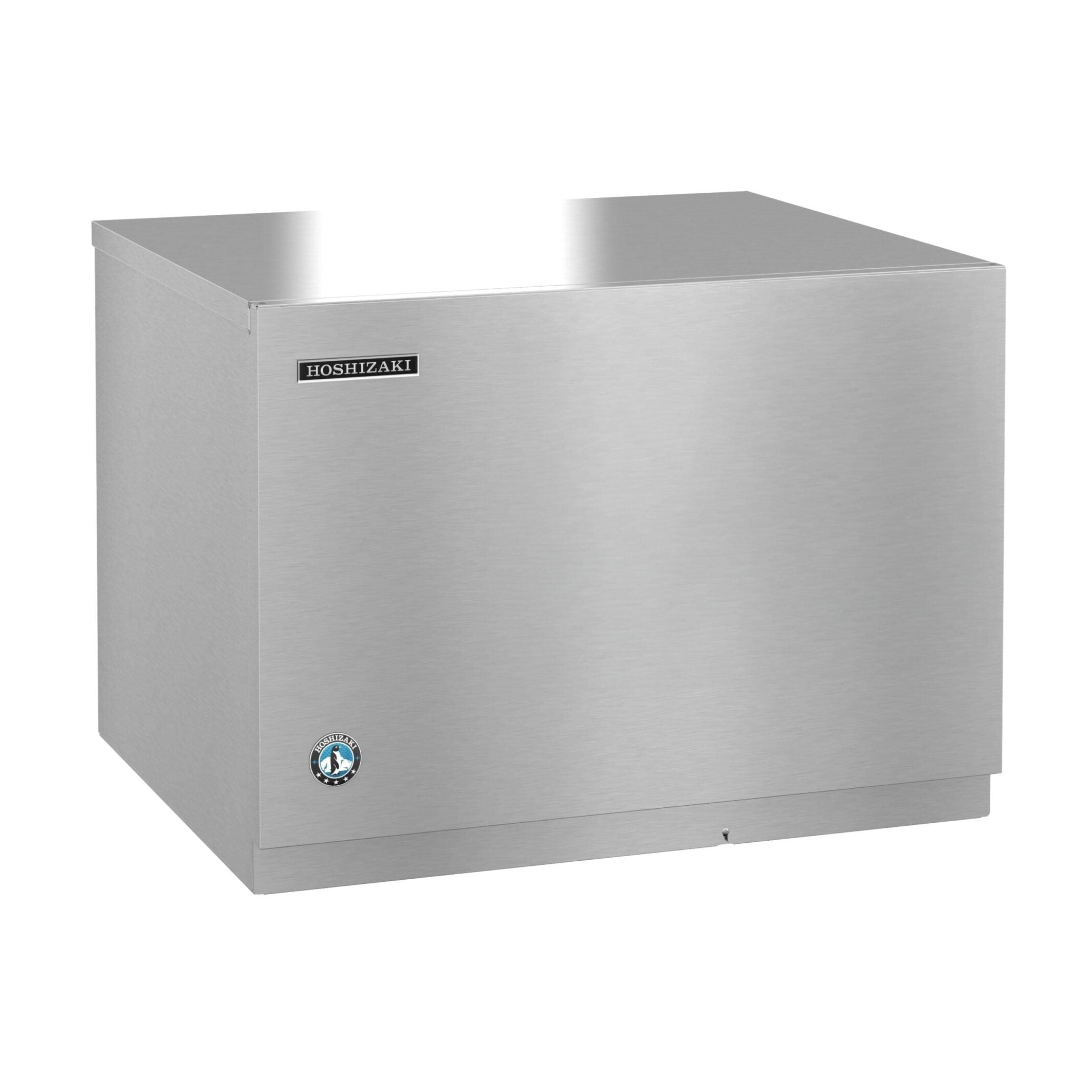

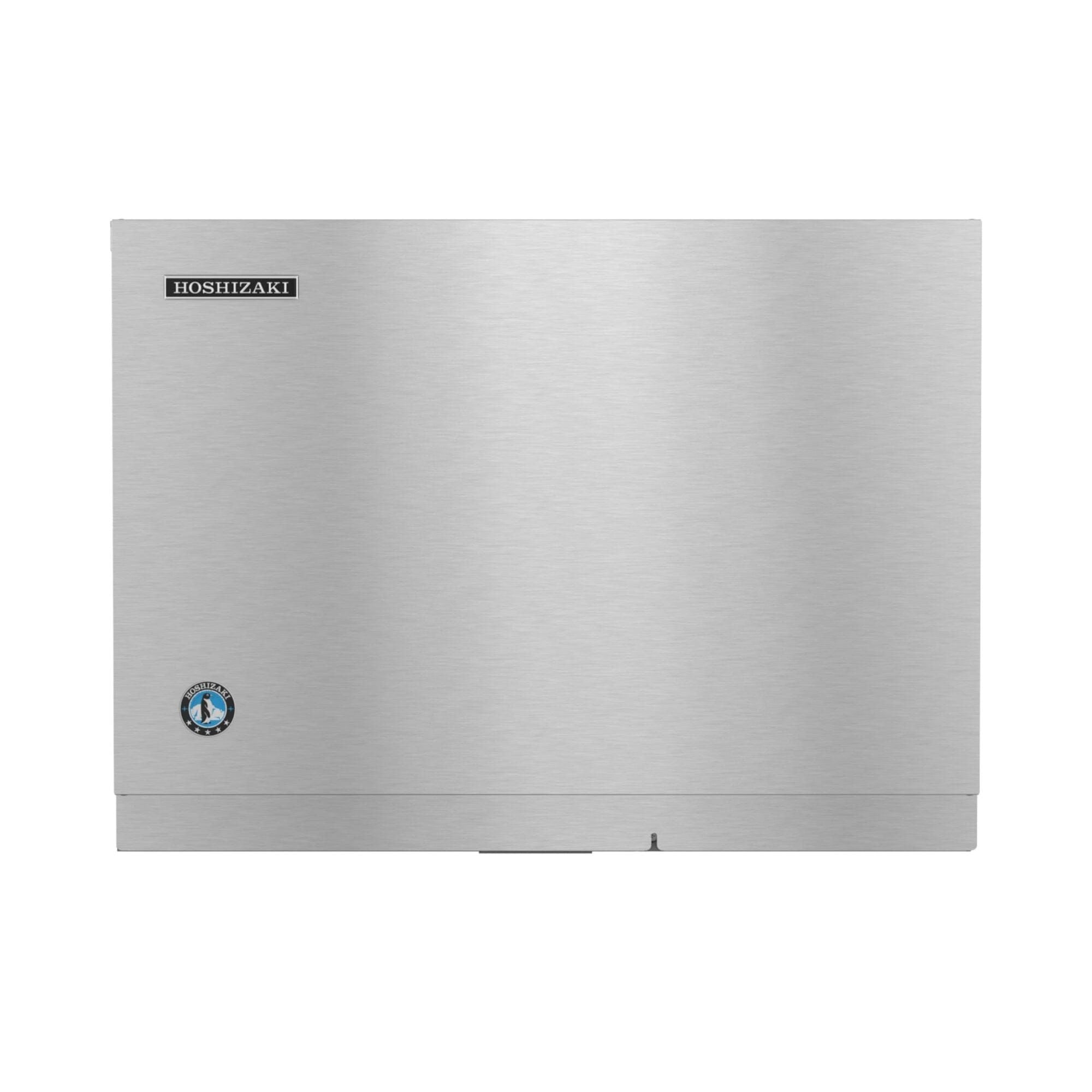

The Hoshizaki KMD-355MWJ is a high-performance modular crescent cuber designed for beverage dispensers and ice storage bins. With a compact 30-inch width, this water-cooled unit produces up to 395 lbs. of individual crescent-shaped ice cubes per day under optimal conditions. Engineered for reliability and efficiency, it features CycleSaver™ technology, EverCheck™ alert system, and a stainless steel double-sided evaporator for long-lasting durability.
Key Features
- Ice Production: Up to 395 lbs. per 24 hours (at 70°F air / 50°F water).
- Water-Cooled Efficiency: Ideal for environments with high ambient temperatures.

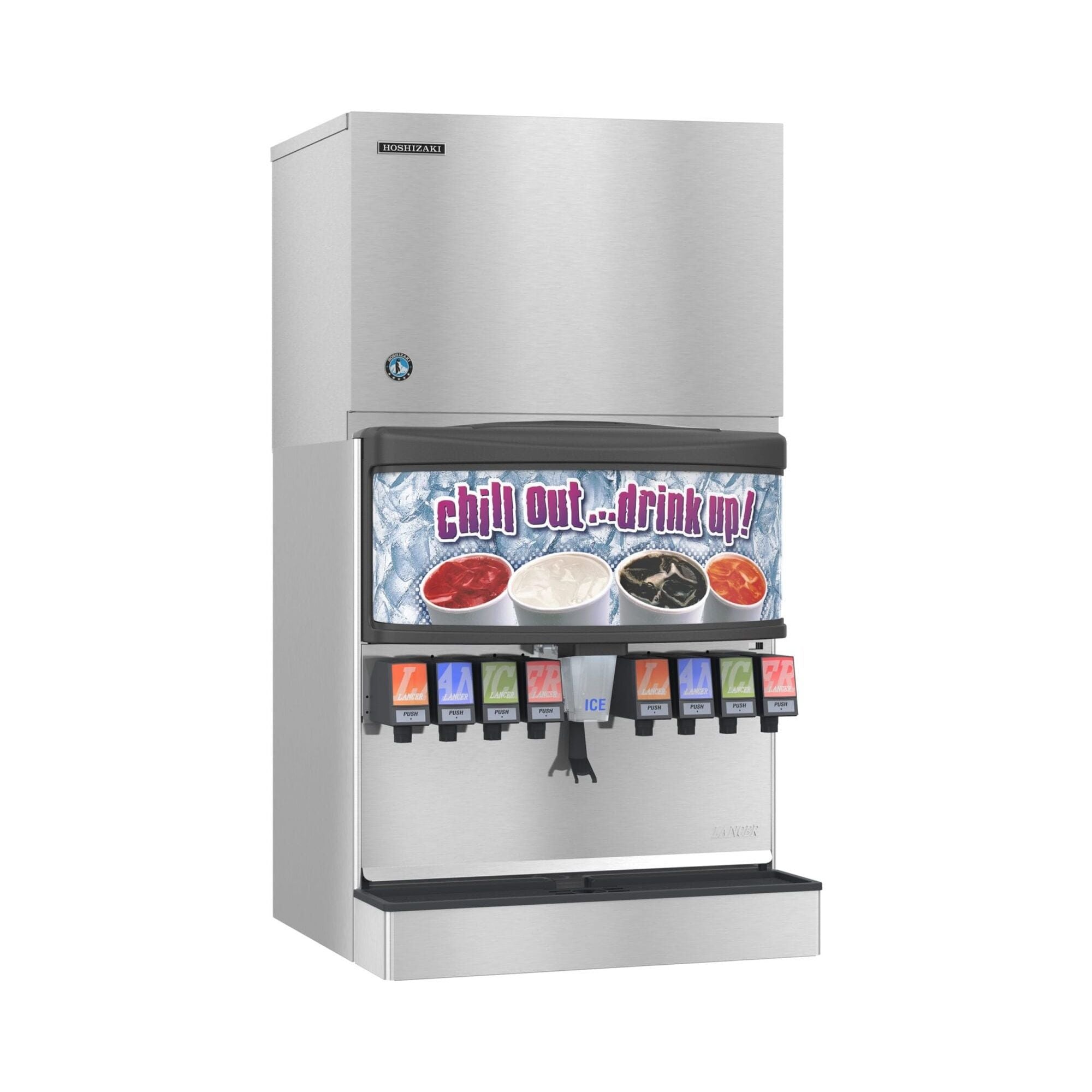

- Optimized for Beverage Dispensers: Perfect for fountain drink applications.
- Factory-Installed Ultrasonic Bin Control: Adjustable for precise ice level management.
- CycleSaver™ Design: Reduces energy consumption and extends component life.
- EverCheck™ Alert System: Audible alerts for easy maintenance.
- Simple One-Hour Cleaning Process: Minimize downtime with easy maintenance.
- Environmentally Friendly Refrigerant: Uses R-404A.
Construction & Durability
- Stainless Steel Double-Sided Evaporator: Ensures consistent ice quality and durability.
- Heavy-Duty Components: Built for continuous commercial use.
- Snap-Fit Parts: Simplifies cleaning and servicing.
- Removable Panels: Easy access to internal components for maintenance.
Mobility & Installation
- Dimensions: 30" W x 24" D x 22" H.
- Clearance: 6" at rear, sides, and top for proper airflow and service.
- Electrical: 115V/60/1, 7.4A, 15A circuit, hard-wired connection required.
-
Operating Conditions:
- Ambient: 45°F–100°F
- Water: 45°F–90°F
- Water Pressure: 10–113 PSIG
-
Plumbing:
- Icemaker Water Inlet: 1/2" FPT (min. 1/4" ID copper tubing)
- Drain Outlet: 3/4" FPT (min. 3/4" ID hard pipe)
- Condenser Water Inlet: 1/2" FPT
- Condenser Drain Outlet: 3/8" FPT
Certifications & Warranty
- Certifications: NSF, UL, AHRI Certified.
-
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on Evaporator
- 5-Year Parts on Compressor
Optional Accessories
- Ice Storage Bins: Compatible with B-500SF, BD-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS.
- Top Kits: HS-2148 for dispenser applications.
- Water Filtration: H9320-51 Single Water Filter Kit or HS-5283 EcO Ice Filter.
- Remote Monitoring System: HS-5562 for advanced diagnostics.
- Side-Breathing Kit: HS-5734 for tight installations.
Why Choose Hoshizaki?
Hoshizaki is a trusted leader in commercial ice-making solutions, delivering innovative technology, superior reliability, and energy efficiency. Every unit is designed for maximum uptime, easy maintenance, and exceptional ice quality, helping businesses reduce operating costs and improve customer satisfaction.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
