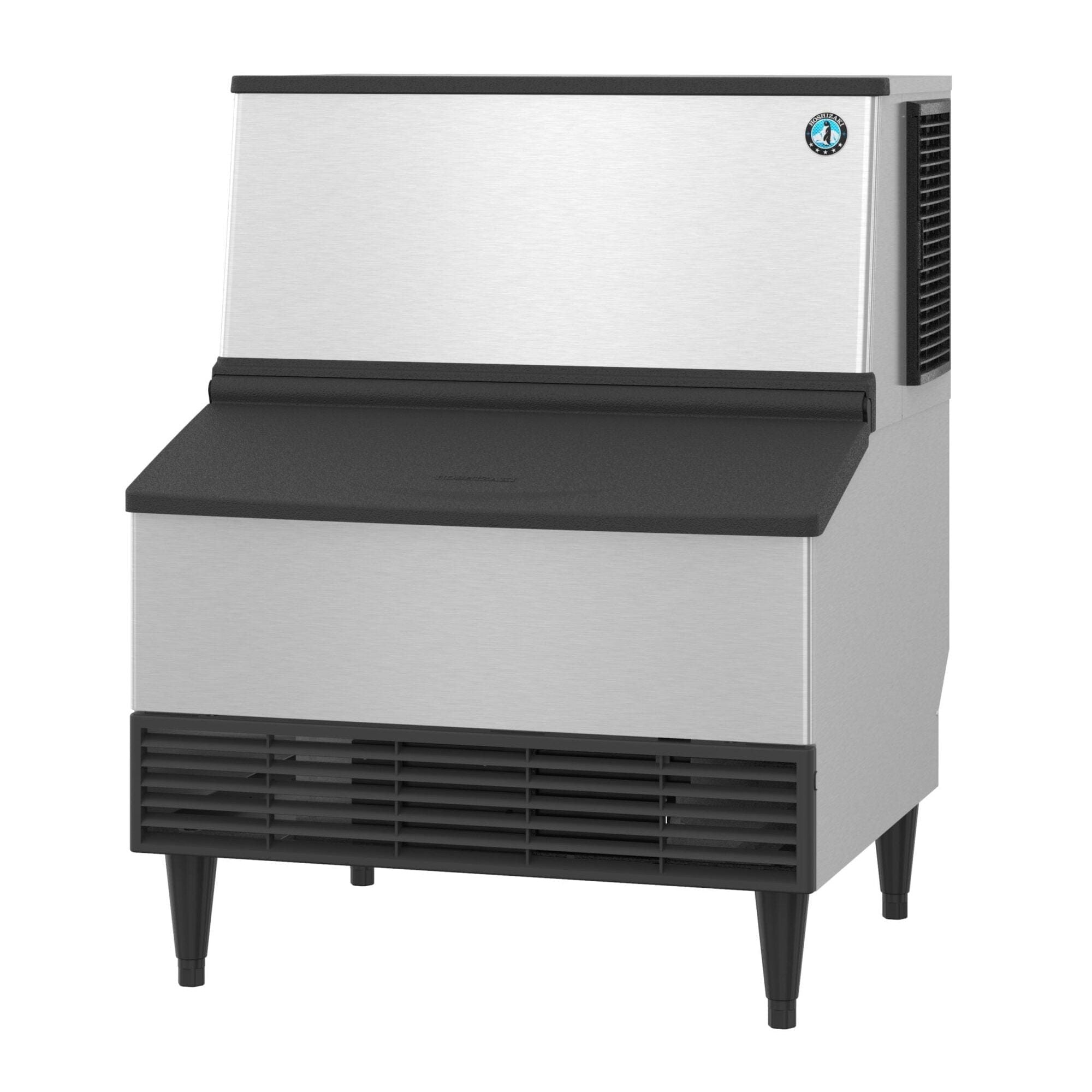

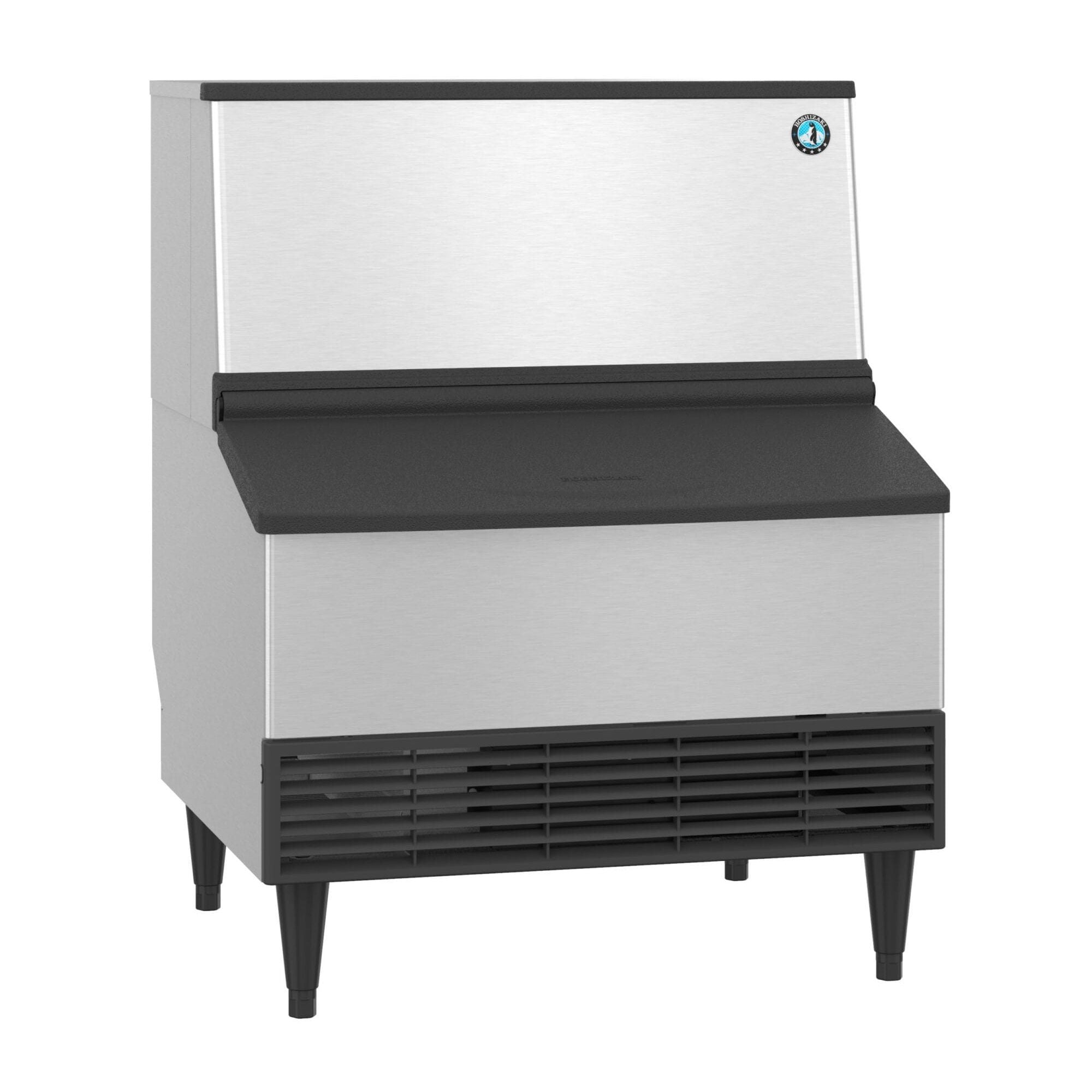

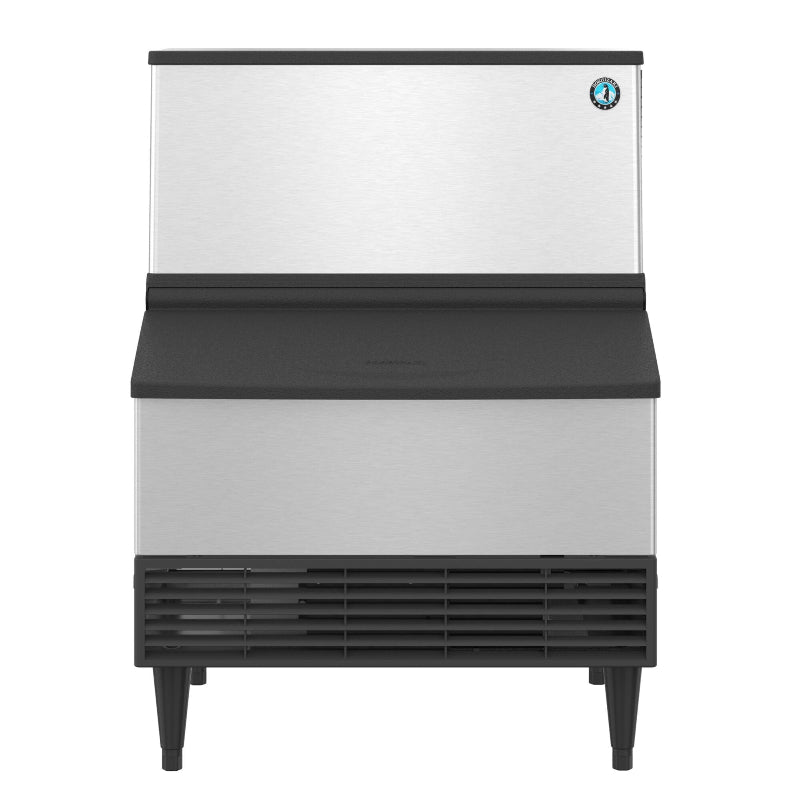

Hoshizaki KM-301BAJ Self-Contained Crescent Cuber with Built-In Storage Bin – Air-Cooled, 115V
by Hoshizaki
$4,200.00
- Product Details
- Shipping
- Assembly
- Warranty
- Reviews
Product Details
Overview
The Hoshizaki KM-301BAJ is a compact, self-contained ice maker designed for undercounter or freestanding installation. Perfect for bars, restaurants, and hospitality environments, this unit produces up to 290 lbs. of crescent-shaped ice per day and includes a built-in storage bin with 100 lbs. capacity. With its front-in, front-out airflow, ADA-compliant bin opening, and durable stainless steel construction, the KM-301BAJ delivers reliability and efficiency in a space-saving design.
Key Features
- Ice Production: Up to 290 lbs. of crescent cube ice per 24 hours (at 70°F air / 50°F water).
- Built-In Storage: Holds up to 100 lbs. of ice.
- Compact Design: Ideal for undercounter or freestanding applications.
- Front-In, Front-Out Airflow: Allows zero-clearance installation on sides and back.
- EverCheck™ Alert System: Audible alerts for easy maintenance.
- CycleSaver™ Design: Reduces energy consumption and extends component life.
- Removable Air Filter: Easy cleaning for optimal performance (air-cooled model).
- ADA-Compliant Bin Opening: Accessible and user-friendly.
- Environmentally Friendly Refrigerant: Uses R-404A.
Construction & Durability
- Stainless Steel Exterior: Corrosion-resistant and easy to clean.
- Stainless Steel Evaporator: Ensures long-lasting performance and sanitary ice production.
- Heavy-Duty Components: Built for continuous operation in commercial environments.
Mobility & Installation
- Dimensions: 30" W x 28" D x 39" H (including 6" legs).
- Clearance: 2" on right side; 0.6" on top for service.
- Electrical: 115V/60/1, 8.4A, NEMA 5-15P plug included.
- Operating Conditions: Ambient 45°F–100°F; Water 45°F–90°F; Water Pressure 10–113 PSIG.
-
Plumbing:
- Water Inlet: 1/2" FPT (min. 1/4" ID copper tubing)
- Drain: 3/4" FPT (min. 3/4" ID hard pipe)
- Power Cord: 6.5 ft. included.
Certifications & Warranty
- Certifications: NSF, UL, AHRI Certified.
-
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on Evaporator
- 5-Year Parts on Compressor and Air-Cooled Condenser Coil
Optional Accessories
- Water Filters: Recommended for optimal performance and warranty compliance.
- Leg Kits: Adjustable 6"–7" legs included; optional casters available.
- Drain Pump Kit: For installations without a gravity drain.
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial ice-making solutions, known for innovation, reliability, and energy efficiency. Every product is engineered for maximum durability, ease of maintenance, and superior ice quality, helping businesses reduce downtime and operating costs.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
