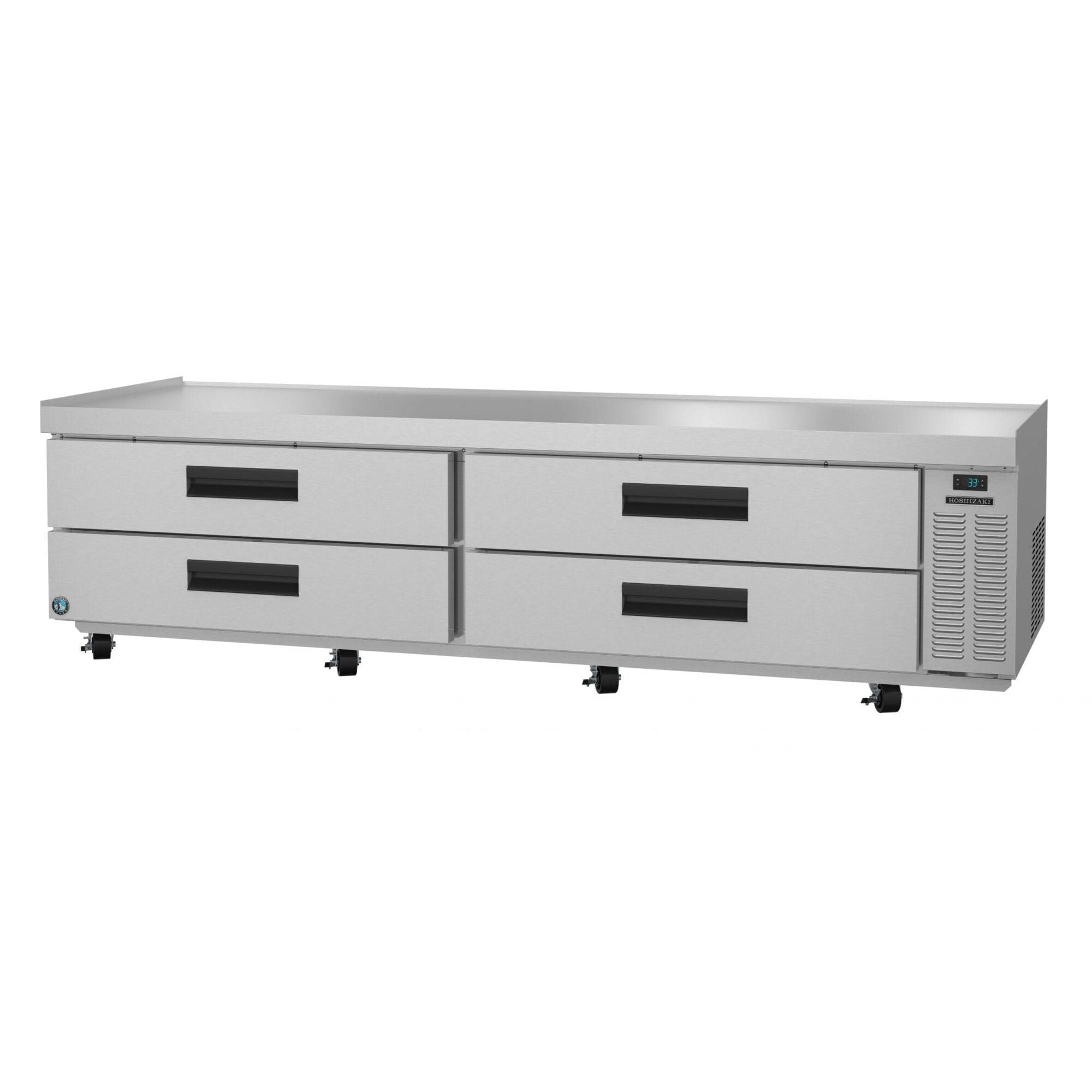

Hoshizaki Hoshizaki CR98A Low-Profile Refrigerated Chef Base – 98" Wide, 4 Drawers

Hoshizaki CR98A Low-Profile Refrigerated Chef Base – 98" Wide, 4 Drawers

by Hoshizaki
SKU CR98A
$12,351.77 - $12,351.77
$12,351.77
$12,351.77 - $12,351.77
$12,351.77
Availability:
In stock
Ships out in ~ 7-10 Business Days
5-Star Multi-Channel Support
Questions? Talk to an Expert.
854-220-0367 Message Us
Secure Checkout SSL Encrypted & Safe
Simple Returns View Return Policy Authorized Dealer Why Buy From Us
Highlights

Overview

This heavy-duty refrigerated chef base is designed to optimize kitchen workflow. With robust stainless steel construction, a 2,000 lb. load capacity, and precise temperature control, it provides a reliable foundation for cooking equipment while keeping ingredients fresh and within reach.

Key Features
  • Dimensions: 98" W x 32.25" D x 26" H (to work surface with 4" casters)
  • Storage Capacity: 24.75 cu. ft. (22.2 cu. ft. AHAM)
  • Drawers: 4 heavy-duty drawers, each accommodating (3) 12" x 20" x 6" pans (pans not included)
  • Top Load Capacity: Supports up to 2,000 lbs. of cooking equipment
  • Temperature Range: 32°F to 52°F
  • Refrigerant: Environmentally friendly R290 hydrocarbon
  • Controller: Solid-state digital controller with LED display and temperature alarms
  • Insulation: 2" CFC-free foamed-in-place polyurethane
  • Electrical: 115V/60Hz/1 phase, NEMA 5-15P plug
  • Energy Consumption: 3.69 kWh/day @ NSF
  • Casters: (8) 4" heavy-duty casters, all with brakes
  • Top: 16-gauge stainless steel with marine edge and ceramic heat shield for high-heat protection
  • Cabinet: Stainless steel front, sides, and top; stainless steel interior with coved corners for easy cleaning
  • Drawers (Construction): Stainless steel inside and out, with heavy-duty welded frames and acetal rollers tested for 300,000 cycles
  • Gaskets: Snap-in magnetic drawer gaskets for easy removal and cleaning
Compatibility & Accessories
  • Front-breathing refrigeration system allows zero-clearance installation on sides
  • Requires 4" clearance between cooking equipment and top surface; temperature at top must not exceed 180°F
  • HS-4007 Drawer Divider Bars for organizing pans (sold separately)
  • Adapter bars for 1/2, 1/3, and 1/6 size pans (sold separately)
Specifications
Dimensions (W x D x H) 98" x 32.25" x 26" (to work surface with 4" casters)
Storage Capacity 24.75 cu. ft. (22.2 cu. ft. AHAM)
Drawers 4 heavy-duty (3 pans per drawer)
Top Load Capacity 2,000 lbs.
Temperature Range 32°F to 52°F
Refrigerant R290 hydrocarbon
Controller Solid-state digital with LED display and temperature alarms
Insulation 2" CFC-free foamed-in-place polyurethane
Electrical 115V / 60Hz / 1 phase, NEMA 5-15P
Energy Consumption 3.69 kWh/day @ NSF
Casters (8) 4" heavy-duty, all with brakes
Certifications NSF/ANSI Standard 7 · ETL Listed
Warranty

7-year warranty on parts, labor, and compressor (U.S., Canada, Puerto Rico). View Warranty Statement

Documents PDF Spec Sheet PDF Instruction Manual PDF Parts Manual PDF Service Manual PDF Warranty Statement PDF Product Brochure
Highlights

Overview

This heavy-duty refrigerated chef base is designed to optimize kitchen workflow. With robust stainless steel construction, a 2,000 lb. load capacity, and precise temperature control, it provides a reliable foundation for cooking equipment while keeping ingredients fresh and within reach.

Key Features
  • Dimensions: 98" W x 32.25" D x 26" H (to work surface with 4" casters)
  • Storage Capacity: 24.75 cu. ft. (22.2 cu. ft. AHAM)
  • Drawers: 4 heavy-duty drawers, each accommodating (3) 12" x 20" x 6" pans (pans not included)
  • Top Load Capacity: Supports up to 2,000 lbs. of cooking equipment
  • Temperature Range: 32°F to 52°F
  • Refrigerant: Environmentally friendly R290 hydrocarbon
  • Controller: Solid-state digital controller with LED display and temperature alarms
  • Insulation: 2" CFC-free foamed-in-place polyurethane
  • Electrical: 115V/60Hz/1 phase, NEMA 5-15P plug
  • Energy Consumption: 3.69 kWh/day @ NSF
  • Casters: (8) 4" heavy-duty casters, all with brakes
  • Top: 16-gauge stainless steel with marine edge and ceramic heat shield for high-heat protection
  • Cabinet: Stainless steel front, sides, and top; stainless steel interior with coved corners for easy cleaning
  • Drawers (Construction): Stainless steel inside and out, with heavy-duty welded frames and acetal rollers tested for 300,000 cycles
  • Gaskets: Snap-in magnetic drawer gaskets for easy removal and cleaning
Compatibility & Accessories
  • Front-breathing refrigeration system allows zero-clearance installation on sides
  • Requires 4" clearance between cooking equipment and top surface; temperature at top must not exceed 180°F
  • HS-4007 Drawer Divider Bars for organizing pans (sold separately)
  • Adapter bars for 1/2, 1/3, and 1/6 size pans (sold separately)
Specifications
Dimensions (W x D x H) 98" x 32.25" x 26" (to work surface with 4" casters)
Storage Capacity 24.75 cu. ft. (22.2 cu. ft. AHAM)
Drawers 4 heavy-duty (3 pans per drawer)
Top Load Capacity 2,000 lbs.
Temperature Range 32°F to 52°F
Refrigerant R290 hydrocarbon
Controller Solid-state digital with LED display and temperature alarms
Insulation 2" CFC-free foamed-in-place polyurethane
Electrical 115V / 60Hz / 1 phase, NEMA 5-15P
Energy Consumption 3.69 kWh/day @ NSF
Casters (8) 4" heavy-duty, all with brakes
Certifications NSF/ANSI Standard 7 · ETL Listed
Warranty

7-year warranty on parts, labor, and compressor (U.S., Canada, Puerto Rico). View Warranty Statement

Documents PDF Spec Sheet PDF Instruction Manual PDF Parts Manual PDF Service Manual PDF Warranty Statement PDF Product Brochure
