Overview

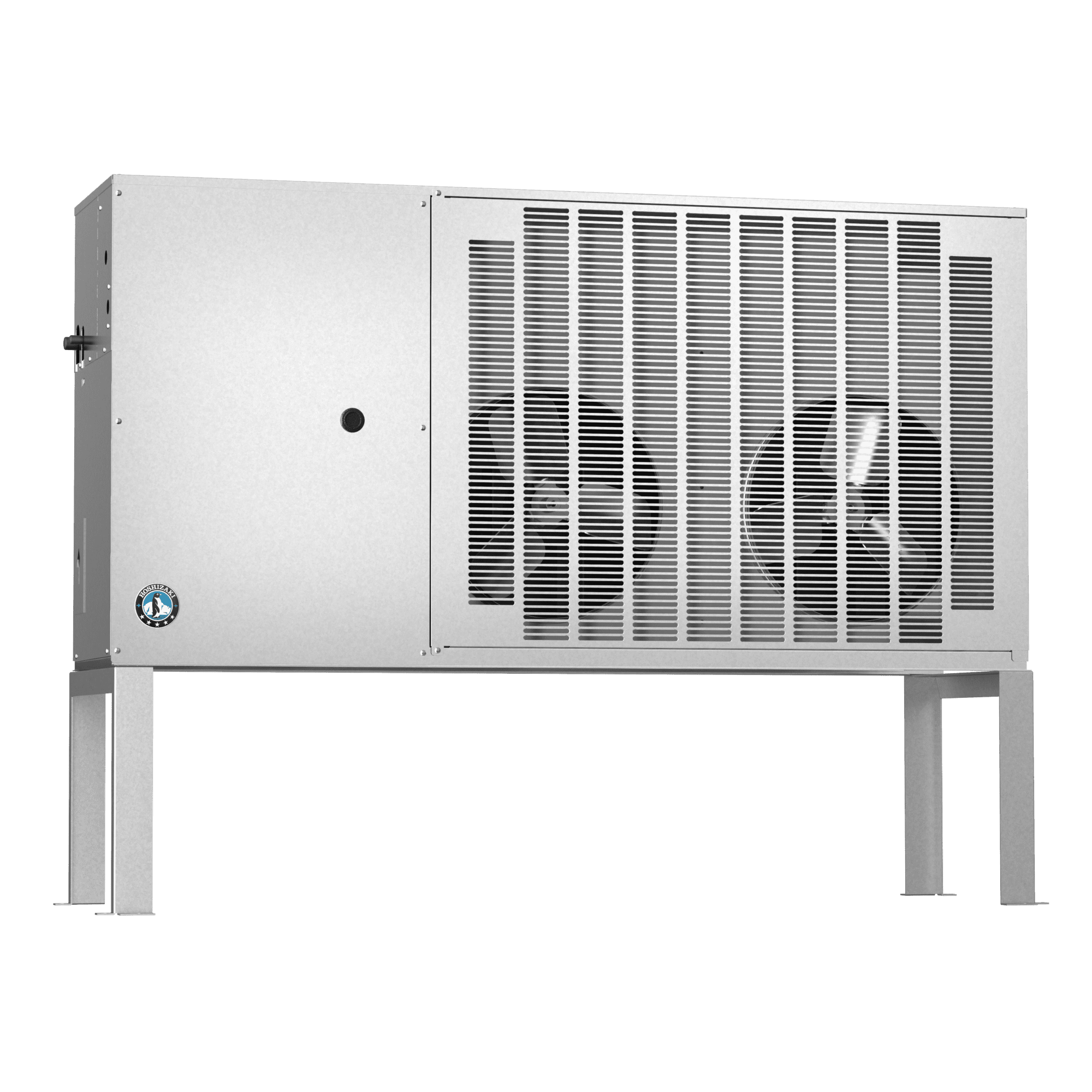

The Hoshizaki SRK-20J3 is a high-capacity remote condenser designed to support the KMS-2000MLJ ice maker. Built for quiet operation and energy efficiency, this outdoor-rated unit reduces heat and noise in indoor environments while ensuring optimal ice production. Ideal for demanding commercial applications, the SRK-20J3 offers robust performance and long-term reliability.
Key Features
- Compatible with KMS-2000MLJ ice maker
- Remote air-cooled design minimizes indoor heat and noise
- Weather-resistant stainless steel cabinet for outdoor installation
- Quiet operation with improved energy efficiency
- Supports installations up to 55 ft. from ice maker
- Uses R-404A refrigerant
- ENERGY STAR® qualified
Construction & Durability
-
Cabinet Material: Stainless steel weather-resistant housing
-
Dimensions: 62" W x 21" D x 45" H (including legs)
-
Shipping Weight: 345 lbs.
-
Design Pressure: HI-467 PSI / LO-230 PSI
-
Refrigerant Charge: 15 lb. 14 oz. of R-404A
Mobility & Installation
-
Electrical Requirements: 208–230V/60Hz/3Ph
-
Voltage Range: 187–253V
-
Ambient Temp Range: –4°F to 122°F
-
Line Set Compatibility: HS-0243 (25'), HS-0244 (35'), HS-0245 (55') – brazing required
-
Max Line Set Length: 55 ft. (longer installations require factory consultation)
-
Vertical Distance Limits: Up to 33 ft. above or 10 ft. below ice maker
-
Clearance Requirements: 24" front and rear for airflow and service access
-
Installation Notes: Must be hard-wired; power cord not included
Certifications & Warranty
-
Certifications: UL Listed, ENERGY STAR® Partner, Made in Georgia, USA
-
Warranty Coverage:
- 3 Years Parts & Labor on entire unit
- 5 Years Parts on air-cooled condenser coil
- 5 Years Parts on SRK compressor
-
Valid in: United States, Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Line Sets (Brazed):
- HS-0243 (25 ft.)
- HS-0244 (35 ft.)
- HS-0245 (55 ft.)
-
Tubing Kits: Refer to specifications table for correct kit based on ice maker model
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration and ice-making solutions. The SRK-20J3 remote condenser exemplifies Hoshizaki’s commitment to innovation, energy efficiency, and durability. With a robust warranty, ENERGY STAR® certification, and quiet operation, Hoshizaki products deliver performance that goes Beyond Strong.
